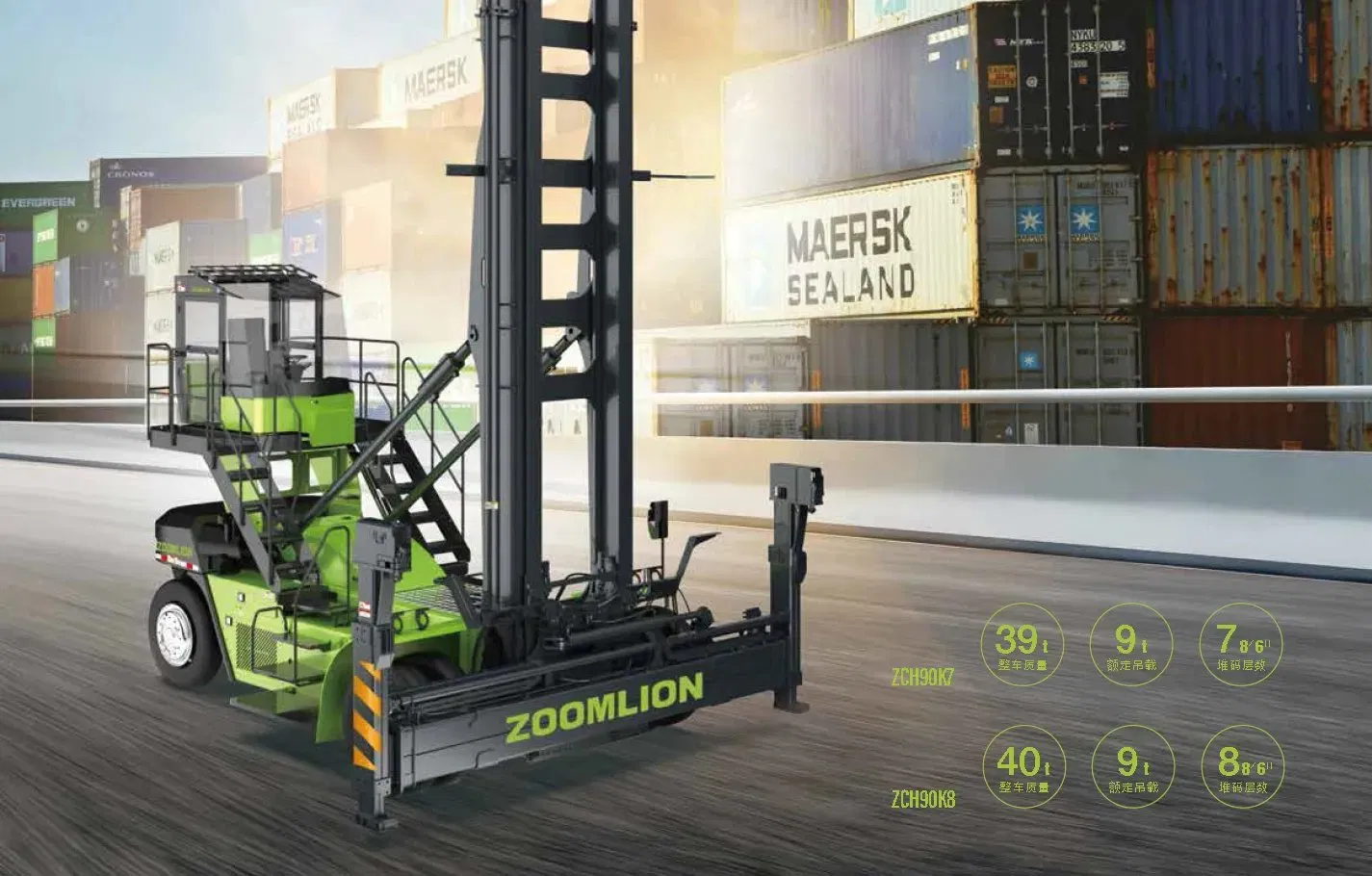

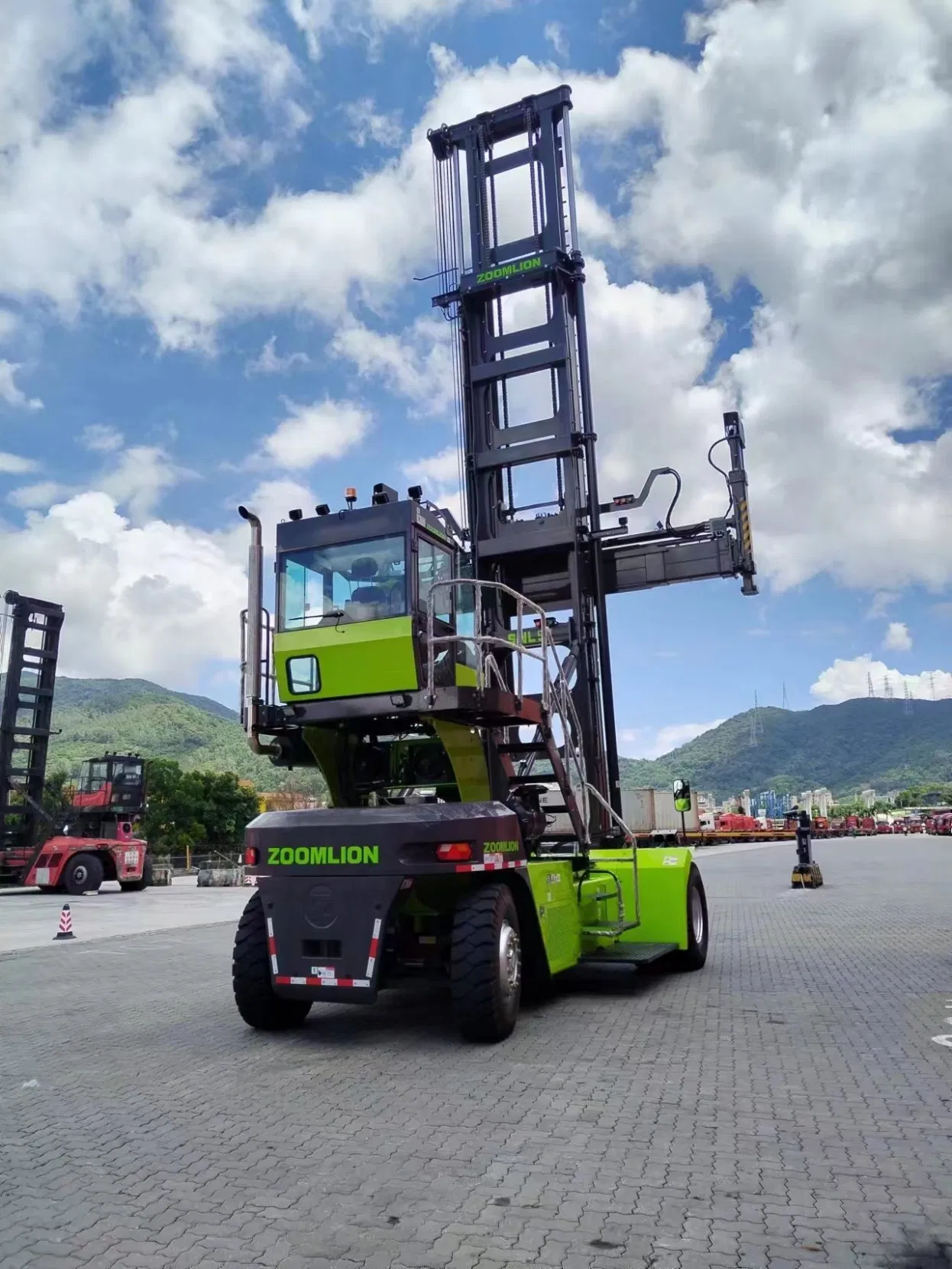

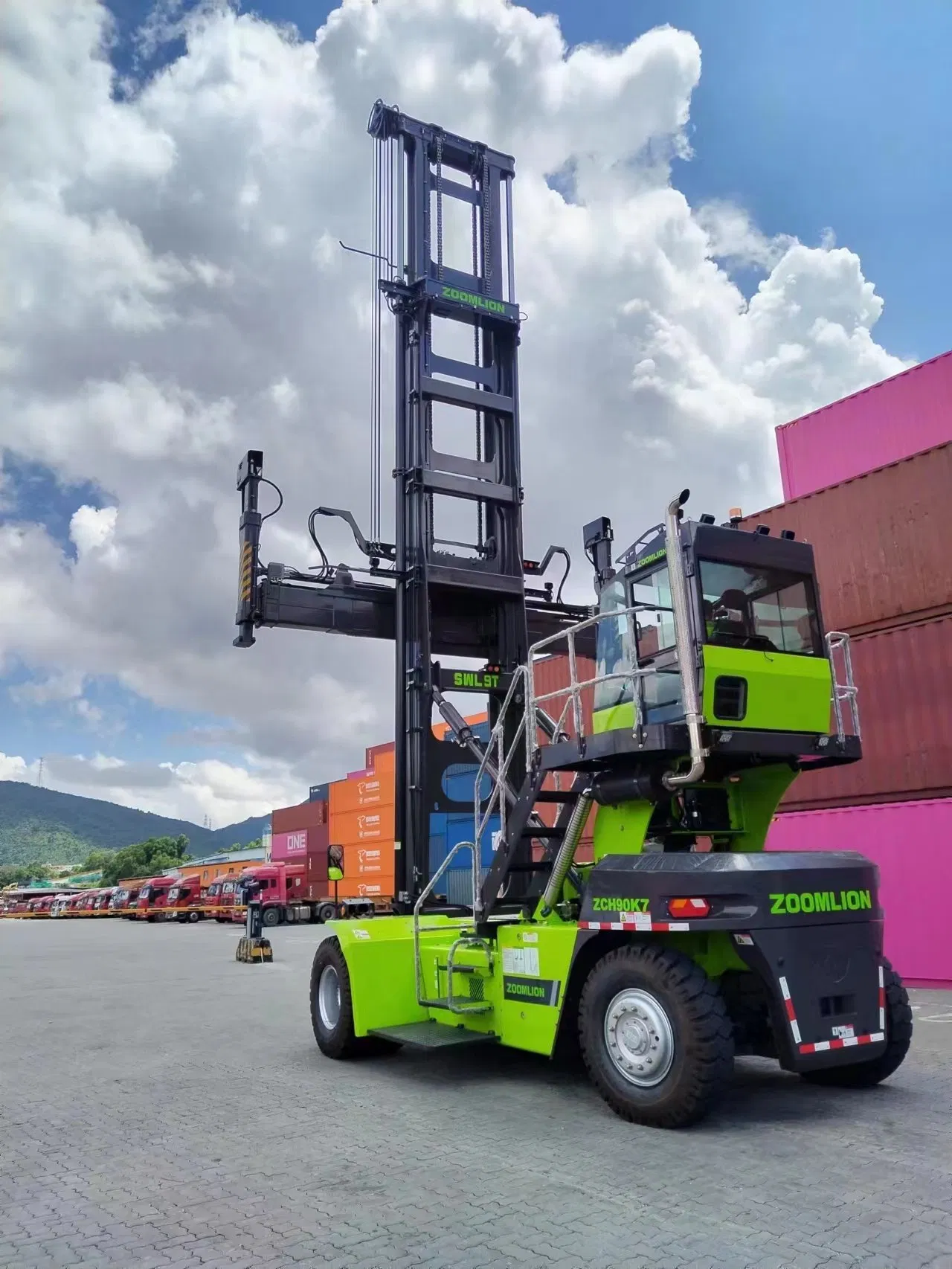

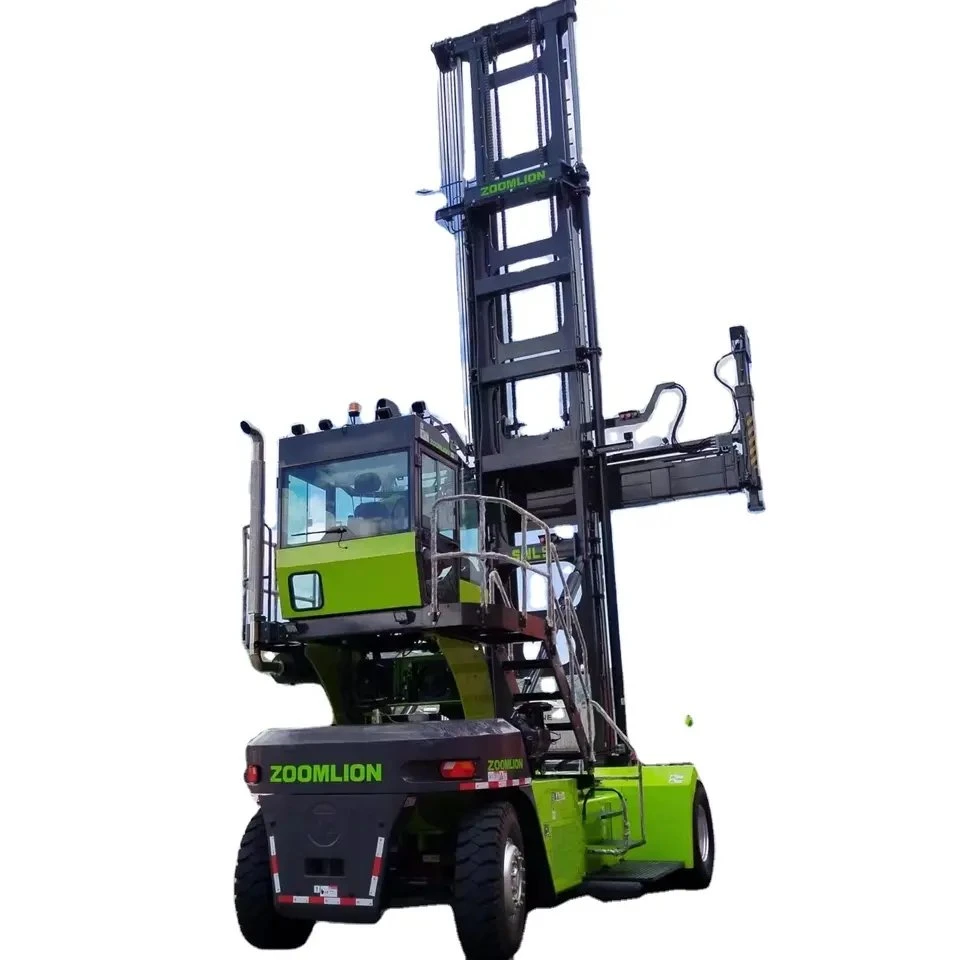

Zoomlion 9 Ton Empty Container Handler Zch90K7

1 / 5

Zoomlion 9 Ton Empty Container Handler Zch90K7

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

ZCH90K7

Cab Location

Adjustable

Type

Container Forklift

Power

Diesel Engine

Load Capacity

5T - 10T

Fuel

Diesel

Load Center

>500mm

Lift Height

3000~5000mm

Condition

New

Engine

Qsc8.3-C260

Rated Power

194/2200kw/Rpm

Emission

Tier 3

Tire

14.00-24 28pr

Gradeability

30/22 (No Load/Full Load)

Specification

6867*6085*10920 mm

Origin

China

🚀 Product Description

9 Ton Empty Container Handler ZCH90K7

✔

Domestic leading energy saving efficiency The equipment has more efficient walking, lighter steering, and lower fuel consumption, reaching the leading level in performance.

✔

Comfortable operating environment Centered on the operator, the control design layout is more reasonable, creating a comfortable operating environment to effectively relieve operator fatigue and improve driver work efficiency.

✔

CAN bus communication technology Using international advanced CAN bus data transmission for fast response, strong anti-interference ability, and a stable, reliable network system with high efficiency and expansion functions.

✔

Finite element analysis & dynamic simulation Advanced finite element analysis and kinematic simulation ensure a reasonable structure and excellent reliability for the frame and steering bridge system.

✔

Independent electronic heat dissipation The independent electronic radiator is unaffected by engine speed, providing superior heat dissipation even when the engine is idle or the door frame drops.

📊 Product Parameters

Main Parameter	ZCH90K7 Specification
Engine Model	Cum-mins QSC8.3-C260
Engine Power	194kw / 2200rpm
Max. Torque	1135Nm / 1350rpm
Gearbox	DA NA 13.7HR32334 / 13.7FTE14415
Drive Axle	DA NA 145P524 / KESSLER D81
Spreader	HDJ90 / HDJ100D
Max. Loading Weight	9000kg
Max. Lifting Height	18705mm
Max. Lifting Speed (Unload/Full Load)	700 / 500 mm/s
Max. Travelling Speed	28 / 26 km/h
Gradeability (Unload/Full Load)	30 / 22 %
Total Weight	39000kg
Stacking Layer	7 Layers
Wheelbase	4550mm
Min. Turning Radius	6000mm
Overall Size	6990 * 6085-12215 * 10920mm
Work Fuel Consumption	11.5L
Tire	14.00-24 28PR

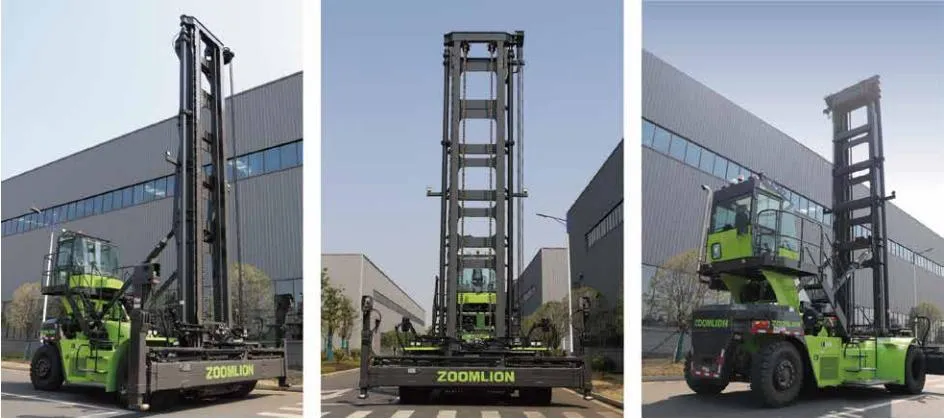

🖼️ Product Gallery

🏭 Manufacturing Excellence

❓ Frequently Asked Questions

What is the maximum load capacity of the ZCH90K7?

The ZCH90K7 is designed to handle empty containers with a maximum load capacity of 9,000kg (9 Tons).

How many containers can this handler stack vertically?

This model is capable of stacking up to 7 layers of empty containers, maximizing storage space in port and yard operations.

What engine is used in this empty container handler?

It is equipped with a high-performance Cummins QSC8.3-C260 engine, providing 194kw of power at 2200rpm.

Does the machine feature any modern communication technology?

Yes, it utilizes advanced CAN bus communication technology for fast data transmission, stable system response, and strong anti-interference capabilities.

How does the cooling system operate?

It features an independent electronic hydraulic cooling system that functions effectively regardless of engine speed, ensuring optimal temperature control even during idling.

Is the driver's cabin comfortable for long shifts?

Absolutely. The operating environment is designed with an operator-centric layout to minimize fatigue and maximize productivity through ergonomic controls.
