| Model |
Unit |
CPCD20Y |
CPCD25Y |
CPCD30Y |
CPCD35Y |
CPCD40Y |
| Load capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 |
| Load center | mm | 500 | 500 | 500 | 500 | 500 |
| Max.lifting speeds | Mm/s | 545 | 545 | 440 | 440 | 400 |
| Max.driving speeds | Km/h | 17/19 | 17/19 | 18/20 | 18/19.8 | 17.8/19.5 |
| Total Weight | kg | 4600 | 4900 | 5400 | 5600 | 5850 |
| Gradeability | % | 45 | 45 | 45 | 45 | 45 |
| Lifting height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Min.turning radius | mm | 2950 | 2950 | 3250 | 3250 | 3250 |
| Overall length | mm | 4165 | 4165 | 4435 | 4435 | 4435 |
| Overall width | mm | 1500 | 1500 | 1600 | 1600 | 1600 |
| Drive type | - | 4WD | 4WD | 4WD | 4WD | 4WD |

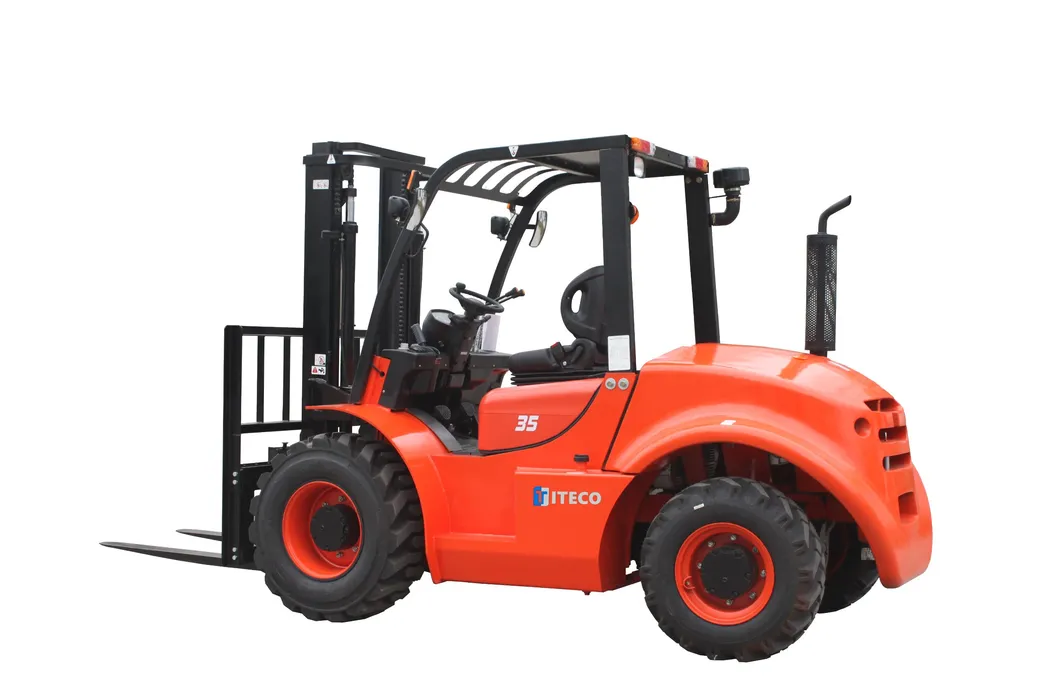

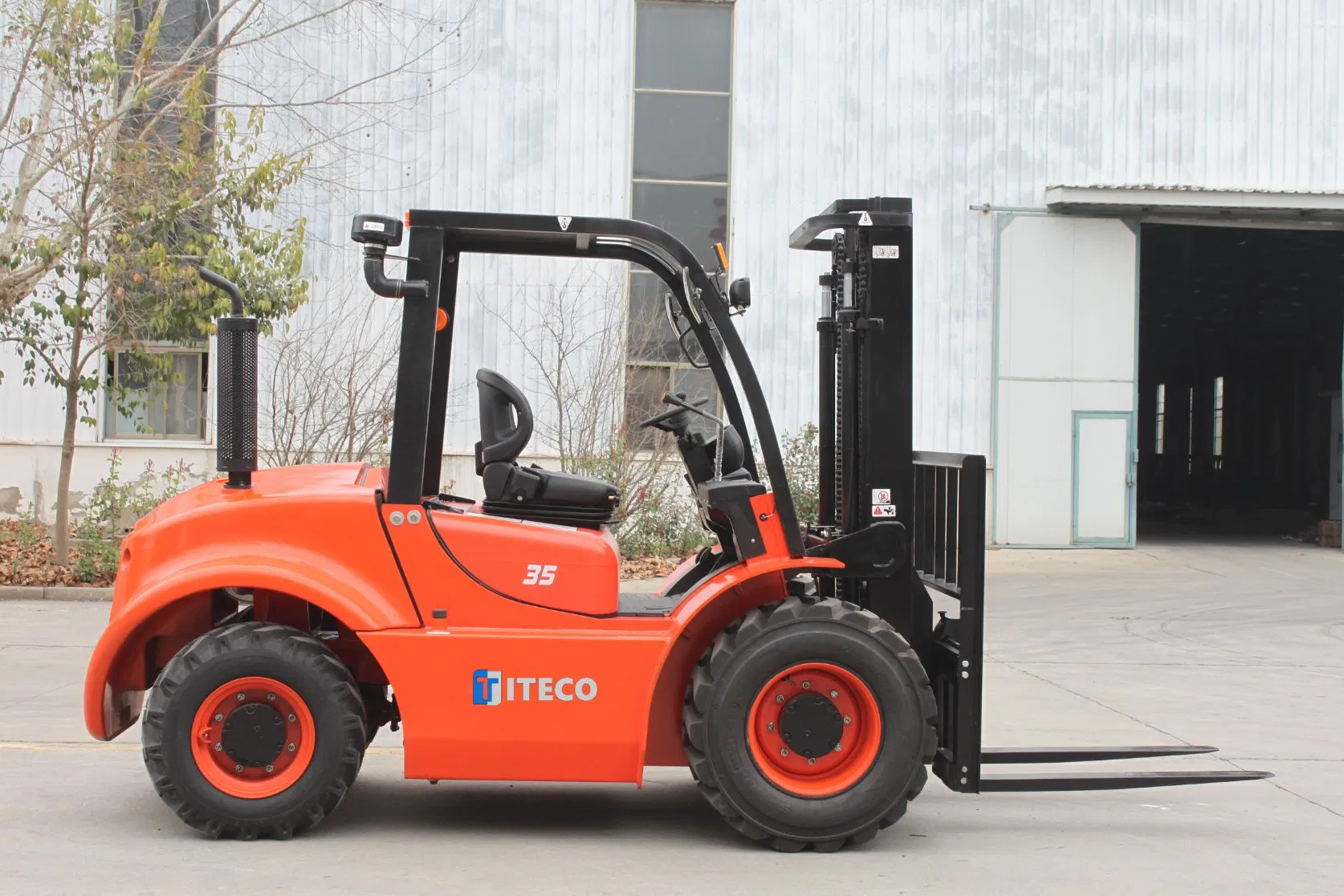

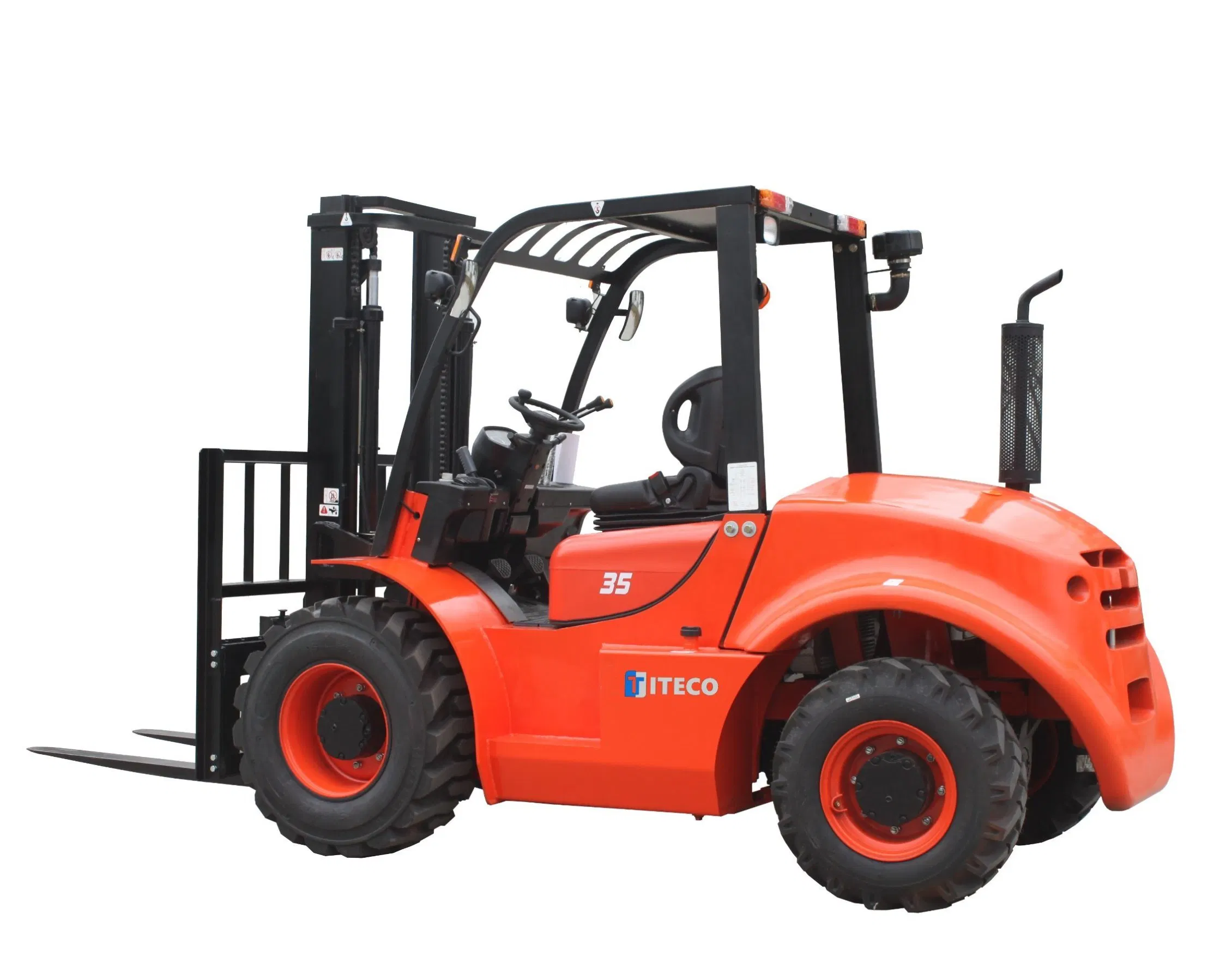

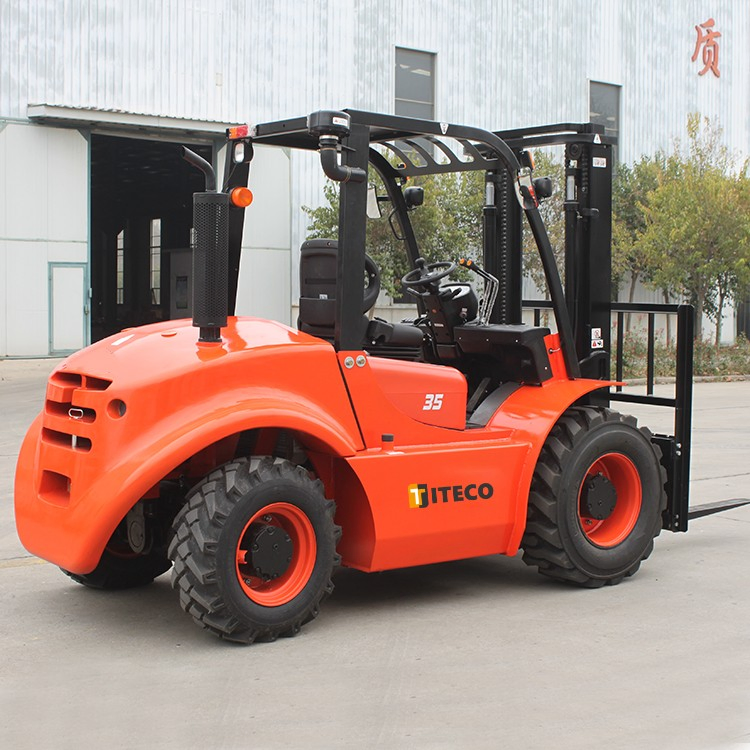

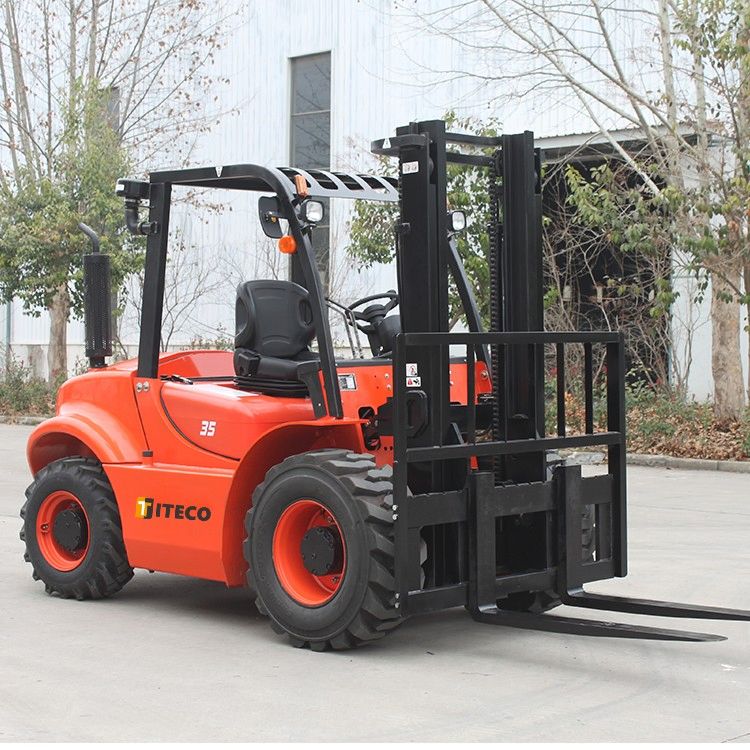

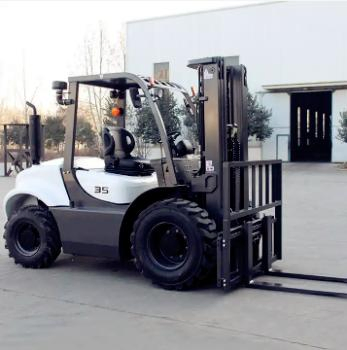

Designed for Rough Environments & Muddy Roads:
1. Professional steering axle suitable for extreme working environments, specifically mud roads.
2. Transmission system equipped with a differential lock for enhanced traction.
3. High ground clearance (320mm chassis) and 30-degree departure angle for superior passing ability.
4. Wide-profile deep-tread tires for maximum stability and skid resistance.
5. Widened mast design providing the operator with a significantly better field of view.
6. Enhanced driving axle featuring a robust cast steel structure.
Strong Engine System Low emission, advanced fuel system with excellent low-temperature starting and high reliability.
Quality Instruments High-quality electronic instrumentation allows easy monitoring of operational data.
Visibility & Safety Wide visible range ensures accuracy and safety during heavy-duty operations.
Slope Protection Preventing slope sliding function ensures safe restarts on inclines.

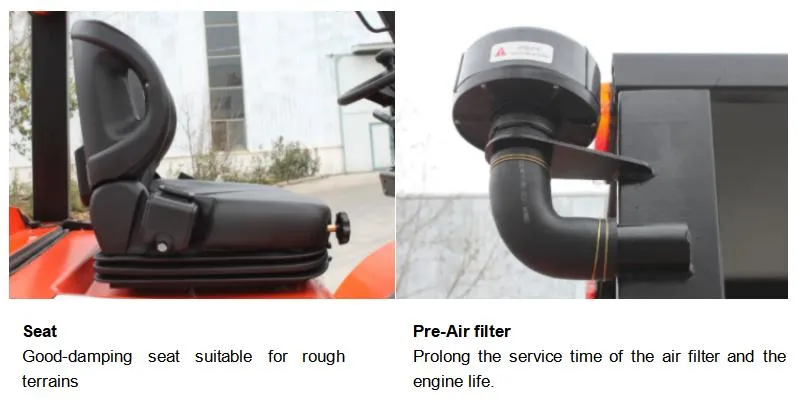

Clean Air Intake Heightened air inlet position protects the filter from dust, prolonging engine life.
Super Cooling System Water tank capacity is 1.25 times larger than standard products to prevent overheating.
Frequently Asked Questions
Q: What terrain is this forklift designed for?
A: It is specifically designed for harsh environments, such as mud roads, mountain forests, and off-road rough terrain.
Q: What is the maximum load capacity available?
A: This series offers models with load capacities ranging from 2 tons (2000kg) up to 4 tons (4000kg).
Q: Does the forklift have 4-wheel drive?
A: Yes, all models in this rough terrain series feature a 4WD drive type for superior traction.
Q: How does the cooling system prevent overheating?
A: It features a super cooling system with a water tank that is 1.25 times larger than similar products, ensuring stable temperatures during intense work.
Q: What is the gradeability of these trucks?
A: These forklifts feature a high gradeability of 45%, allowing them to handle steep inclines effectively.
Q: Can the forklift operate safely on slopes?
A: Yes, it includes a preventing slope sliding function that ensures the vehicle remains stable when restarting on a slope.
