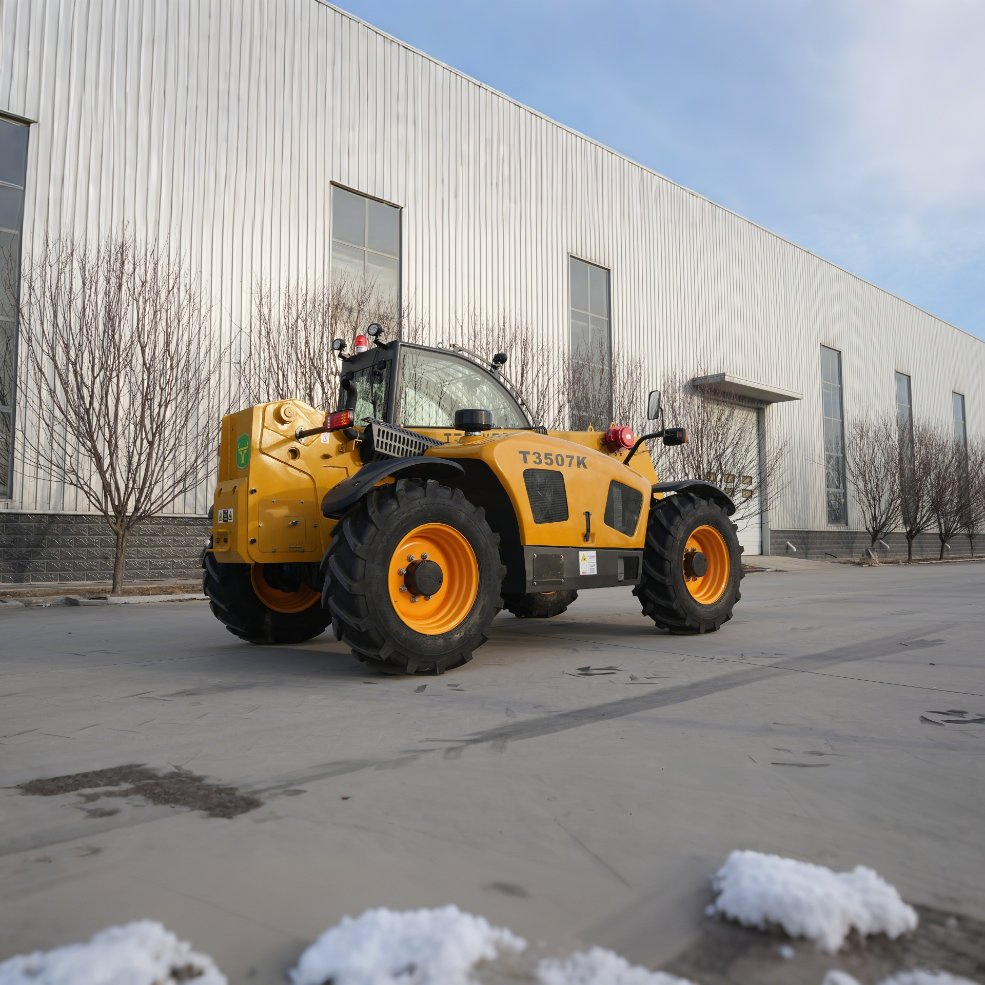

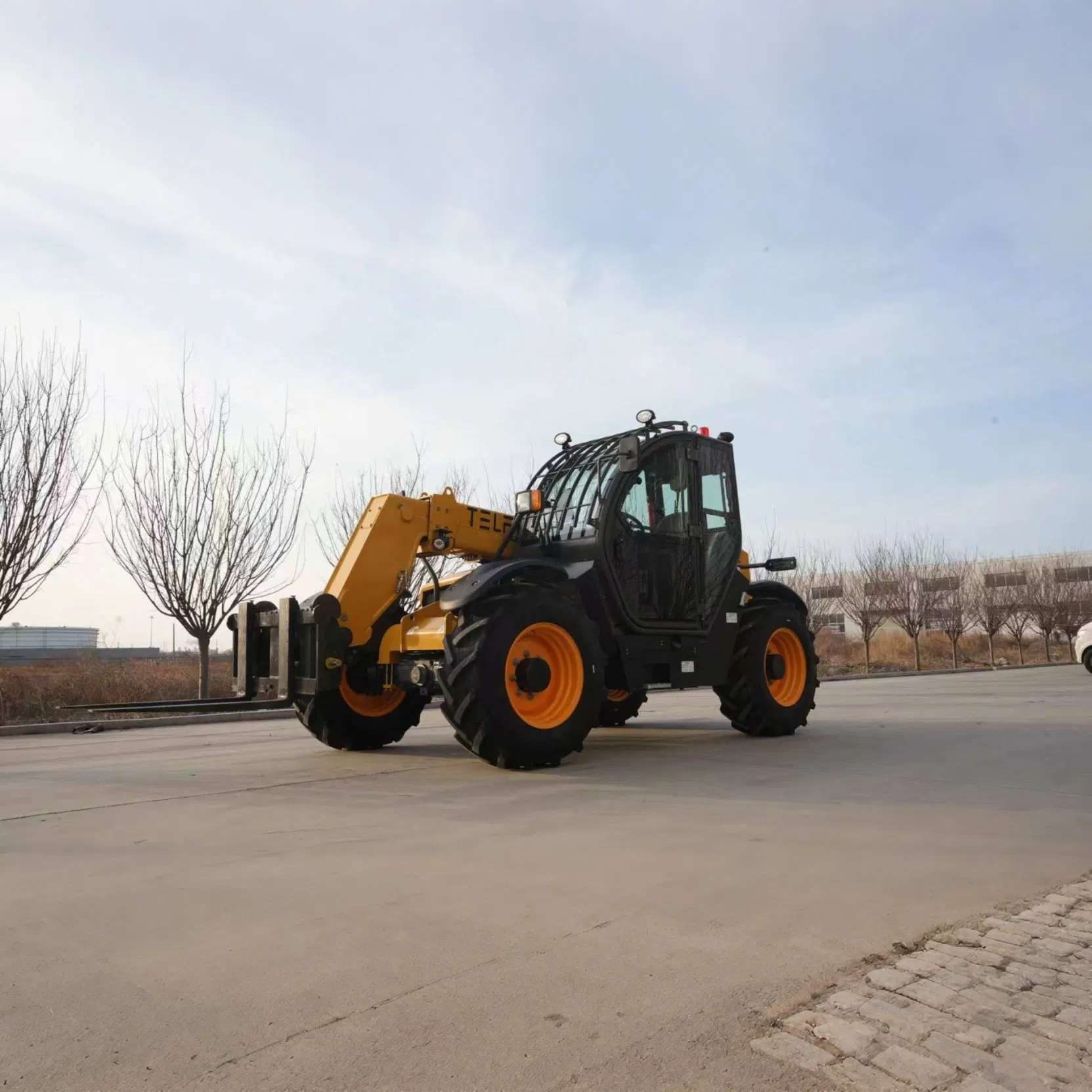

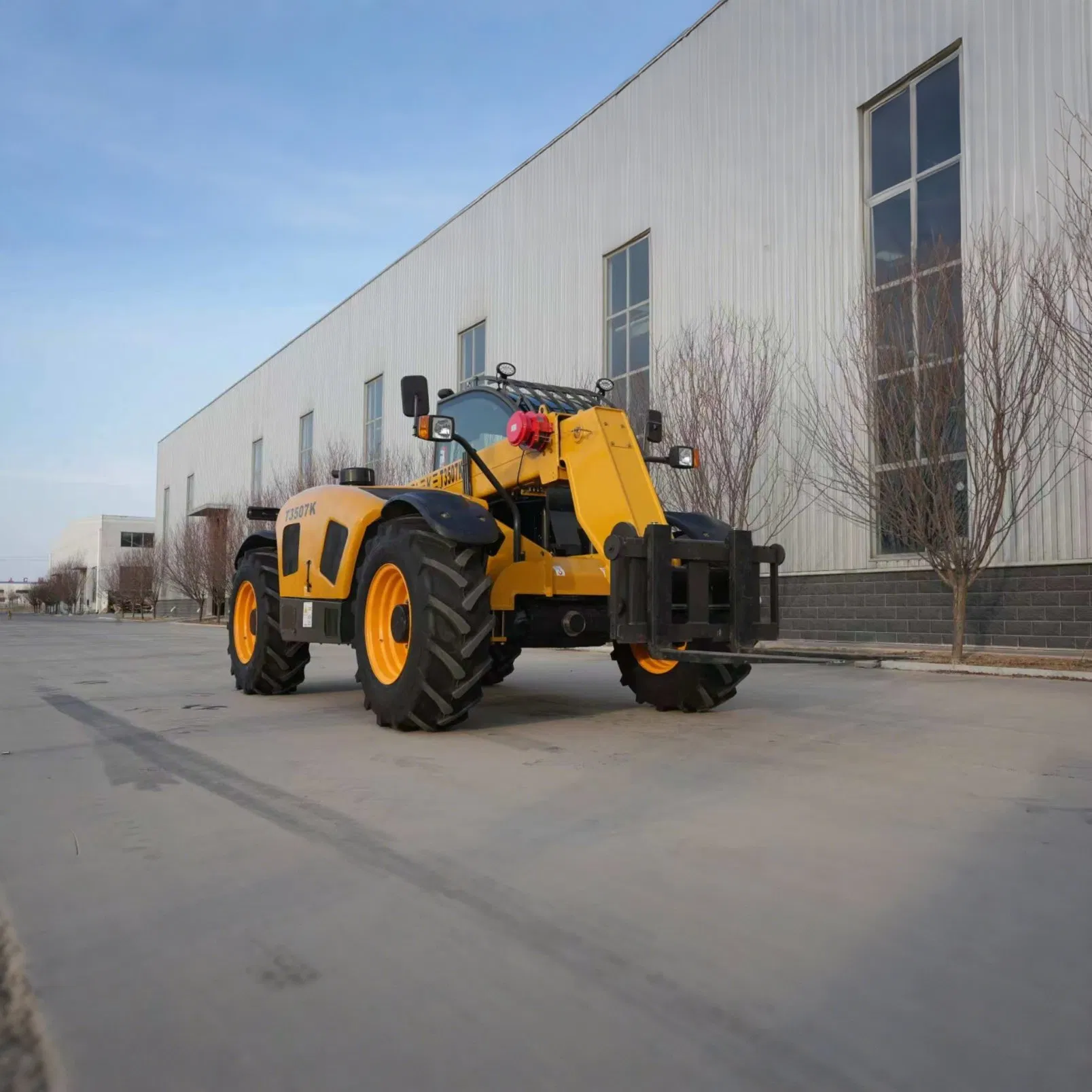

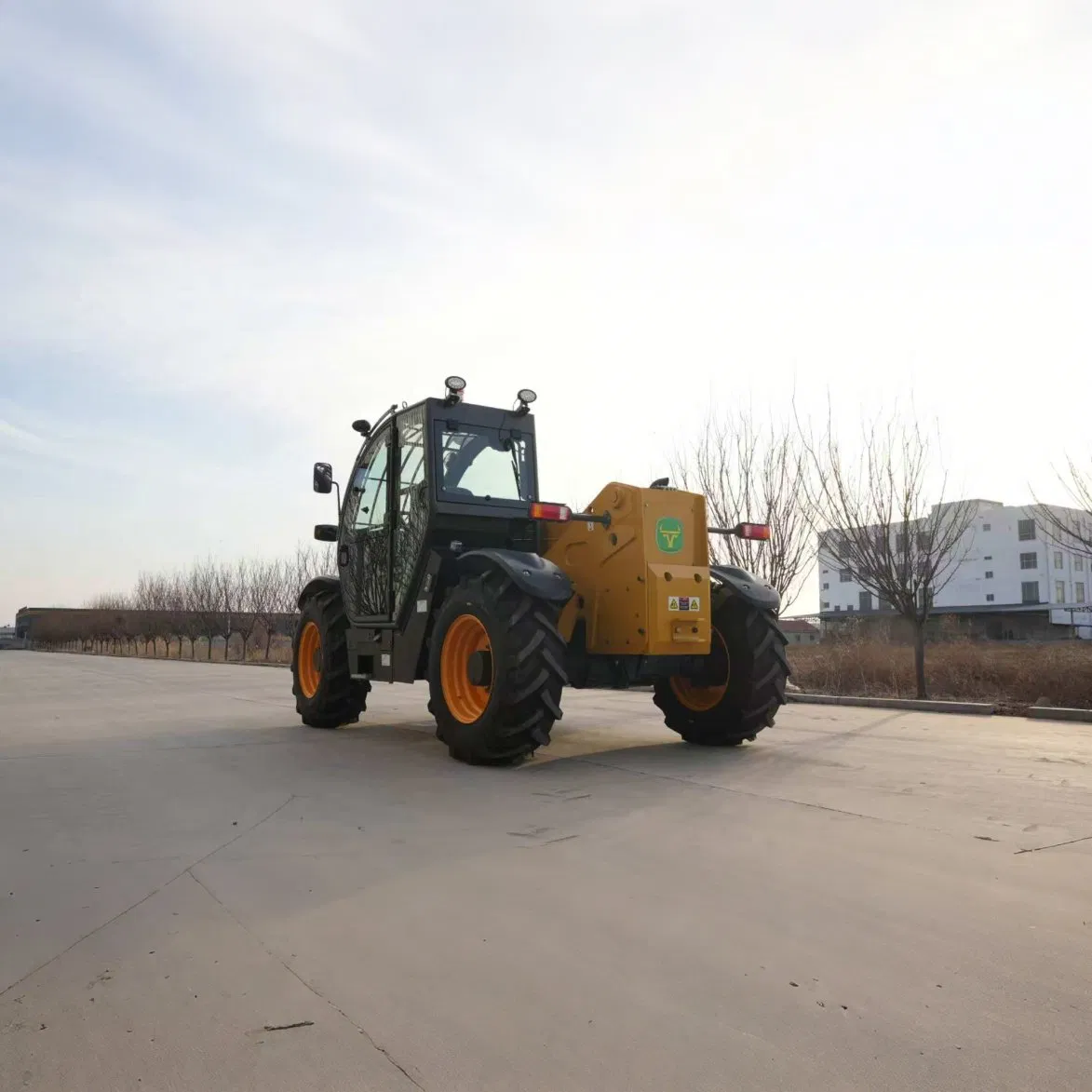

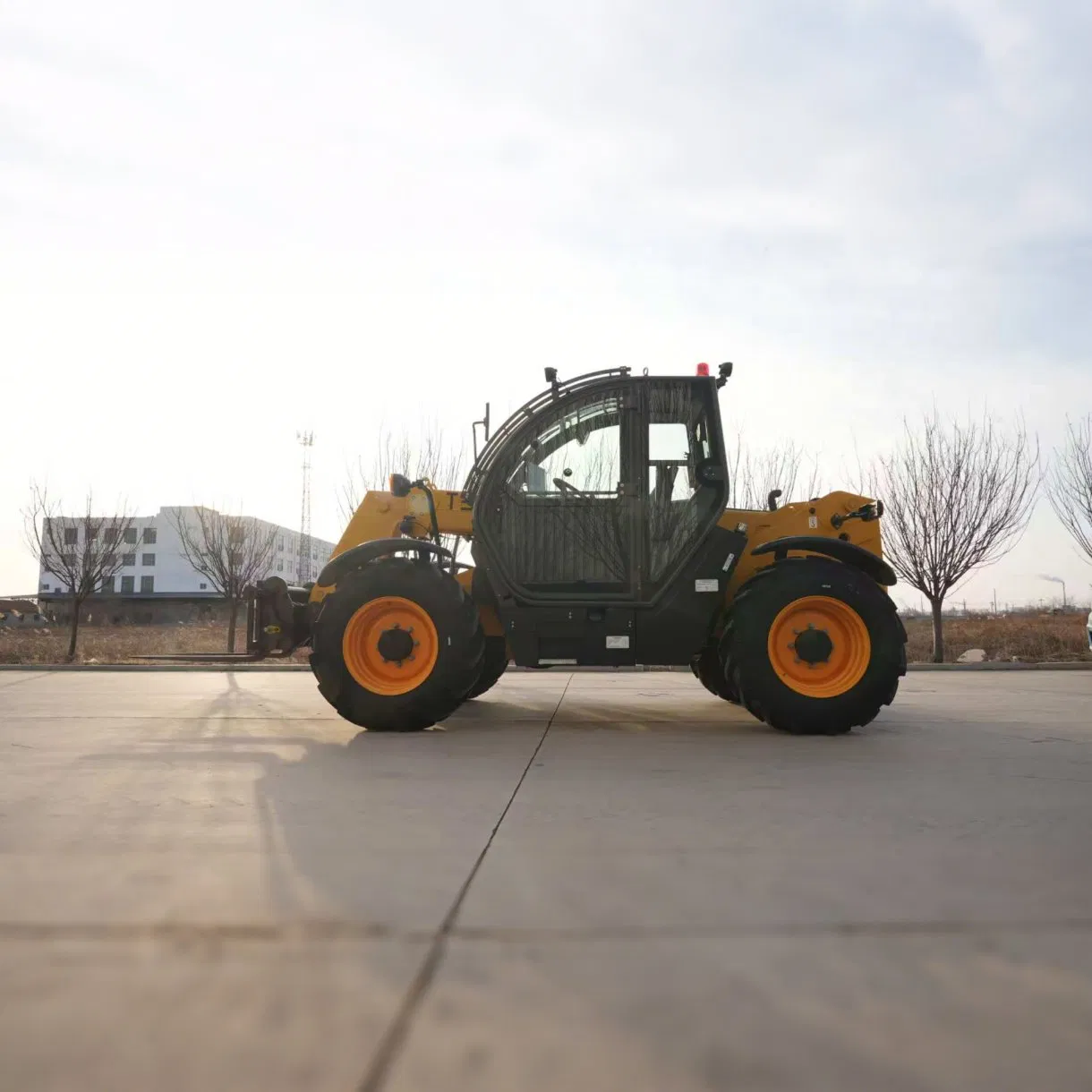

Telake Official 3.5 Ton Small Telescopic Boom Forklift T3507K China Telescopic Forklift

Customization: Available
Type: Diesel Forklift
Power: Diesel Engine

Product Description

Basic Specifications
Model NO.
T3507K
Load Capacity
1T - 5T
Fuel
Diesel
Load Center
>500mm
Condition
New
Rated Load
3500kg
Overall Length
4820mm±2%
Overall Width
2355mm±2%
Overall Height
2460mm±2%
Wheelbase
1920mm±2%
Tires
16/70-24
HS Code
84272090
Product Description
Telescopic Boom Forklift

The T3507K telescopic arm forklift is dedicated to improving the combination of height, width, and machine performance. With its all-wheel drive and swing frame, it is absolutely stable and well-equipped, suitable for many different work tasks. When developing telescopic forklifts, we also attach great importance to the driver's good all-round vision.

Key Features:

  • Electric control handle, one-handed control of all actions.
  • The quick change device and front hydraulic output make accessory replacement quick and easy.
  • The electrically controlled closed static hydraulic technology can achieve non-stop gear shifting.
  • Four channel monitoring and multimedia functions.
  • Intelligent temperature control and self-cleaning heat dissipation technology.
  • Multiple steering mode control technologies.

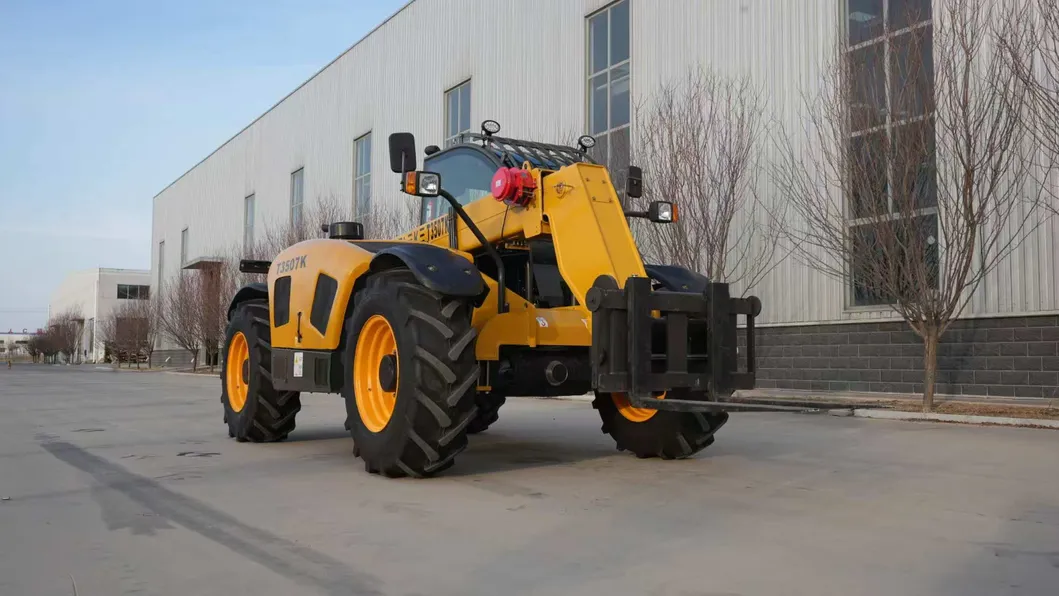

Forklift View 1

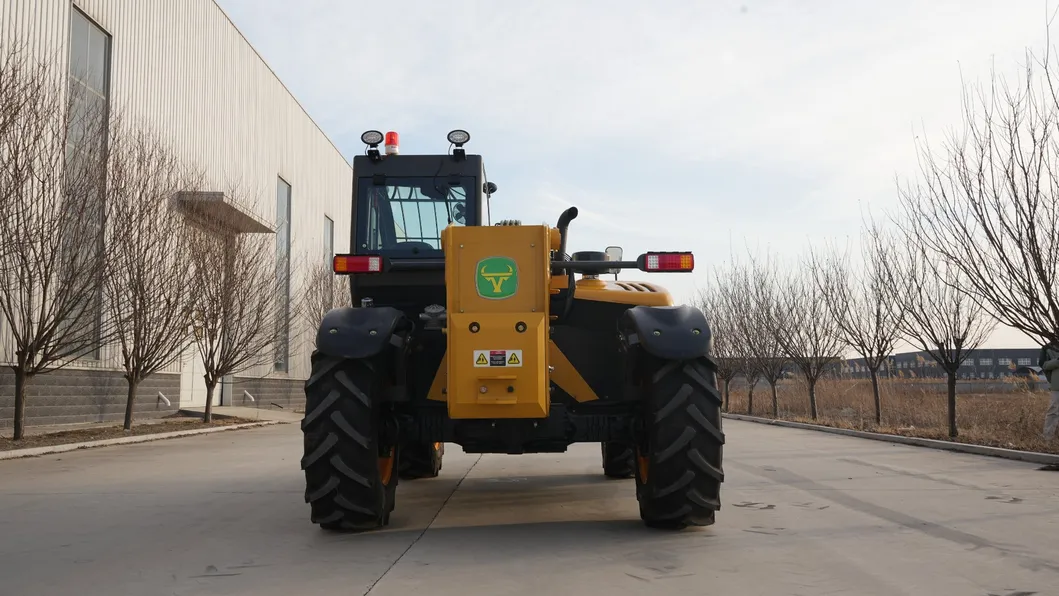

Forklift View 2

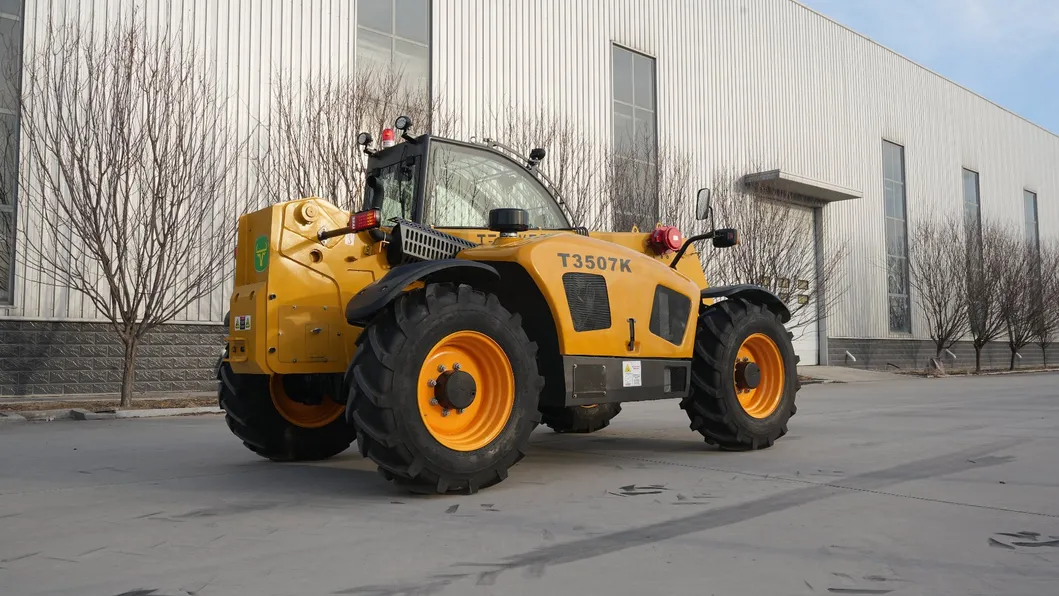

Forklift View 3

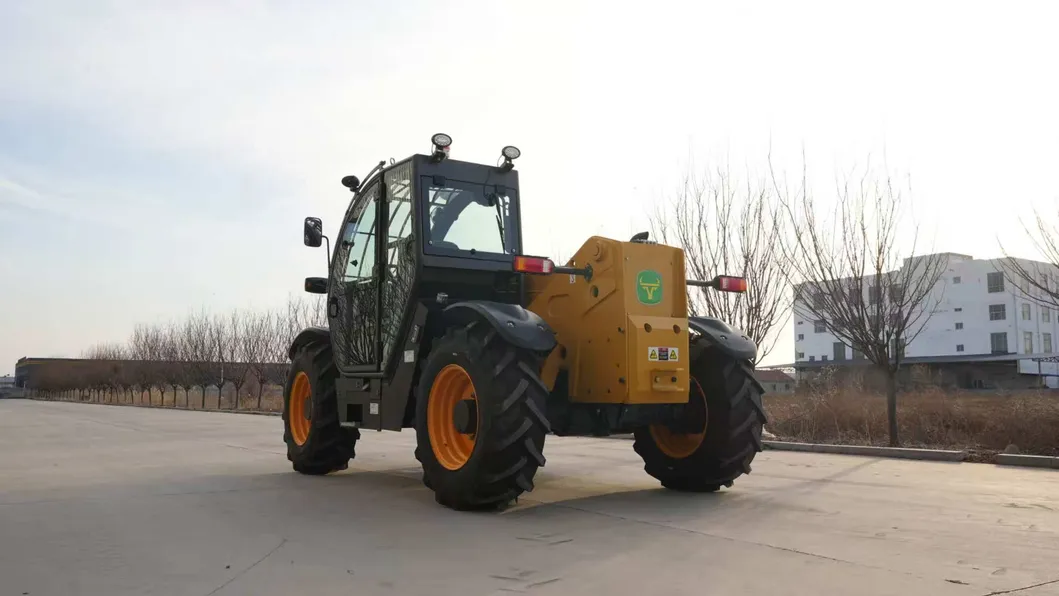

Forklift View 4

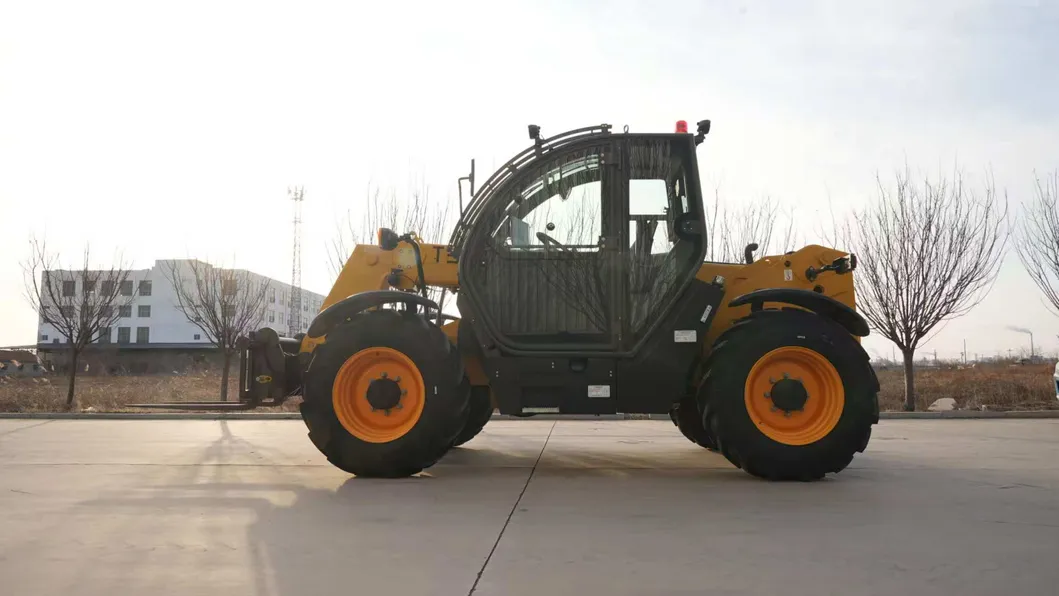

Forklift View 5

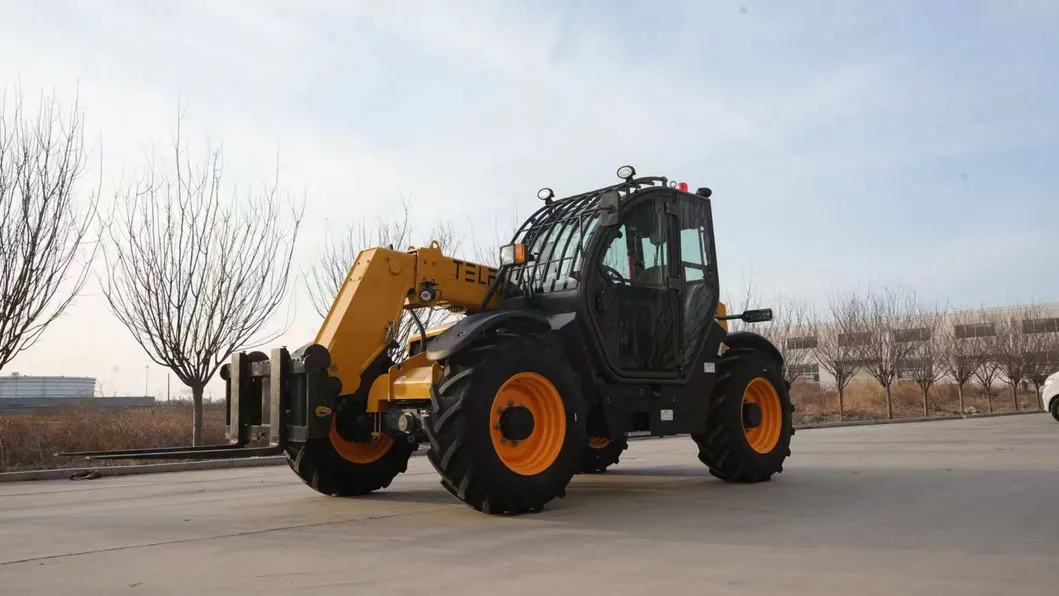

Forklift View 6
Technical Specifications
Main Technical Parameters (Standard) Specifications
Rated load3500kg
Work quality7500kg ±5%
Overall dimensions4820 × 2355 × 2460 mm
Minimum ground clearance400mm ±5%
Action TimeTwo arms extended≤11.5s
Retract second arm≤8s
Fork leaning forward≤6.5s
Fork tilting backwards≤6s
Drive systemHydrostatic pressure / 4-Wheel Drive
Maximum walking speed30 km/h
Engine Brand Yunnei YN38GBZ Cummins 4BT3.9-C100 Deutz B40-10T3R
Power76KW (103HP)75KW (102HP)72KW (98HP)
Emission StandardNational 2National 2National 3
Cooling MethodWater-coolingWater-coolingWater-cooling
Technology & Innovation

With a professional R&D team and self-control ability over core components, we have integrated industry-leading resources to build a stable quality control system. Our production features intelligent mechanization lines, automatic chassis production, and robotic welding centers, achieving an annual capacity of 30,000 units.

Innovation Banner
Packaging & Delivery
Delivery Time
20 - 30 days
Package Size
1100cm * 200cm * 240cm
Gross Weight
7500.00kg

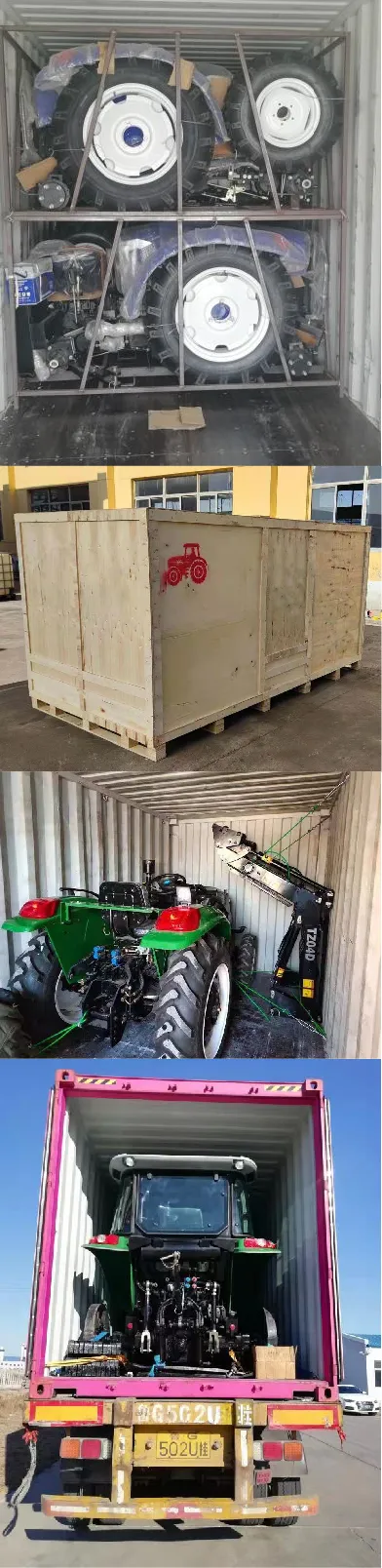

Packaging Process
Frequently Asked Questions
Are you a manufacturing factory?
Yes, we are a professional factory with 20 years of production experience in the agricultural and construction machinery field. Our facilities are certified by ISO9001, CCC, CE, SGS, and BV.
Can I customize the logo or packaging?
Absolutely. We support OEM services including logo printing via embossing, self-adhesive labels, or silk-screen printing on both products and packaging.
Is the price negotiable?
Yes, the price is negotiable based on the specific options, configurations, and packaging requirements you choose for the machine.
What are your standard payment terms?
We primarily accept LC (Letter of Credit) and TT (Telegraphic Transfer). For other specific payment queries, please contact our sales team directly.
What is the typical delivery lead time?
Standard orders are typically processed and ready for delivery within 20 to 30 days.
What steering modes does the T3507K offer?
The T3507K features three steering modes to handle various terrain and operational requirements, ensuring maximum maneuverability in tight spaces.
