| Customization: | Available |
|---|---|

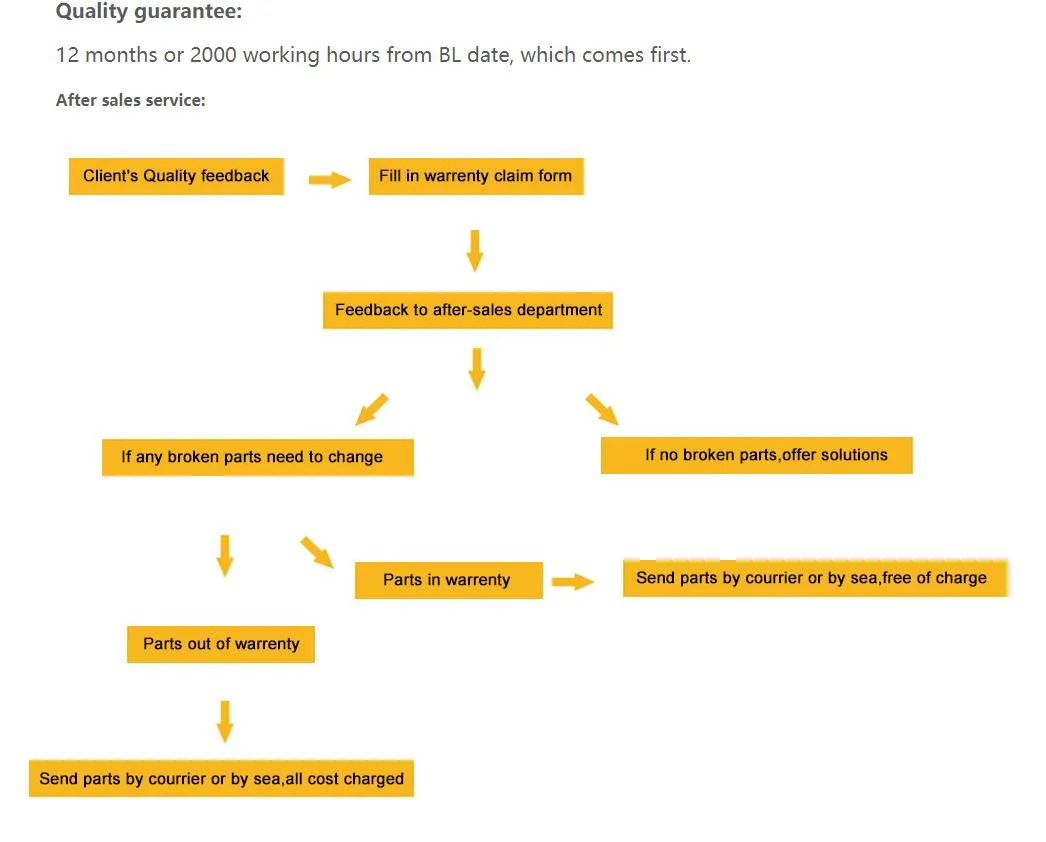

| After-sales Service: | Online Serves |
| Warranty: | 1y/2000h Work Time |
| Model | CPCD30S | CPCD40S | CPCD50S | CPCD60S | CPCD70S | CPCD80S |
| Max. lift capacity (kg) | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
| Max. lift height (mm) | 3500 | 3000 | 3550 | 3550 | 3600 | 3600 |
| Min. turning radius (mm) | 4300 | 4300 | 4550 | 4450 | 4800 | 5800 |
| Platform width (mm) | 1200 | 1200 | 1220 | 1220 | 1505 | 1760 |
| Overall weight (kg) | 5300 | 5800 | 8300 | 8600 | 10500 | 15000 |
| Engine Power (Kw/rpm) | 36.8/2500 | 36.8/2500 | 73.5/2400 | 73.5/2400 | 85/2200 | 95/2200 |

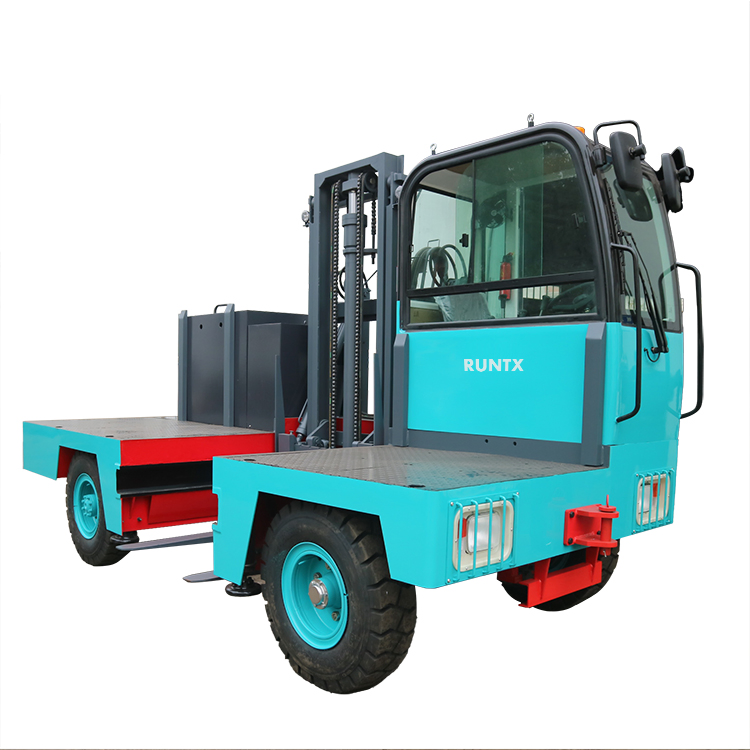

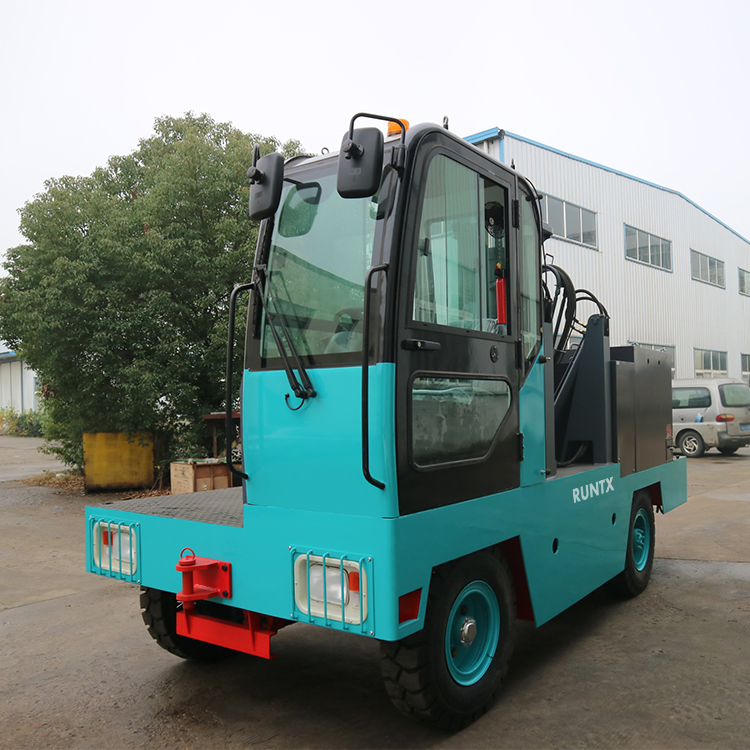

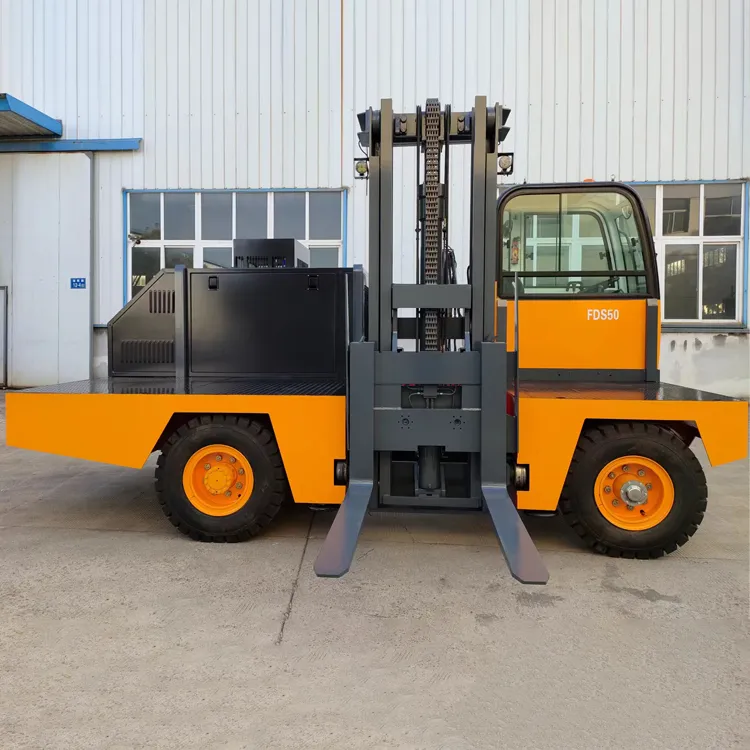

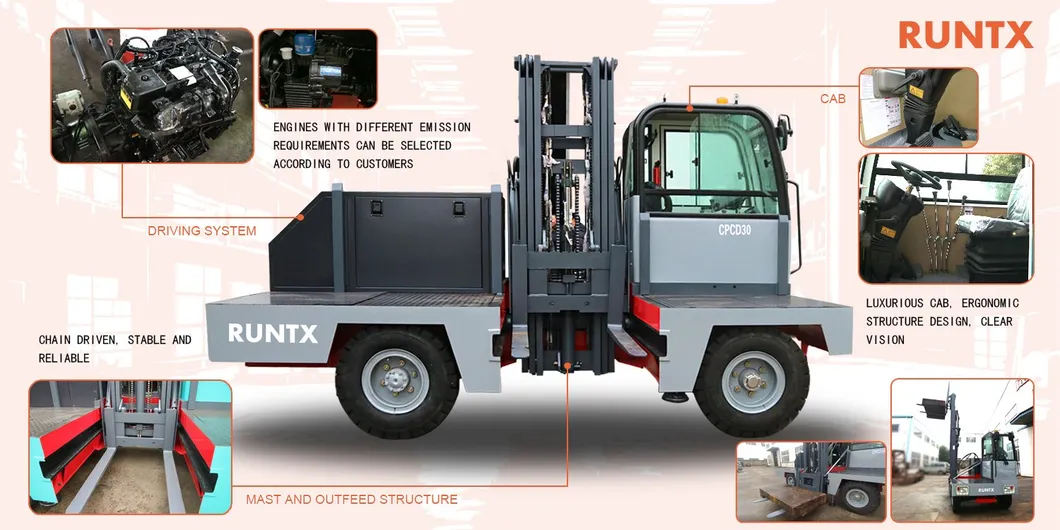

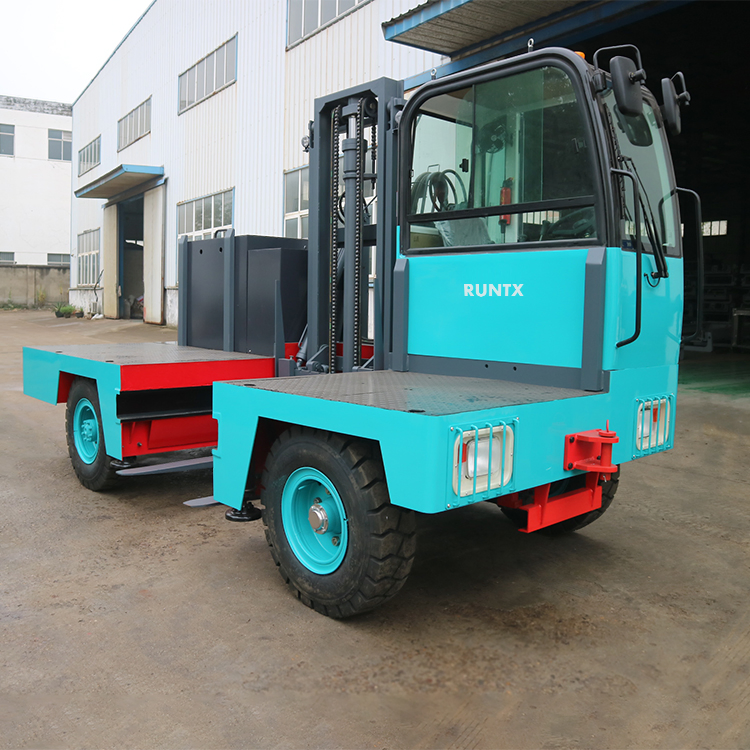

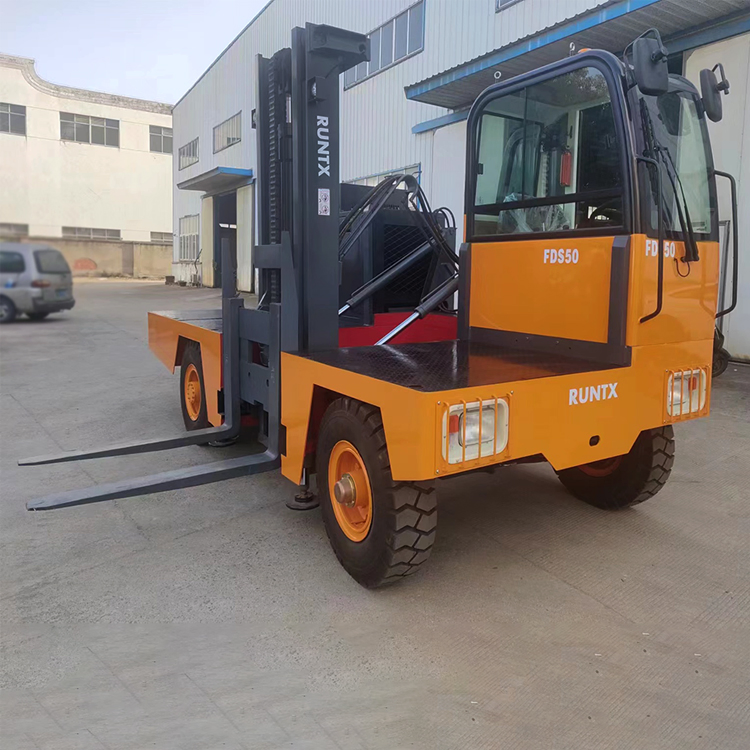

Side forklift truck is a new type of carry scraper. Currently, two models are available: pure electric drive and diesel engine drive, with a maximum load capacity of 10 tons. The truck differs from the counter-balanced one mainly in that the forks are mounted on the side of the body.

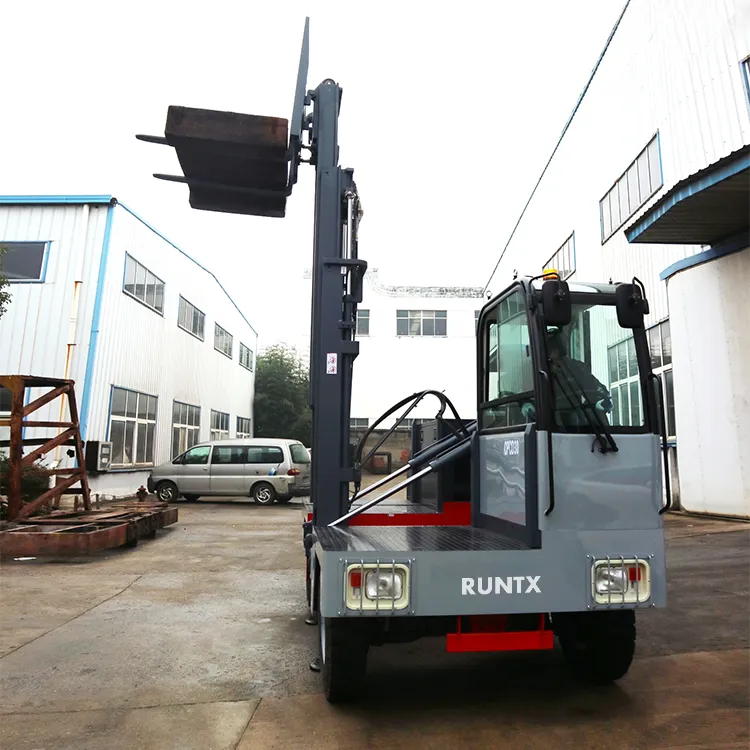

Besides lifting and tilting, the forks can also traverse to the right side of the truck frame and retract back alongside the well in the middle section of the truck. Long cargoes can be loaded by the forks on/from the truck deck, as well as transported in limited spaces. As the long cargoes are piled lengthwise along the truck's platform, the width of the passageway required by the fork lifter can be remarkably reduced.
Thereby, the side forklift truck is particularly suitable for handling timber, section steels, line poles, cement tubes, plastic pipes and other kinds of bulky, over-length cargoes. It finds wide applications in forestry departments, railway stations, telephone poles, harbor warehouses, factories, and construction sites.
As a professional manufacturer focusing on providing customers with reliable and efficient material handling equipment and solutions, we integrate R&D, manufacturing, sales, and service. Our facility covers an area of more than 10,000 square meters, with an annual sales volume of more than 4,000 forklifts of various types.

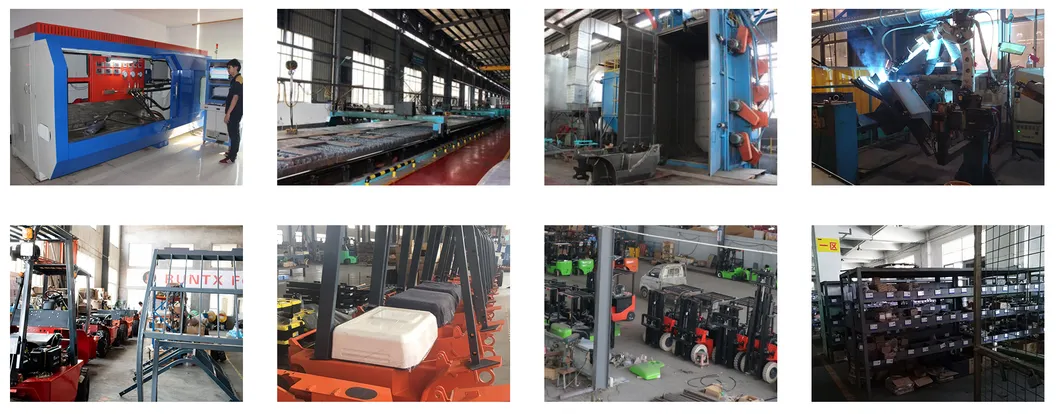

We utilize large-scale CNC cutting machines, vertical machining centers, horizontal gantry milling machines, welding robots, and other equipment, which has realized self-made key components and provided a strong guarantee for the quality of the products. Main products include a full range of internal combustion counterbalanced forklifts, electric counterbalanced forklifts, electric warehouse equipment, and port equipment.
