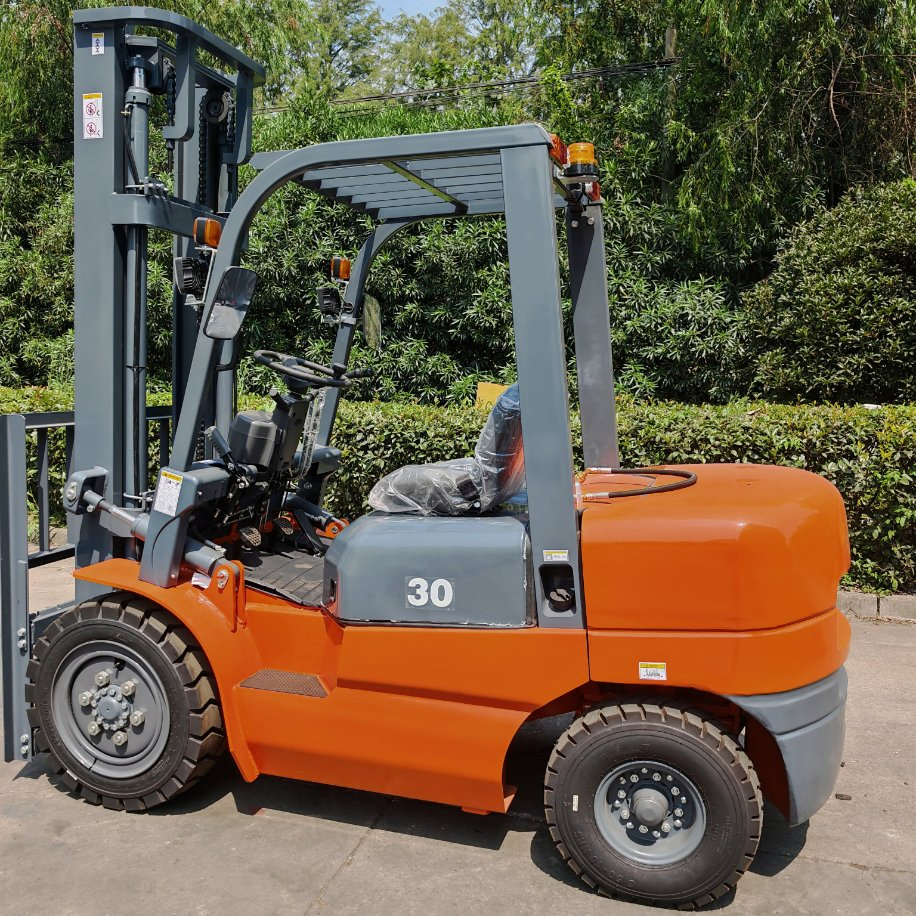

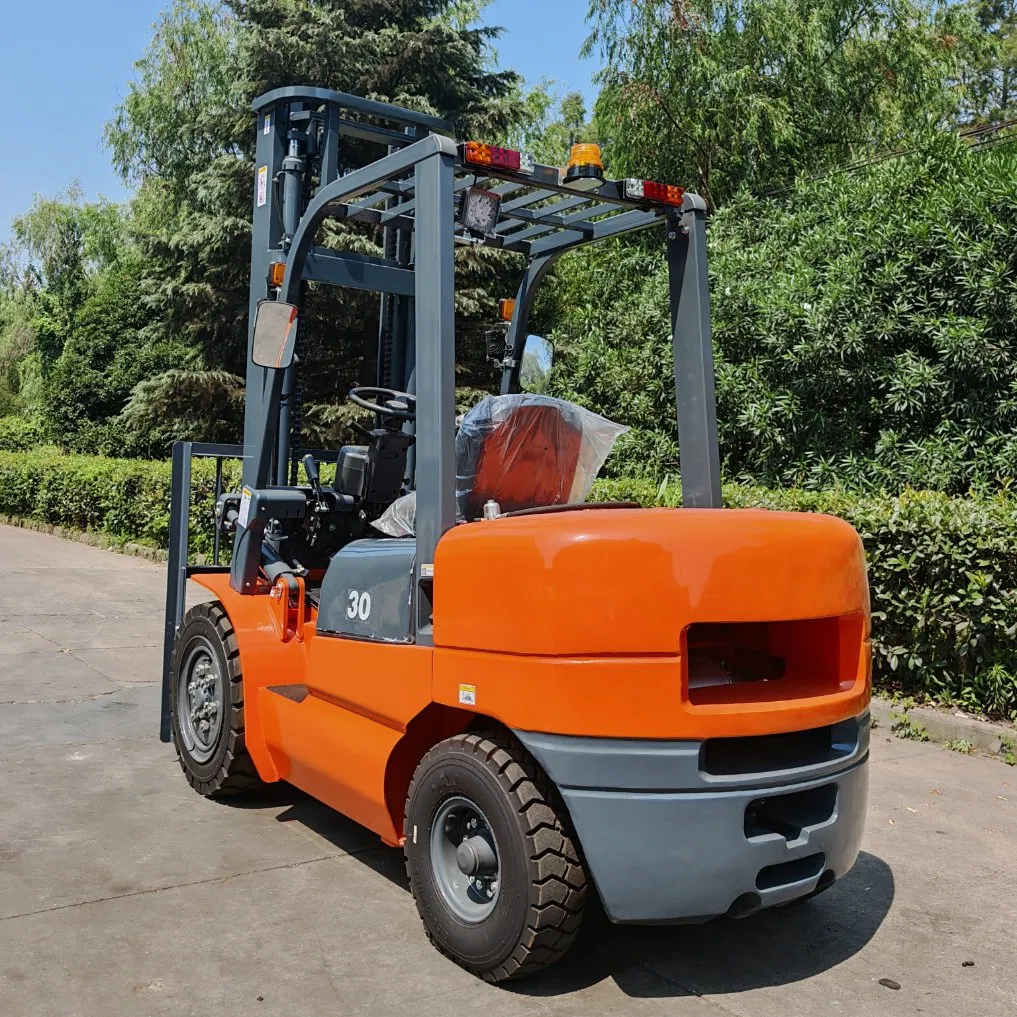

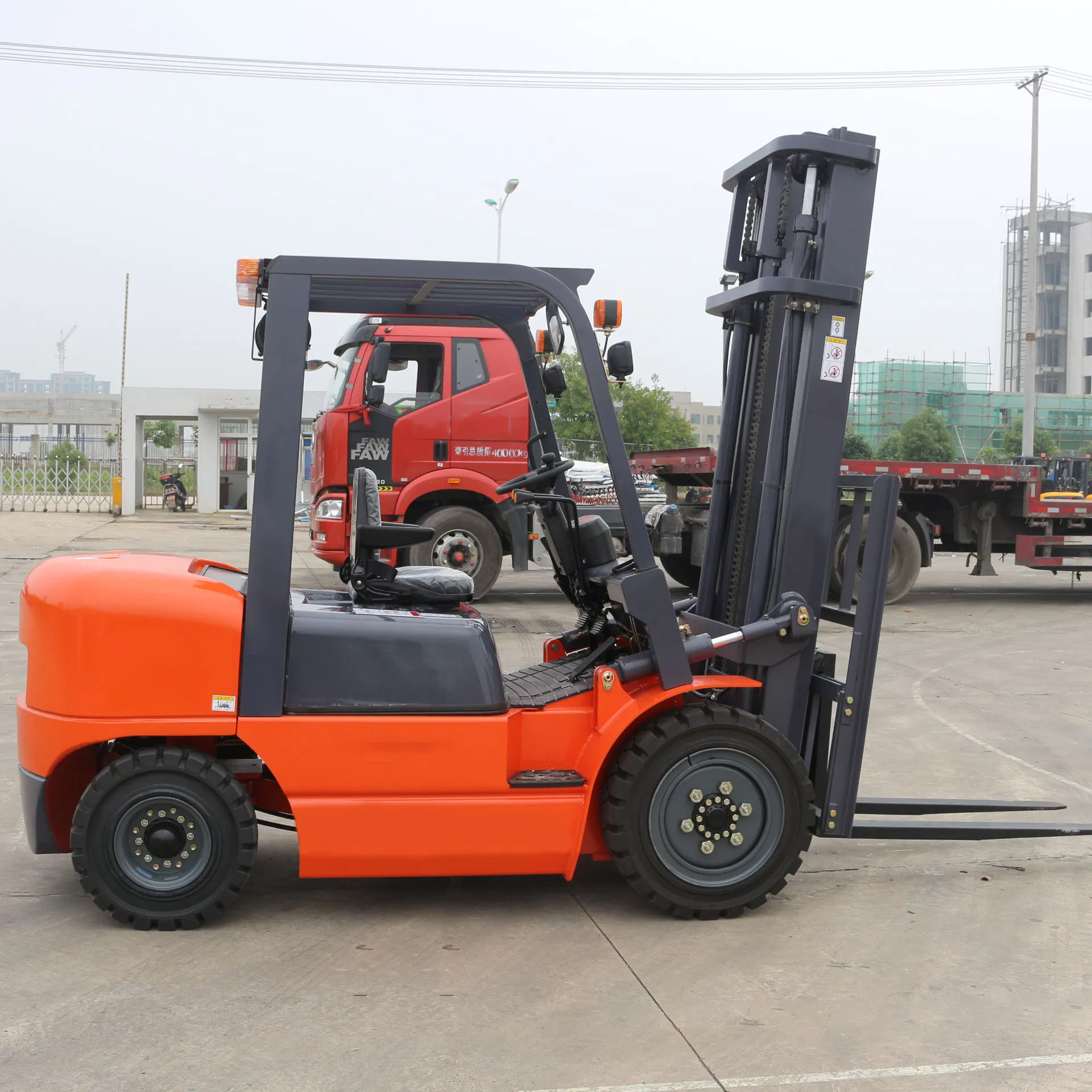

GLS Forklift
1 / 5

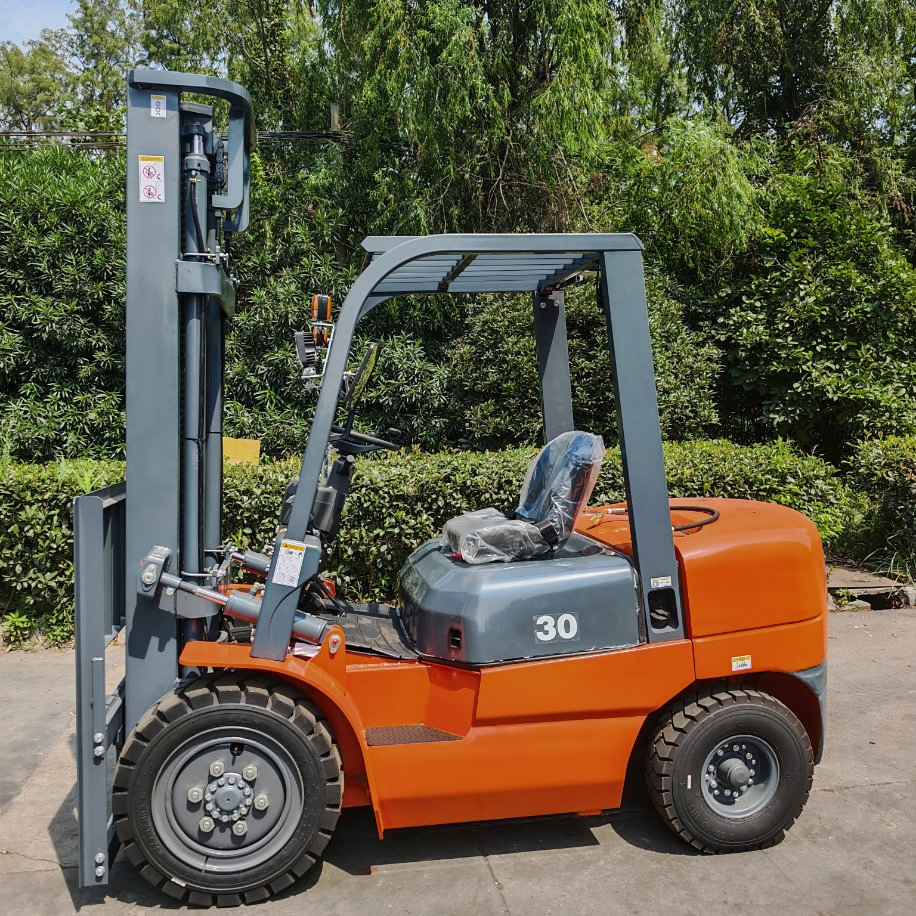

| Model | FD30 / K Series |
| Type | Diesel Forklift |
| Load Capacity | 1T - 5T (Rated 2.0T-3.8T for K Series) |
| Lifting Height | 3000mm - 6000mm |
| Power Source | Diesel Engine (Xinchai, Quanchai, Mitsubishi, Yanmar, Cummins optional) |
| Load Center | 500mm |
| Mast Options | 2 Stage / 3 Stage |
| Transmission | Manual / Hydraulic |
| Condition | New |
FD20K - FD38K Series
Loading Capacity: 2T - 3.8T | Lifting Height: 3000mm - 6000mm
| Model | FD20K | FD25K | FD30K | FD35K | FD38K |
|---|---|---|---|---|---|
| Rated Capacity | 2000kg | 2500kg | 3000kg | 3500kg | 3800kg |
| Wheel Base | 1600mm | 1600mm | 1740mm | 1740mm | 1740mm |
| Overall Width | 1160mm | 1160mm | 1225mm | 1225mm | 1225mm |
| Turning Radius | 2170mm | 2240mm | 2420mm | 2420mm | 2450mm |
| Total Weight | 3320kg | 3680kg | 4270kg | 4700kg | 4850kg |

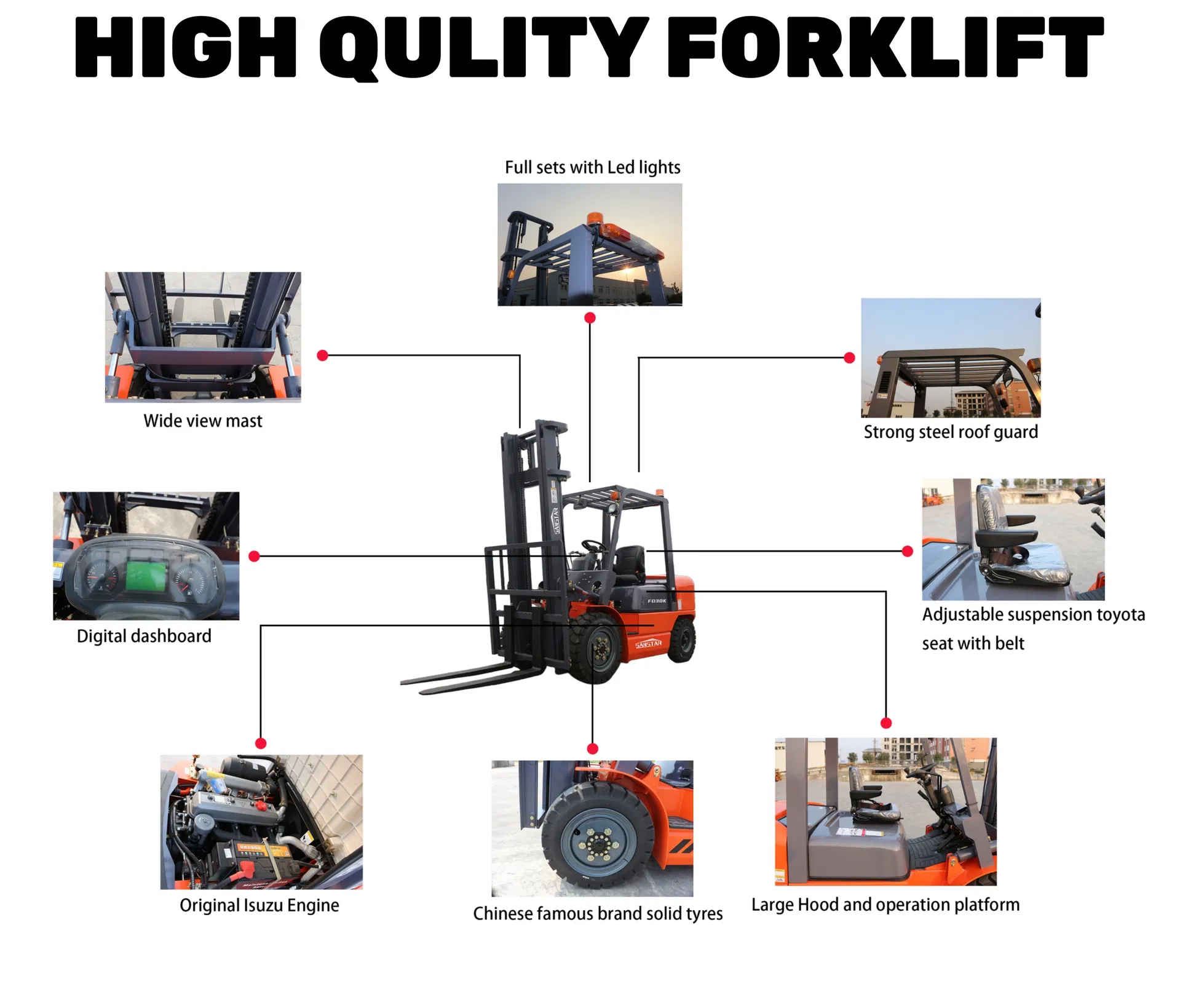

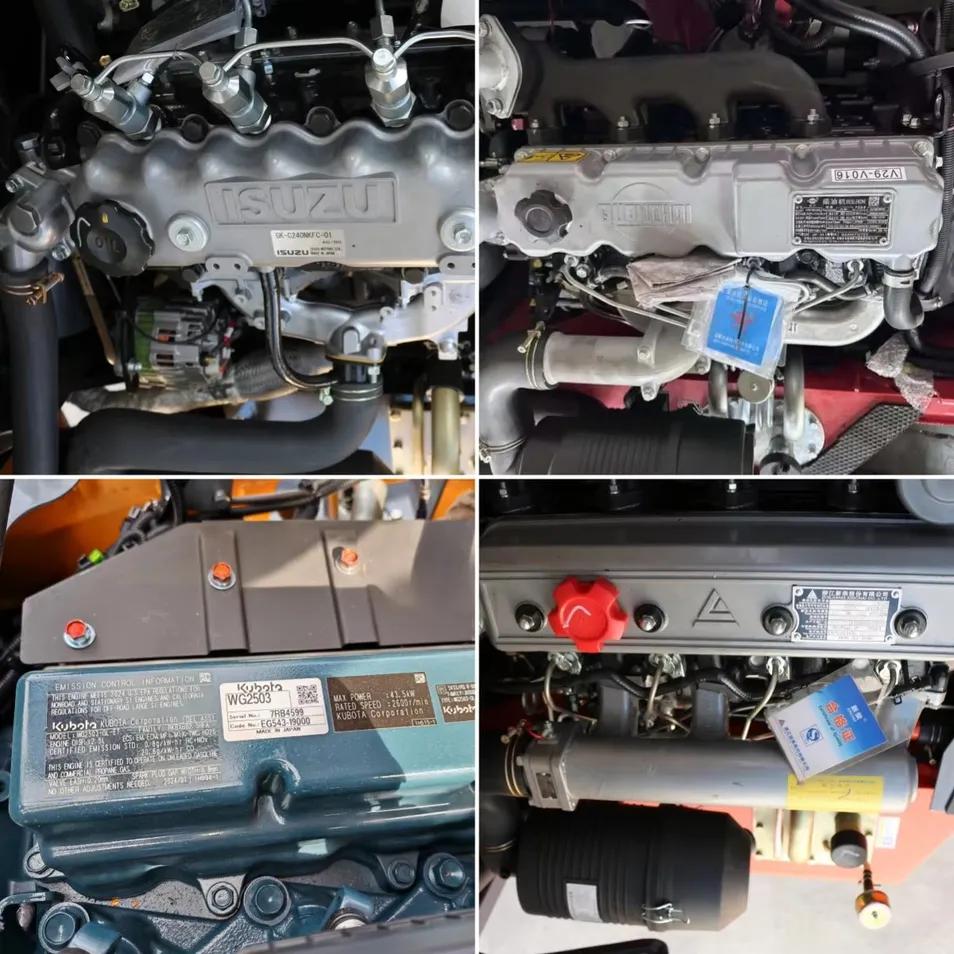

Offers a wide choice of world-class engines including Chinese engines, Mitsubishi, Yanmar, and Cummins for various performance requirements.

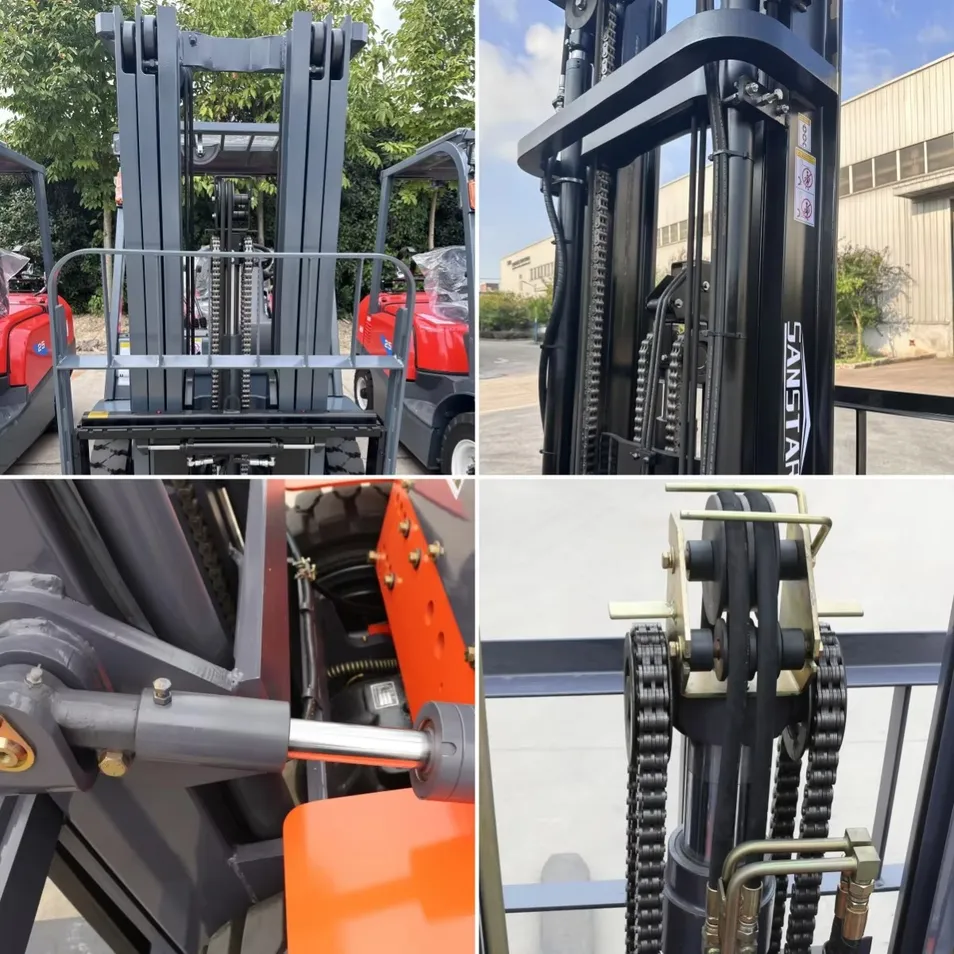

U-shaped steel frame ensures sturdiness and durability without deformation. Features large diameter lifting cylinders and high-quality chains/bearings for heavy-duty work.

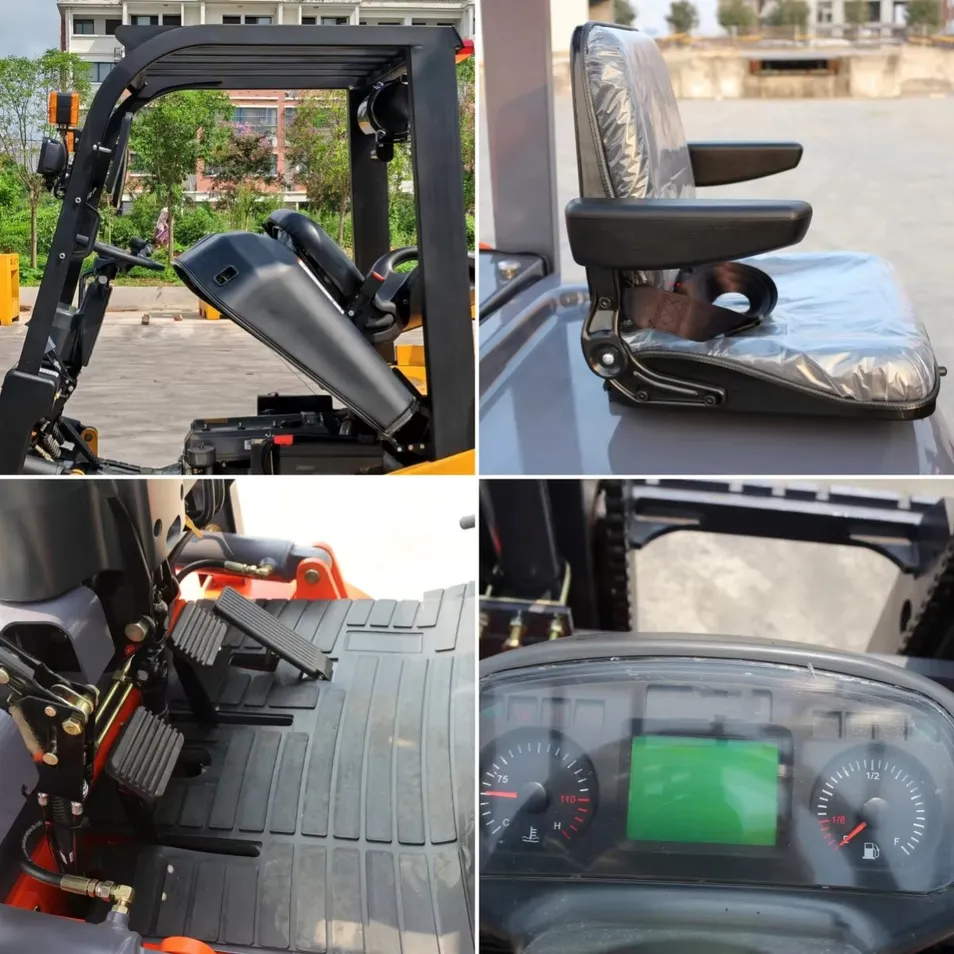

Press-forming overhead guard for visibility and protection. Suspension design enlarges foot space. Equipped with anti-fatigue seats and large LED status displays.

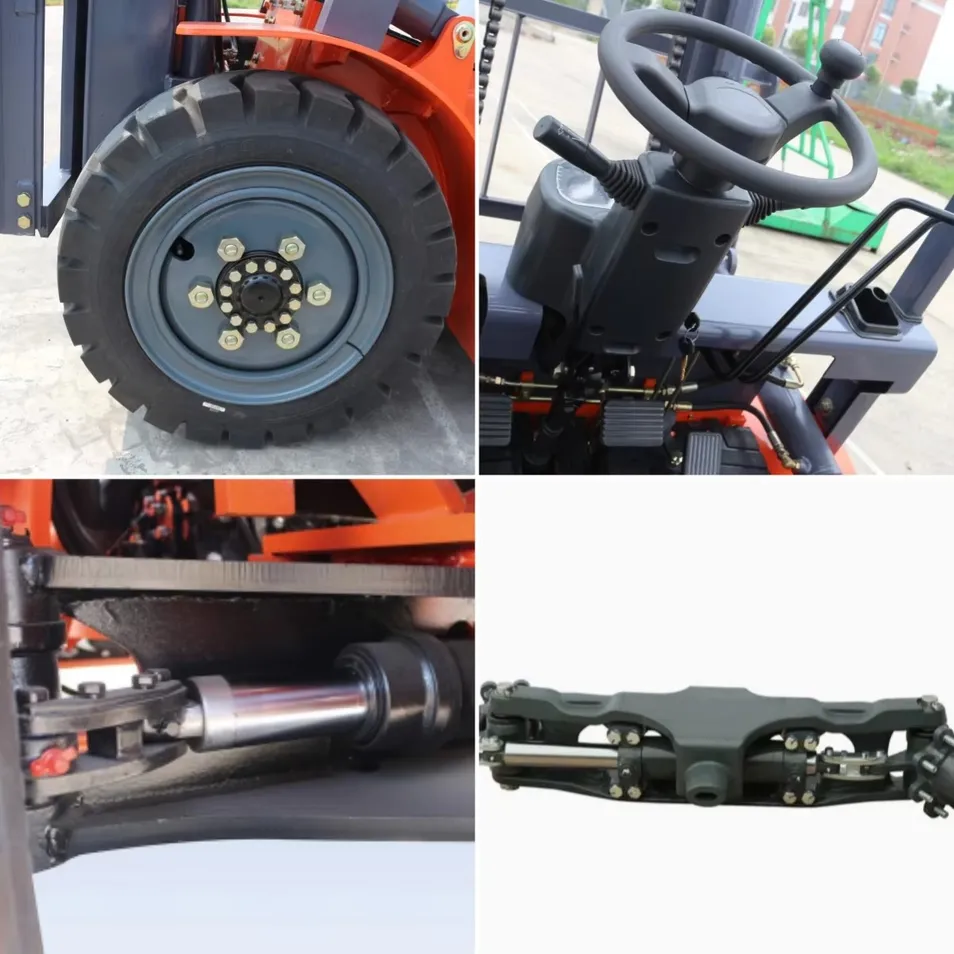

New dual-threaded steering adjustment mechanism. Casting steering axle with dust-proof and water-proof design for long service life. Pneumatic and solid tire options.
Package Size: 200cm * 120cm * 200cm
Lead Time: 30 days for standard units.
