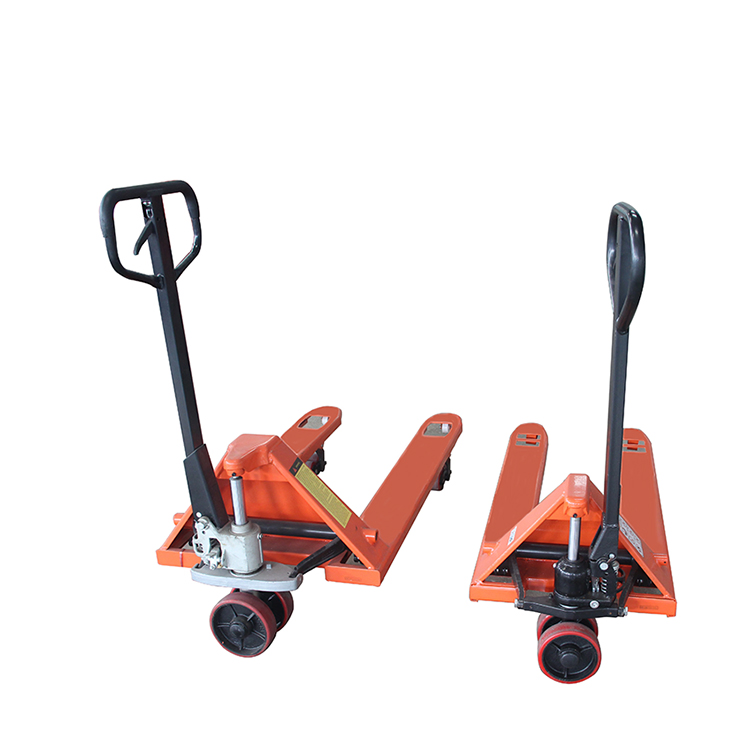

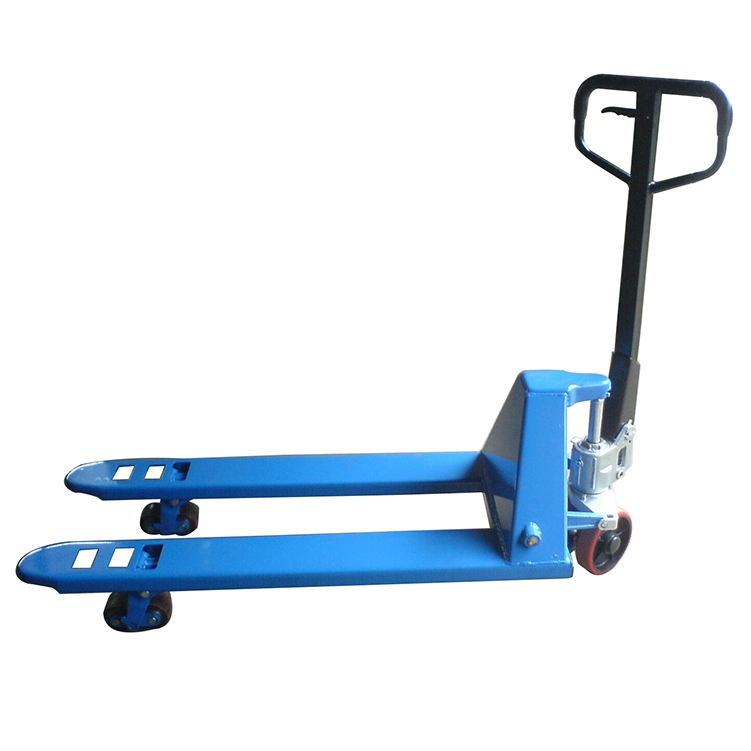

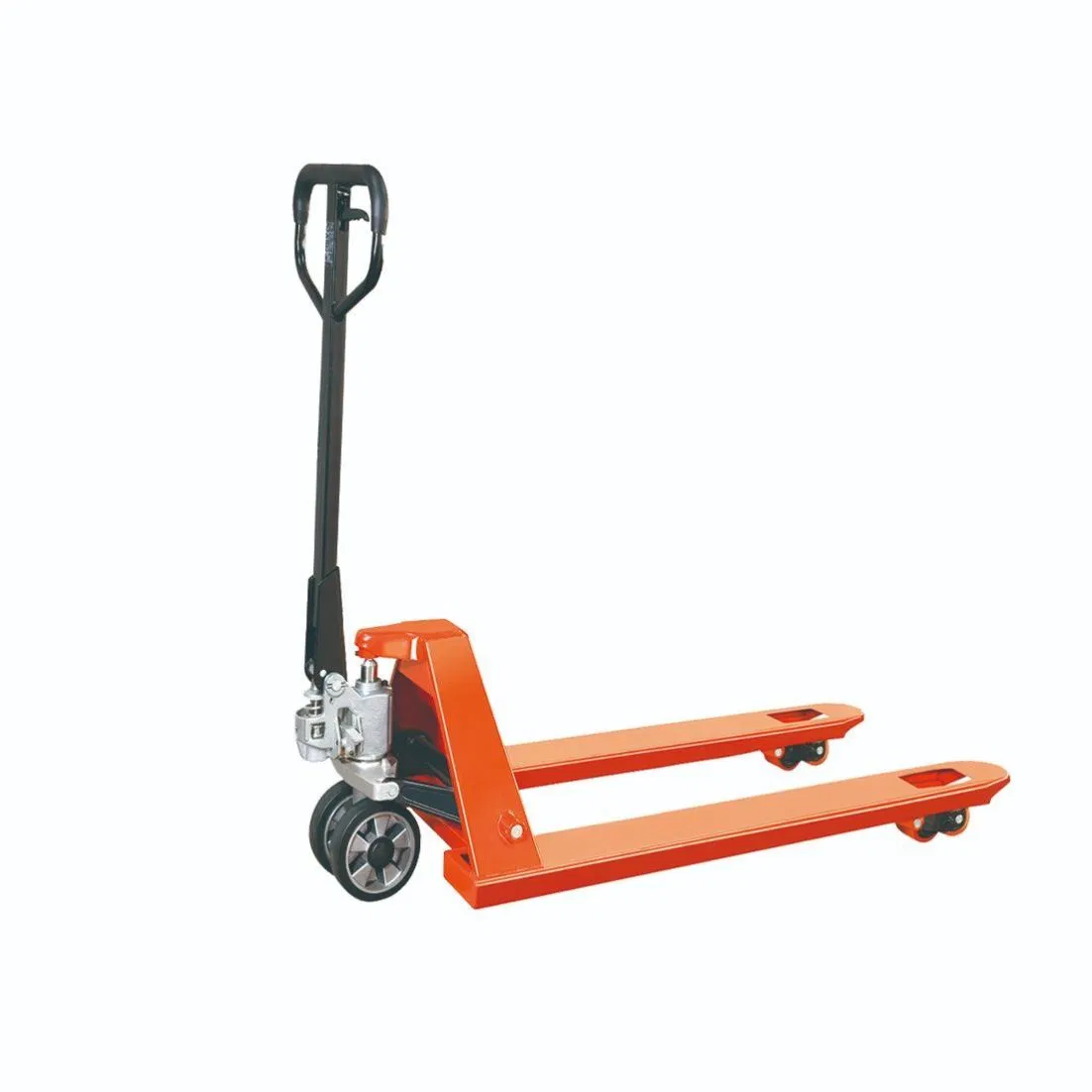

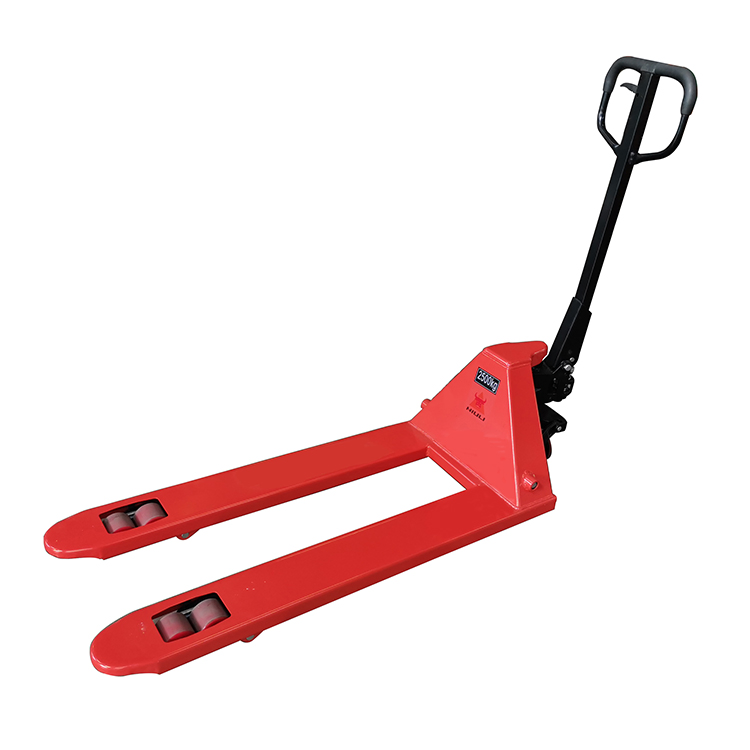

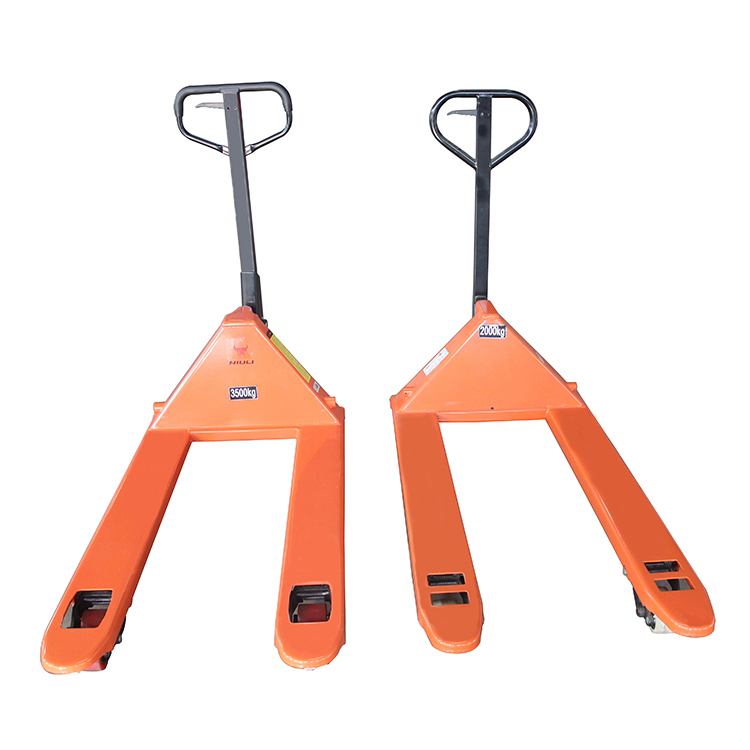

Niuli Fork Lift Hydraulic Manual Pallet Truck Transpaleta

1 / 5

Niuli Fork Lift Hydraulic Manual Pallet Truck Transpaleta

Cab Location:	Not Adjustable
Type:	Manual Pallet Truck
Power:	Hand

Send Inquiry

Product Description

Basic Information

Model NO.

Load Capacity

1T - 5T

Fuel

Not

Load Center

>500mm

Lift Height

195mm

Condition

New

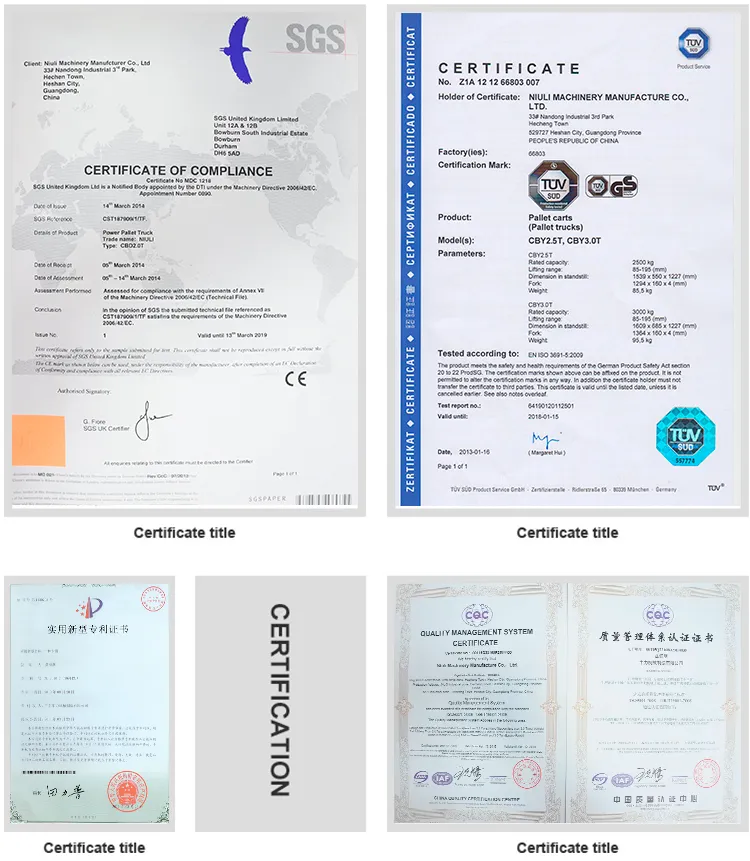

Certificates

Customized

Material

Steel

Size

550X1150mm

Entry Type

2-Way

Style

Wing

Transport Package

Iron Pallet

HS Code

8427900000

Capacity

50000PCS/Month

Product Features

Capacity: 2000kg, 2500kg, 3000kg, 5000kg
Lowered Fork Height: 85mm, 75mm, 140mm
Total Lift Height: 195mm / 185mm
Fork Width: 1150mm / 1220mm
Width Over Forks: 550mm / 685mm
Steering Wheel: 180X50mm
Front Wheel: 80mm / 70mm
Self Weight: 73-92kg
Loading: 180/144 PCS per 20ft Container

Model	CBY-AC2.5	CBY-AC3.0
Capacity(kg)	2500	3000
Min. Fork height(mm)	85/75	85/75
Max. Fork height(mm)	195/185	195/185
Lifting height(mm)	110	110
Fork length(mm)	1150/1220	1150/1220
Single fork width(mm)	160	160
Width overall forks(mm)	550/685	550/685
Fork wheel-single(mm)	80×93/74×93	80×93/74×93
Fork wheel-tandem(mm)	80×70	80×70
Steering wheel(mm)	180×50	180×50
Self weight(kg)	73-92
Qty/20 feet container	180/144	180/144

Frequently Asked Questions

What is the maximum load capacity available for this pallet truck?

The manual hydraulic pallet truck series offers multiple load capacities ranging from 1 ton up to 5 tons to suit various industrial needs.

What are the standard fork dimensions?

The standard fork size is 550x1150mm, but we also offer width options of 685mm and lengths of 1220mm depending on your pallet requirements.

Is the product suitable for 2-way entry pallets?

Yes, this model is designed with a 2-way entry type, making it highly efficient for standard warehouse pallet handling.

What material is used for the construction?

The pallet truck is constructed from high-grade reinforced steel, ensuring durability and a high strength-to-weight ratio.

How many units can fit in a 20-foot container?

Depending on the specific configuration and packaging, a 20-foot container can accommodate between 144 to 180 units.

What type of packaging is used for transport?

Units are securely packed using iron pallets to ensure safety and stability during international shipping.
