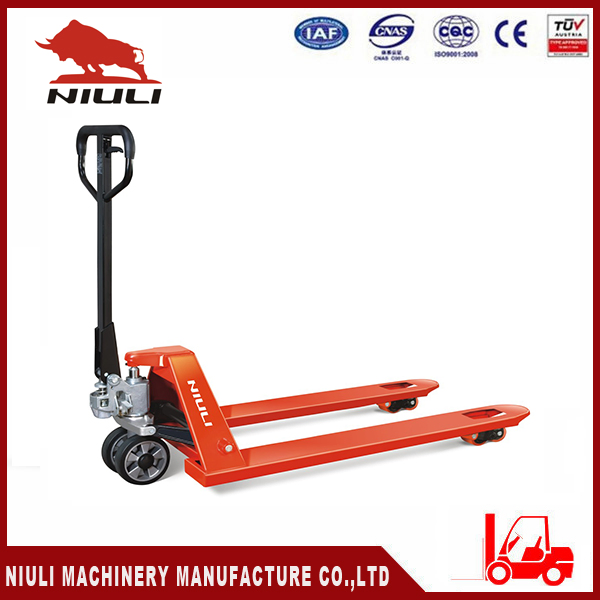

Niuli AC Hydraulic Hand Pallet Truck with Ce

After-sales Service:	Online Service
Warranty:	1 Year
Cab Location:	Not Adjustable

Send Inquiry

Product Description

Basic Information

Model NO.CBY-AC hand pallet truck

TypeManual Pallet Truck

PowerHand

Load Capacity1T - 5T

FuelNot

Load Center>500mm

Lift Height195mm

ConditionNew

MaterialSteel

Size550X1150mm

Entry Type2-Way

StyleWing

HS Code8427900000

Capacity50000PCS/Month

Product Description

◈ Capacity: 2000kg, 2500kg, 3000kg, 5000kg

◈ Lowered Fork Height: 85mm, 75mm, 140mm

◈ Total Lift Height: 195mm / 185mm

◈ Fork Width: 1150mm / 1220mm

◈ Width Over The Forks: 550 / 685mm

◈ Steering Wheel: 180X50mm

◈ Front Wheel: 80mm / 70mm

◈ Self Weight: 73-92kg

◈ Q'Ty/20 Feet Container: 180 / 144 PCS

Model	CBY-AC2.5	CBY-AC3.0
Capacity (kg)	2500	3000
Min. Fork height (mm)	85/75	85/75
Max. Fork height (mm)	195/185	195/185
Lifting height (mm)	110	110
Fork length (mm)	1150/1220	1150/1220
Single fork width (mm)	160	160
Width overall forks (mm)	550/685	550/685
Fork wheel-single (mm)	80×93/74×93	80×93/74×93
Fork wheel-tandem (mm)	80×70	80×70
Steering wheel (mm)	180×50	180×50
Self weight (kg)	73-92
Qty/20 feet container (PCS)	180/144	180/144

Frequently Asked Questions

❓ What is the maximum load capacity of these hand pallet trucks?

Our manual pallet trucks are available in various models with load capacities ranging from 1 Ton (1000kg) up to 5 Tons (5000kg) to suit different industrial needs.

❓ What are the standard fork dimensions?

The standard fork widths are 550mm and 685mm, with lengths typically measuring 1150mm or 1220mm, designed for 2-way entry compatibility.

❓ Can the fork height be adjusted?

The lowered fork height is between 75mm and 85mm (depending on the model), and the hydraulic system allows for a maximum lift height of up to 195mm.

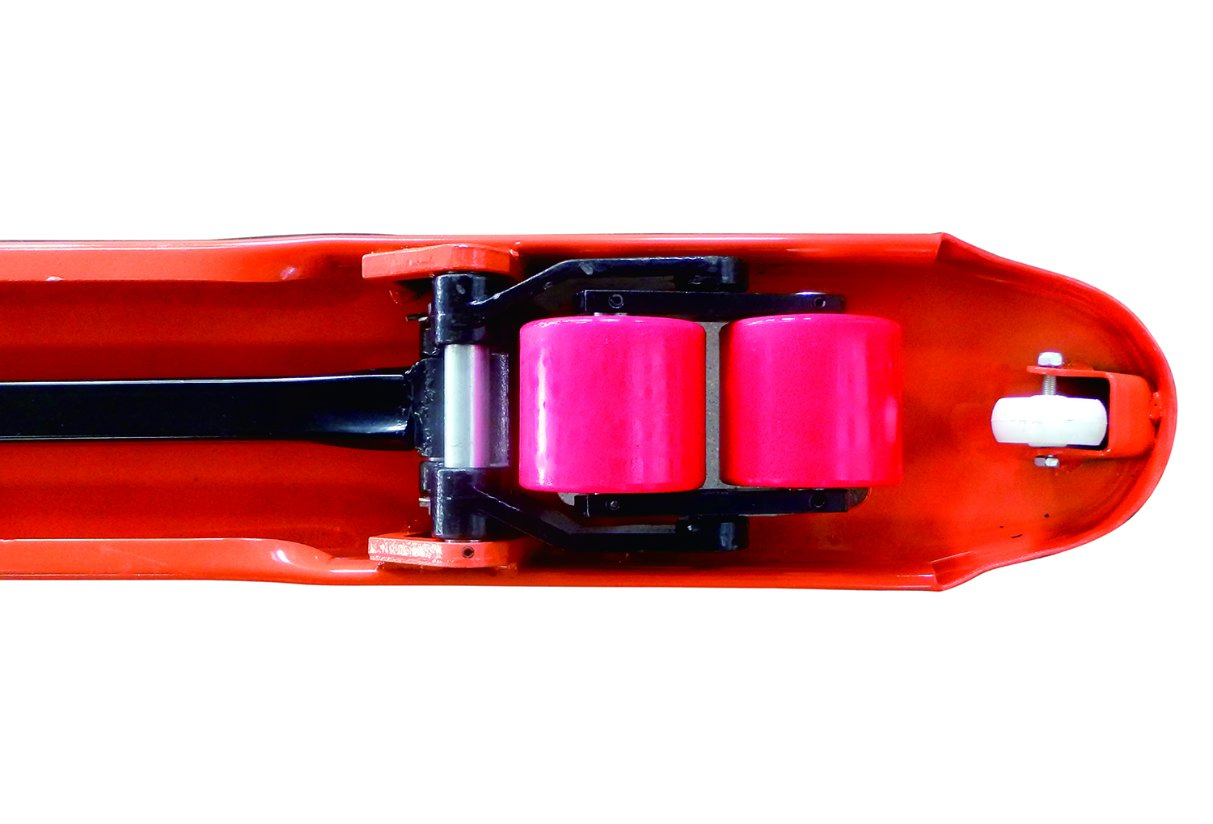

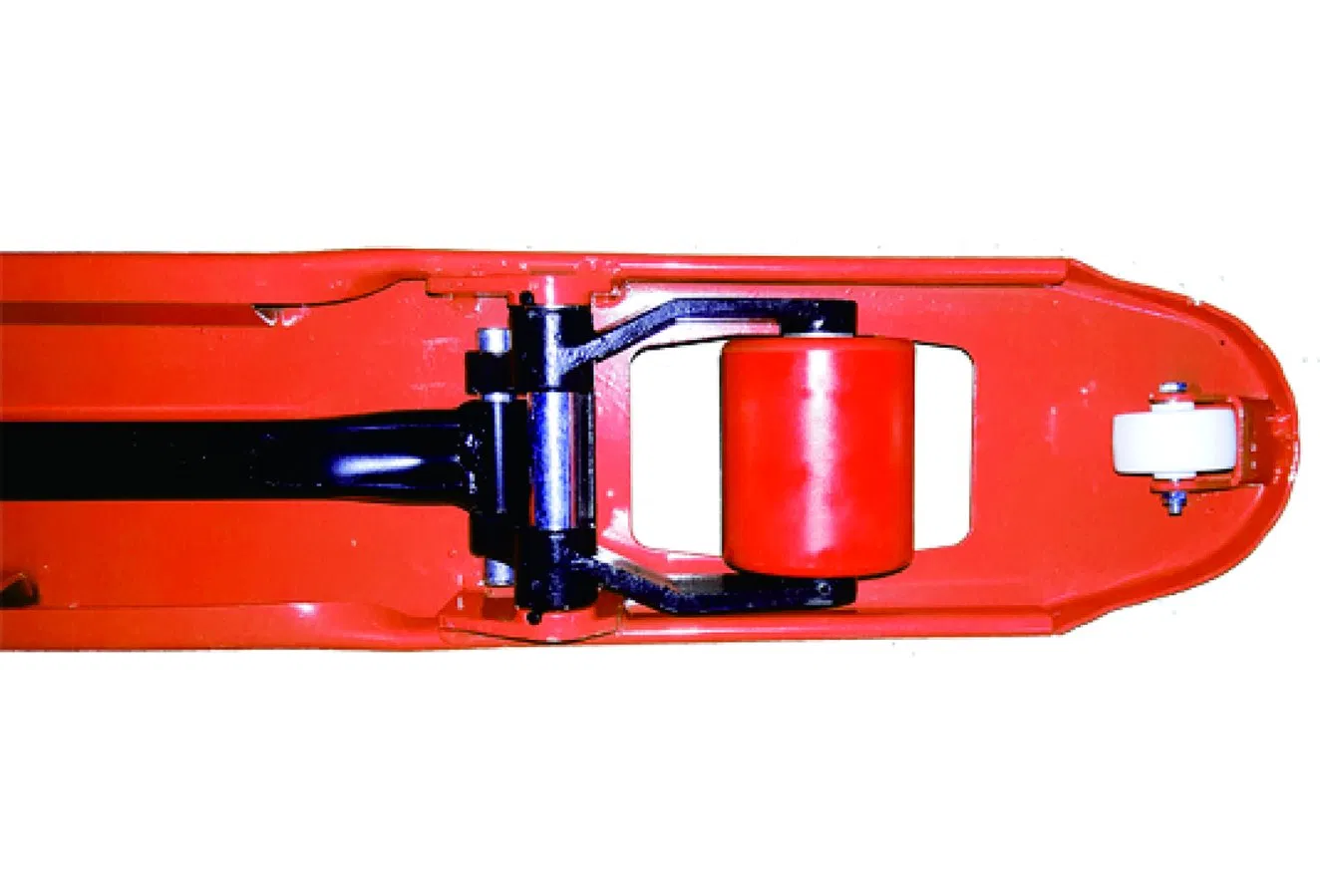

❓ What type of wheels are used in these trucks?

The trucks feature high-quality steering wheels (180x50mm) and front wheels (80mm or 70mm) designed for smooth movement and durability on warehouse floors.

❓ How many units can fit in a standard 20ft container?

Depending on the specific dimensions and model, a 20ft container can typically accommodate between 144 and 180 units.

❓ What is the construction material of the frame?

The entire frame and forks are constructed from high-grade reinforced steel to ensure long-term durability and structural integrity under heavy loads.
