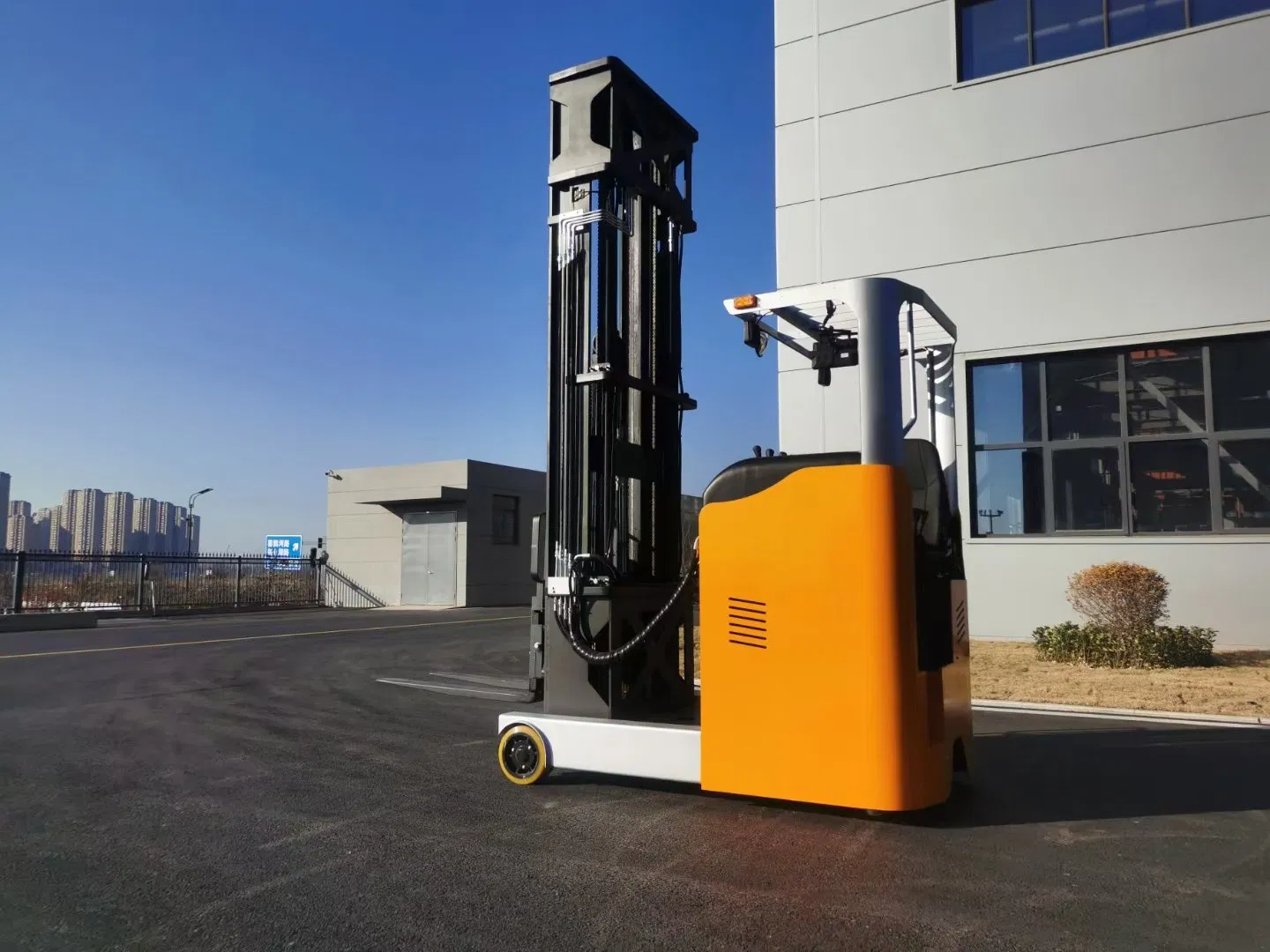

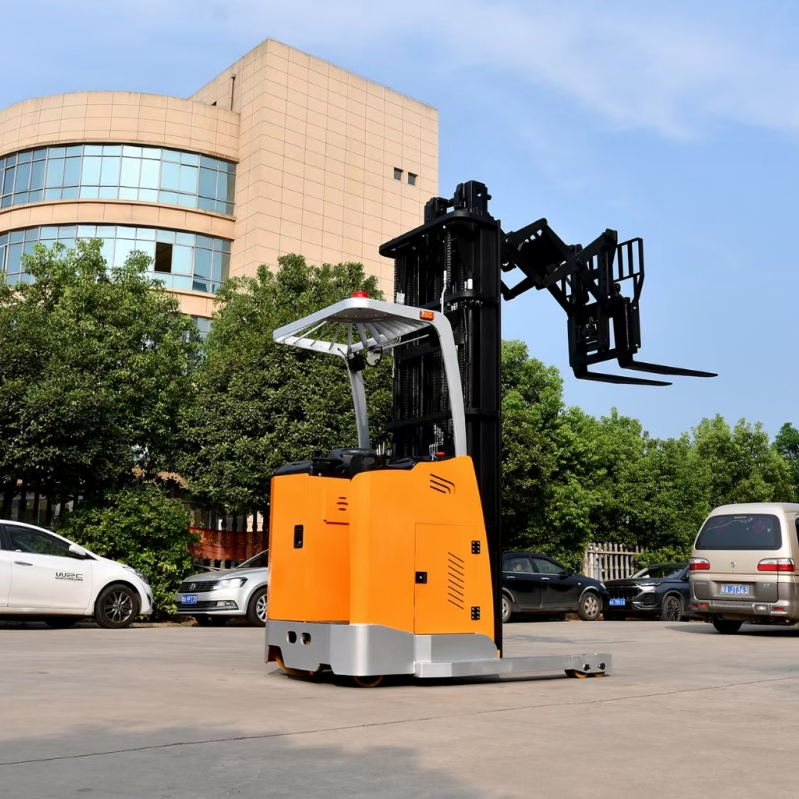

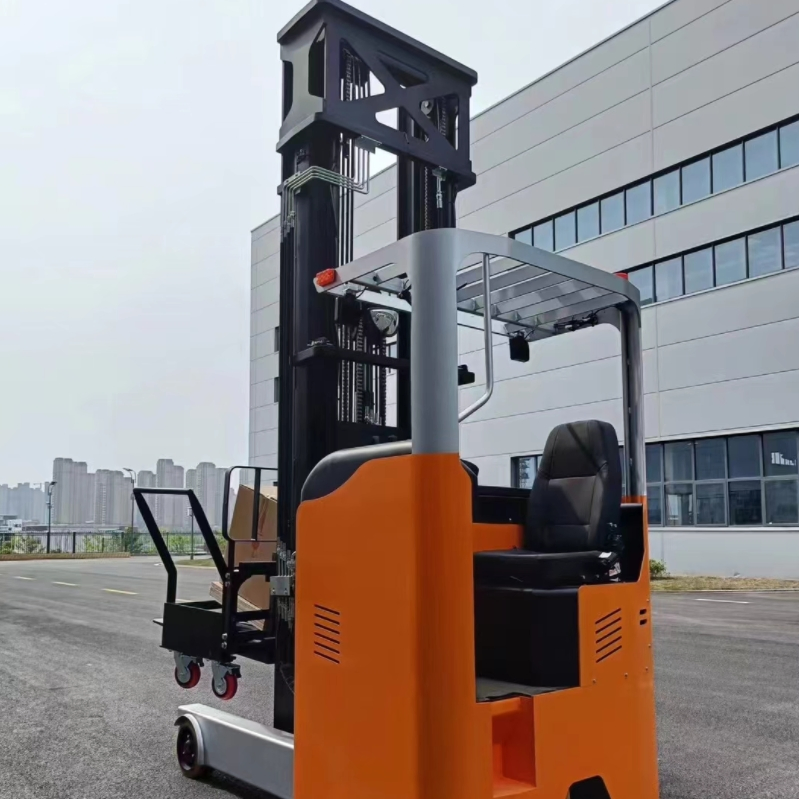

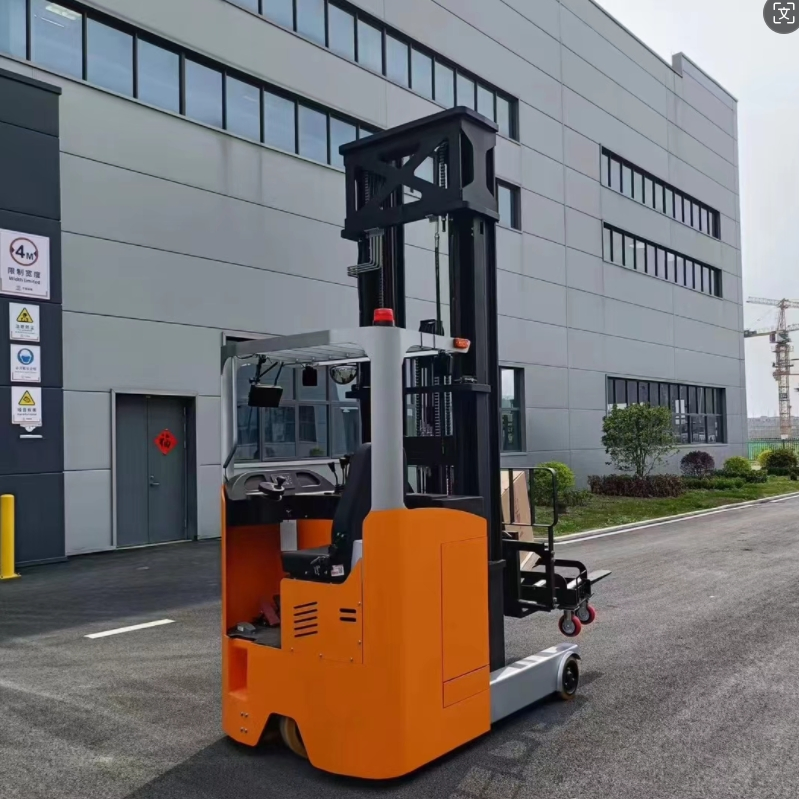

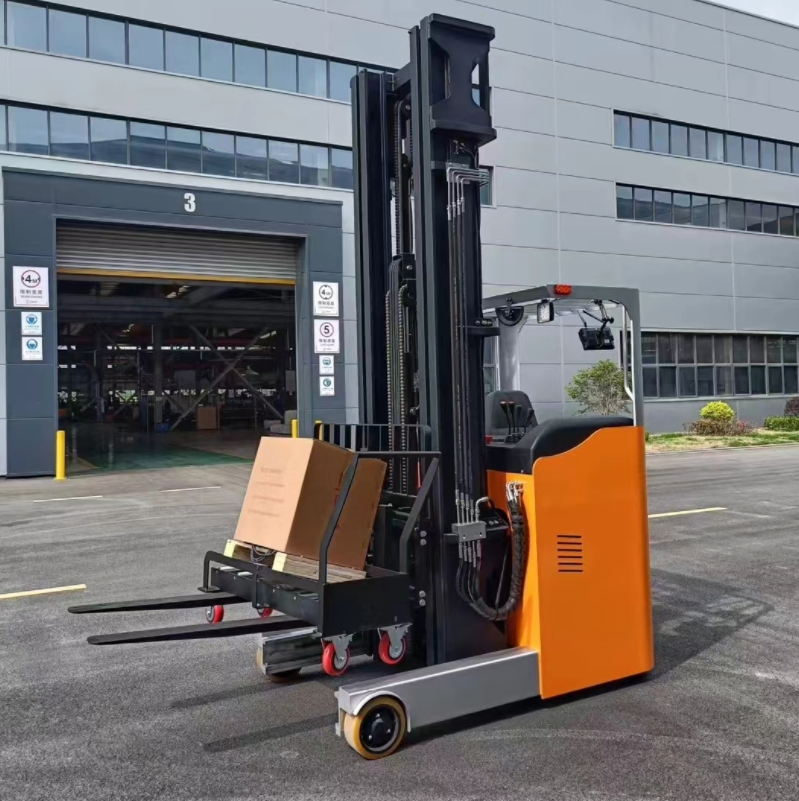

Narrow Aisle Three 4 Way 1.8t Pallet Stacker Reach Truck for Sale

Customization: Available
After-sales Service: 1year
Warranty: 1year

Product Description

📋 Overview & Basic Information
Model
ESW15
Type
Diesel Forklift
Power
Diesel Engine / Battery Operated
Load Capacity
0.5t-2.5t
Lift Height
>5000mm
Condition
New
Drive Motor
AC Motor
Overall Dimensions
1270*2421*2200
⚙️ Product Description & Key Features
Narrow Aisle Pallet Stacker

This maintenance-free AC machine provides rapid and accurate reaction, offering high efficiency and energy-saving performance for heavy working conditions. Equipped with a pure electric three-way fork, it ensures safe, reliable, and steady operation in narrow aisles.

  • Advanced controller for secure and safe operation.
  • Mast with high surplus capacity, lifting up to 6500mm without load loss.
  • All-wheel electromagnetic braking for enhanced safety.
  • Ergonomic layout with suspended seat to minimize fatigue.
  • Minimum stacking channel width of only 1600mm.
  • Pure digital steering system, energy-efficient and precise.
  • Integrated fork video system for efficient stacking.
  • Multiple navigation modes (Electromagnetic, Magnet, Mechanical) available.

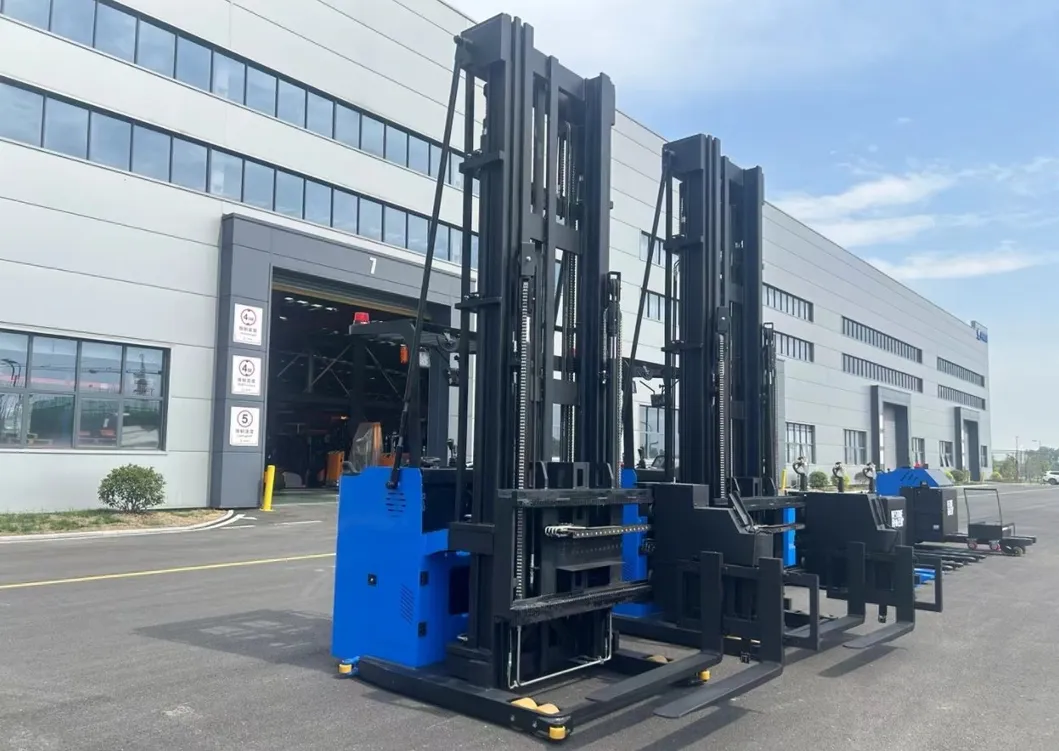

Stacking Operation

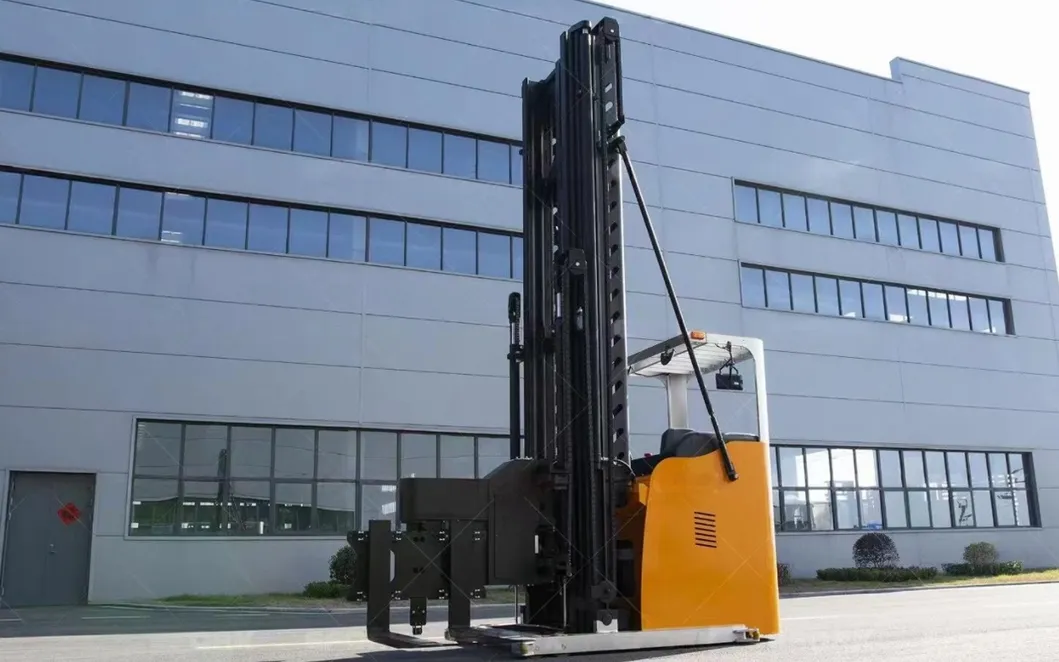

Forklift Precision
📊 Product Parameters
Model Unit E3W10 E3W15
Power type-BatteryBattery
Operation Type-Stand-onStand-on
Service weightkg42604690
Rated capacityQ(kg)10001500
Load centerC(mm)500600
Lift heighth3(mm)30003000
Turning radiusWa(mm)18801980
Travelling speed (laden)km/h7.57.5
📸 Detailed Photos

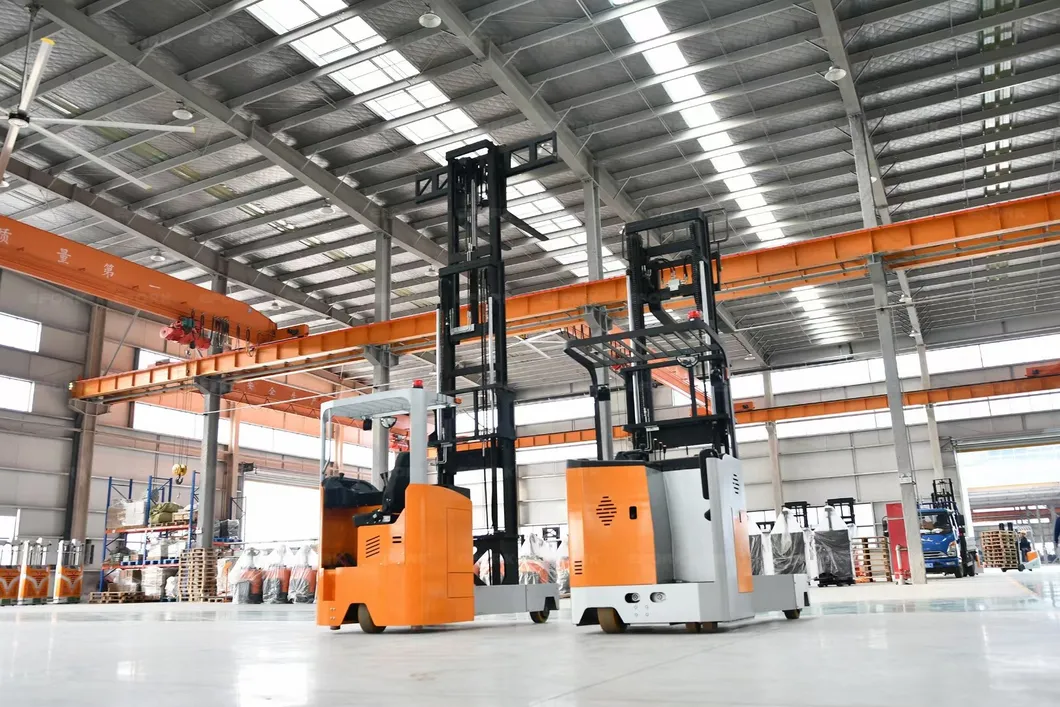

Chassis Detail

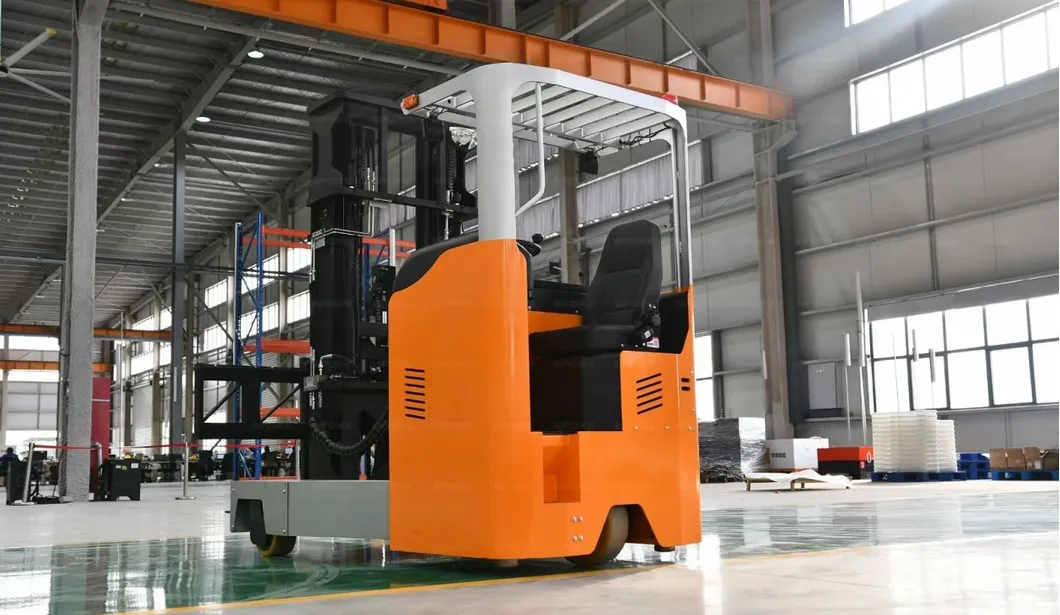

Mast Detail

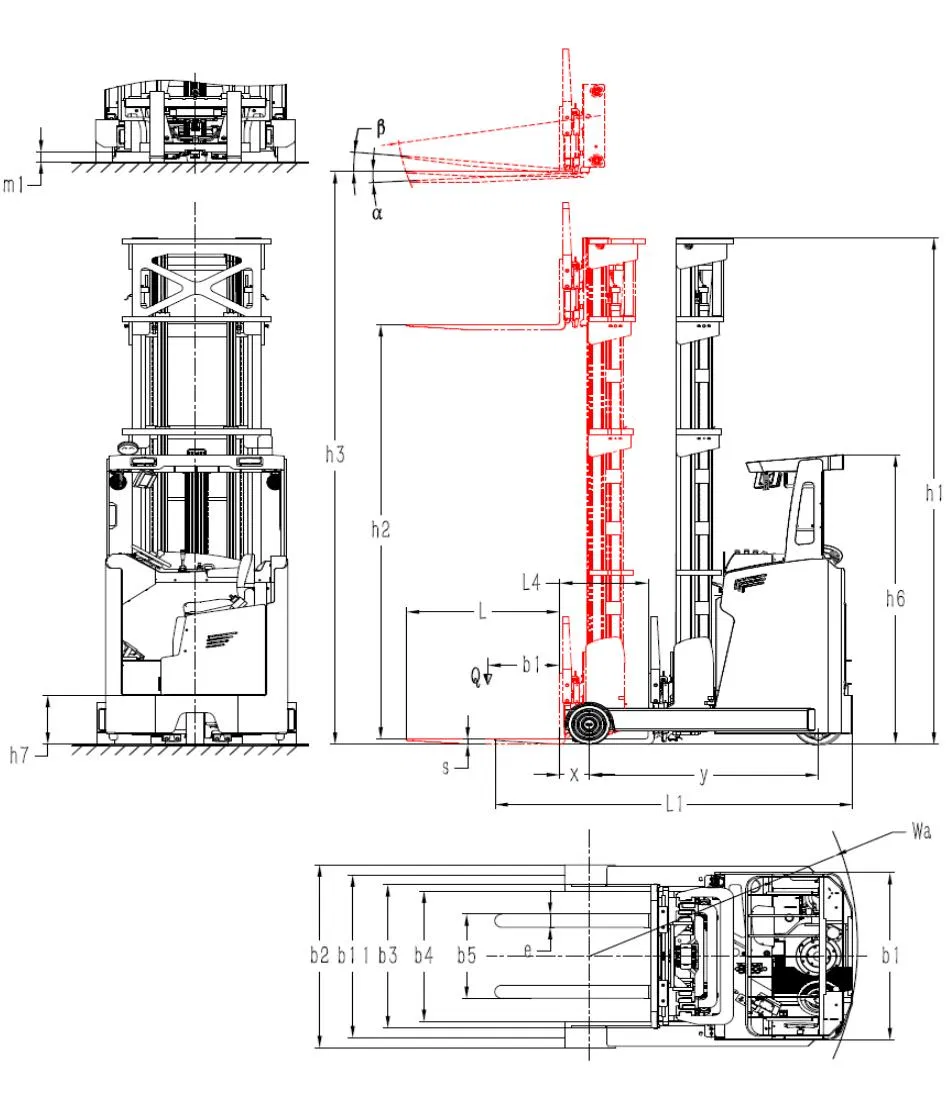

Technical Drawing

Outdoor Capability with Moving Mast Reach Truck: Specifically designed for versatility, these reach trucks feature durable wheels and high ground clearance, allowing for transition between indoor and outdoor warehouse conditions while ensuring optimal visibility and driver comfort.

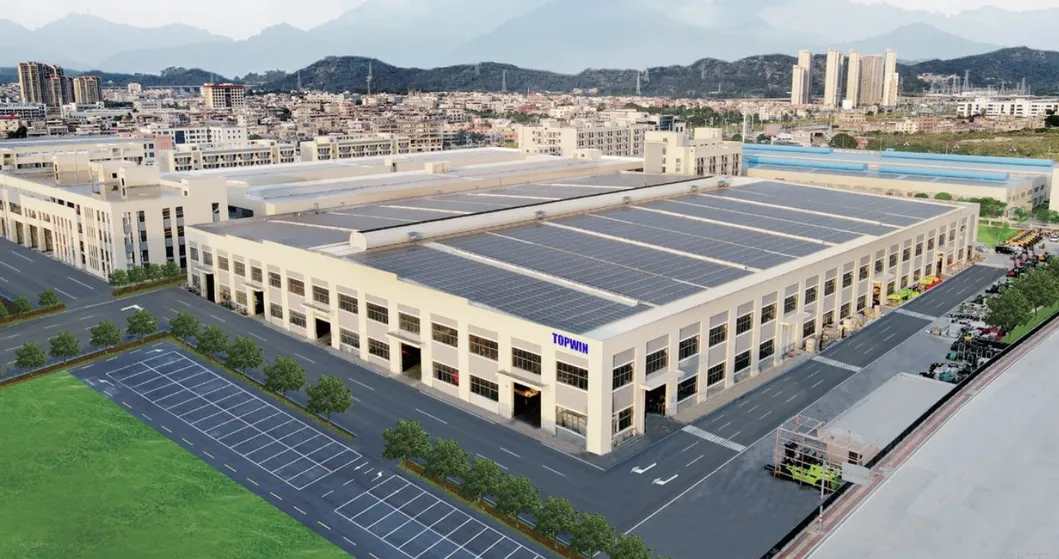

🏭 Our Factory & Production

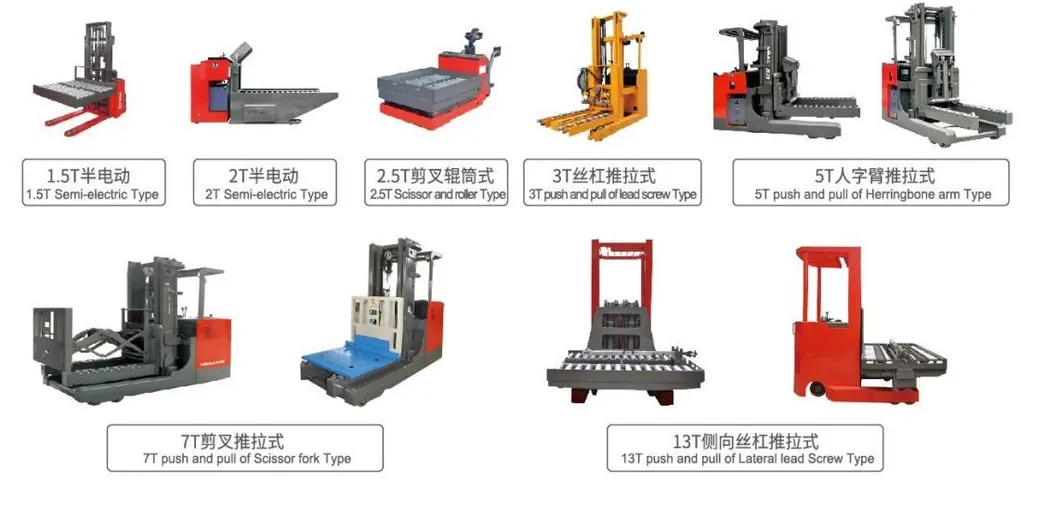

Production Line

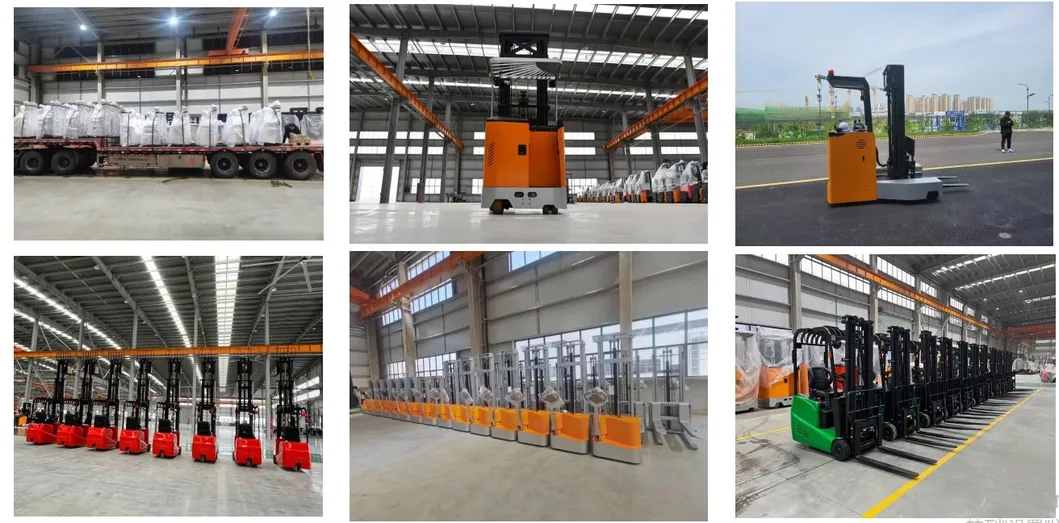

Factory Workshop
Warehouse Equipment
Finished Products

Our storage equipment range includes electric trucks, stacking cars, reach forklifts, towing vehicles, order pickers, AGV pilotless trucks, and 3-way electric pallet stackers, widely used in modern logistics.

Frequently Asked Questions
Q1: What is the minimum channel width required for operation?
The minimal stacking channel width is only 1600mm, which significantly enhances warehouse storage capacity.
Q2: What is the maximum lifting height available?
The forklift can reach lifting heights between 4.5m and 12m, with the mast maintaining excellent capacity even at high positions.
Q3: How does the three-way stacking function work?
The forklift does not need to turn; it realizes stacking and picking up goods on both sides through the rotation and side-shift movement of the fork.
Q4: Is the forklift suitable for outdoor use?
Yes, specialized models feature large diameter wheels and high ground clearance for indoor/outdoor versatility.
Q5: What power system does it use?
It is equipped with a maintenance-free full AC system and high-capacity battery for efficient, long-term operation.
Q6: Are customized solutions available for specific pallet sizes?
Yes, the serialized layout can meet distinct working prerequisites such as unique pallet types and specific shelf channel sizes.
