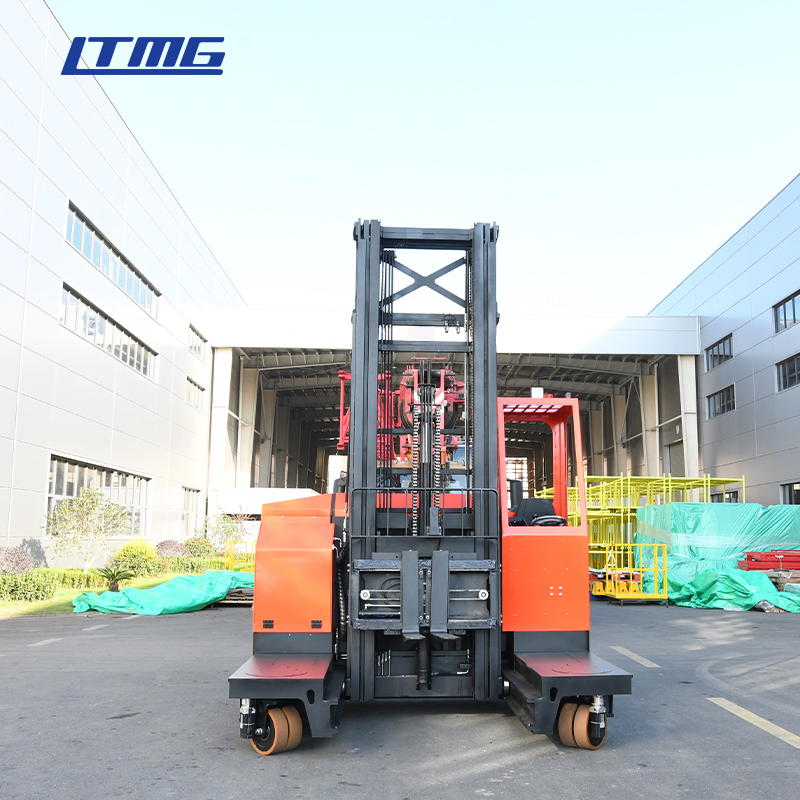

Multi-Directional Side Loader Forklift 3ton 3.5 Ton Full Way Reach Stacker Forklift

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.FRB35M
TypeReach Forklift
PowerAC Motor
Load Capacity1T - 5T (Rated 3500kg)
FuelElectric
Lift height3000~5000mm
ConditionNew
Battery48V/300ah
Operator TypeSeated Type
ControllerCurtis
Product NameFull Way Reach Stacker
OriginChina

Product Highlights

Banner

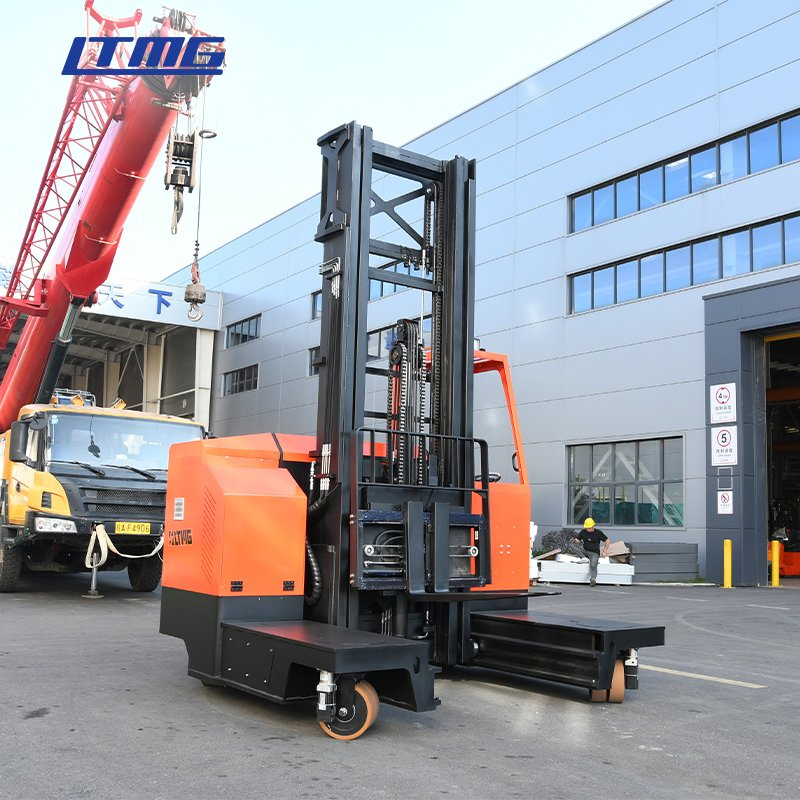

Multi-Directional Side Loader Forklift 3ton 3.5 Ton Full Way Reach Stacker Forklift

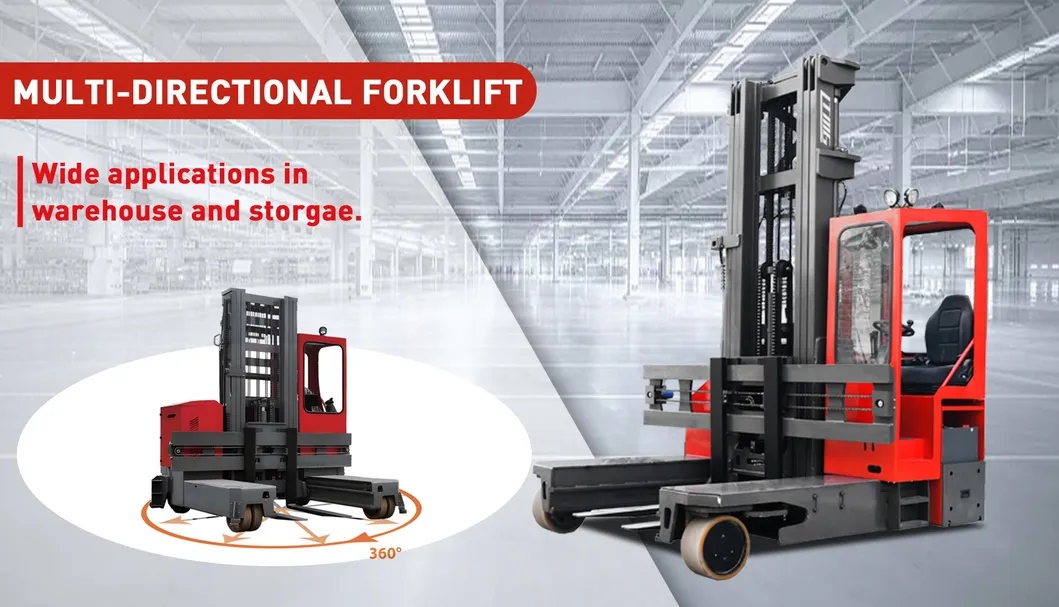

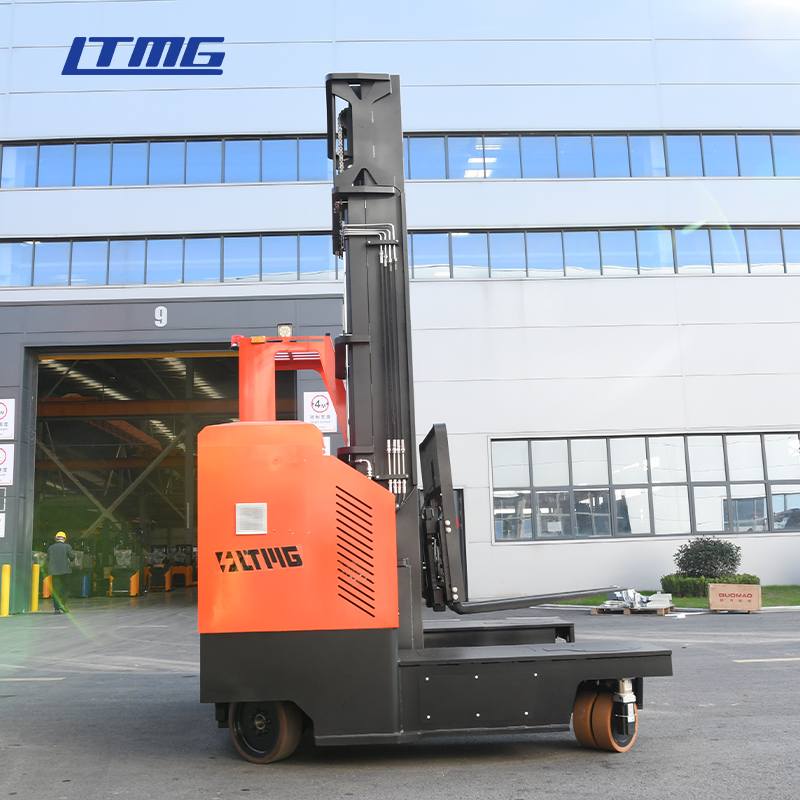

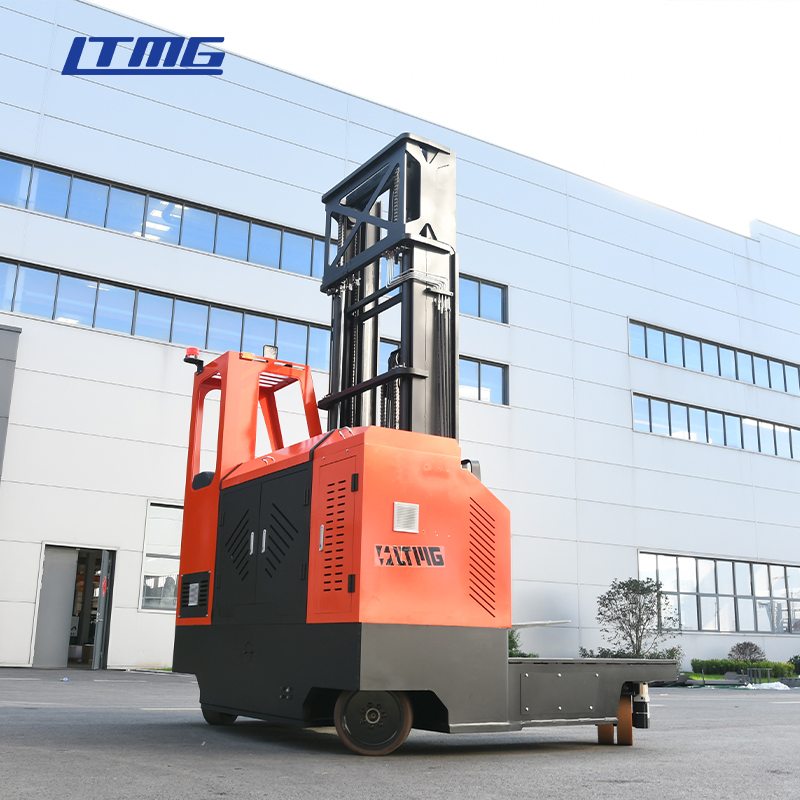

Product View
P

Detailed Photos

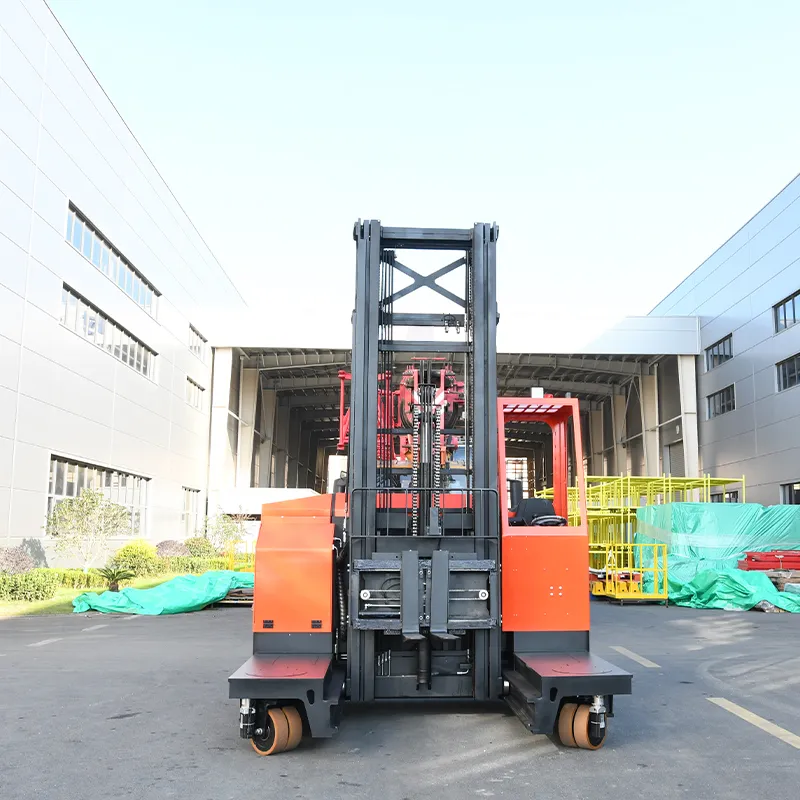

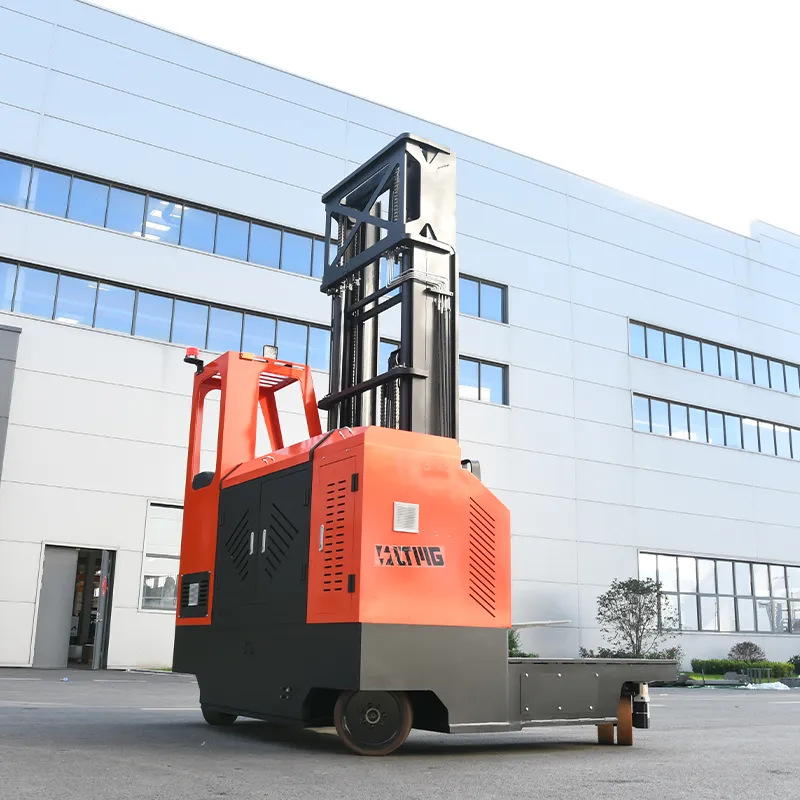

Detail 1 Detail 2

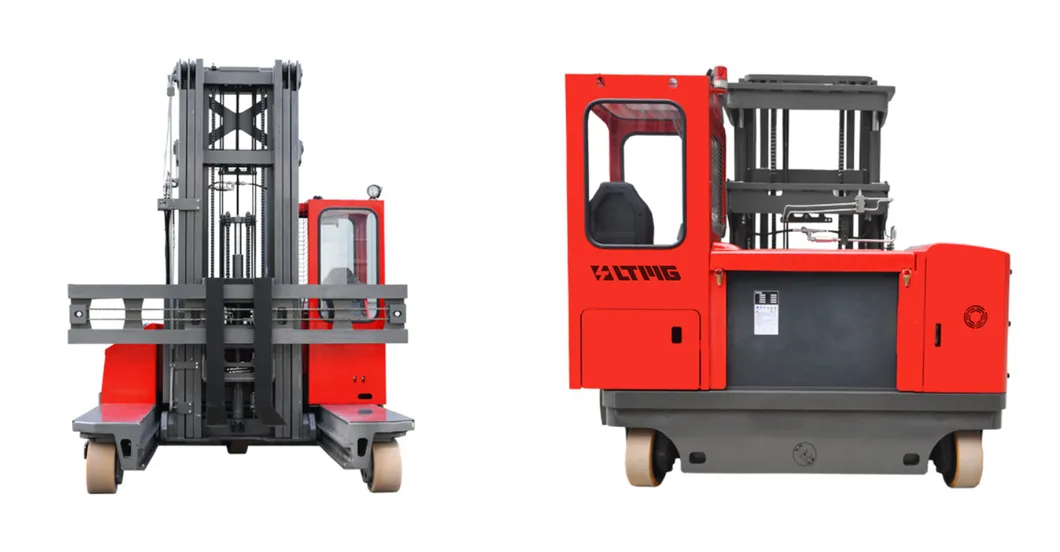

Detail 3
L

Technical Parameters

Specification of 3.5ton Electric Reach Forklift
Model No.FRB35M
Rated Capacity (KG)3500
Operate TypeSit on
Max. Lifting Height (MM)5000
Min. Turning Radius (MM)1625
Max Travel Speed (laden/unladen)7.5/8.5 km/h
Load center500 mm
Fork Dimensions (L/W/T)1070*100*35 mm
Overall Dimensions2266mm * 1098mm * 2580mm
Battery Capacity48V / 300 AH
Driving Motor5.5 KW (AC)
Lifting Motor6.3 KW
Wheel TypePolyurethane Solid Tyre

Key Features

Safety device for neutral position to increase operation security.
High-strength frame and overhead guard to protect the operator.
AC electric controller with multiple automatic safety protection settings.
Imported AC motor: brushless, dustproof, and damp-proofing for long life.
Intelligent charger that optimizes charging process to extend battery life.
Waterproof and dustproof design for all electrical circuits.

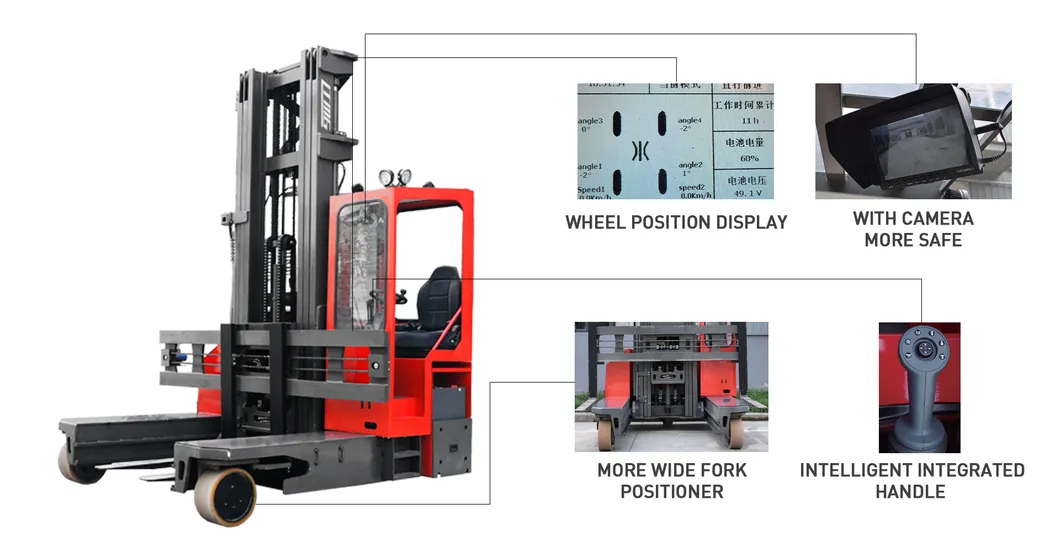

Feature Image
C

Packaging & Delivery

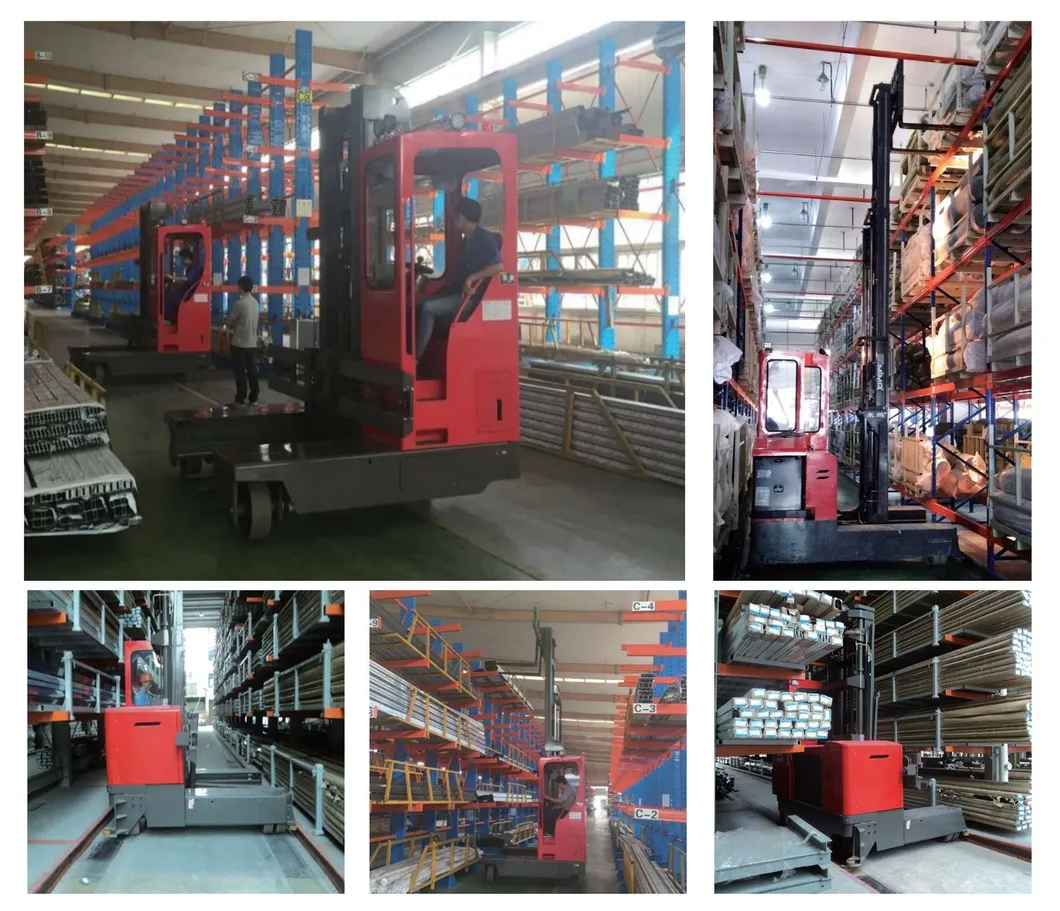

Facility 1 Facility 2
Shipping 1 Shipping 2
S

After Sales Service

Professional after-sale service is treated with the highest priority. All products are supplied with a quality warranty of one year or 2000 working hours (whichever occurs first). Our global network of agents ensures that technical support and maintenance are always within reach.

Support
?

Frequently Asked Questions

1. What certificates do your products hold?
Our workshops meet the ISO9001:2008 Quality System standards, and all products are CE certified to ensure international safety compliance.
2. Can you customize the forklift according to specific requirements?
Yes, we can customize designs and colors based on client needs, provided the modifications are implemented safely and scientifically.
3. How long is the product warranty?
The standard warranty is 1 year or 2000 working hours, whichever comes first, according to our standard warranty policy.
4. What are the accepted payment terms?
We generally operate on T/T terms: a 30% down payment in advance, and the remaining 70% balance settled before shipment.
5. What is the typical delivery time?
Standard configurations are usually in stock. For customized products, the production period is typically around 30 days.
6. Which logistics methods are available for shipment?
We ship via sea (container or bulk) for most international orders, by railway for neighboring countries, and via international couriers (DHL/FedEx) for urgent spare parts.
