Material Handing Four Directional Vna Seated Full Power/Powered/Battery/Electric Fork/Forklift/Lift/Reach Truck Price with Single or Double Scissors Max 10000

Technical Specifications

Model:CQDH20C

Type:Reach Forklift

Power:AC Motor / Electric

Load Capacity:1.6 Ton (1600 Kg)

Lift Height:Up to 10000mm

Turning Radius:1865 mm

Travel Speed:10.5/11 Km/H

Battery:36V / 700-1000 Ah

Product Overview

Electric Fork Reach Truck with Single or Double Scissors: This high-performance VNA seated reach truck is designed for intensive material handling operations, offering exceptional reach ability and stability for high-shelf warehousing.

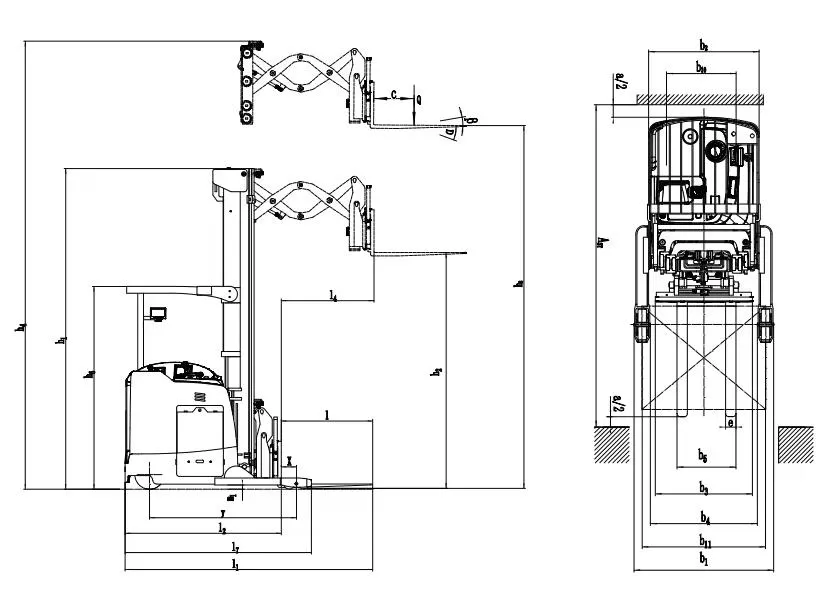

Performance Parameters

Description	Unit	CQDH20C (Double Scissor)
Drive type	-	Battery
Load center distance	mm	600
Tyre size, front	mm	343*140
Max. lift height	mm	Up to 10500
Overall length	mm	2897
Reach distance	mm	1085
Lift motor rating	KW	14.0 (AC)

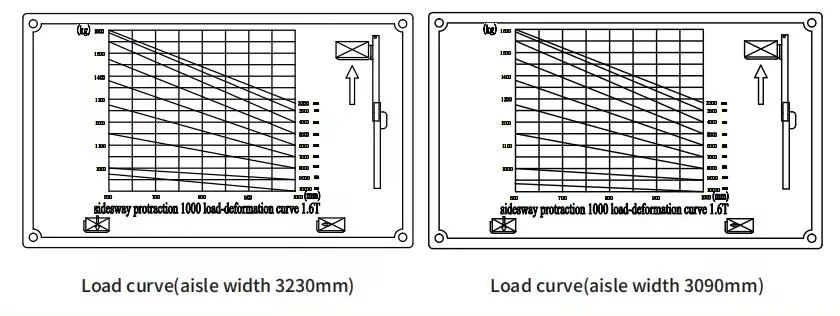

Aisle width (1000x1200)	mm	3230

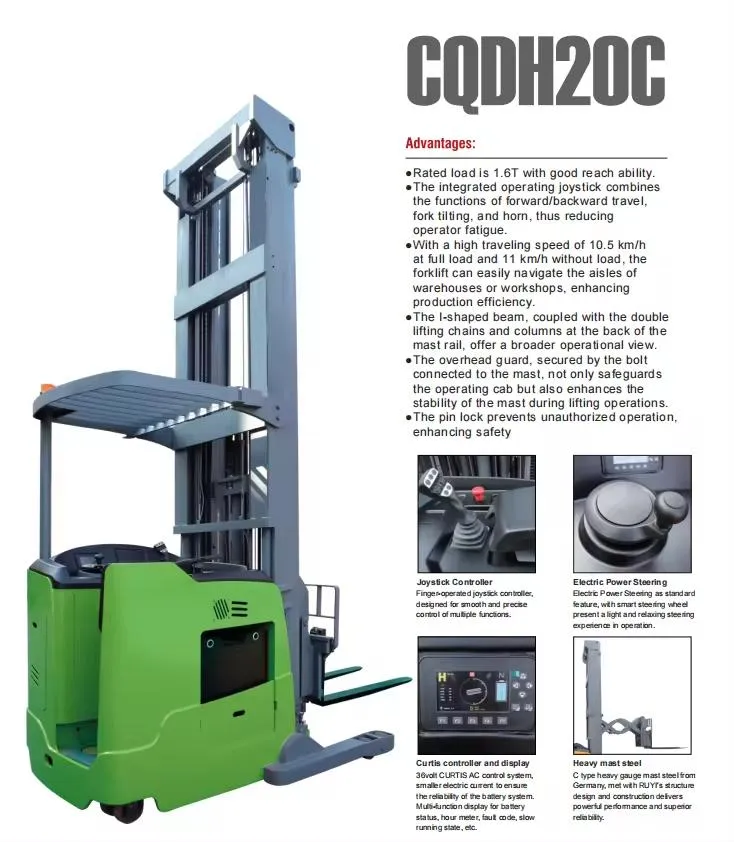

Key Advantages

Rated load of 1.6T with superior deep reach capability for double-deep racking.
Integrated operating joystick combines travel, tilting, and horn to minimize operator fatigue.

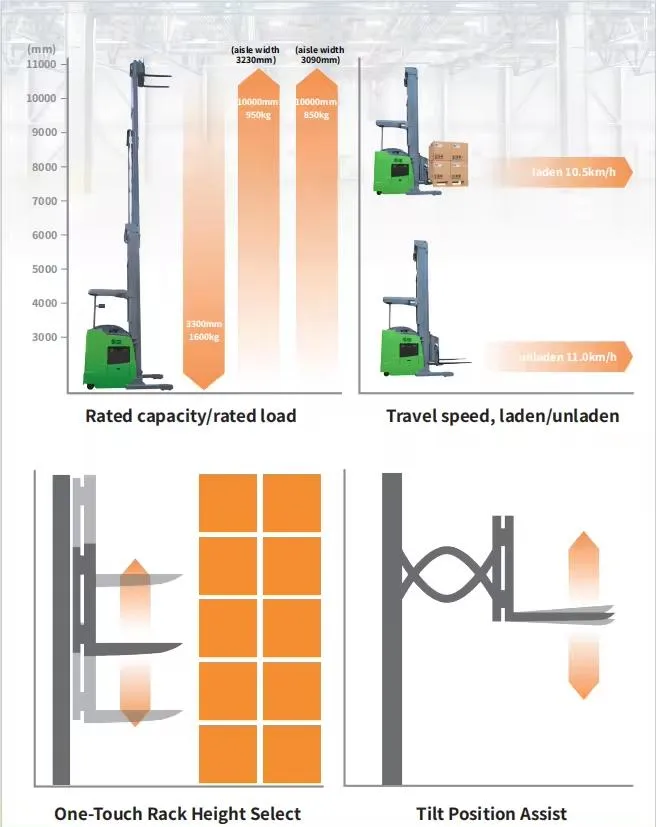

High travel speeds (up to 11 km/h) enhance warehouse production efficiency.
I-shaped beam and double lifting chains provide a broader operational view for safety.
Robust overhead guard enhances mast stability during high-elevation lifting.
Safety pin lock system prevents unauthorized operation.

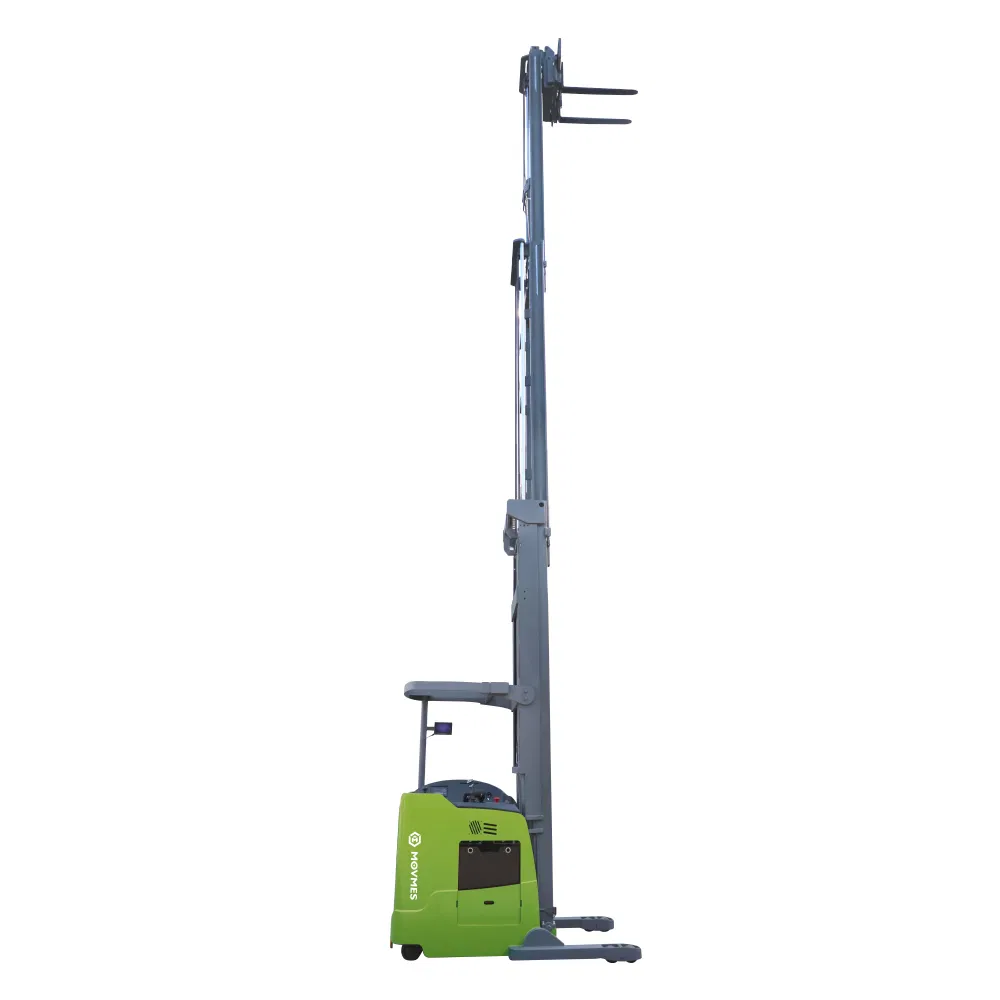

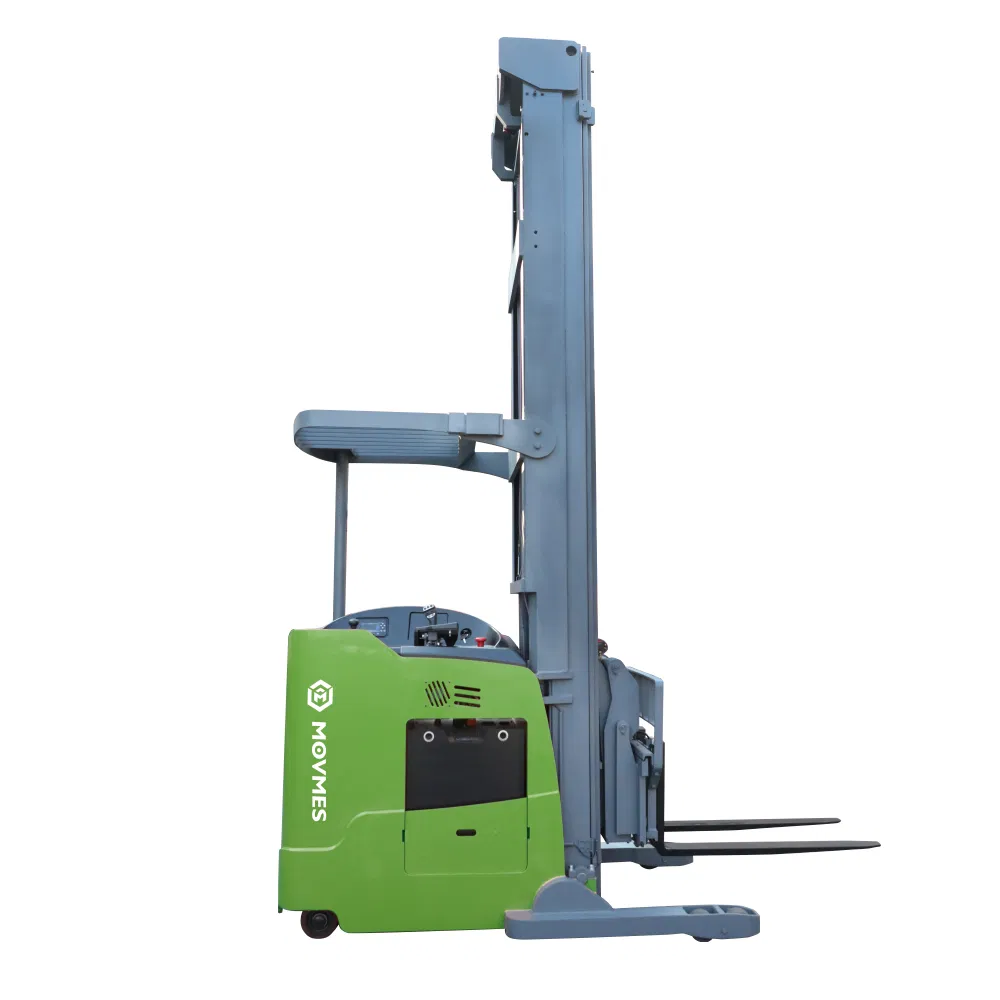

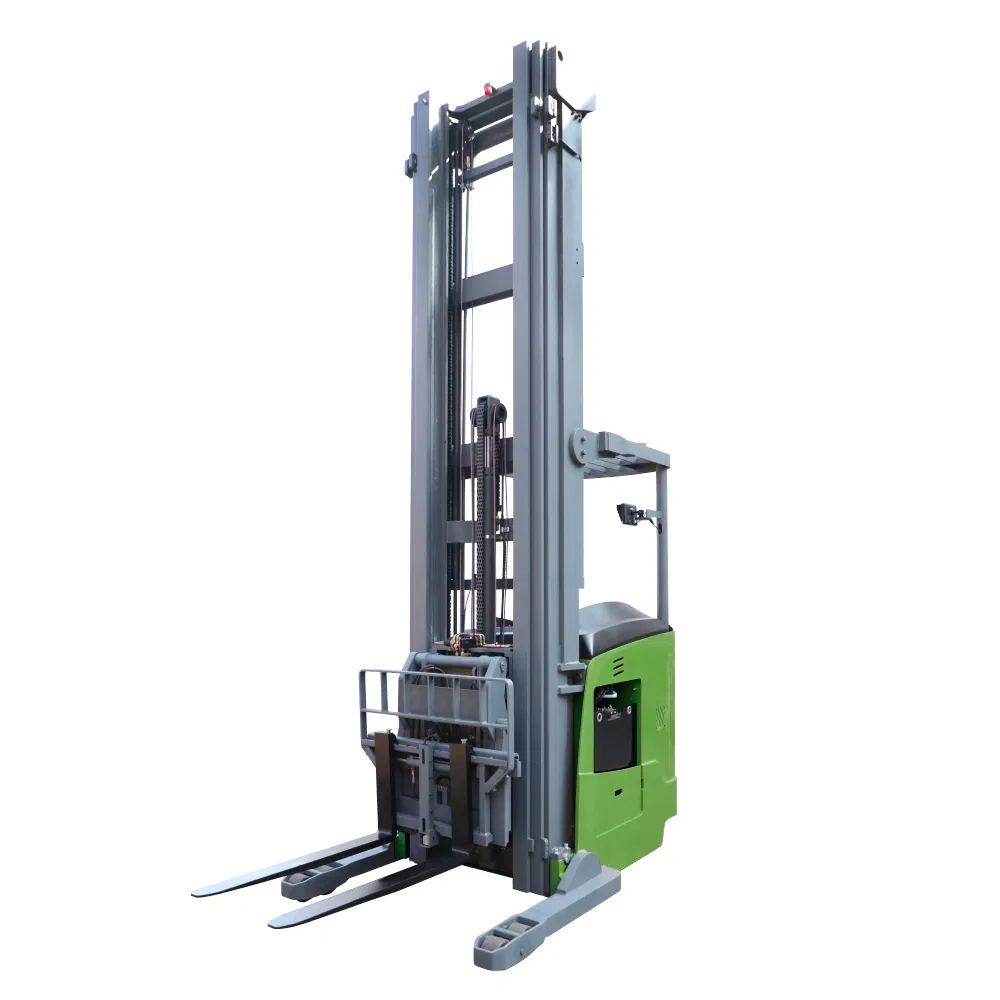

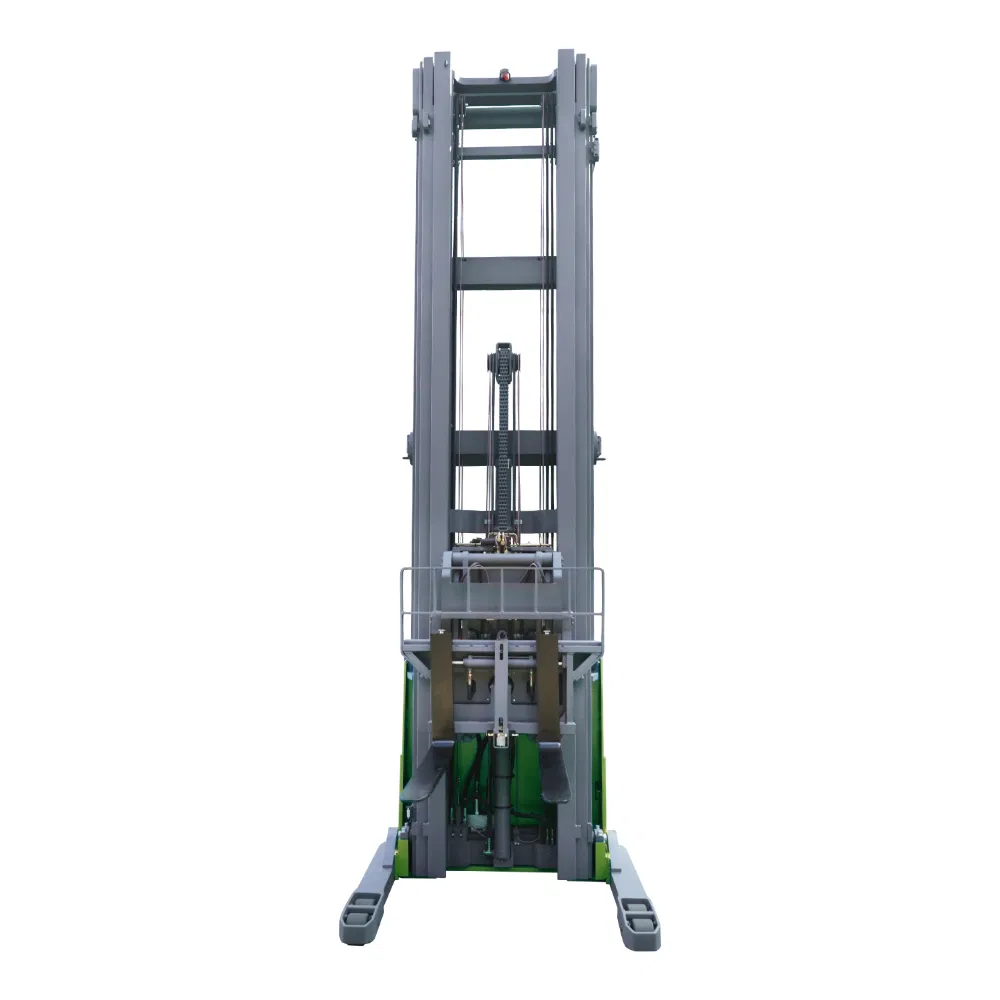

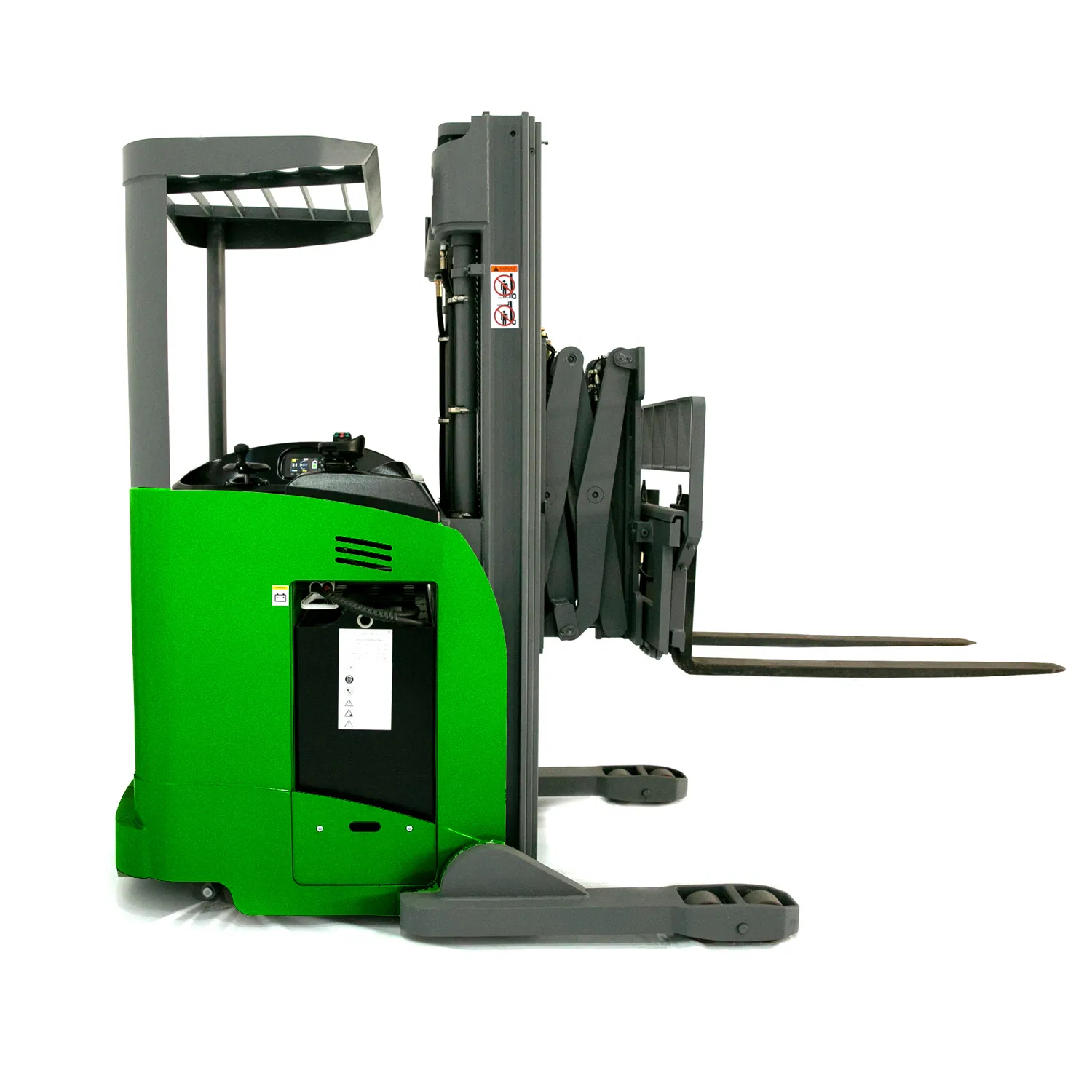

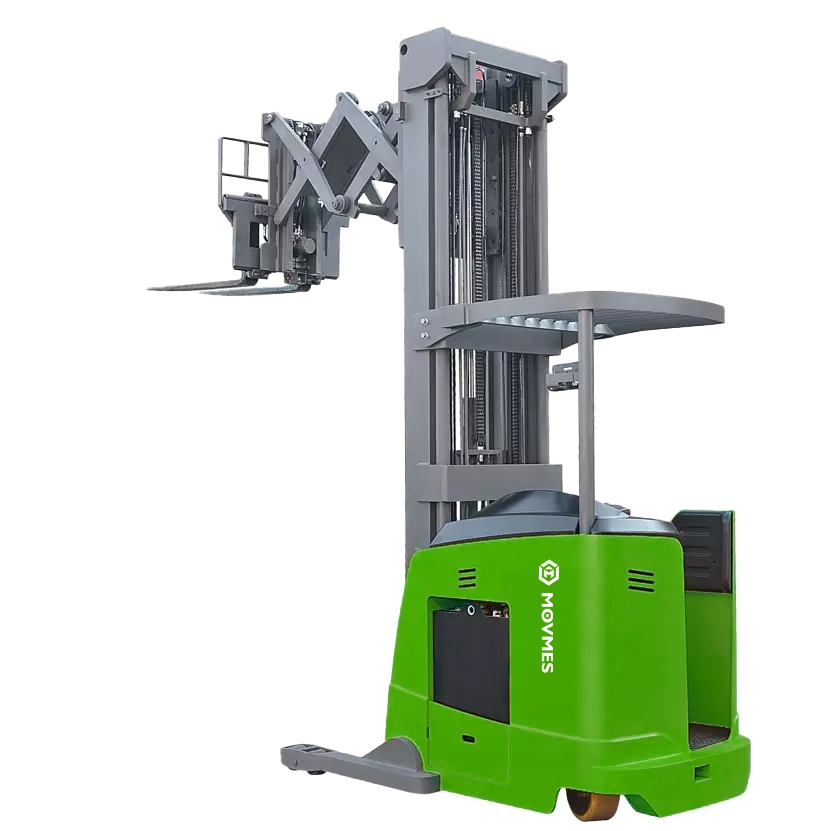

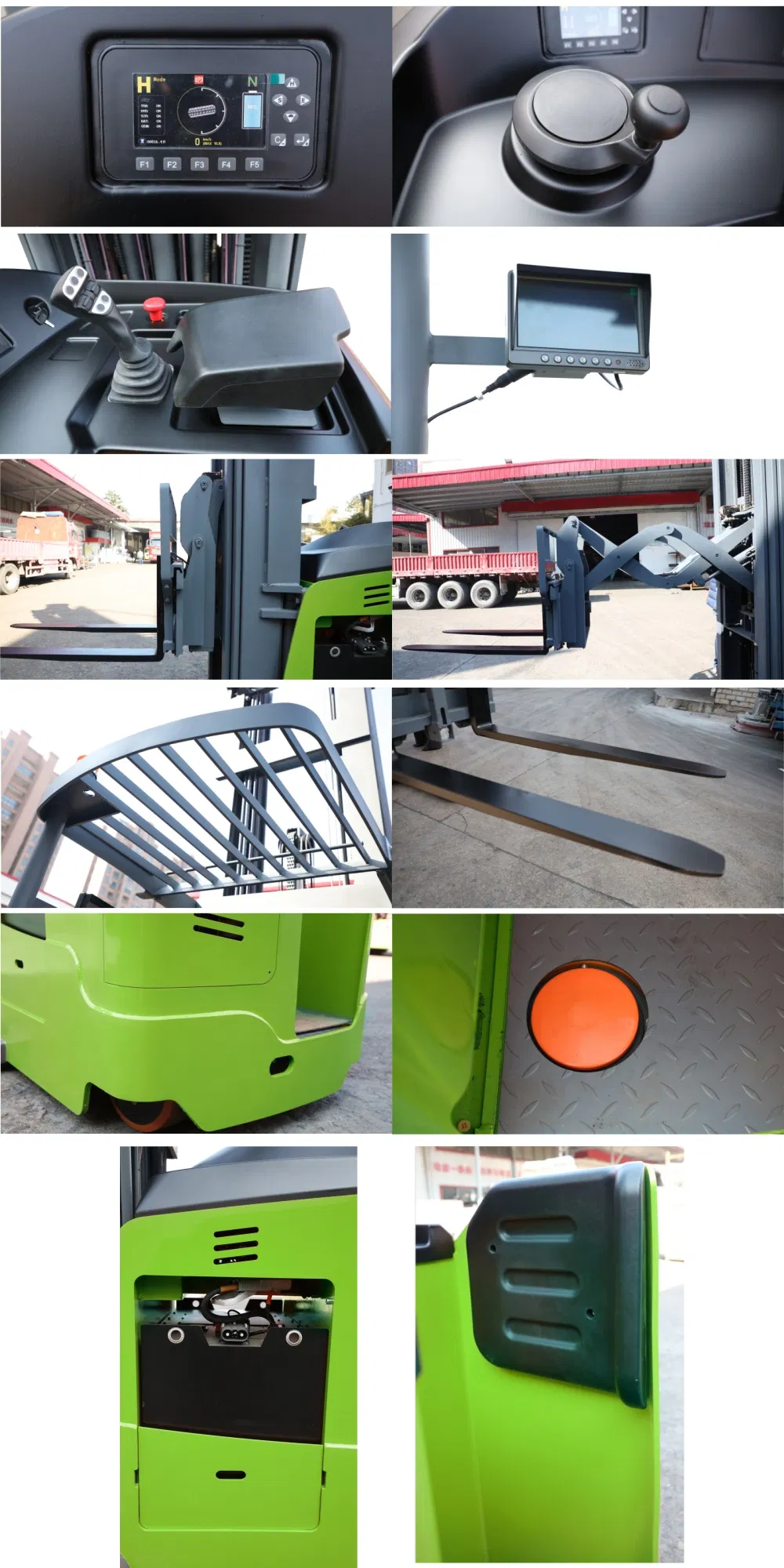

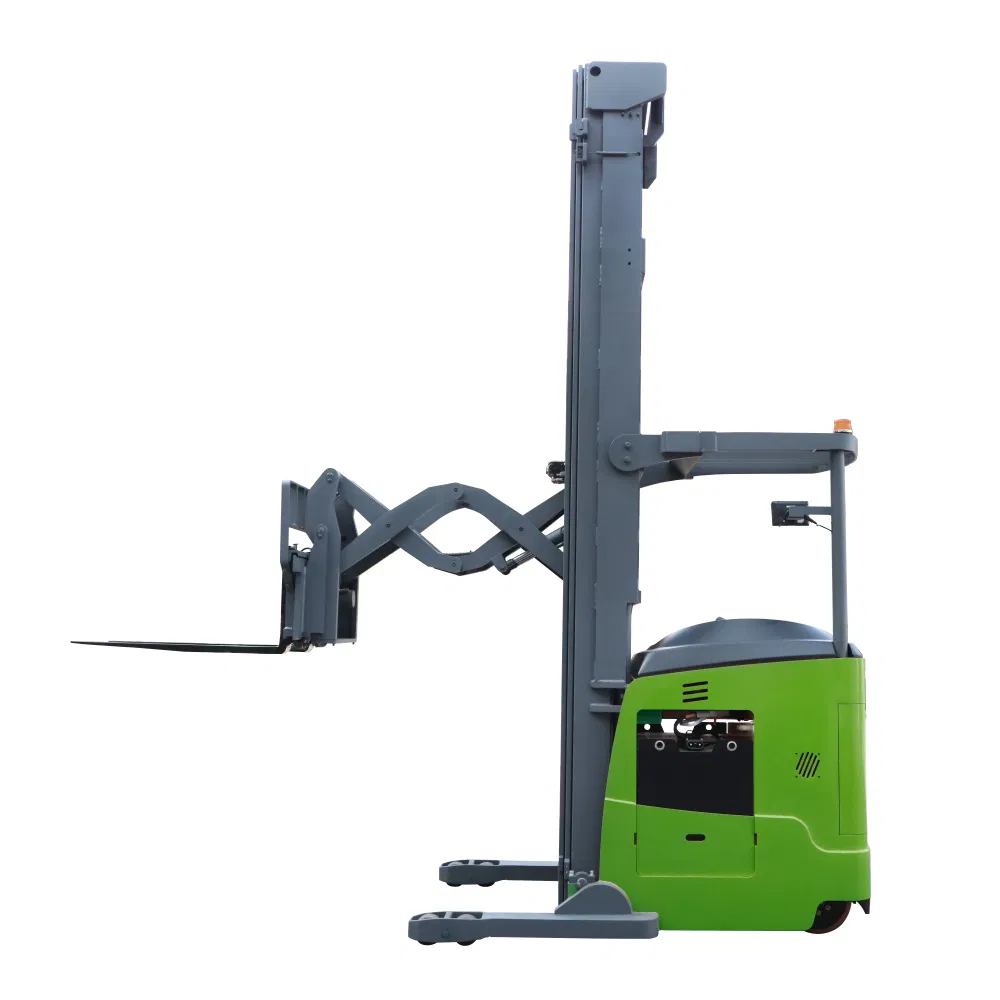

Product Display

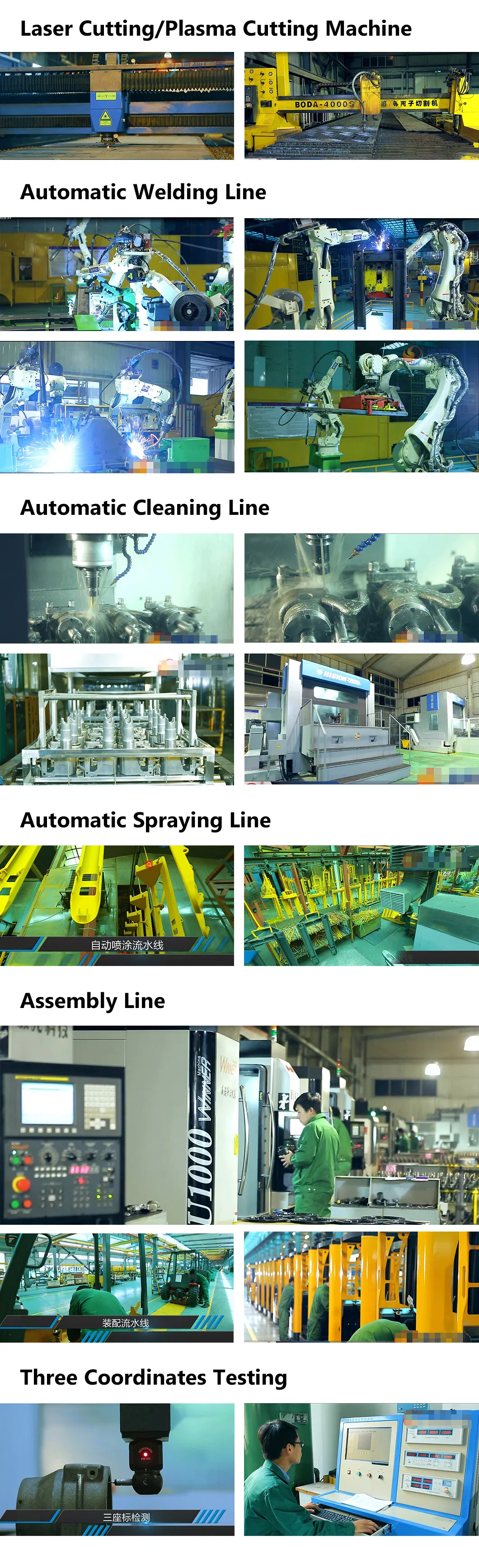

Quality Control & Certification

Our products meet rigorous international standards including ISO9001:2008, ISO14001:2004, and CE certifications. Each unit undergoes 5 critical tests before delivery:

1. Strengthening test detection

2. Stability detection

3. Climbing performance & current

4. Braking performance debugging

5. Technical parameter verification

Frequently Asked Questions

Q1: What is the continuous working time and charging duration? The battery provides approximately 3-6 hours of continuous operation depending on the workload. A full charge typically takes between 3 to 6 hours.

Q2: Are the chargers compatible with international power standards? Yes, we provide chargers with 24V/48V voltage options and power plugs compatible with USA, UK, Australia, and European standards.

Q3: Do you offer OEM or customized manufacturing? Yes, we have been professionally involved in warehouse equipment since 1985 and provide extensive OEM/ODM services for global logistics brands.

Q4: What kind of warranty is provided with the forklift? We provide a one-year warranty period. During this time, wearing parts damaged by non-human factors are replaced free of charge.

Q5: What are the main safety features of the reach truck? Safety features include a dedicated overhead guard, electromagnetic service brakes, a pin lock system to prevent unauthorized use, and high-visibility mast design.

Q6: Can this reach truck operate in narrow aisles? Yes, it is specifically designed for VNA (Very Narrow Aisle) applications with a turning radius of 1865mm and an aisle width requirement as low as 3090mm.
