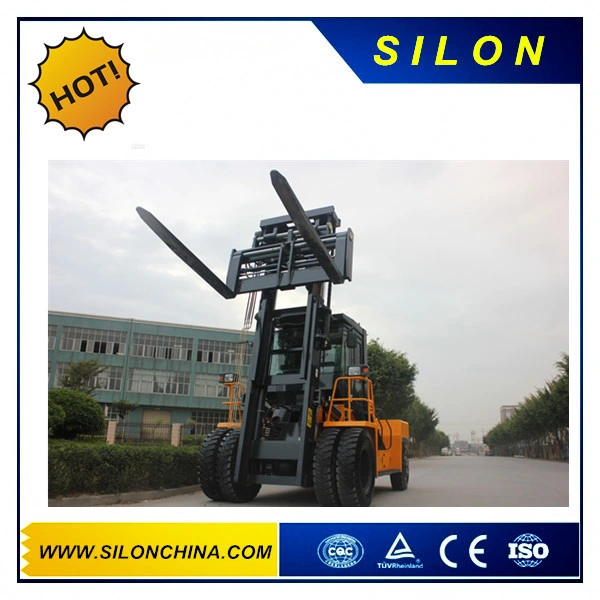

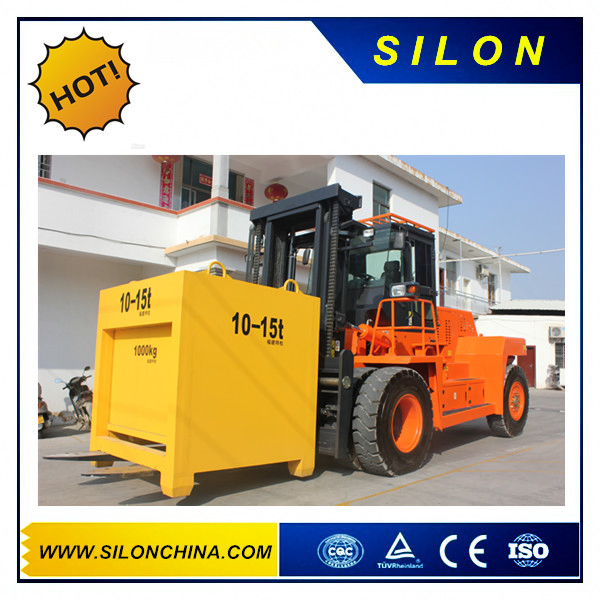

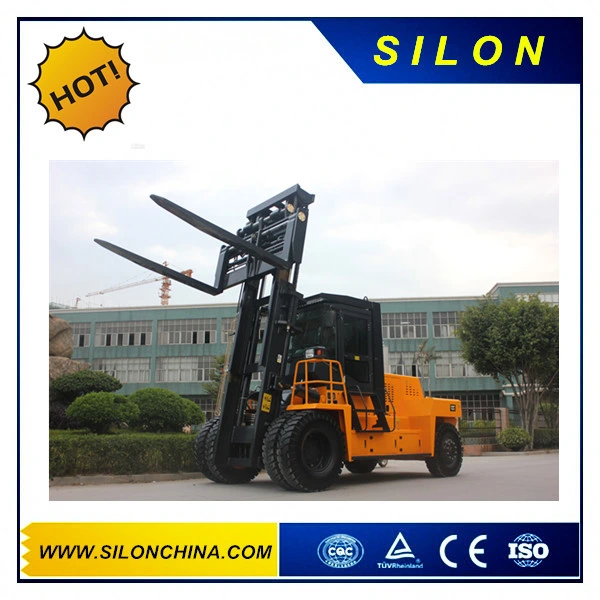

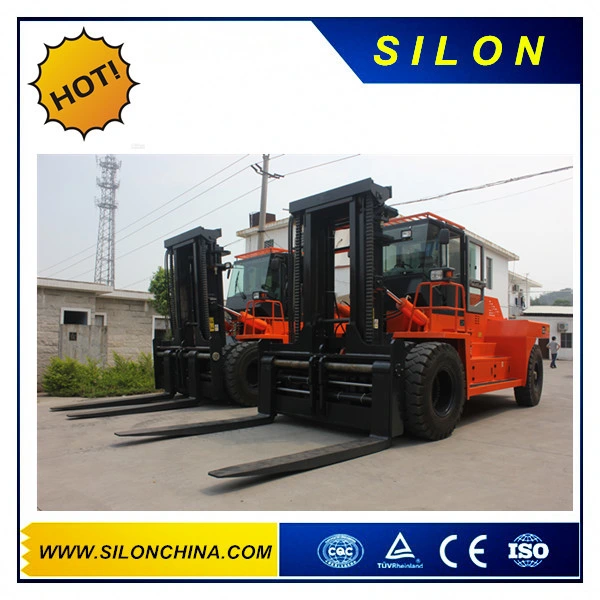

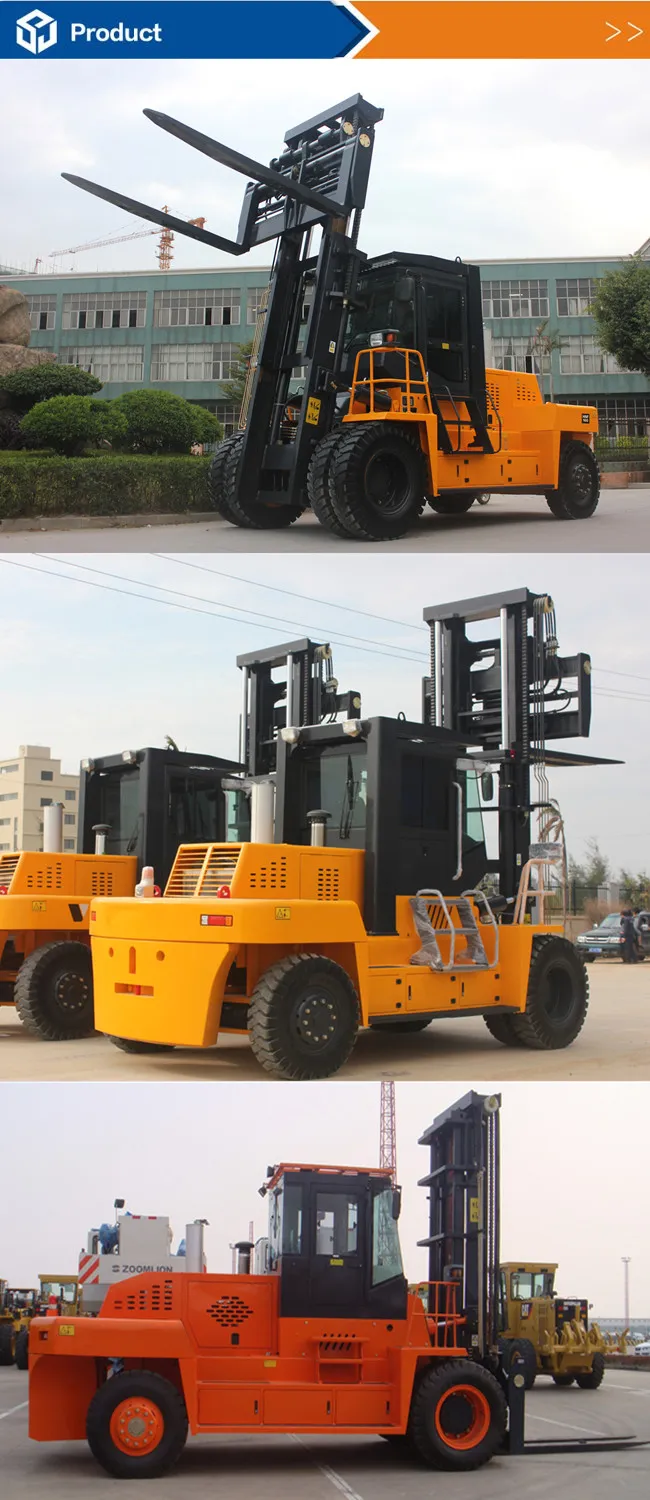

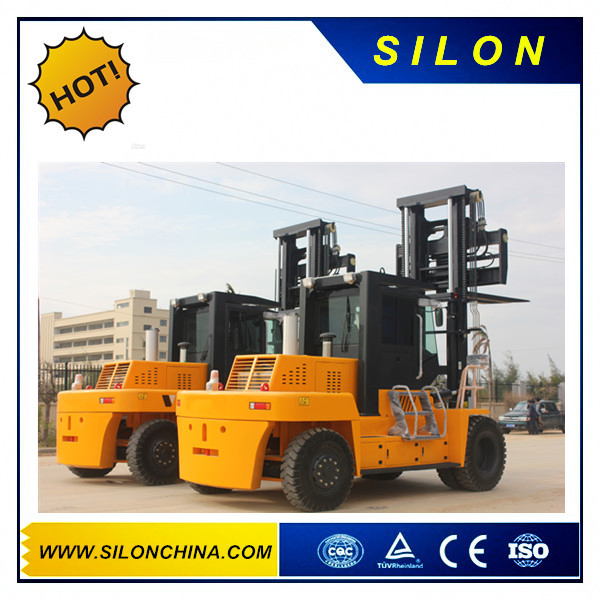

GLS Forklift
1 / 5
Yuchai YC6A175Z-T20 Engine provides strong power, energy conservation, and environmental protection.
Adopt transverse oil cylinder type steering bridge with full hydraulic steering. Imported technology transmission ensures smooth operation.
Professional disc brakes offer fast heat dissipation and stable braking even under heavy load conditions.
Equipped with explosion-proof safety valves for pipelines to ensure system working safety and reliability.
Box-type internal-external mast with special all-round roller bearings and reinforced boxtype frame for maximum stability.

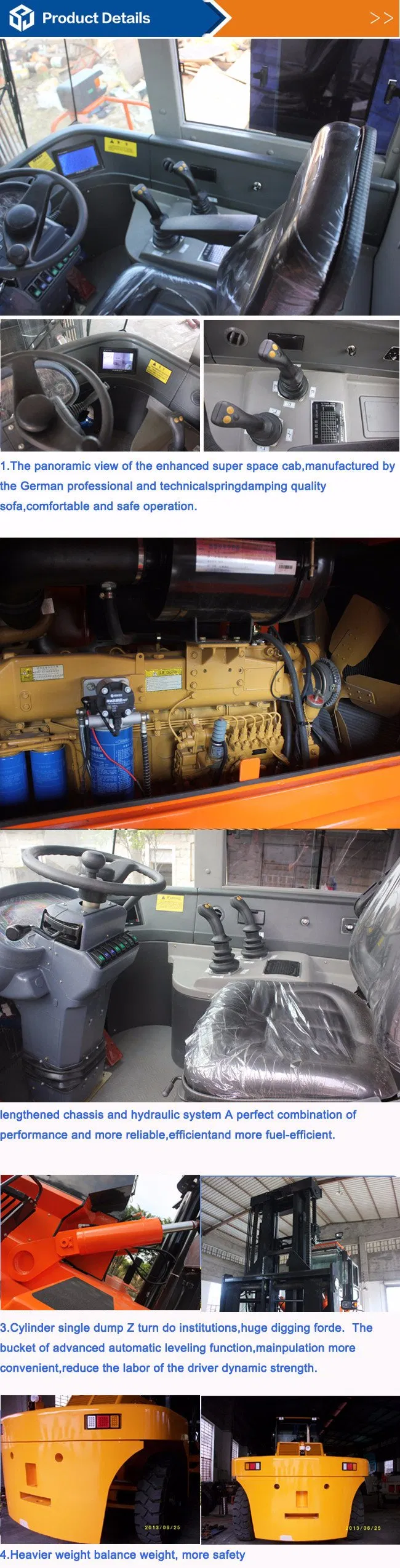

Pilot valve control reduces driver labor intensity. The cab features air-conditioning and open vision for comfort.
| Configuration | Model | Unit | Specification (CPCD140) |
|---|---|---|---|
| Performance | Rated load | kg | 14000 |
| Performance | Load center | mm | 600 |
| Performance | Free lift | mm | 180 |
| Performance | Mast tilt angle (F/R) | º | 6/12 |
| Dimensions | Length / Width / Height | mm | 7645 / 2750 / 3625 |
| Dimensions | Mast lifting height | mm | 3500 |
| Dimensions | Fork size (L*W*H) | mm | 1800X180X90 |
| Speed | Max. travel speed (with load) | Km/h | 30 |
| Speed | Lifting speed (with load) | mm/s | 300 |
| Weight | Total Weight | Kg | 21000 |
| Engine | Rated power | KW/r.pm | 125/2200 |
