Hangcha X Series Electric Tow Tractor, 10t/15t/20t/25t/32t Capacity

Customization:	Available
After-sales Service:	1 Year or 2000h Which Comes First
Warranty:	1 Year or 2000h Which Comes First

Overview & Basic Info

Model NO.

QSD100-XC2-ISY, QSD150-XC2-ISY

Type

Electric Forklift / Tow Tractor

Power

AC Motor

Load Capacity

10000kg-32000kg

Fuel

Electric

Lift height

3000~5000mm

Battery Capacity

48/456 (Lithium)

Controller

Curtis

Tyres

Pneumatic

Specification

2900*1350*1875

Product Description

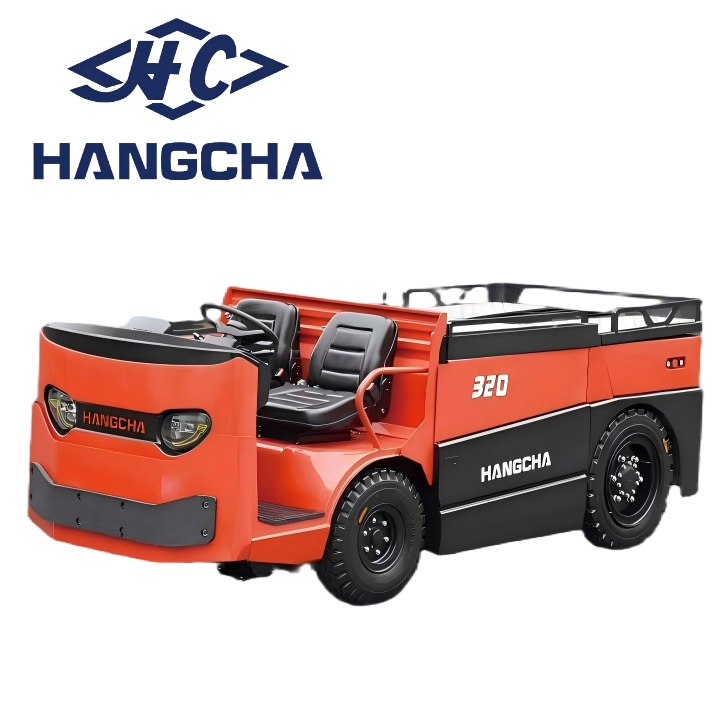

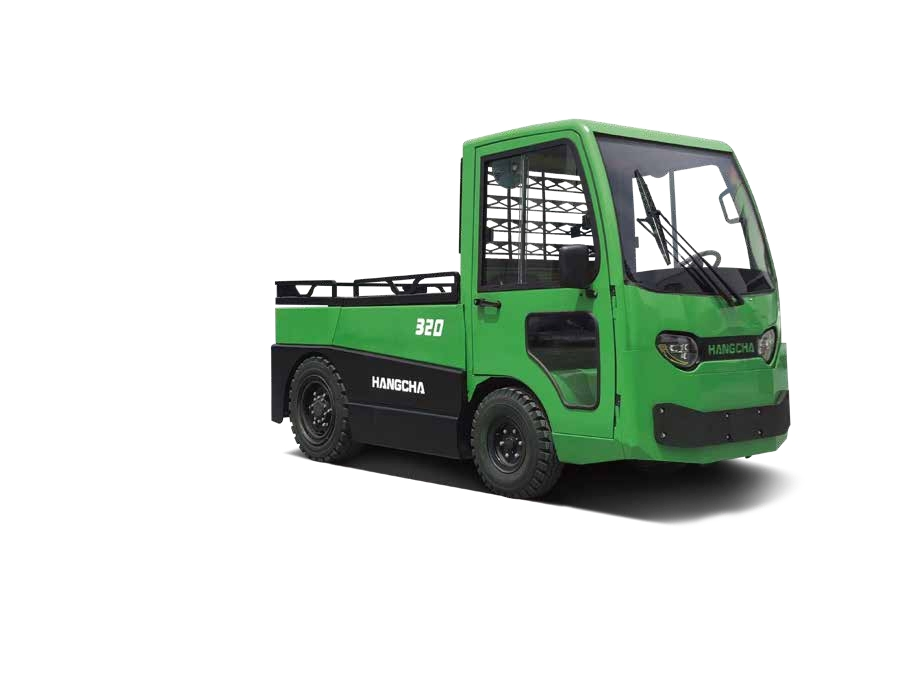

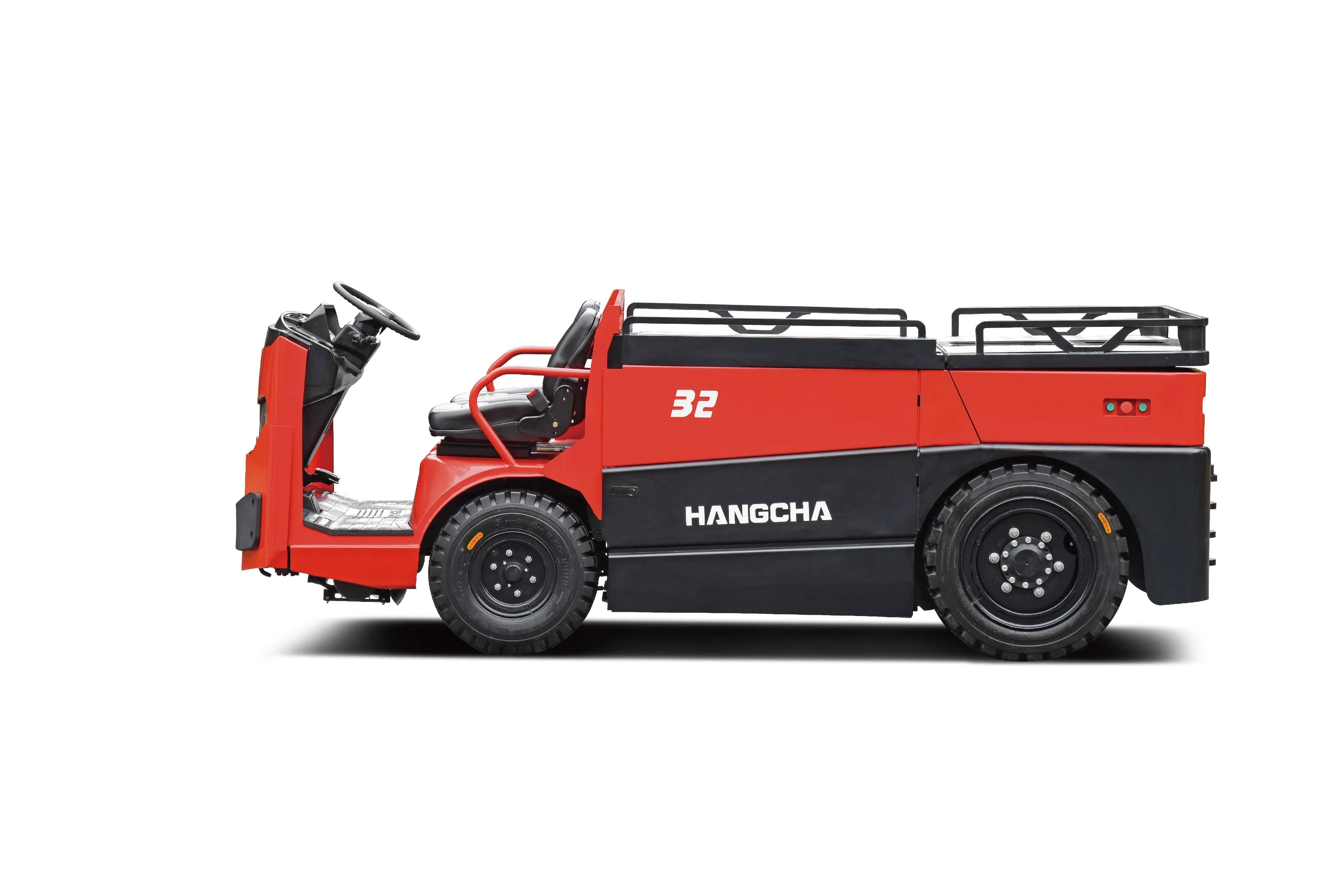

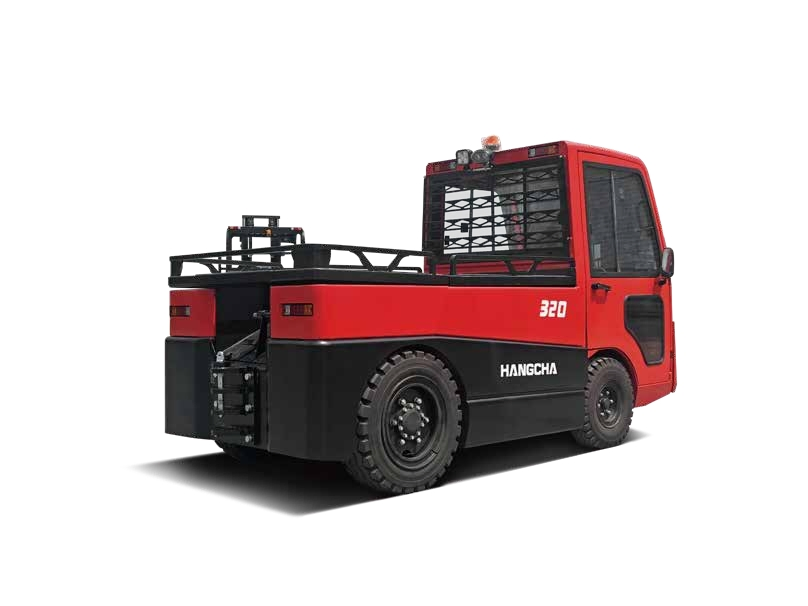

X Series Electric Tow Tractor (10t - 32t Capacity)

Advanced AC Power: The fully AC system provides strong power and accurate speed-adjusting performance for both running and steering.
Efficiency & Endurance: High-efficiency power system combined with high-performance batteries significantly extends operating time per charge.
Intelligent LED Display: International first-class brand instrument features battery display, timing, and self-diagnosis without needing handheld units.
Safety Controls: Equipped with rear operating switches, including front/behind electric switches and emergency power shut-off.
Battery Convenience: For 20-32t models, batteries can be replaced by hoisting or moving laterally for maximum uptime.
Waterproof Engineering: The entire electric system utilizes a waterproof design with forced cooling, air guide, and dust prevention features.
Versatile Platform: The rear bottom plate is designed to function as a sturdy loading platform.

Technical Parameters

Distinguishing Mark	Parameters	Unit	QSD100	QSD150	QSD200	QSD250	QSD320
Capacity	Rated load capacity	t	10	15	20	25	32
Performance	Rated drawbar pull	N	3200	4000	6300	6300	7000
Dimensions	Wheelbase (y)	mm	1210	1410	1475	1760	1760
Weight	Service Weight	kg	2150	2550	3450	4350	4550
Tyres	Tyre size, front	-	6.00-9	6.00-9	6.50-10	6.50-10	6.50-10
Travel	Speed (Laden/Unladen)	km/h	11/20	11/20	11/25	11/25	11/25
Engine	Battery voltage	V/Ah	48/456	80/456	80/500	80/775	80/775

Detailed Product Photos

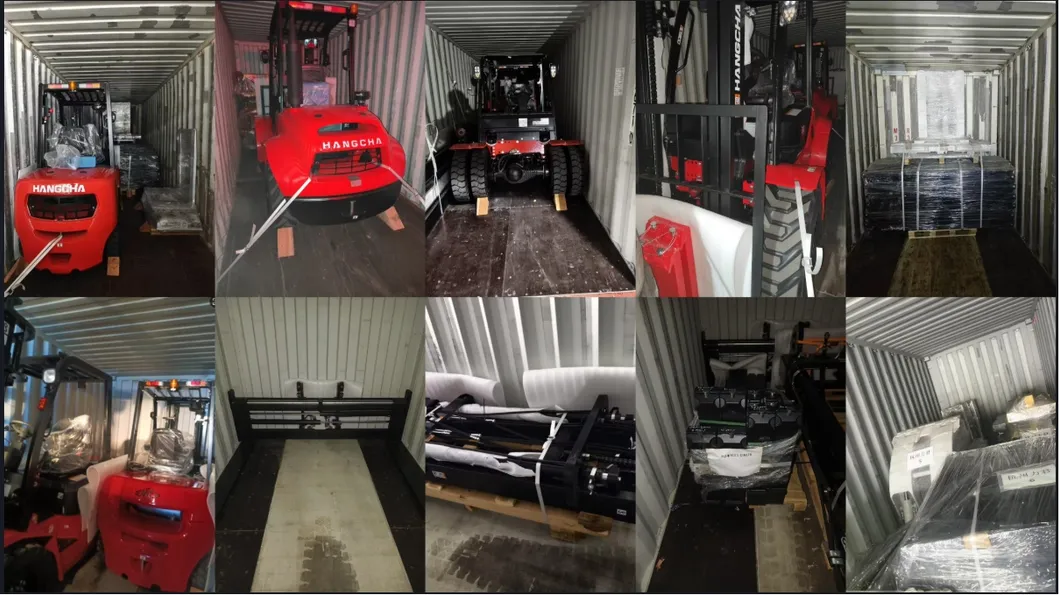

Packaging & Shipping

We provide standard export nude packing. Equipment is securely fixed with iron or wooden blocks on the container floor to ensure safety during transit. Both FCL (Full Container Load) and LCL (Less than Container Load) shipping options are available to meet your logistics needs.

Frequently Asked Questions

What types of material handling equipment do you provide?

We offer a full series of electric and internal combustion forklifts, tow tractors, and genuine spare parts, providing comprehensive material handling solutions.

What is the typical delivery time for these tractors?

Standard specs (1.5-3.5T) take 25-30 days. Medium capacity (4-10T) takes 30-35 days, while heavy-duty models (above 10T) require 45-60 days.

Can I customize the color or logo of the equipment?

Yes, we accept special requests for different colors, logo placement, and other specific configuration requirements.

What are the advantages of the Lithium battery option?

Lithium batteries offer faster charging, longer life cycles, and are maintenance-free compared to traditional lead-acid batteries, ideal for multi-shift operations.

Is the electric system suitable for outdoor use?

Yes, the vehicle features a waterproof design with forced cooling and dust prevention, making it reliable for various industrial environments.

How is equipment failure diagnosed?

The integrated LED instrument includes a self-diagnosis function that displays failure codes and text directly, making maintenance simple and visual.
