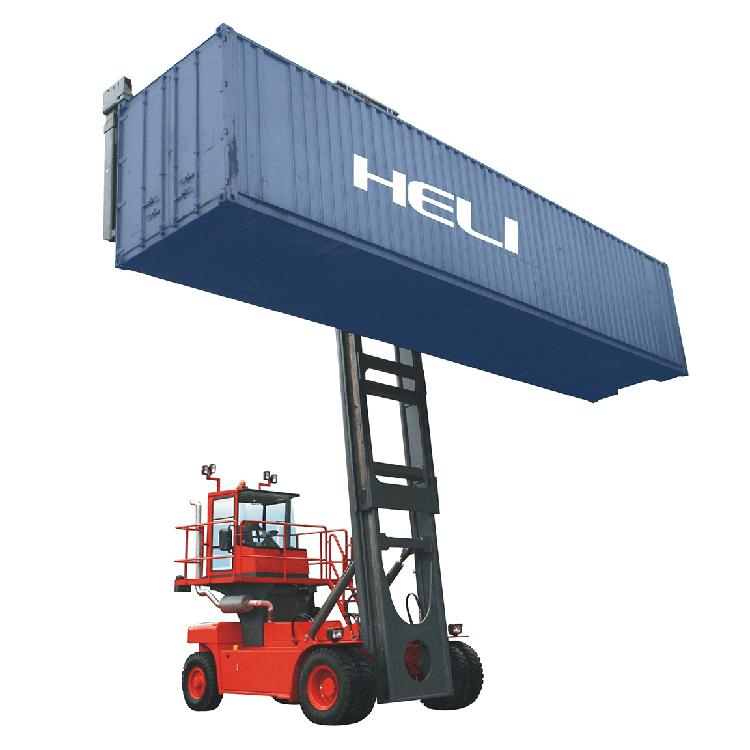

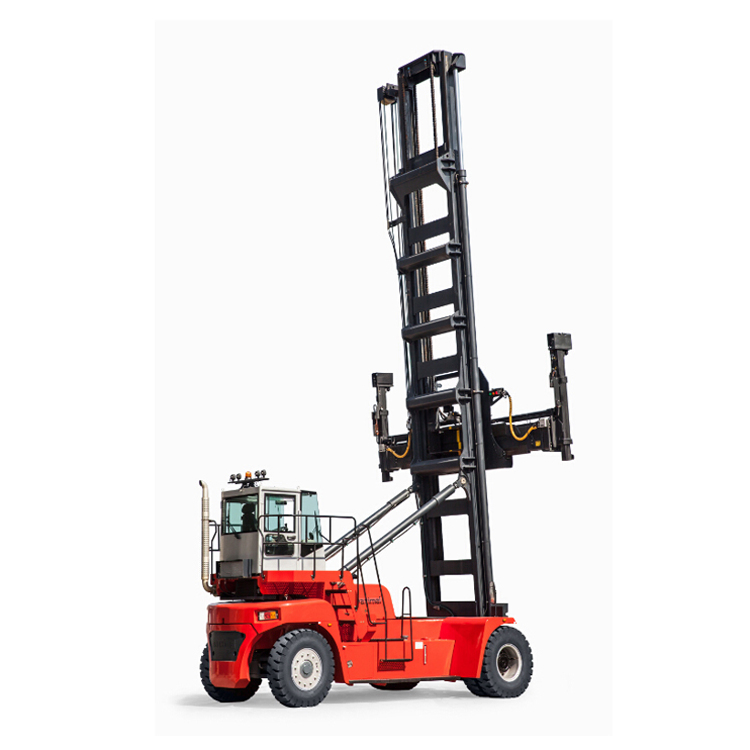

H90EC-7-XRW83 10Ton Empty Container Handler
Product Features
⚙️
Premium Components: 32000 gearbox, TAD851VE engine, D81 heavy-duty drive axle, and key hydraulic components are selected from internationally renowned brands, with stable and reliable quality.
🏗️
High-Strength Structure: The mast is made of high-strength steel with an ultra-wide design; the installation point of the inclined cylinder is arranged at a high position to improve rigidity and stability.
🌡️
Heat Management: The vehicle heat dissipation management system automatically adjusts intensity. Large margin capacity ensures performance in high-temperature environments.
🛡️
Reliable Spreader: Features new spreaders of internationally renowned brands, offering higher reliability, longer service life, and lower maintenance costs.
Main Specifications
| Category |
No. |
Parameter |
Unit |
H90EC-7-XRW83 |
H90EC-8-XRW83 |
| Main | 1 | Model | - | H90EC-7-XRW83 | H90EC-8-XRW83 |
| 3 | Rated Load | kg | 9000 | 9000 |
| 4 | Load Center | mm | 1220 | 1220 |
| 7 | Max Reaching Layers | - | Seven(8'6")Six(9'6") | Eight(8'6")Seven(9'6") |
| Dimensions | 9 | Max. Height | mm | 19100 | 21700 |
| 12 | Length | mm | 6850 | 6850 |
| 13 | Width | mm | 4120 | 4120 |
| Performance | 21 | Lifting speed (no/full load) | mm/s | 620/550 | 620/550 |
| 23 | Driving speed (no/full load) | km/h | 28/26 | 28/26 |
| 25 | Gradeability | % | 22 | 22 |
| Engine | 33 | Model type | - | TAD851VE | TAD851VE |
| 34 | Rated power | kW/r/min | 185/2200 | 185/2200 |

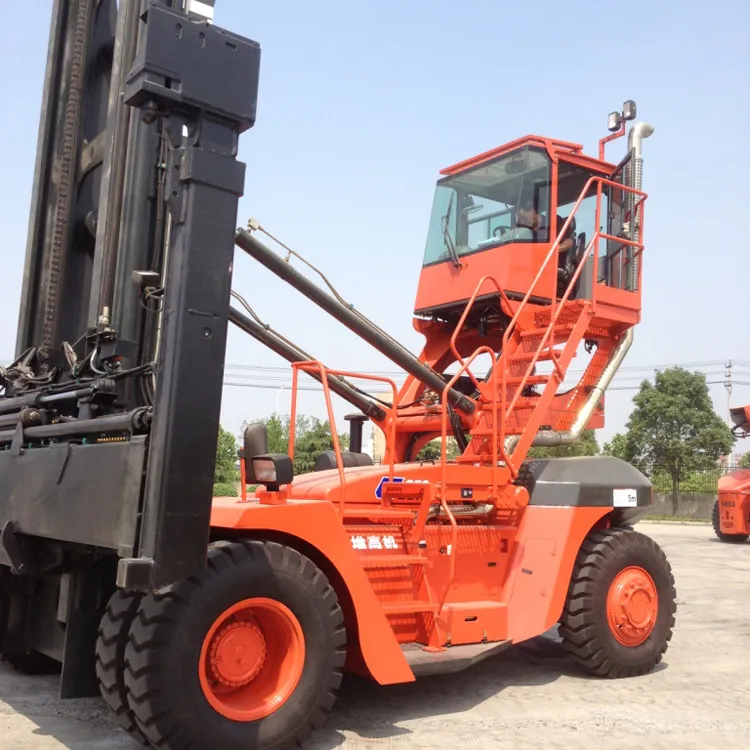

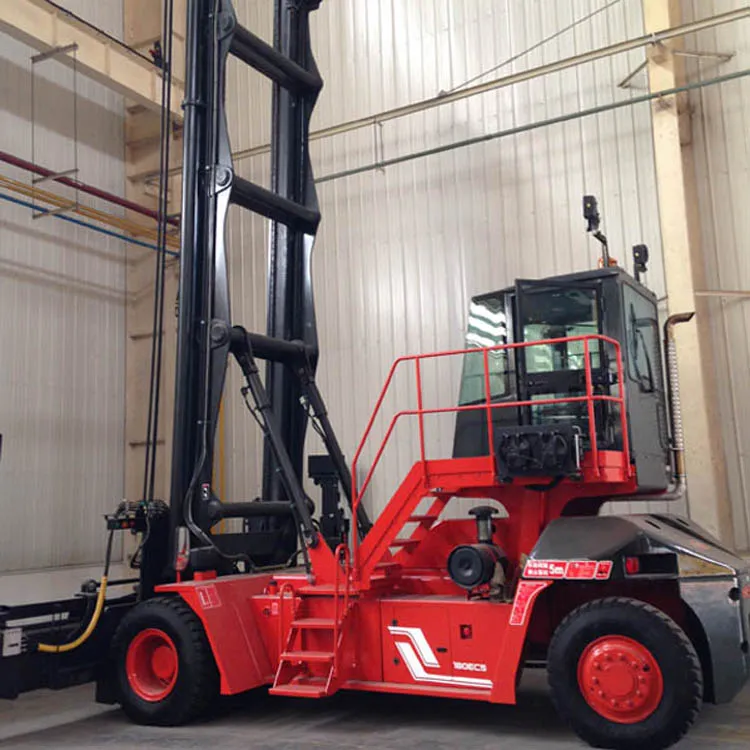

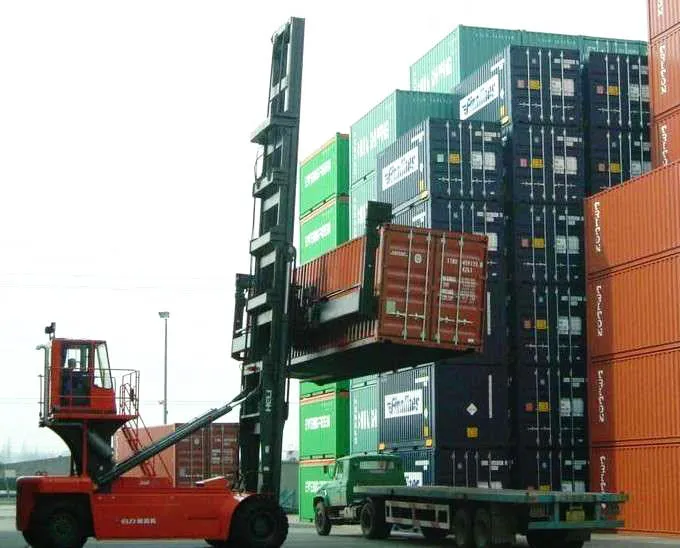

Product Show
Packaging & Shipping
Frequently Asked Questions
What is the rated load capacity of the H90EC-7-XRW83?
The H90EC-7-XRW83 empty container handler has a rated load capacity of 9,000 kg (10 tons).
How many container layers can this machine stack?
The H90EC-7 model can stack up to seven layers of 8'6" containers or six layers of 9'6" containers. The H90EC-8 model offers an additional layer of reach.
What type of engine and gearbox does it use?
It is equipped with a high-performance Volvo TAD851VE diesel engine and a 32000 series gearbox, ensuring reliable power and smooth transmission.
Is the container handler suitable for high-temperature environments?
Yes, it features an advanced heat dissipation management system that automatically adjusts cooling intensity, designed specifically with a large margin for high-temperature operations.
What are the benefits of the high-position inclined cylinder design?
The high-position arrangement of the inclined cylinder improves the overall rigidity and structural stability of the machine during heavy lifting operations.
