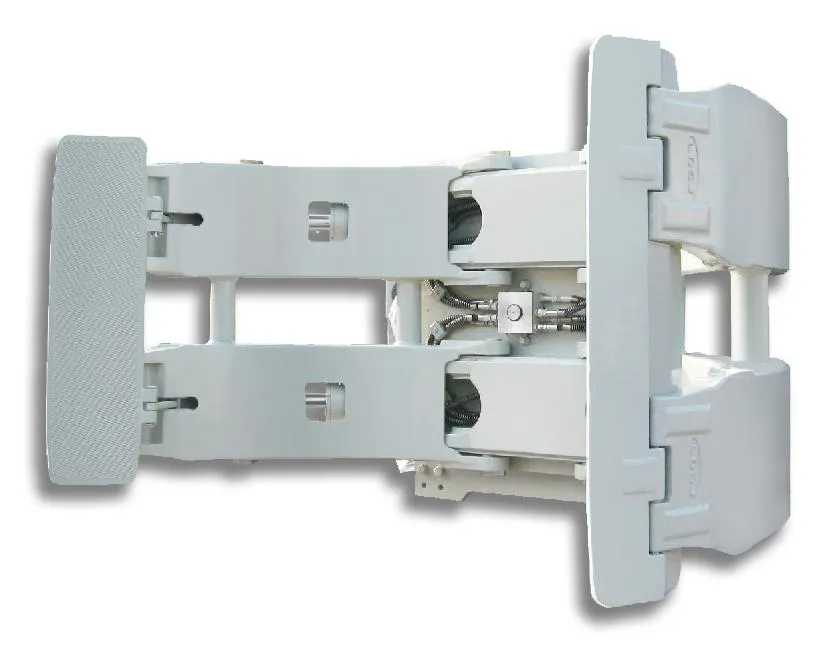

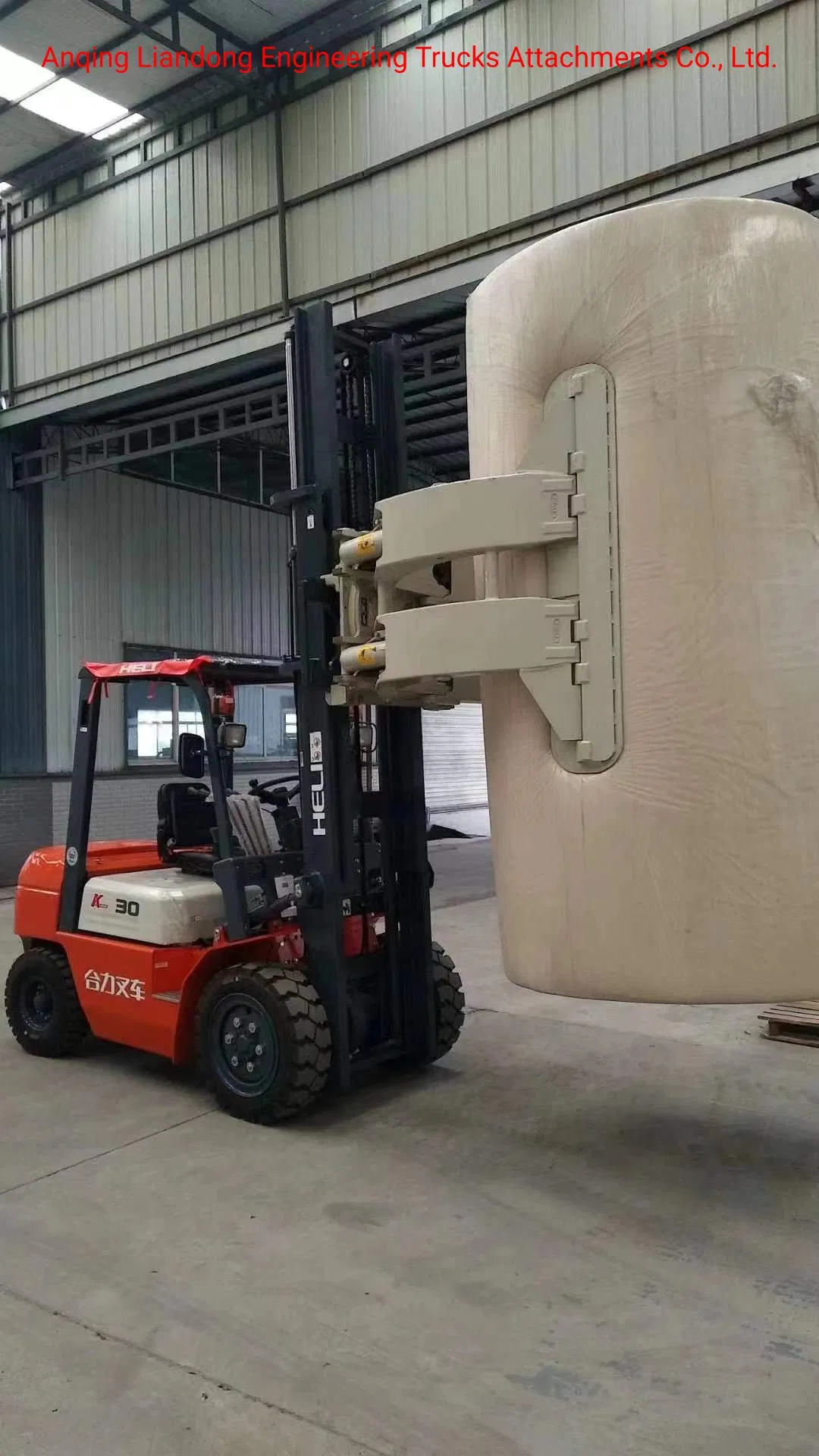

Paper roll clamp is widely used in the paper roll industry for damage free roll handling with maximum efficiency. We offer a full line of paper roll clamps to handle paper rolls regardless of diameter, weight or type of paper. For paper roll handling of every size in industries from stevedoring to printing, our Paper Roll Clamp will deliver.
| Catalog Order NO. | Capacity @ Load Center (Kg@mm) | Opening Range (mm) | Mounting Class | Long Arm Length (mm) | Short Arm Length (mm) | Weight (kg) | Available Forklift |
|---|---|---|---|---|---|---|---|
| ZJ10R-A1 | 1000@800 | 560-1600 | II | 995 | 675 | 420 | 1-2.5t |
| ZJ11R-A1 | 1100@750 | 450-1500 | II | 890 | 640 | 400 | 1-2.5t |
| ZJ12R-A1 | 1200@650 | 410-1300 | II | 860 | 570 | 376 | 1-2.5t |
| ZJ13R-A1 | 1300@575 | 330-1150 | II | 745 | 535 | 385 | 1-2.5t |
| ZJ35R-B1 | 3500@760 | 610-1520 | III | 1025 | 745 | 1215 | 3-4.5t |
| ZJ35R-C1 | 3500@760 | 610-1520 | IV | 1025 | 745 | 1215 | 5-7t |
Two-way hydraulic lock achieves self-lock; high-strength alloy steel plates reduce surface damage.
360º rotation for quick transitions; involute gears improve clamp arm speed efficiency.
Large modulus slewing bearings provide high-strength capacity and extended service life.
The enterprise integrates R & D, manufacturing, sales and service of construction machinery attachments. Products are widely used in papermaking, storage, tobacco, chemical industry, and smelting. These are highly efficient handling equipment for mechanized loading and short-distance handling.

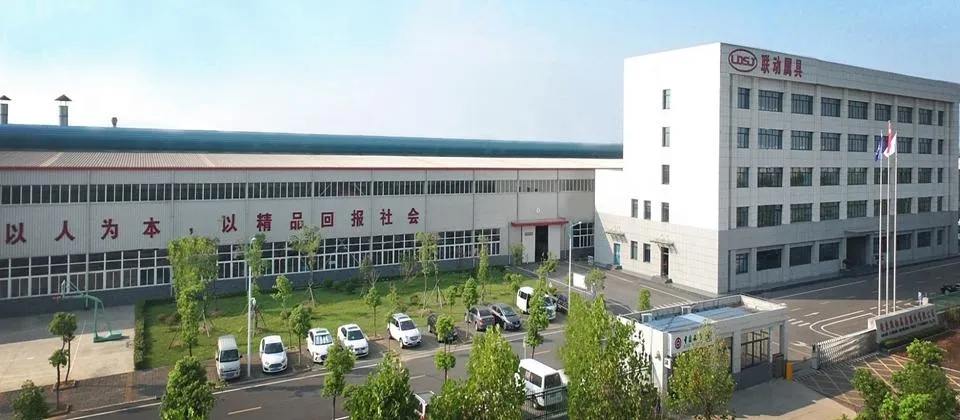

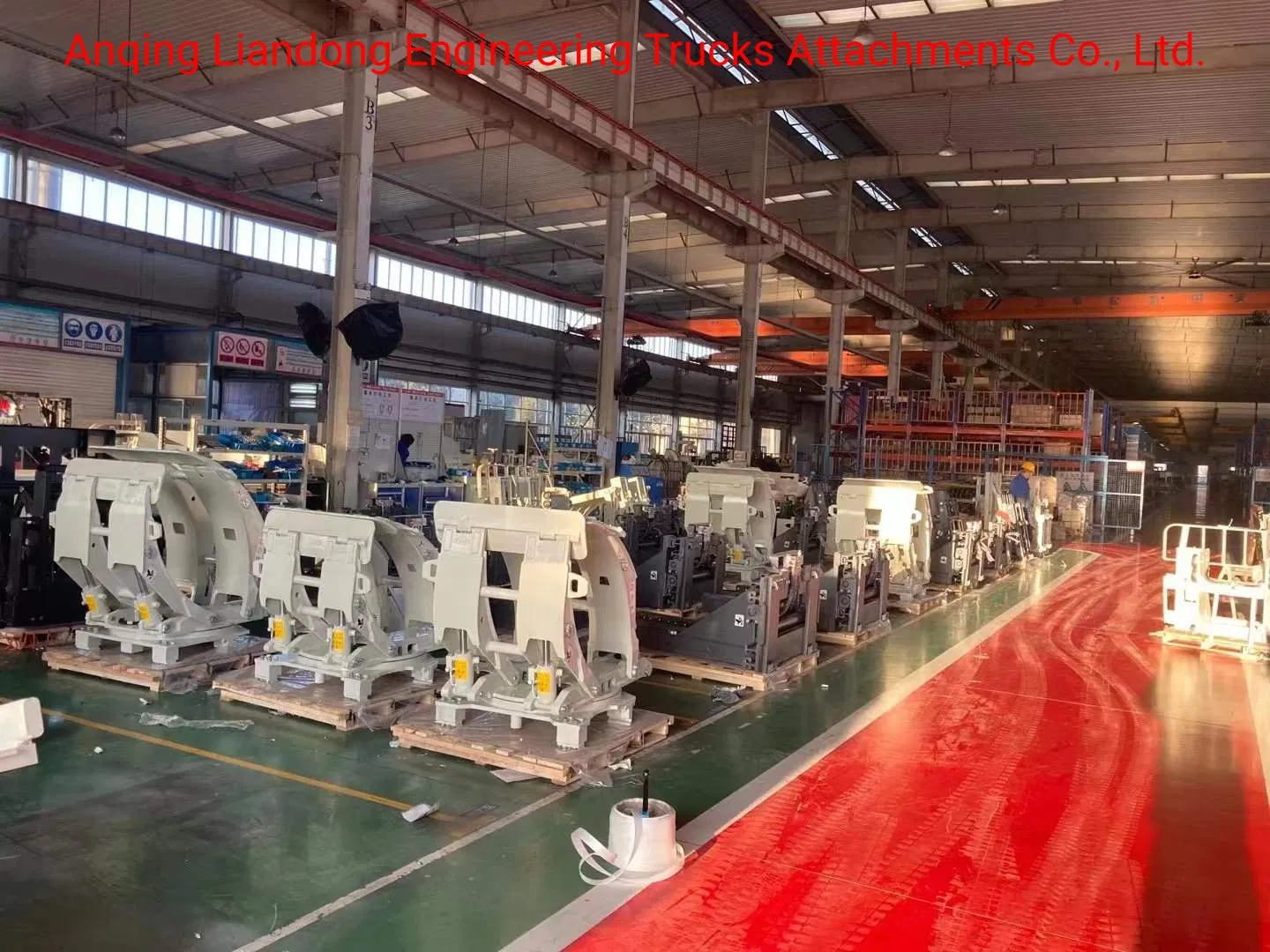

Equipped with digital intelligent equipment such as CNC cutting machines, welding robots, and machining centers, the company maintains advanced physical and chemical laboratories. With ISO9001, ISO14001, and OHSAS18001 certifications, excellence is provided to customers worldwide through continuous quality improvement.
