GLS Forklift
1 / 5

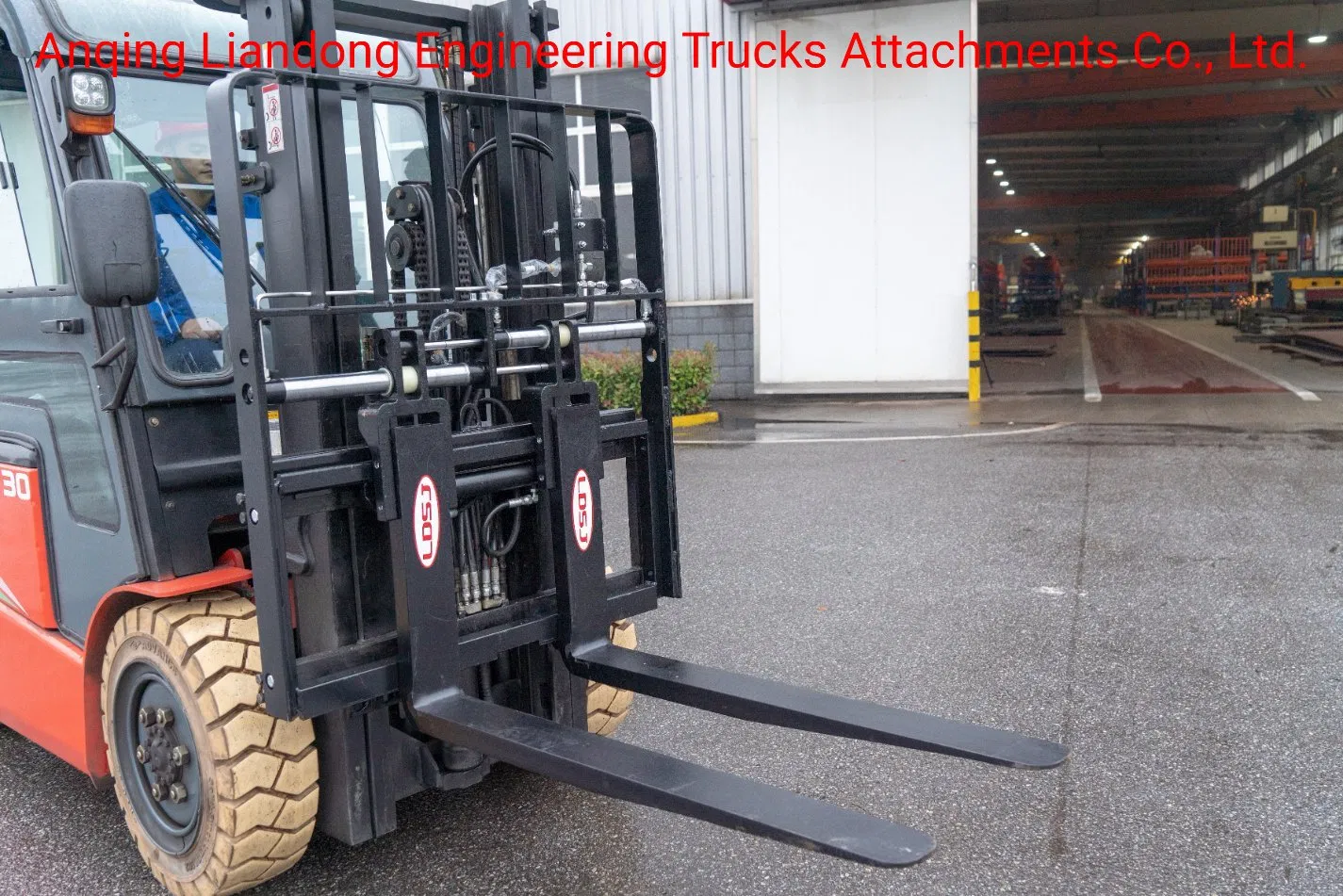

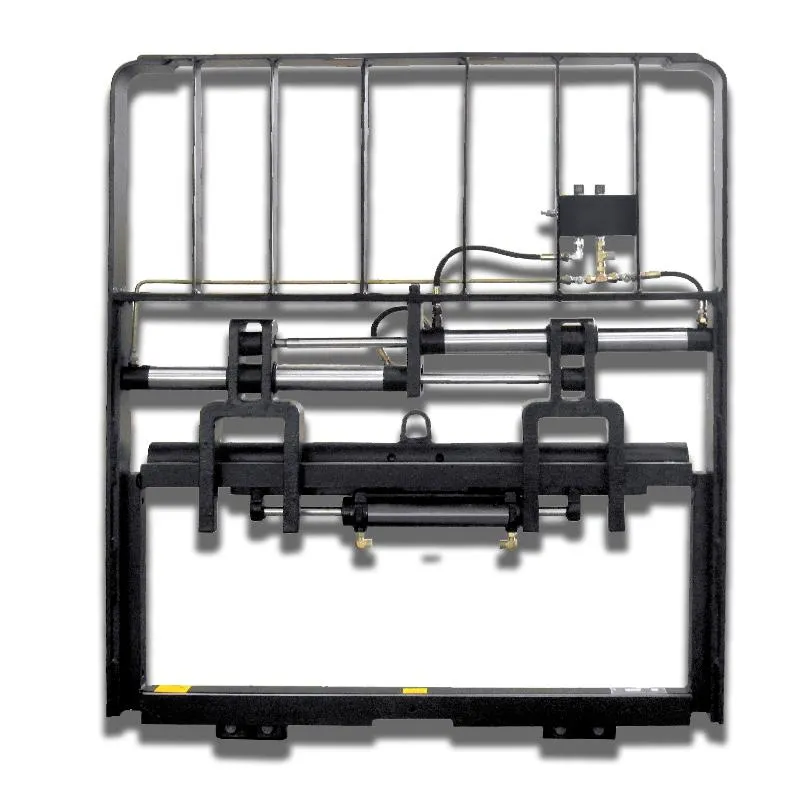

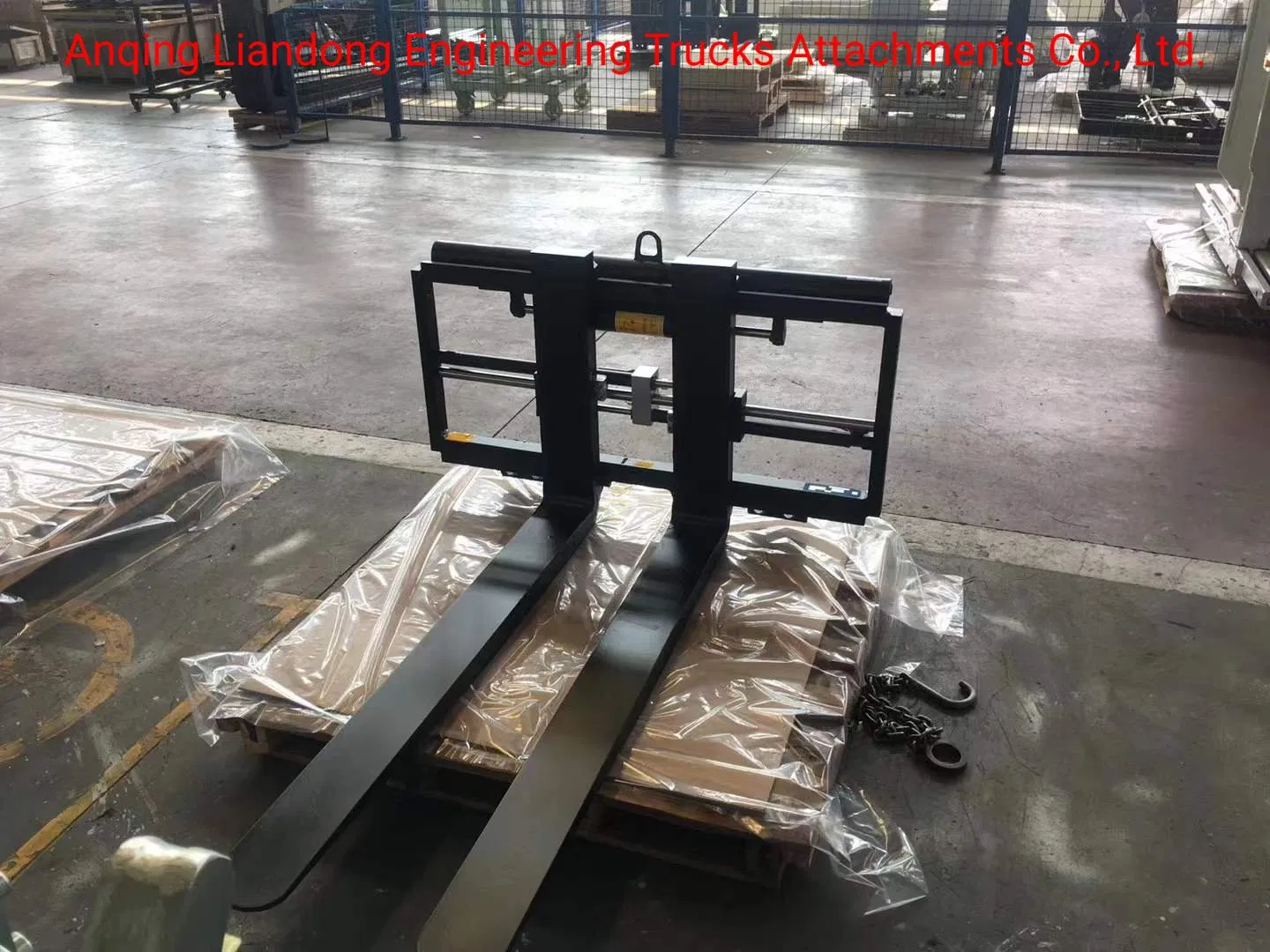

Fork positioners are widely used in logistic, warehouse and manufacturing industry. It can allow the drivers to adjust the forks quickly and accurately to fit different pallet sizes without leaving the seat. Fork positioner can also achieve the function of side shift.

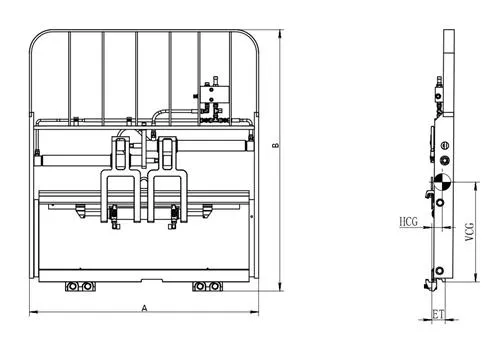

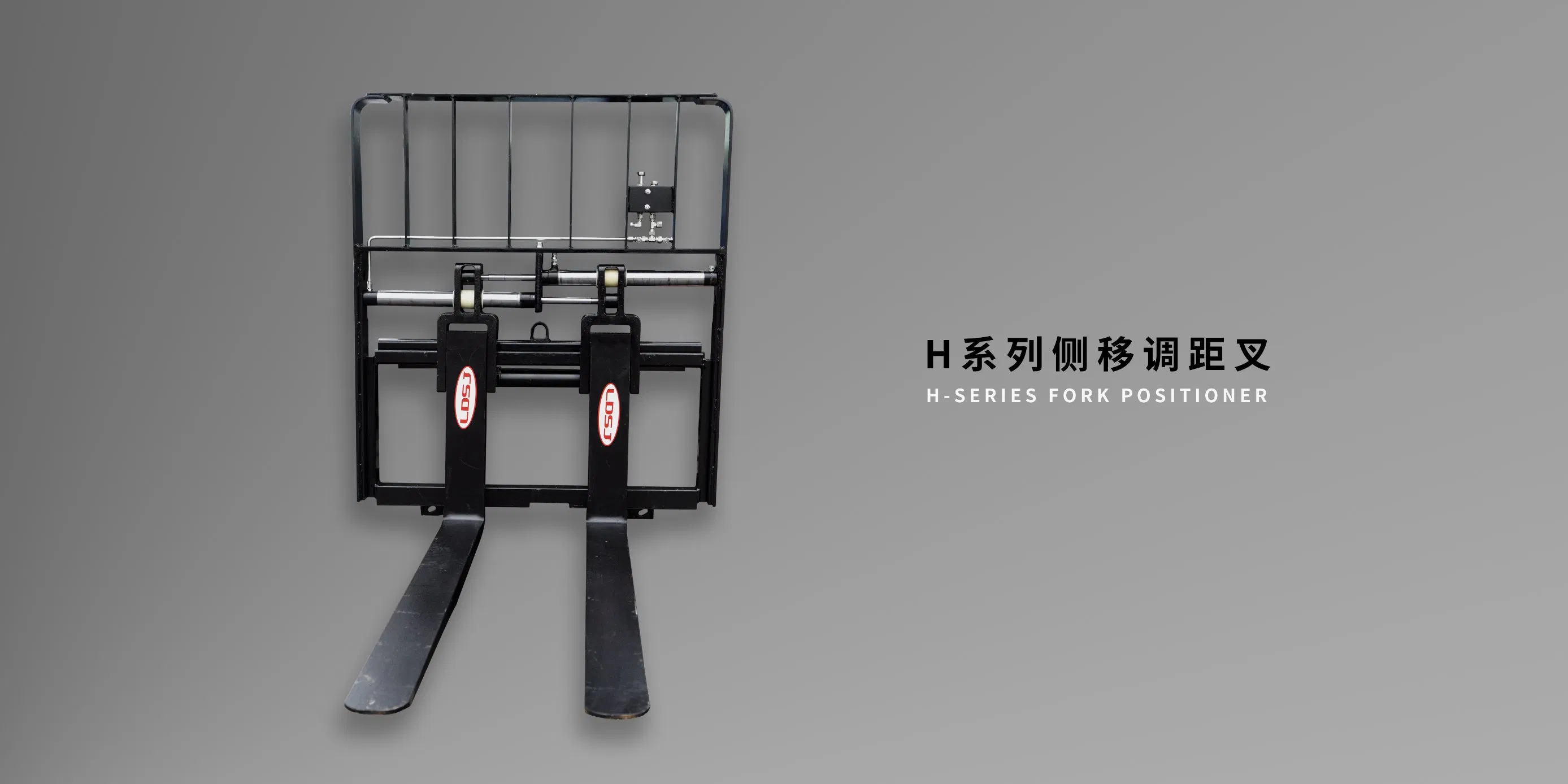

| H-Series Fork Positioners | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (kg@mm) | Order NO. | Mounting | Range (mm) | Side Shift | Pocket Width | Truck Width | Overall Width | Weight (kg) | ET (mm) | VCG (mm) | HCG (mm) | Available (t) | |
| 1800@500 | TC18G-A1 | II | 100-900 | - | 100 | 895 | 1018 | 135 | 63 | 472 | 50 | 1-1.8t | |
| 2500@500 | TC25G-A1 | II | 100-970 | - | 100 | 895 | 1088 | 148 | 63 | 472 | 50 | 2-2.5t | |
| 3000@500 | TC30G-B1 | III | 100-1125 | - | 125 | 930 | 1248 | 186 | 68 | 501 | 50 | 3-3.5t | |
| 6800@600 | TC70G-C1 | IV | 120-1750 | - | 150 | 1420 | 1905 | 553 | 75 | 559 | 57 | 5-7t | |
Notes:

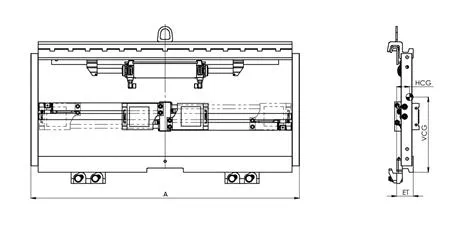

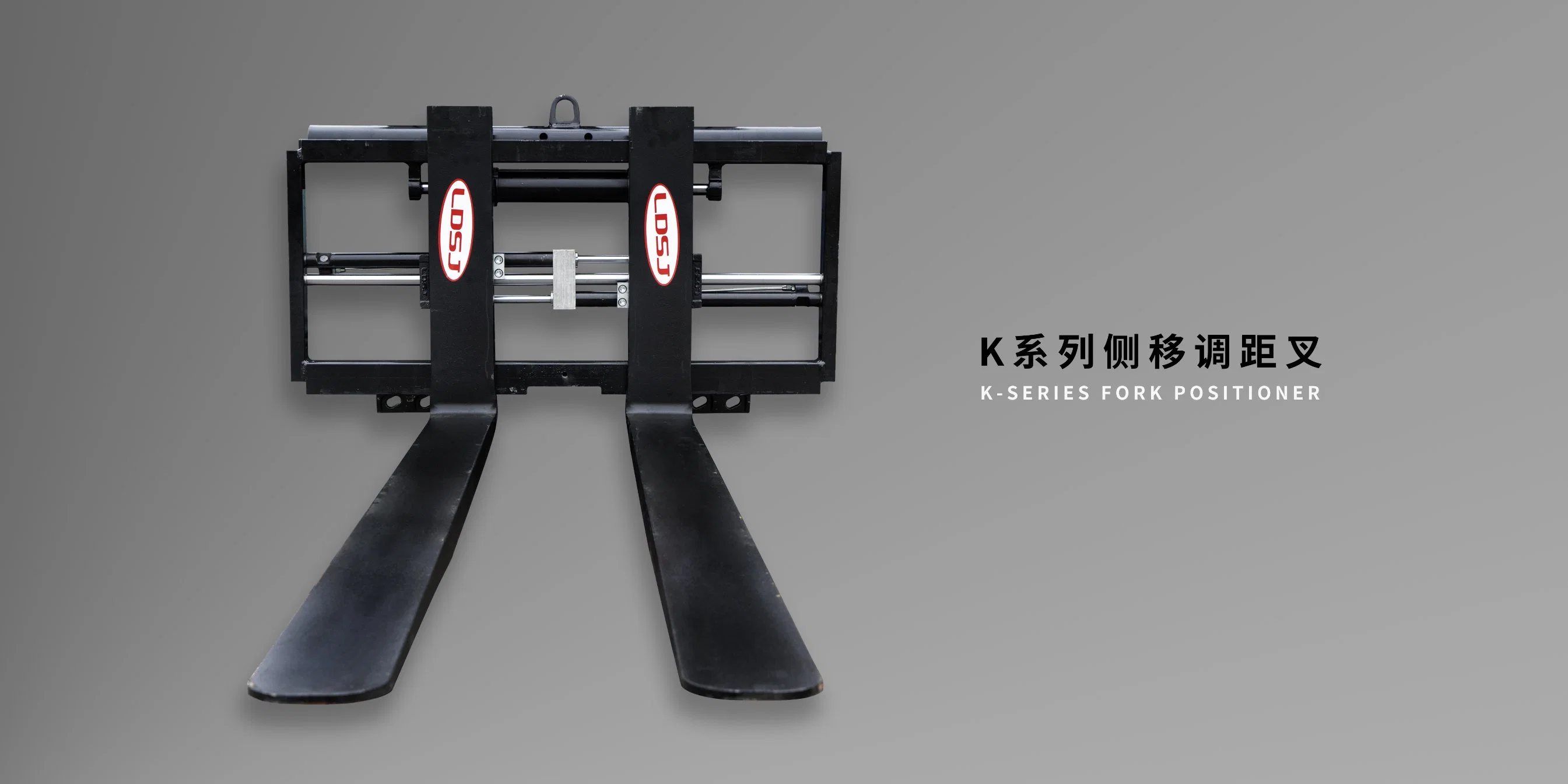

| K-Series Fork Positioners | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (kg@mm) | Order NO. | Mounting | Range (mm) | Total Shift | Pocket Width | Truck Width | Overall Width | Weight (kg) | ET (mm) | VCG (mm) | HCG (mm) | Available (t) |
| 1800@500 | TY18G-A2 | II | 28-860 | ±100 | 100 | 895 | 970 | 72 | 68 | 218 | 31 | 1-1.8t |
| 3000@500 | TY30G-B3 | III | 28-990 | ±100 | 125 | 970 | 1100 | 90 | 68 | 275 | 31 | 3-4.5t |

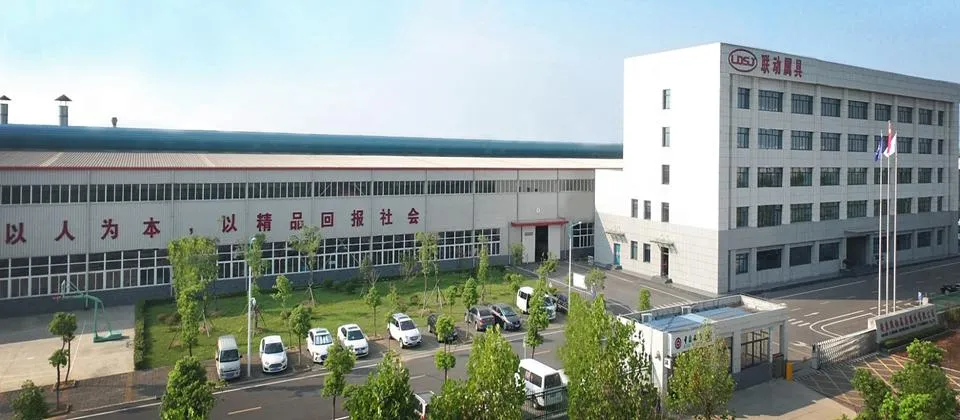

Our company was created in January 2011 and integrates R & D, manufacturing, sales and service of construction machinery attachments and parts. The products are widely used in papermaking, storage, tobacco, port, chemical industry, construction, smelting and many other industries. They are highly efficient and intelligent handling equipment for mechanized loading and unloading, stacking and short-distance handling.
At present, the product type has reached more than 3000 kinds and key parts have been independently developed and manufactured. Many products have independent intellectual property rights and obtained national patents. We have high-efficiency digital intelligent equipment such as CNC cutting machines, welding robots, machining centers, and automated painting lines.
We are totally committed to continuous quality improvements, providing excellence to customers worldwide. We have passed ISO9001, ISO14001, OHSAS18001 system certifications and international welding quality system certifications.
