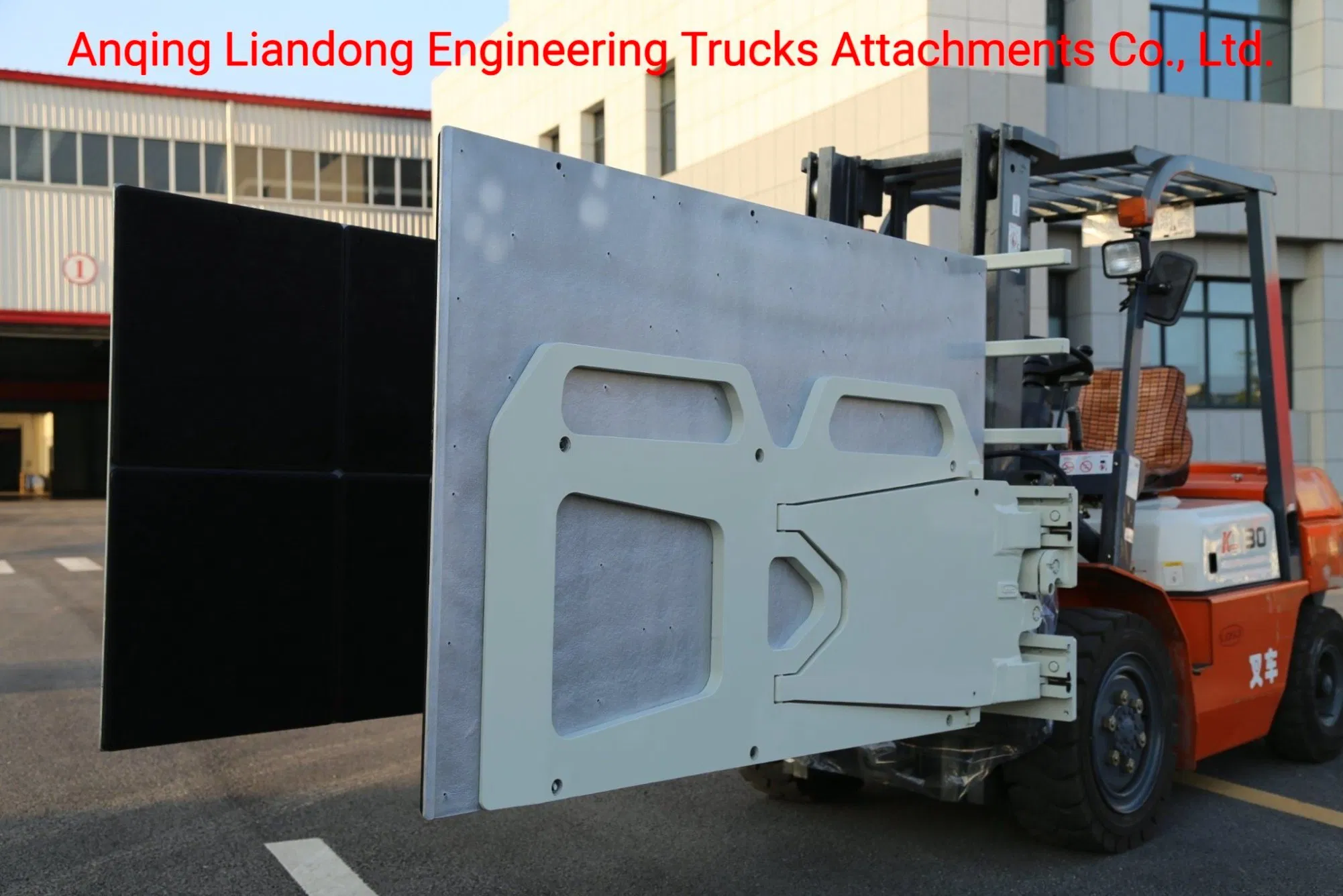

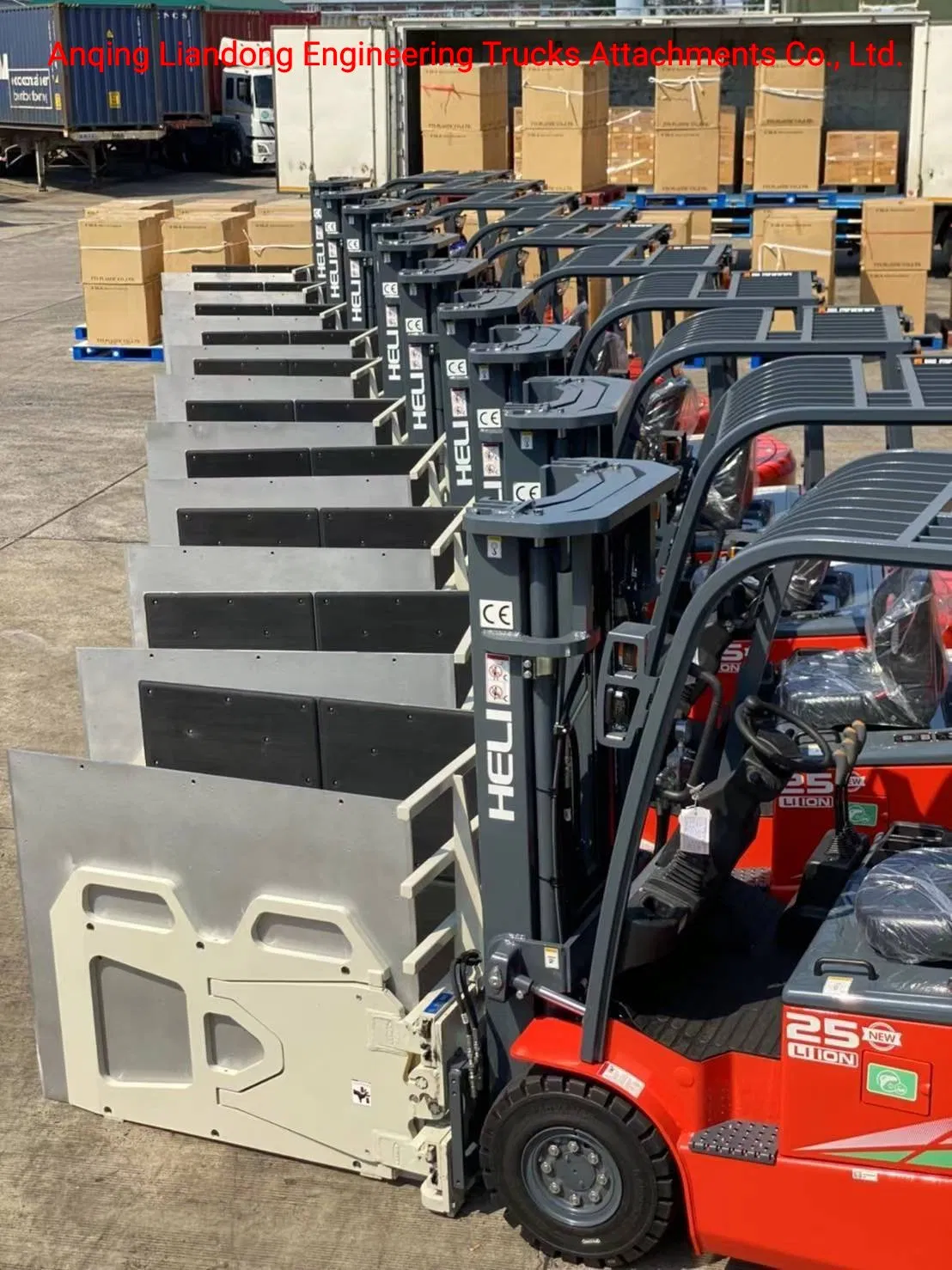

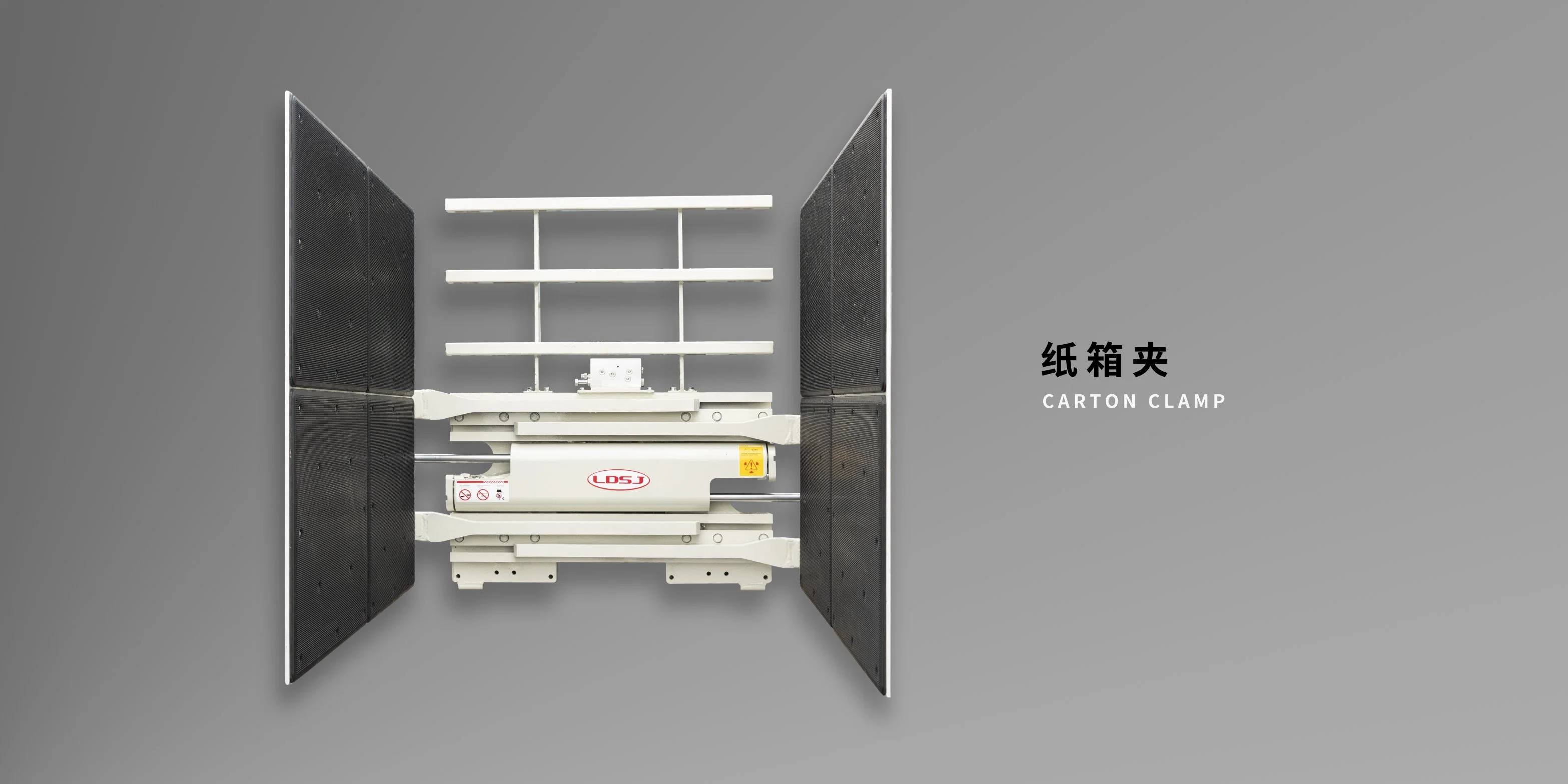

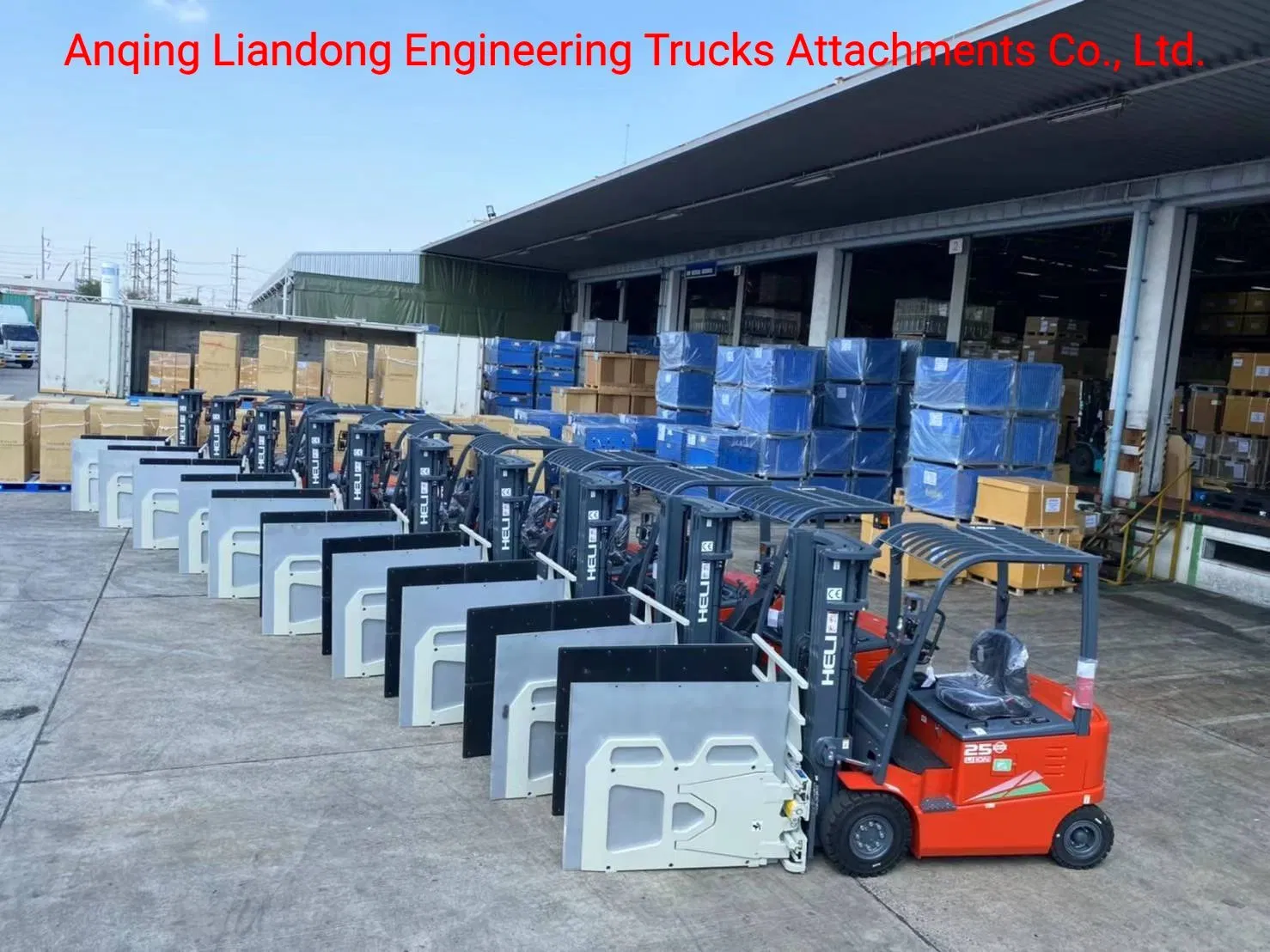

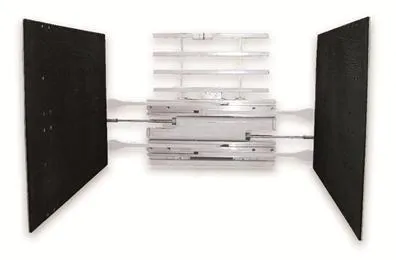

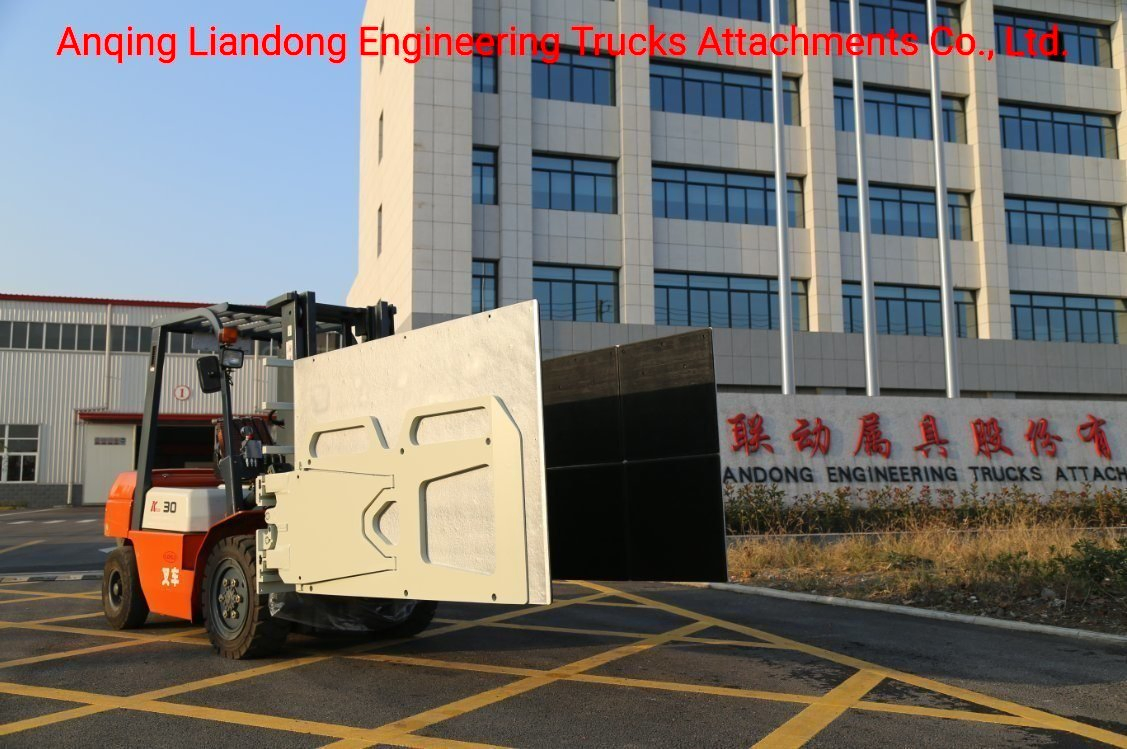

Carton clamps can securely handle and stack various goods packed in cartons without pallets and are widely used in the warehousing, beverage, appliance and electronics industries.
| J-Series Carton Clamps | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

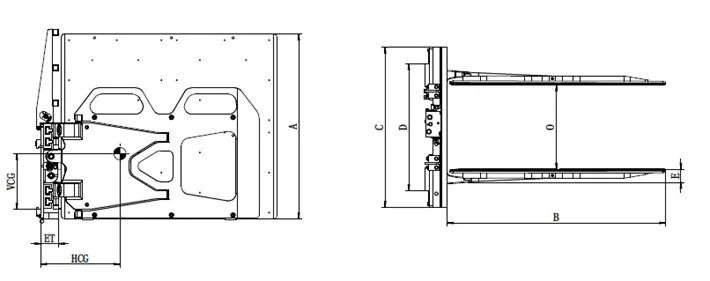

| Capacity @ Load Center (kg@mm) | Catalog Order NO. | Mounting Class | Opening Range (mm) | Arm Height (mm) | Arm Length (mm) | Frame Width (mm) | Hook Spread (mm) | Arm Thickness (mm) | Weight (kg) | ET (mm) | VCG (mm) | HCG (mm) | Available Forklift (t) |
| 1400@700 | ZX14J-A1 | II | 560-1940 | 1200 | 1420 | 1040 | 825 | 90 | 875 | 117 | 371 | 504 | 2-2.5t |
| 1400@700 | ZX14J-A2 | II | 760-2140 | 1200 | 1420 | 1040 | 825 | 90 | 890 | 117 | 369 | 497 | 2-2.5t |
| 1200@600 | ZX12J-A1 | II | 400-1570 | 1200 | 1220 | 1040 | 825 | 90 | 785 | 117 | 368 | 429 | 2-2.5t |
| 1400@600 | ZX14J-B1 | III | 595-1975 | 1200 | 1220 | 1040 | 1025 | 90 | 800 | 117 | 367 | 424 | 3-4.5t |
| D-Series Carton Clamps | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity @ Load Center (kg@mm) | Catalog Order NO. | Mounting Class | Opening Range (mm) | Arm Height (mm) | Arm Length (mm) | Frame Width (mm) | Hook Spread (mm) | Arm Thickness (mm) | Weight (kg) | ET (mm) | VCG (mm) | HCG (mm) | Available Forklift (t) |
| 1200@600 | ZX12D-A1 | II | 400-1570 | 1200 | 1220 | 1040 | 825 | 90 | 765 | 117 | 368 | 429 | 2-2.5t |
| 1360@700 | ZX14D-A1 | II | 560-1940 | 1200 | 1420 | 1040 | 825 | 90 | 855 | 117 | 371 | 504 | 2-2.5t |
| 1360@700 | ZX14D-B4 | III | 520-2400 | 1200 | 1480 | 1600 | 970 | 90 | 970 | 117 | 365 | 505 | 3-4.5t |
The company integrates R & D, manufacturing, sales and service of construction machinery attachments and parts. The products are widely used in papermaking, storage, tobacco, port, chemical industry, construction, smelting and many other industries. They are highly efficient and intelligent handling equipment for mechanized loading and unloading, stacking and short-distance handling.
Currently, the product range includes more than 3,000 kinds of attachments with key parts independently developed and manufactured. The company utilizes high-efficiency digital intelligent equipment such as CNC cutting machines, welding robots, machining centers, and CNC lathes. It has passed ISO9001, ISO14001, and OHSAS18001 system certifications.
