3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering

1 / 5

3-12 Lifting Height Electric Reach Truck 1600kg 2000kg with EPS Steering

Customization:	Available
After-sales Service:	Online
Warranty:	15 Months

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

YB20

Type

Reach Forklift

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load center

500mm

Lift height

3000mm-11000mm

Controller

USA Curtis

Tire

Polyurethane

Mast

Duplex/Full Free Lift Mast

Battery Voltage

48V/500ah

Production Capacity

15000 pieces/Year

✨ Product Overview

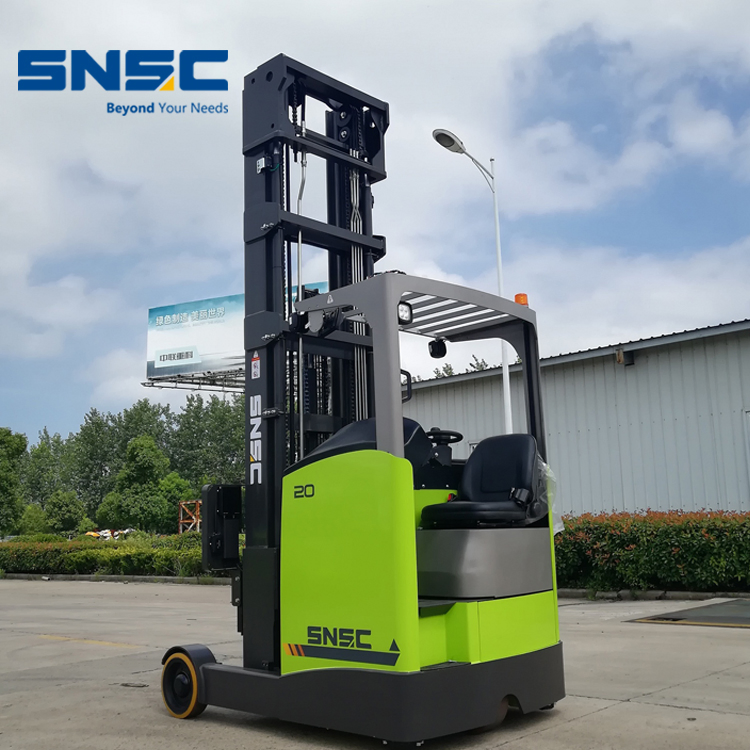

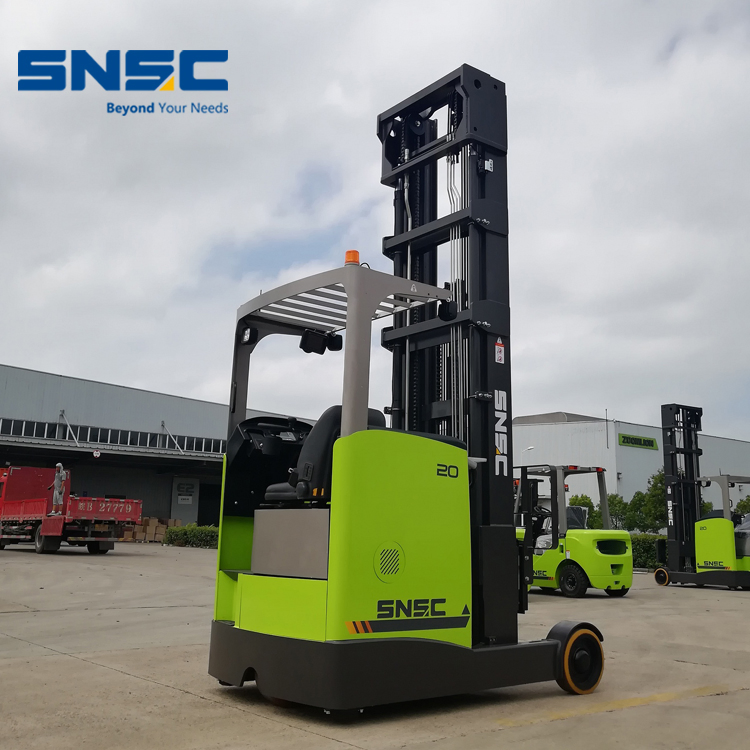

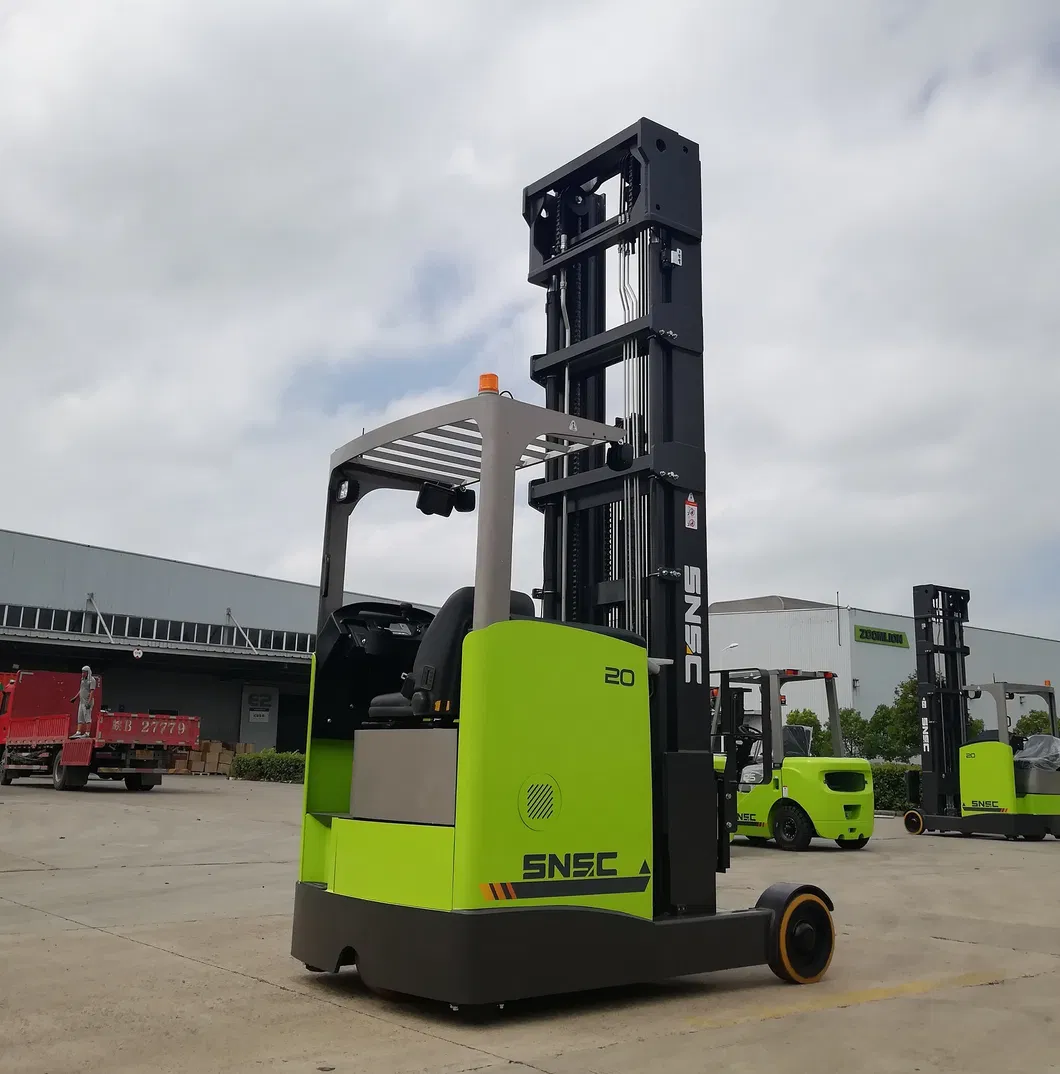

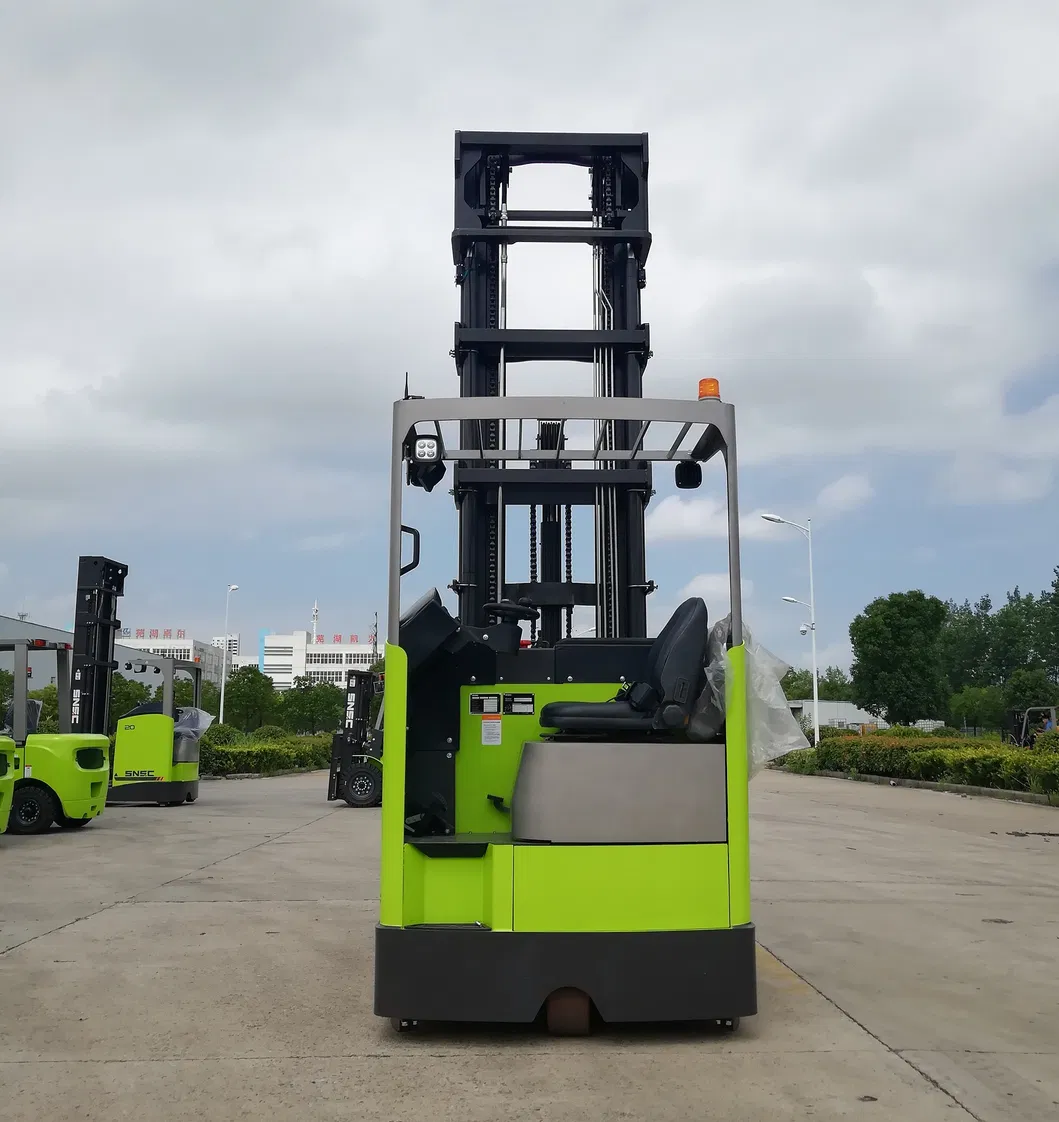

1.6-2Ton Electric Reach Truck

1.6-2Ton Electric Reach Truck lift from 3-12m, with small width from 1020-1100mm, turning radius from 1700-1740mm and narrow cabin to ensure trucks can be used in racks. Widely used in super market, food factory and logistic shop etc.

📊 Technical Data Sheet

Item	Description	Value (YB20-S2)
1	Power	Battery
2	Operator type	Seated
3	Rated capacity (kg)	2000
4	Centre of load (mm)	600
5	Wheelbase (mm)	1570
6	Curb weight (kg)	3332
7	Tire Material	PU/PU
8	Lifting height (mm)	4500
9	Overall length (mm)	2642
10	Overall width (mm)	1270/1294
11	Travel speed (km/h)	9/9.5
12	Lifting speed (mm/s)	260/360
13	Drive motor (kw)	6.4
14	Lift motor (kw)	11
15	Steering angle	180°

⚙️ Key Features & Maintenance

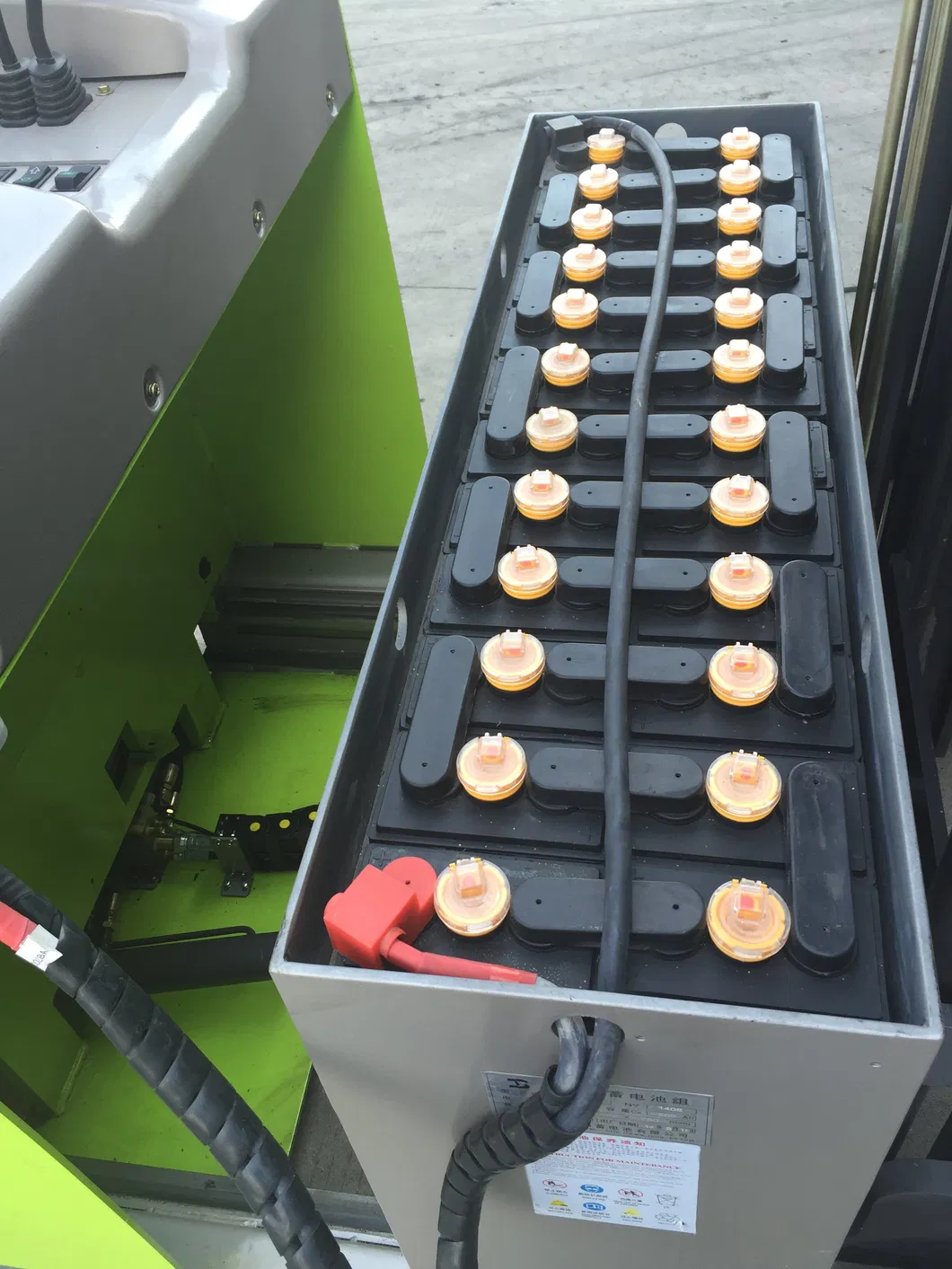

For daily maintenance of the battery, you don't need to hang up the battery box. Simply using a box handle controller, you can automatically remove and replace the battery box.

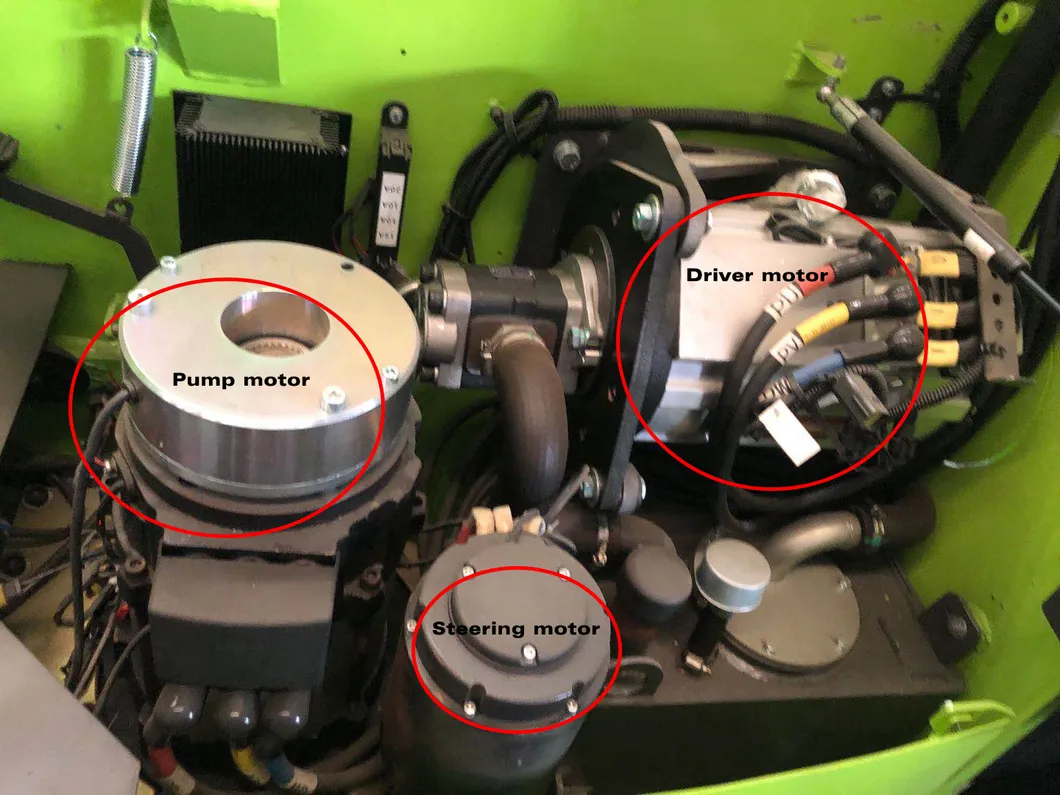

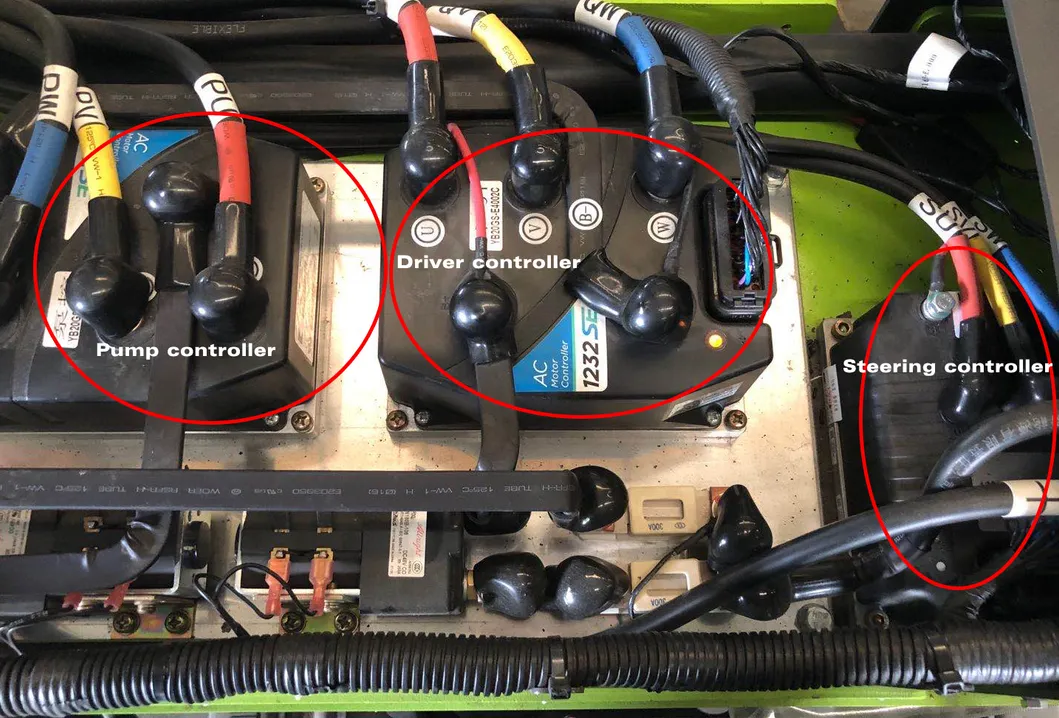

Drive System: Drive motor for forward and backward; Pump motor for lifting and down; Steering motor for electric steer.

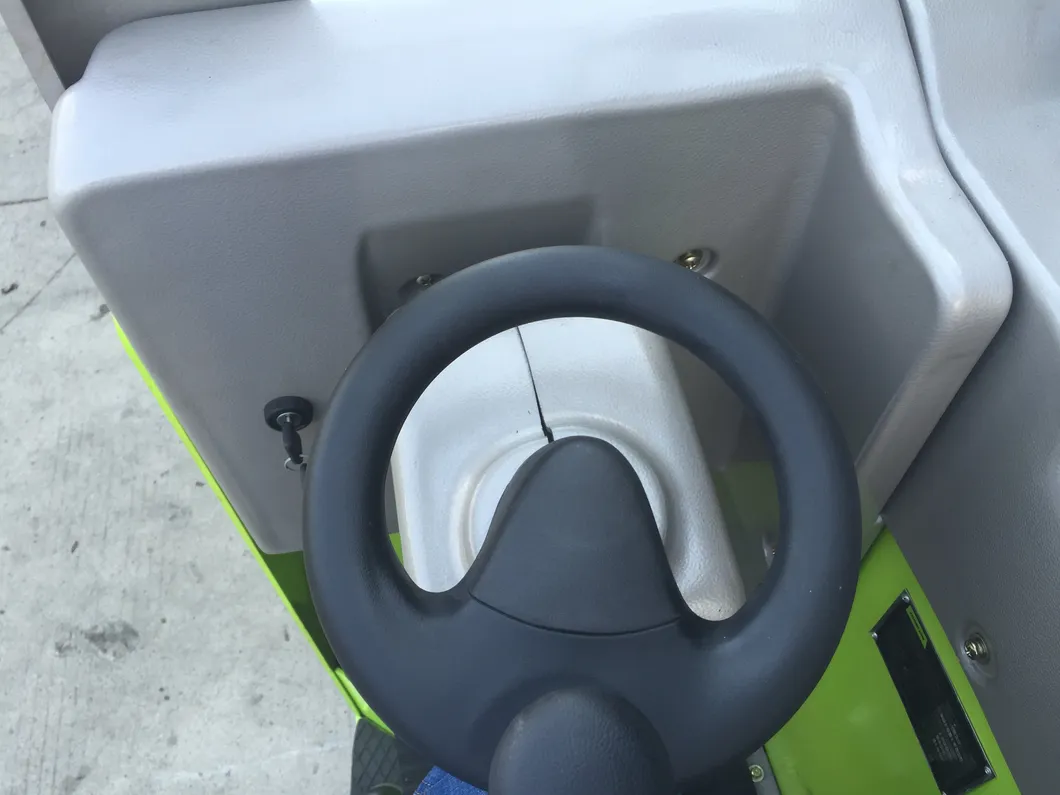

EPS System: Fully electric steering system ensures flexible turning and free maintenance.

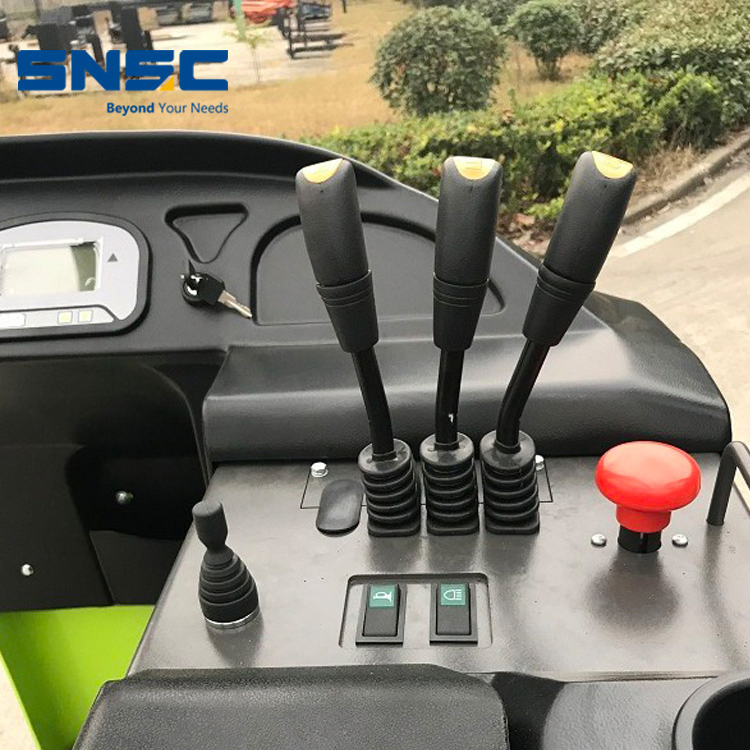

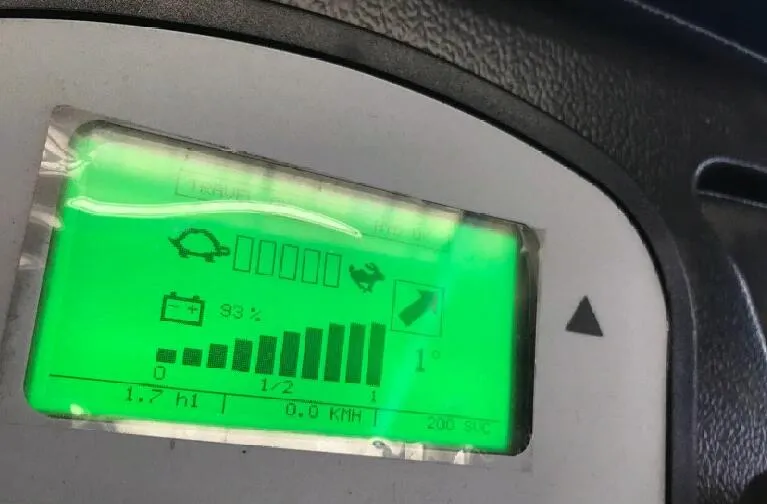

Multifunction intelligent CURTIS LCD display with using time, fault code, battery status, forklift running information, and speed mode settings (E.S.H, economic, slow, high).

❓ Frequently Asked Questions

Q: What is the maximum load capacity of this reach truck?

A: This series supports a load capacity ranging from 1 Ton up to 5 Tons, specifically 2000kg for the YB20 model.

Q: What is the maximum lift height available?

A: The lift height is highly customizable, ranging from 3000mm to 11000mm (3-11 meters) to suit various warehouse needs.

Q: Does the truck feature electronic steering?

A: Yes, it is equipped with a fully electric steering system (EPS) which ensures flexible maneuverability and requires zero maintenance.

Q: How is the battery maintenance handled?

A: Maintenance is simplified with an automatic battery removal system. You can replace the battery box easily using a handle controller without heavy lifting equipment.

Q: What information does the display provide?

A: The USA-made Curtis LCD display shows operation time, battery status, fault codes, and allows for speed mode settings (Economic, Slow, High).

Q: Is this truck suitable for narrow aisles?

A: Absolutely. With a small width of 1020-1100mm and a tight turning radius of 1700-1740mm, it is specifically designed for high-density racking environments.
