Compact Opsm Mini Order Picker Lifts Operators up to 5 Meters Safely

Customization:	Available
After-sales Service:	Online Support and on-Site Repair Services
Warranty:	1 Year

Basic Specifications

Model NO.	OPSM
Type	Order Picker
Power	AC Motor
Load Capacity	≤1T
Fuel	Electric
Load Center	500mm
Operation Type	Stand Driving
Max. Lift Height	3 Meters / 5 Meters Working Height
Production Capacity	200 Units/Month

Product Description

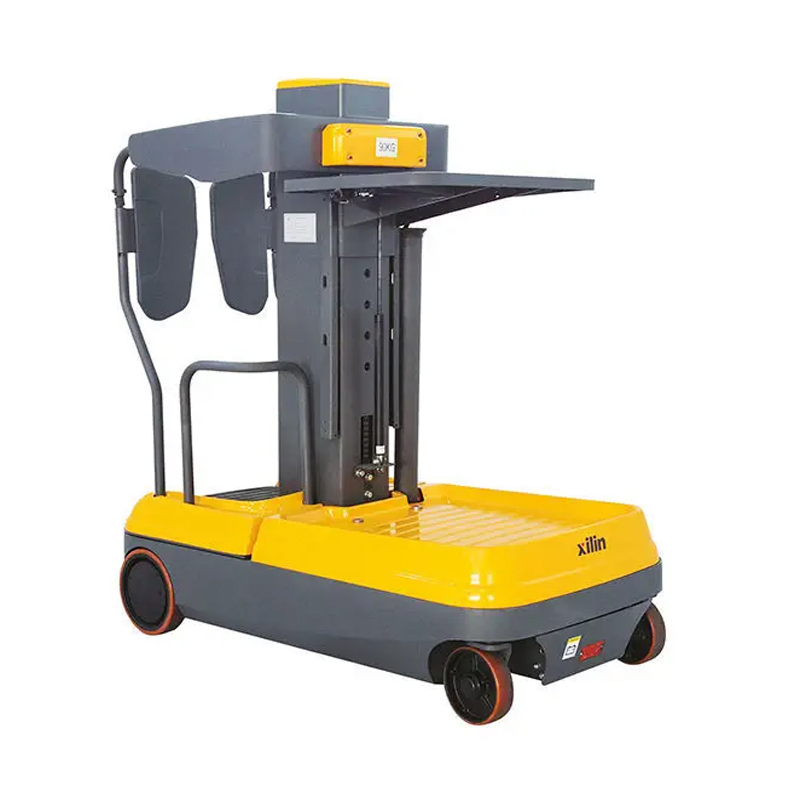

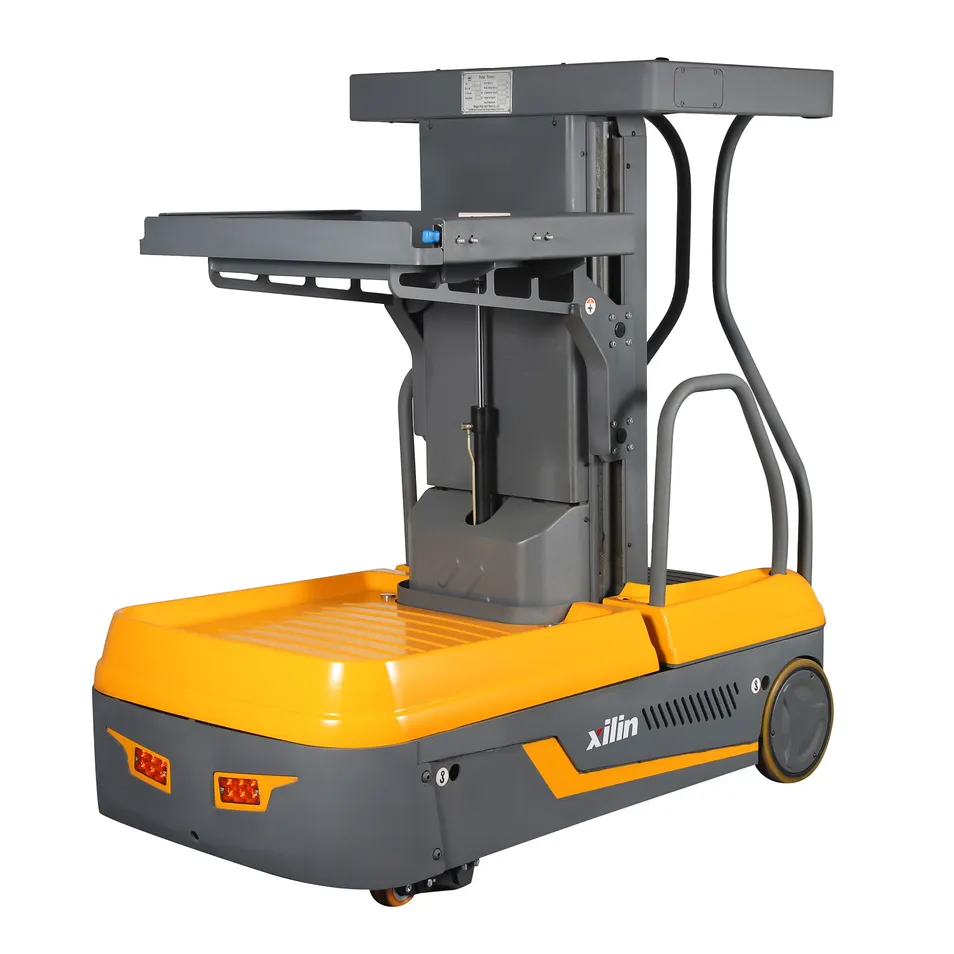

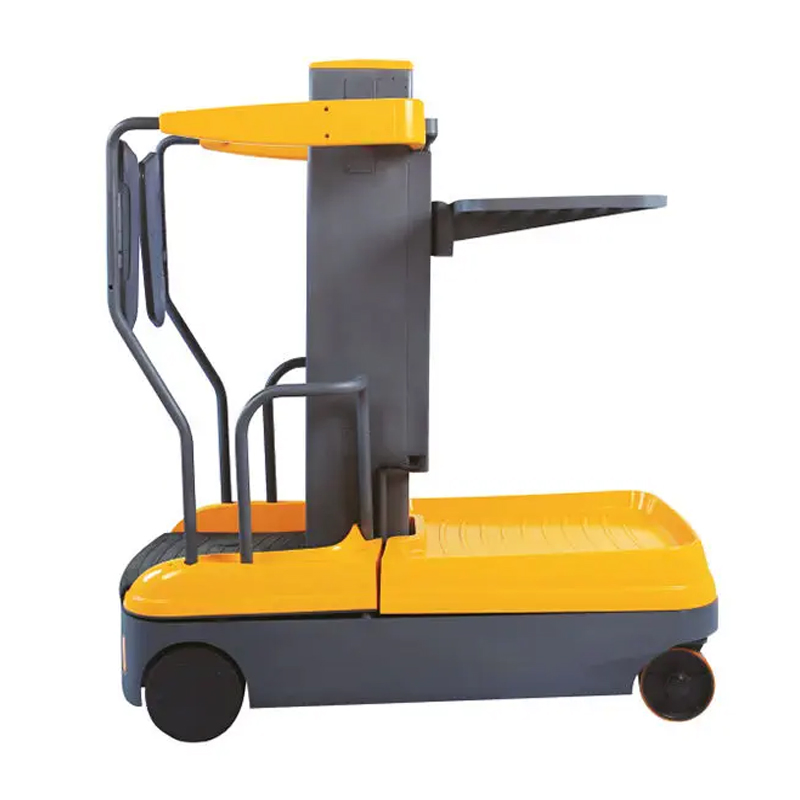

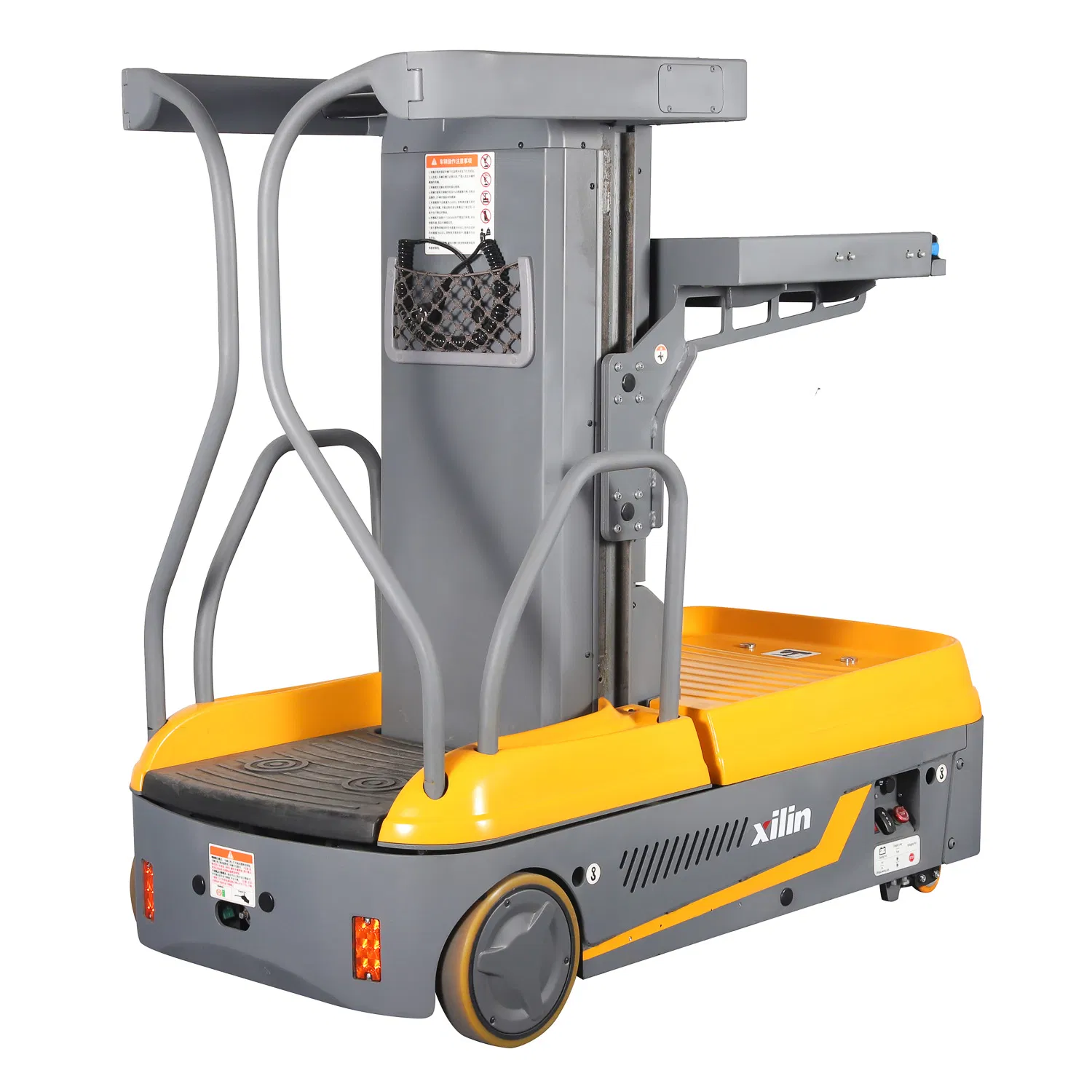

OPSM Mini Order Picker is a compact, high-performance electric order picker designed to revolutionize workflow in warehouses, distribution centers, and retail stockrooms.

By safely elevating an operator to heights of up to 5 meters, it liberates labor from ladders and inefficient methods, dramatically improving productivity and safety in tasks such as order picking, inventory inspection, maintenance, and light installation.

Key Features & Advantages

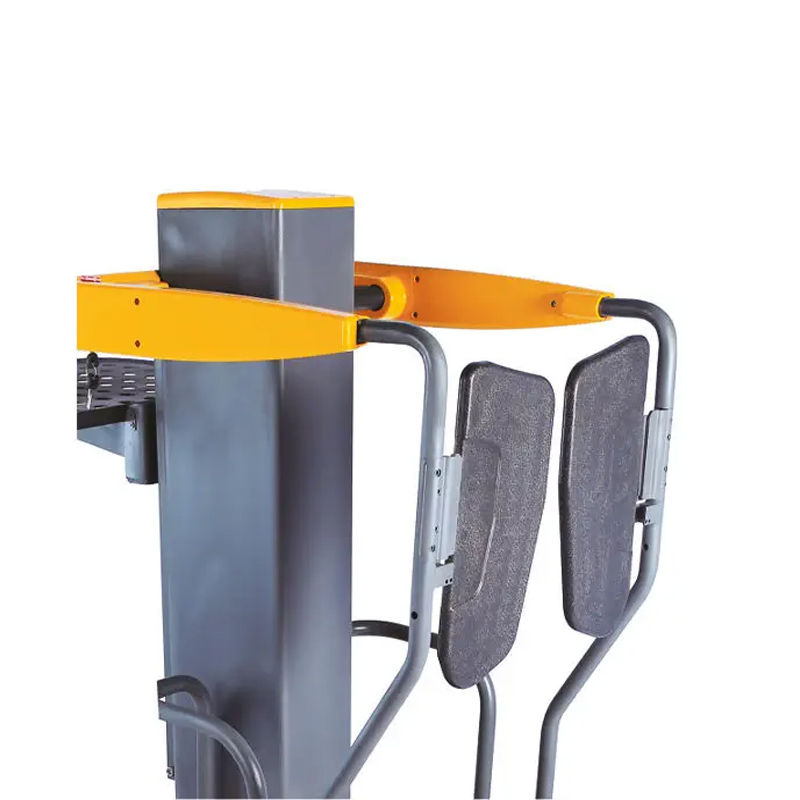

Precision Operation Intuitive steering handle ensures easy, flexible, and responsive operation for operators in tight spaces.

Multi-Function Display Provides real-time information including battery status, diagnostic fault codes, and key technical data.

Variable Speed Travel Travel speed automatically adjusts based on mast height for safety (up to 8.2 km/h when collapsed).

Operator-Centric Design Expandable storage tray (560mm to 860mm) and standard file storage bag for maximum efficiency.

Stable Mast System Engineered for smooth, wobble-free lifting up to 5 meters, providing secure access to high rack levels.

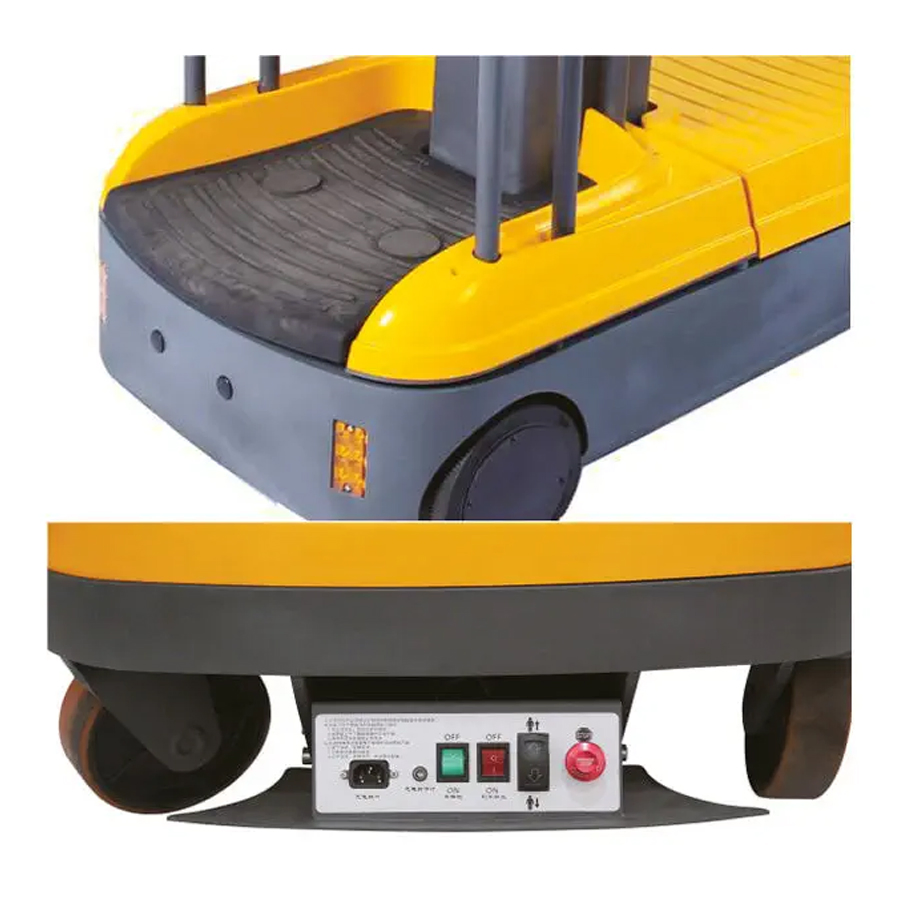

Manual Descent Valve Integrated emergency lowering system allows the platform to be safely lowered in the event of power failure.

Technical Parameters

Specification	Value
Model	OPSM
Rated load of tray	90 kg
Rated load of dock	150 kg
Rated load of operator	130 kg
Height, mast lowered	1400 mm
Lift Height	3550 mm
Tray dimensions	700*560(860) mm
Battery	24V105(125)Ah

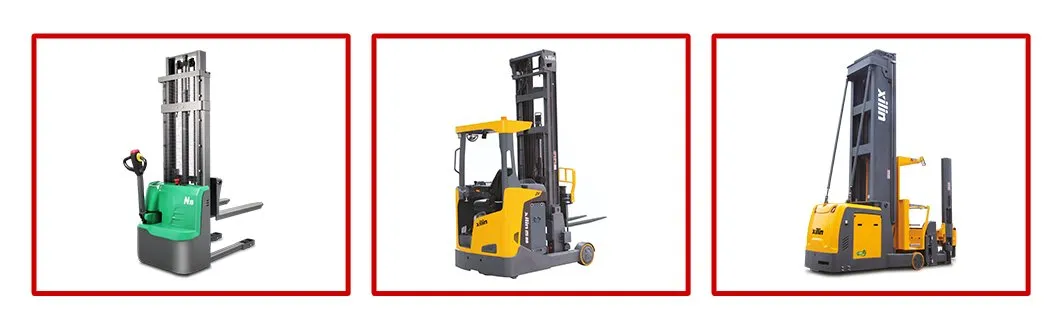

Main Product Showcase

Material Handling Excellence

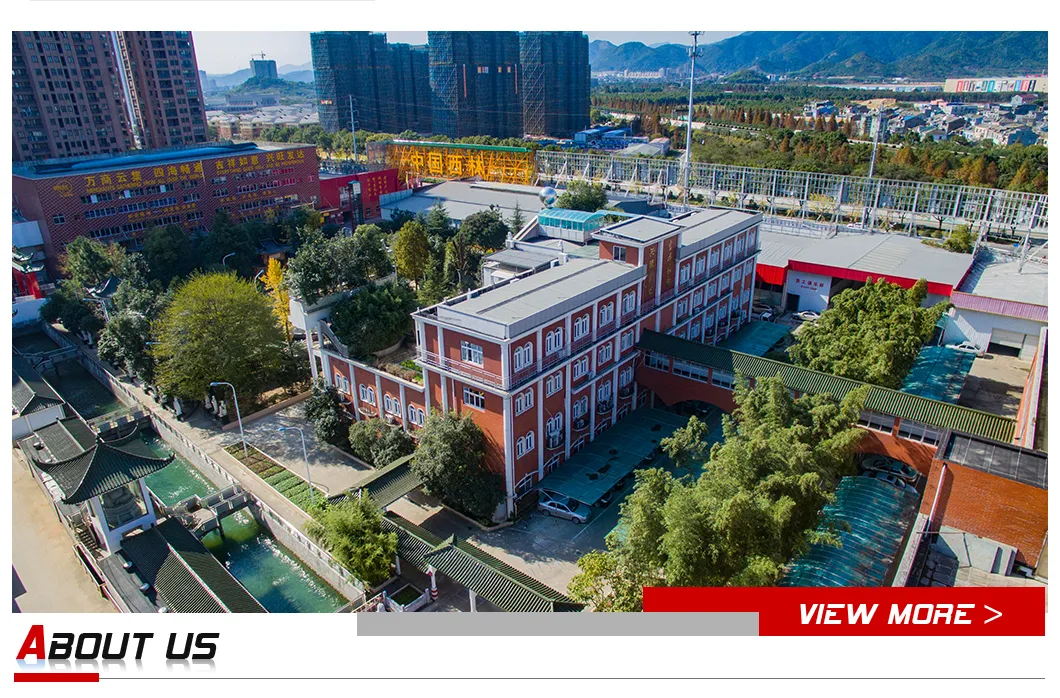

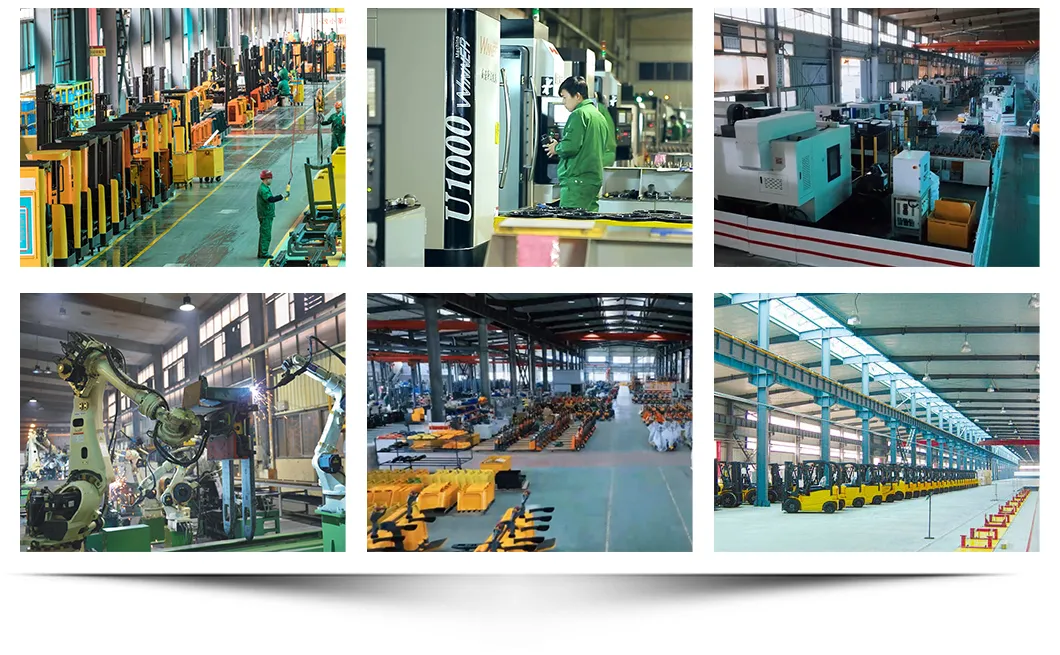

We provide world-class material handling solutions from the heart of a leading manufacturing ecosystem. Founded on the principles of integrity and expertise, we have evolved into a trusted partner for businesses worldwide seeking to optimize logistics, warehouse operations, and supply chain efficiency.

Corporate Advantages & Quality

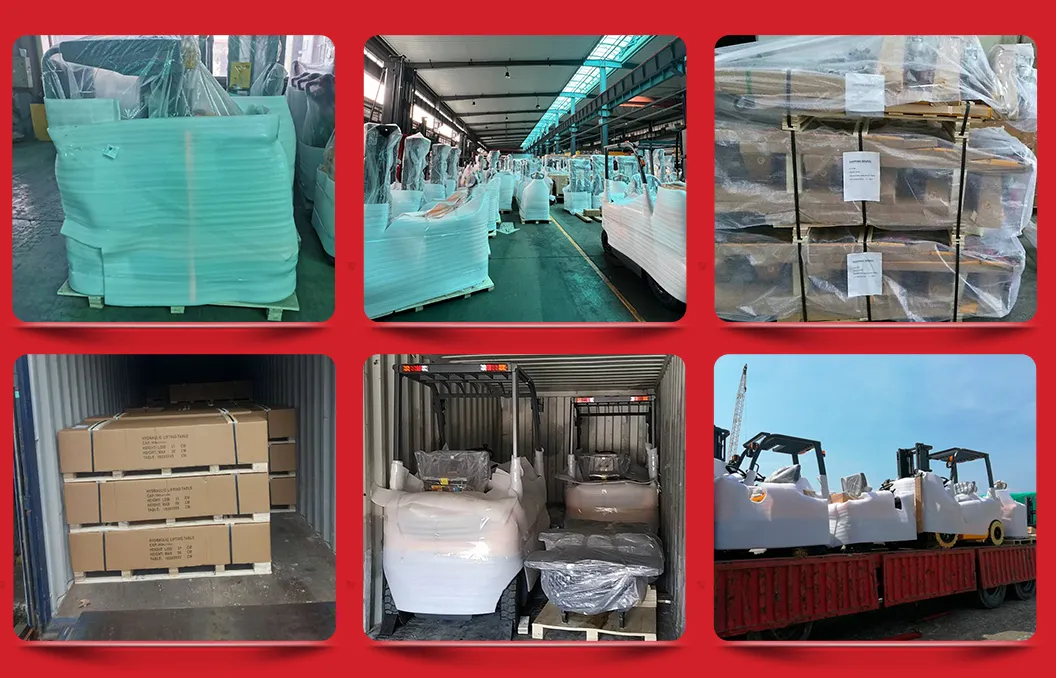

Packaging & Shipping

We provide full shipping documents and recommend the most efficient and cost-effective solution for your location. We work under standard Incoterms including EXW, FOB, CFR, CIF, and DAP to meet your logistical needs.

Frequently Asked Questions

What is the lift capacity of the OPSM Mini Order Picker?

The OPSM is designed with a total load capacity distributed across its components: 90kg for the tray, 150kg for the dock, and 130kg for the operator, making it ideal for light to medium picking tasks.

How high can the operator reach with this machine?

The mast lifts up to 3.55 meters, which typically allows an operator to safely reach working heights of up to 5 meters (3rd or 4th rack level).

Is the order picker safe for use in narrow aisles?

Yes, it features a "Turtle Speed Button" specifically for precise, slow-speed maneuvering in extremely narrow aisles or congested retail areas.

What kind of quality certifications do your products have?

All our partner factories are ISO-certified, and our equipment meets strict CE standards. We perform 100% pre-shipment inspections to ensure reliability.

What is the standard lead time for an order?

For standard models, the lead time is usually between 15-30 days. For customized orders or larger quantities, it typically ranges from 30-60 days.

What type of after-sales support is available?

We provide comprehensive support including English manuals, remote video technical assistance, genuine spare parts supply, and 12 months warranty against manufacturing defects.
