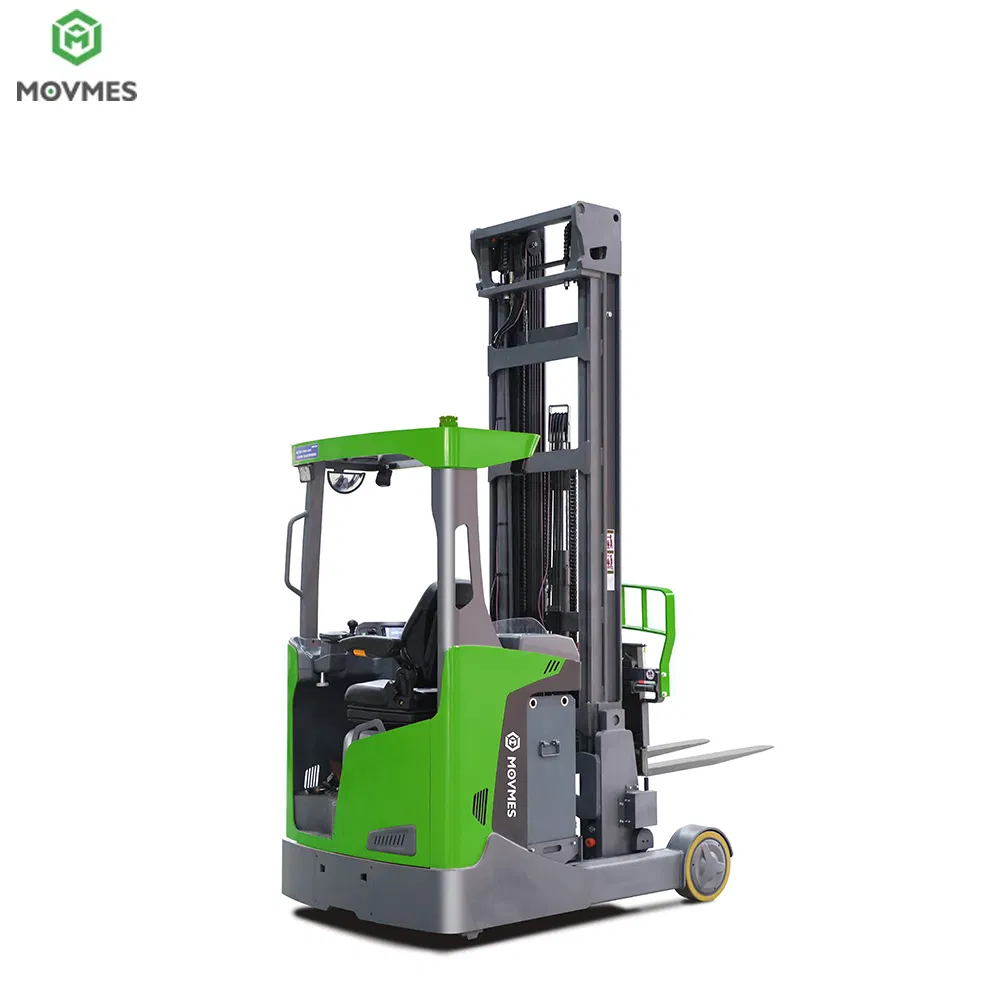

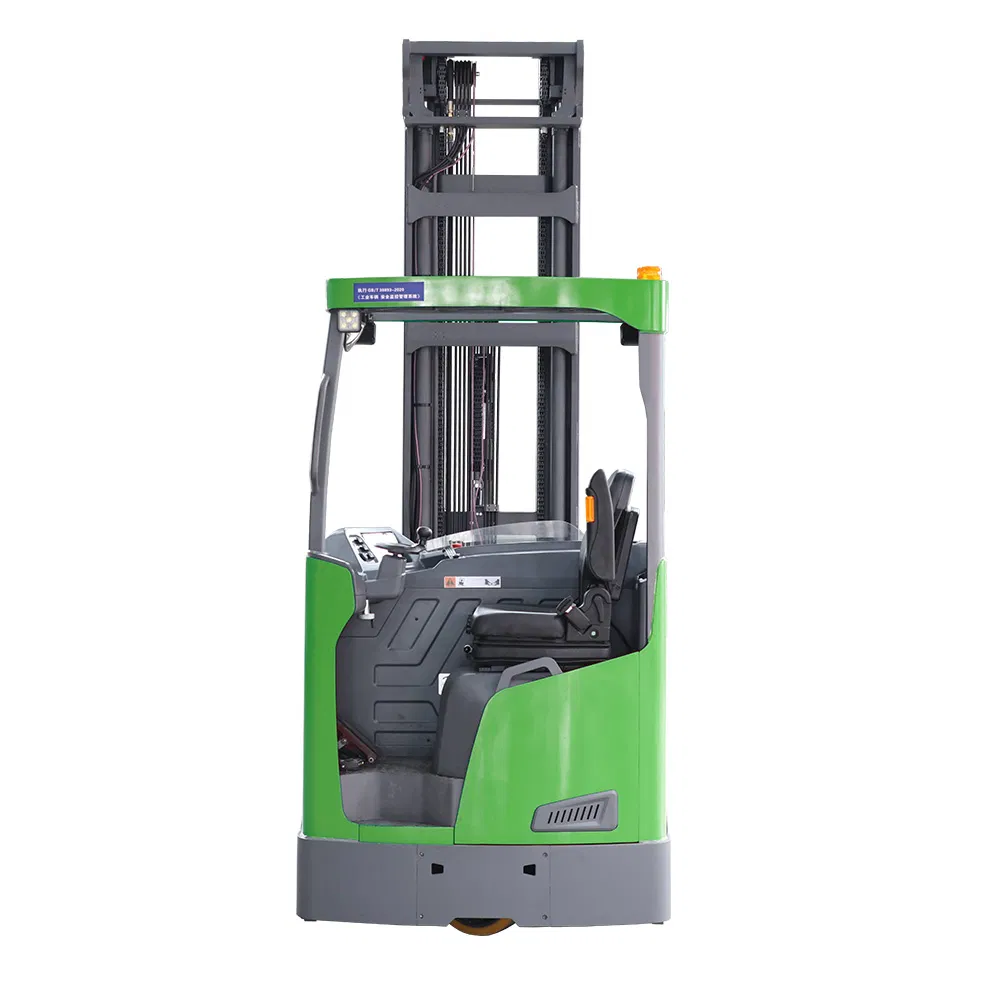

The CQD20-D Reach Truck is engineered for efficient and precise material handling in narrow aisle and high-racking warehouse environments. Its compact design and stable reach system allow operators to stack and retrieve pallets safely, even in confined spaces.
Powered by a reliable electric drive system, the CQD20-D delivers smooth operation, low noise, and zero emissions—making it an ideal solution for indoor logistics, distribution centers, and modern warehouses.

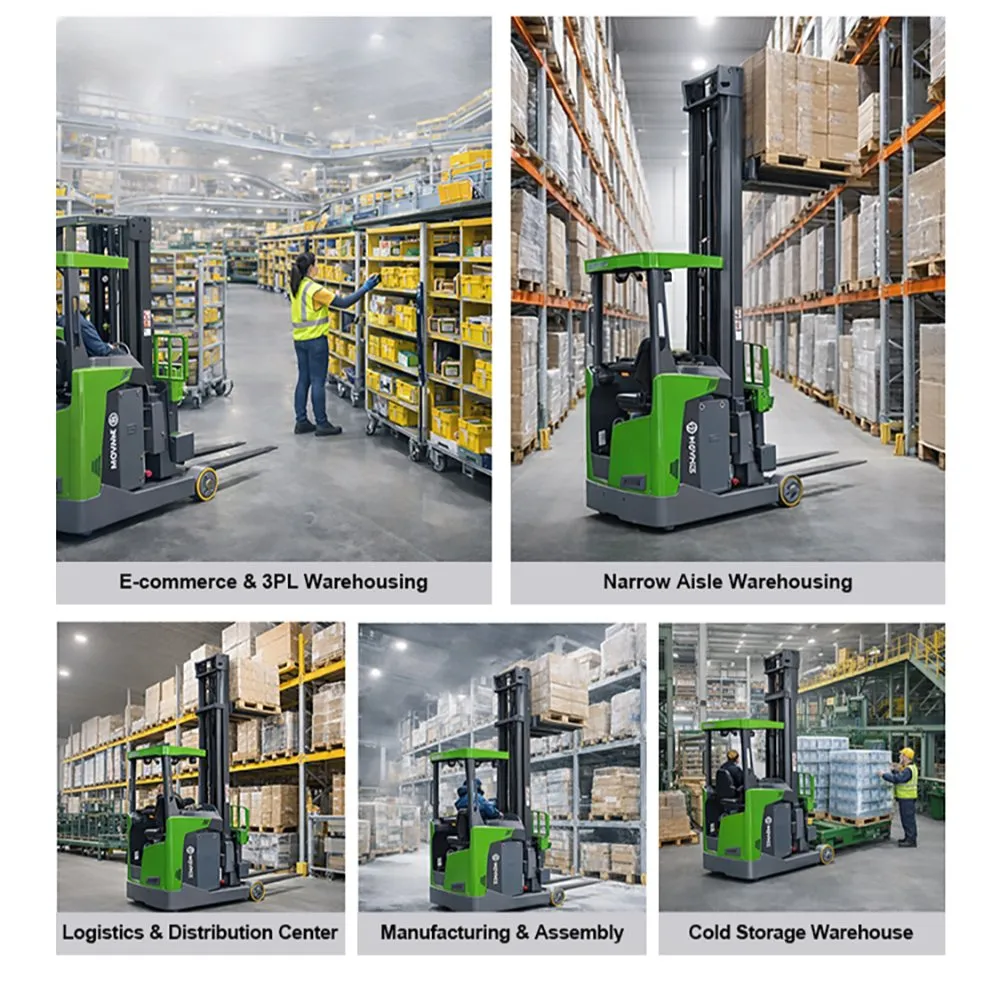

Ideal Applications: Narrow aisle warehouses · High-bay storage · Logistics centers · Manufacturing warehouses
| Parameter | Unit | CQD20-D Data |
|---|---|---|
| Drive type | - | Electric |
| Operator type | - | Seated |
| Rated load | Q(kg) | 2000 |
| Load center distance | C(mm) | 600 |
| Wheelbase | Y(mm) | 1510 |
| Service weight (with battery) | kg | 4205 |
| Travel speed (laden/unladen) | km/h | 10.5 / 11 |
| Lift speed (laden/unladen) | m/s | 0.3 / 0.46 |

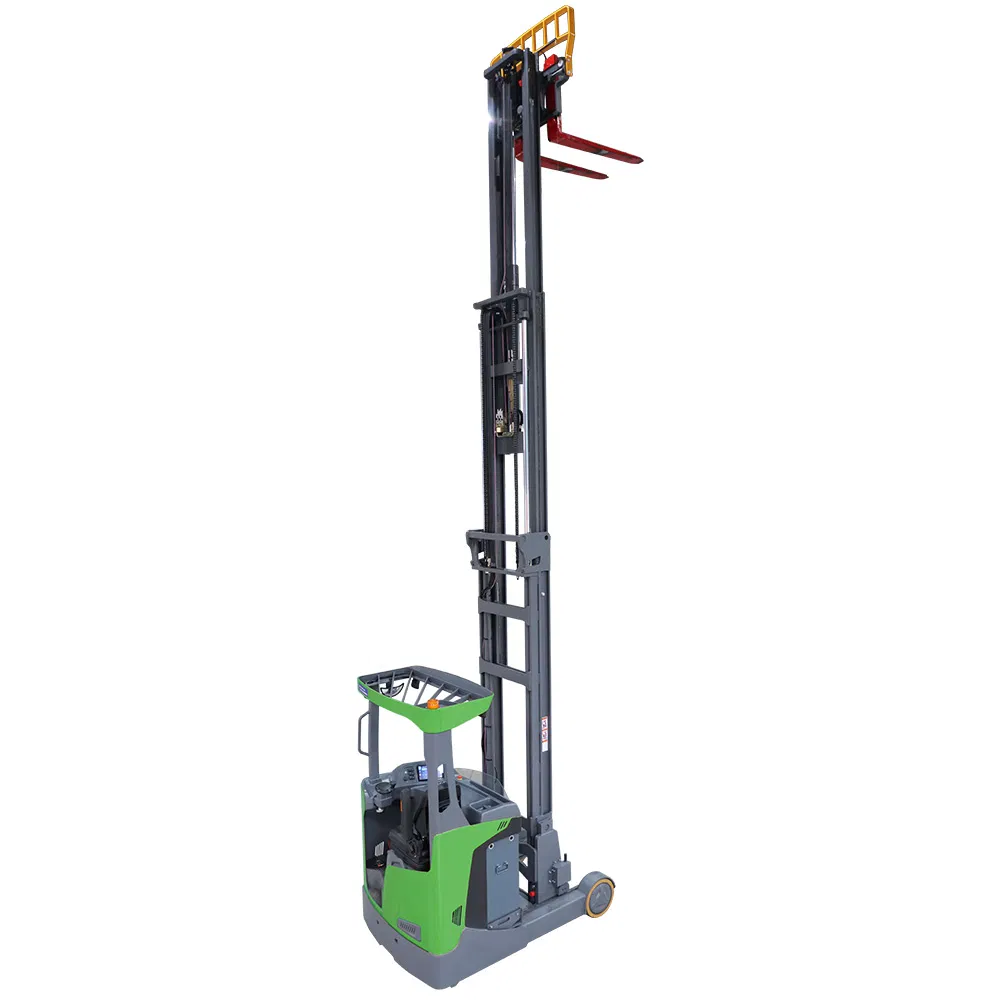

| Max. Lifting height | h3(mm) | Up to 12500 |
| Aisle width for pallets (1000x1200) | Ast(mm) | 2849 |
| Turning radius | Wa(mm) | 1783 |

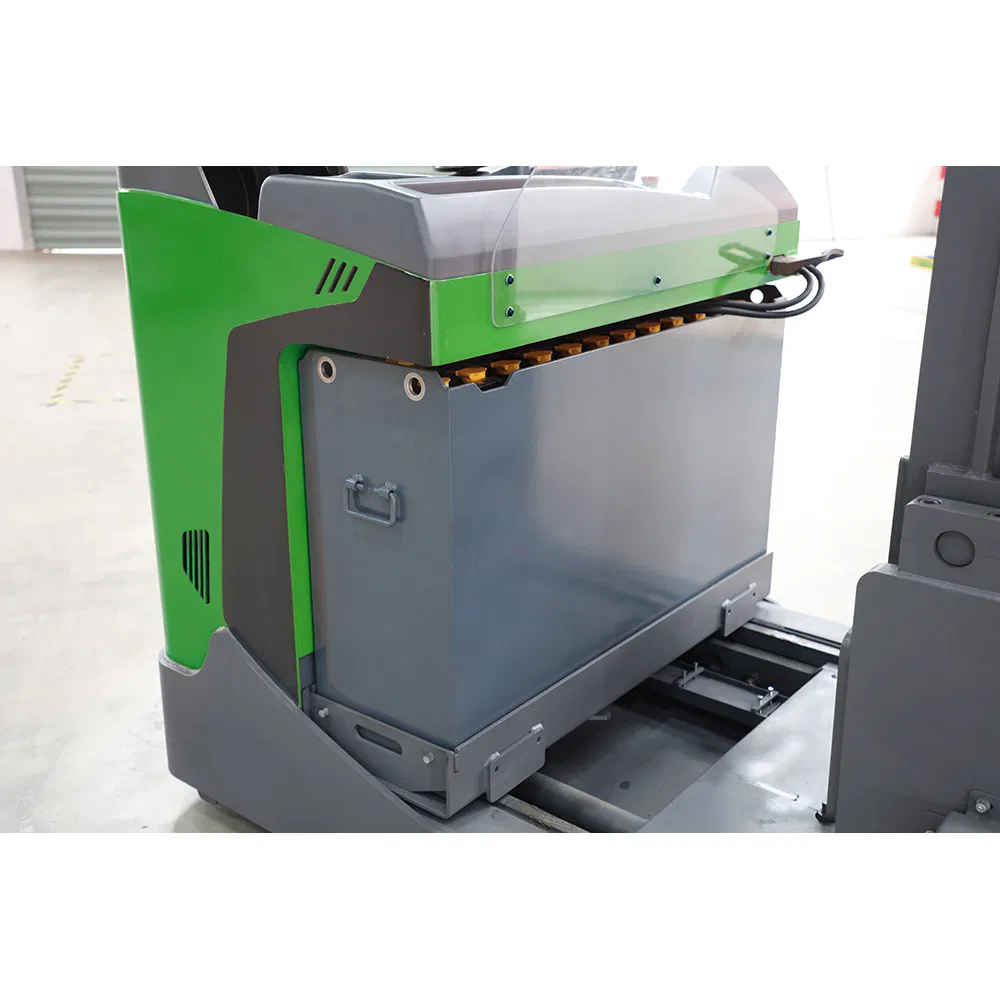

| Battery voltage/capacity | V/Ah | 48 / 500 |
