| Customization: | Available |
|---|---|
| After-sales Service: | 1 Years |
| Warranty: | 1 Years |
1. Application Scenarios: Diesel Forklift Trucks are widely utilized in ports, stations, airports, freight yards, factory workshops, warehouses, and distribution centers. They are capable of entering cabins, carriages, and containers for efficient pallet cargo loading, unloading, and handling operations, making them essential equipment for modern logistics.
2. Working Environment: These trucks are primarily designed for outdoor use or in workshops where there are no restrictive requirements for exhaust emissions and noise. Thanks to the convenience of diesel refueling, the equipment can achieve long-duration continuous operation and withstand harsh conditions, including rainy environments.

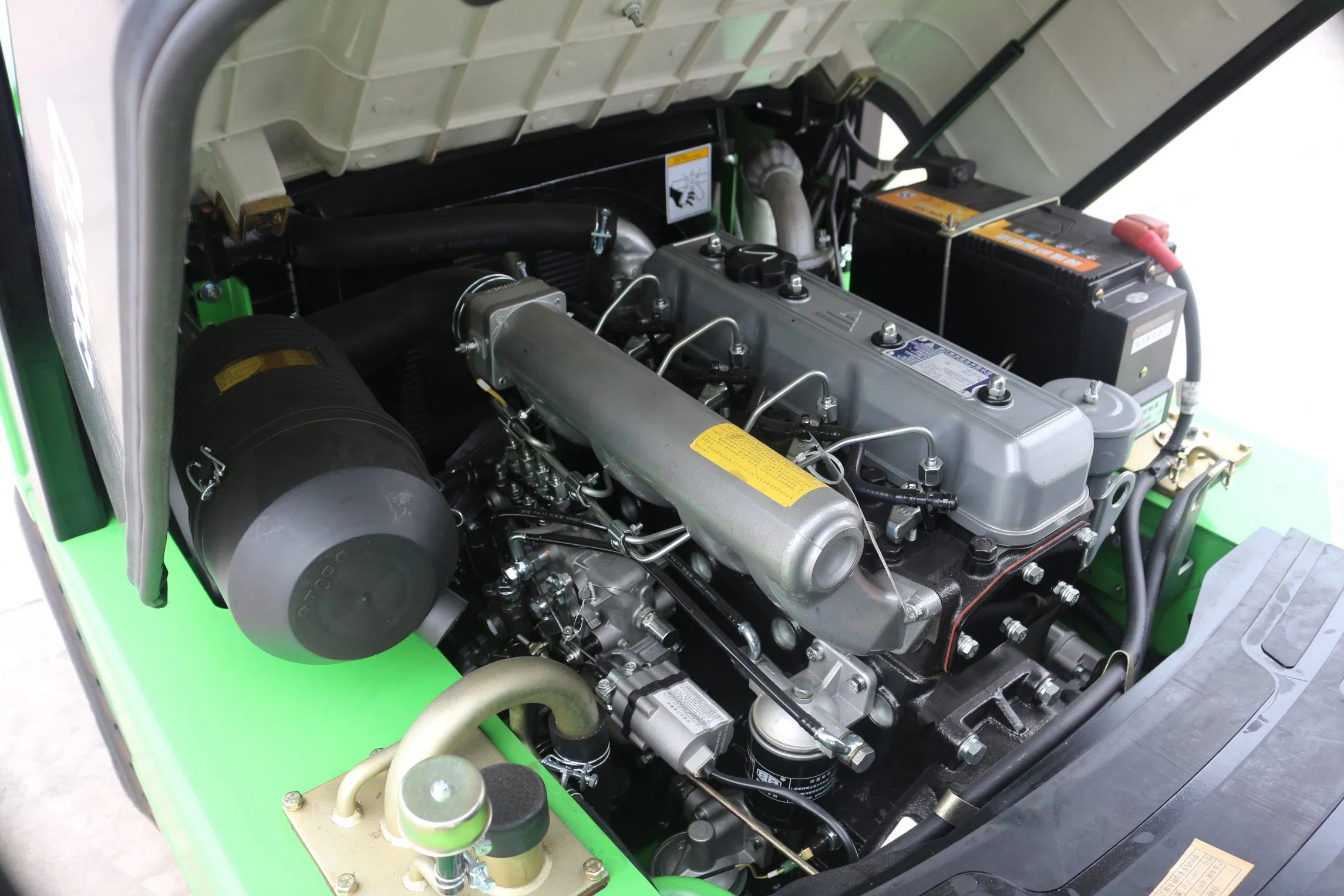

3. Functional Principle: Operating on the robust principles of a diesel engine, the forklift utilizes a four-stroke cycle (intake, compression, combustion, and exhaust) to drive both the walking and cargo lifting systems. It stands out for its strong power output, economic practicality, and exceptional durability.

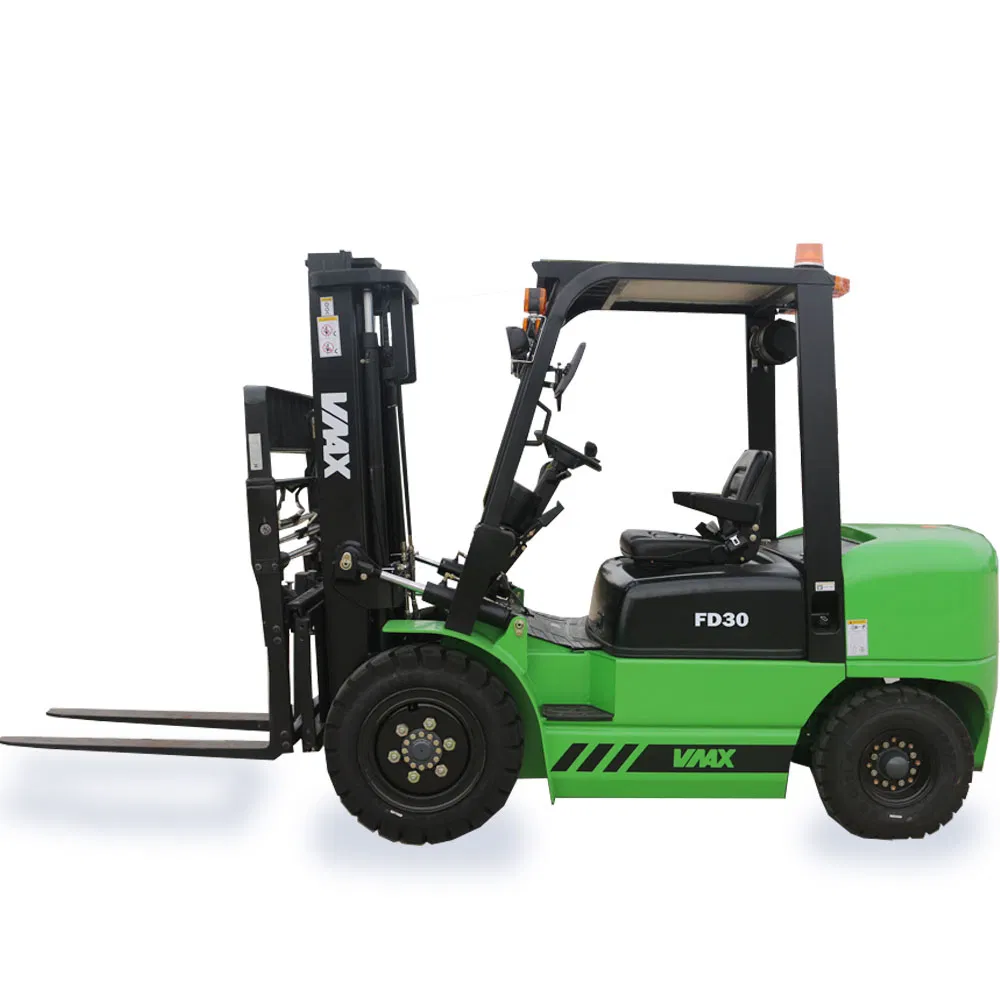

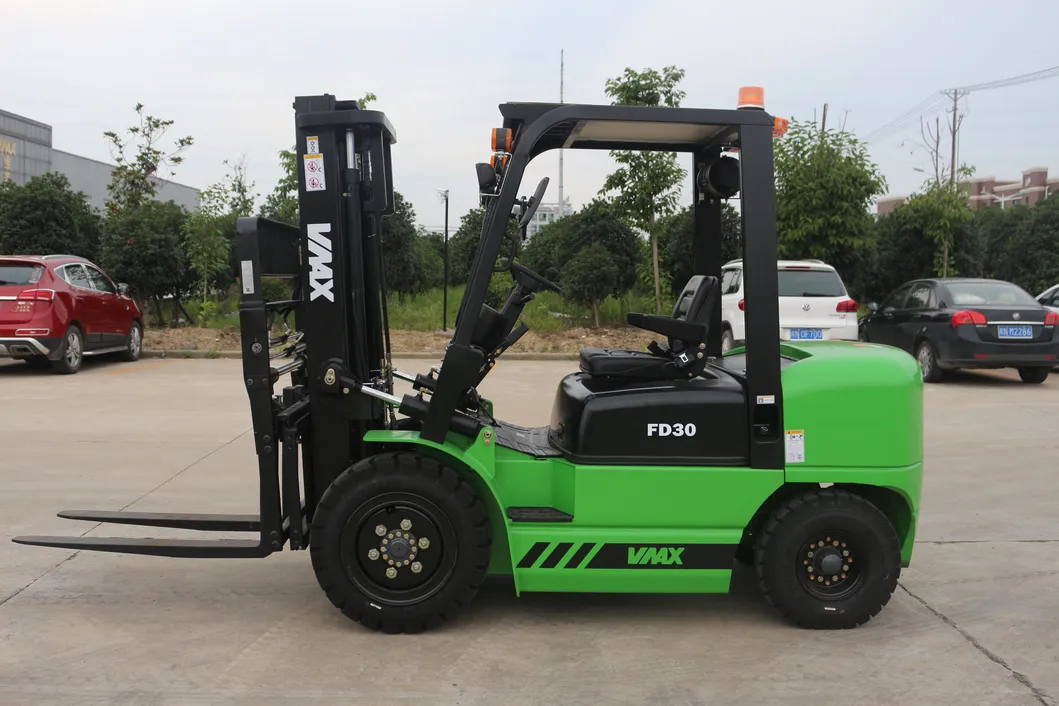

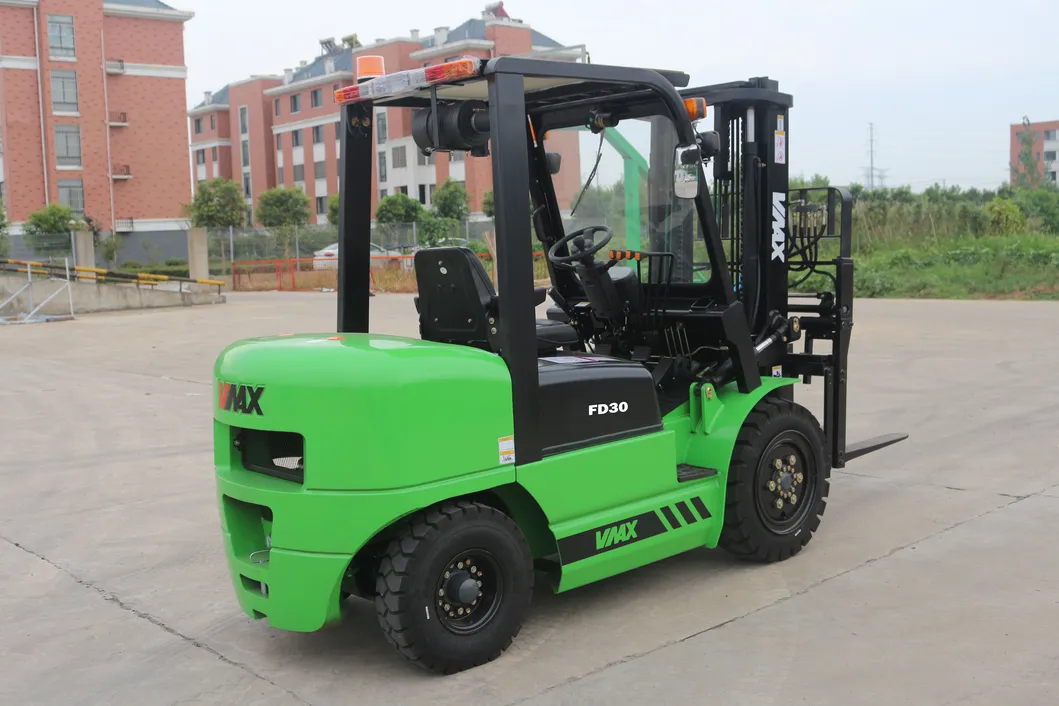

| Item | Category | Basic Model | Unit | FD30 | FD35 |
|---|---|---|---|---|---|
| 1 | General | Power type | - | Diesel | Diesel |
| 2 | General | Rated capacity | Kg | 3000 | 3500 |
| 3 | General | Load centre | mm | 500 | 500 |
| 4 | Dimension | Lift height | mm | 3000 | 3000 |
| 6 | Dimension | Fork size (LxWxT) | mm | 1070x125x45 | 1070x125x50 |
| 14 | Dimension | Length (without fork) | mm | 2685 | 2750 |
| 15 | Dimension | Overall width | mm | 1210 | 1210 |
| 19 | Dimension | Turning radius | mm | 2430 | 2450 |
| 21 | Performance | Travel Speed (Unladen) | Km/h | 19 | 19 |
| 22 | Performance | Lifting Speed (Laden) | mm/s | 410 | 380 |
| 31 | Chassis | Fuel tank capacity | L | 70 | 70 |
| 32 | Weight | Self weight | kg | 4310 | 4750 |
