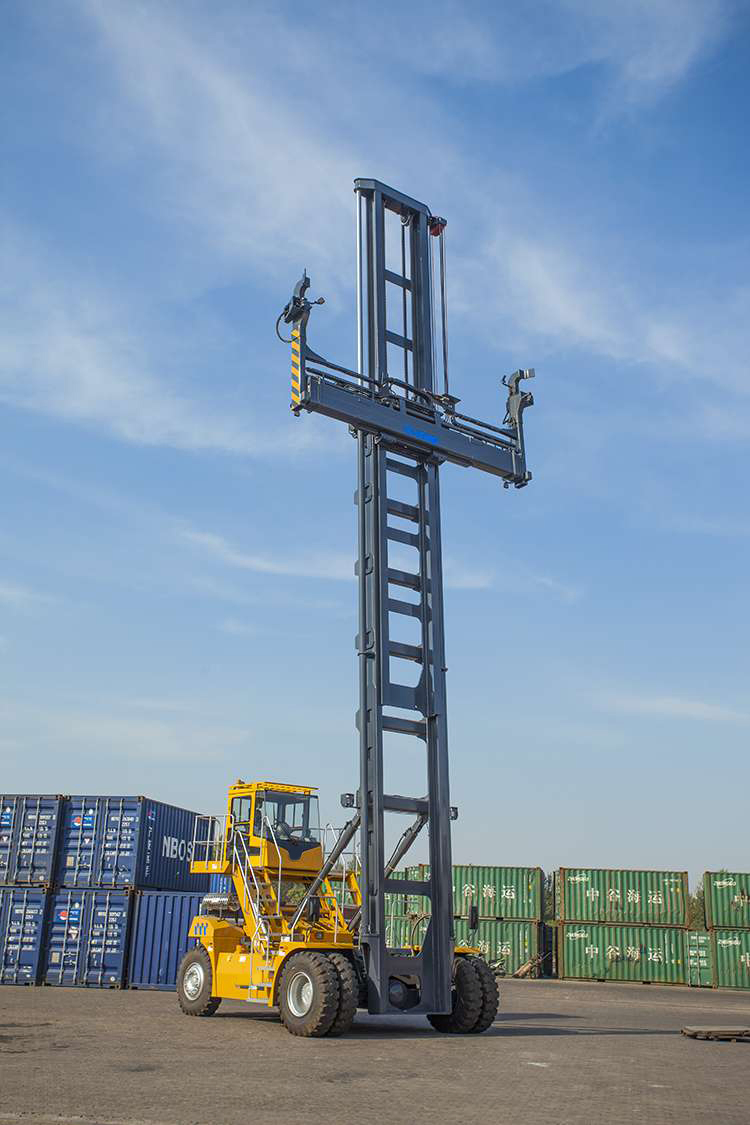

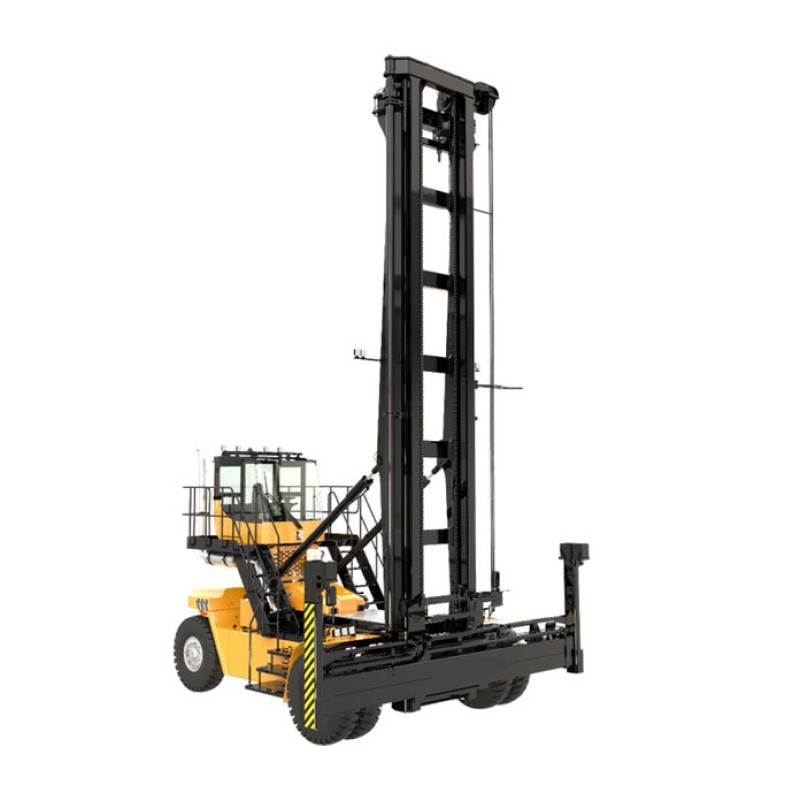

China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007
China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007
China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007
China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007
China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007
1 / 5
China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007
China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007
China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007
China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007
China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007

China Top Brand Port Logistics Machinery Diesel Engine Container Forklift Empty Container Handler with 6-8 Layers 10t Load for Exporting Xch907K Xch908K Xch1007

Customization: Available
After-sales Service: One-Year After-Sales Guarantee
Warranty: One-Year After-Sales Guarantee
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
XCH907K / XCH908K / XCH1007K
Type
Container Forklift
Power
Diesel Engine
Load Capacity
5T - 10T
Lift Height
>5000mm
Engine
Volv-O Tad851ve
Gearbox Model
Dana 13.7hr32334
Drive Axle
Kessler D81pl488
Stacking Layers
6 / 7 / 8 Layers
Condition
New
Origin
China
Gradability
30/25% (Empty/Full)
🏗️ Product Description
Port Logistics Machinery Diesel Engine Container Forklift
Empty Container Handler with 6-8 Layers 10t Load Capacity

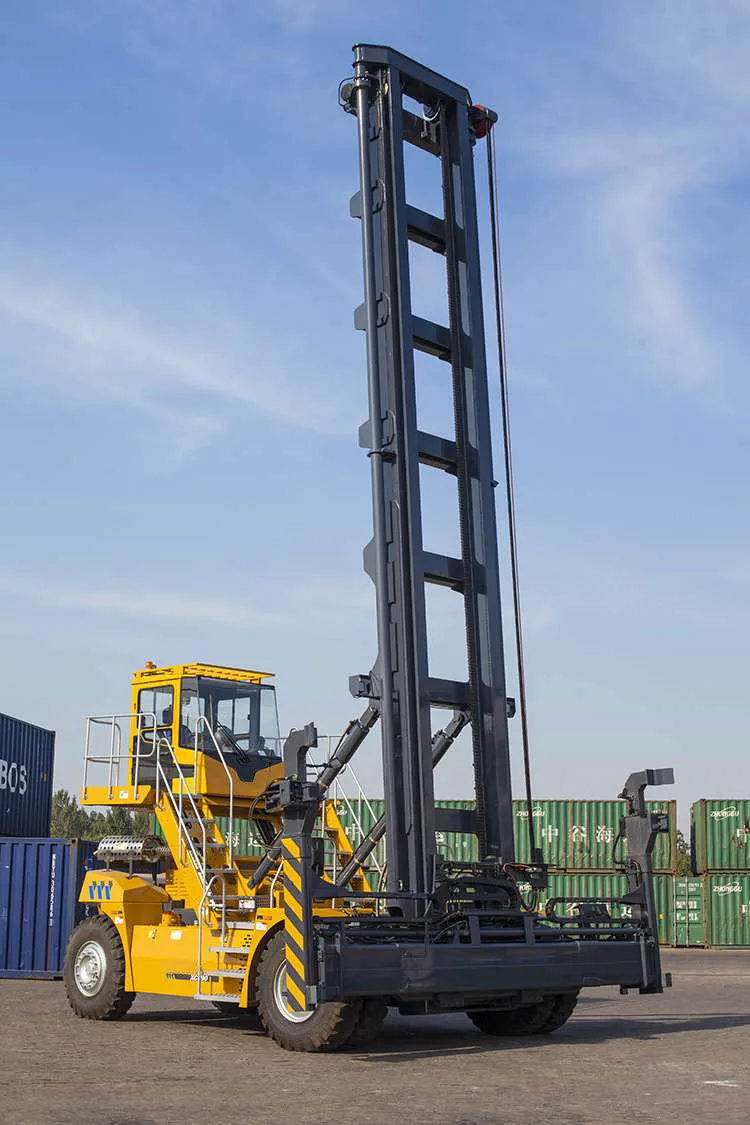

Container Forklift View 1

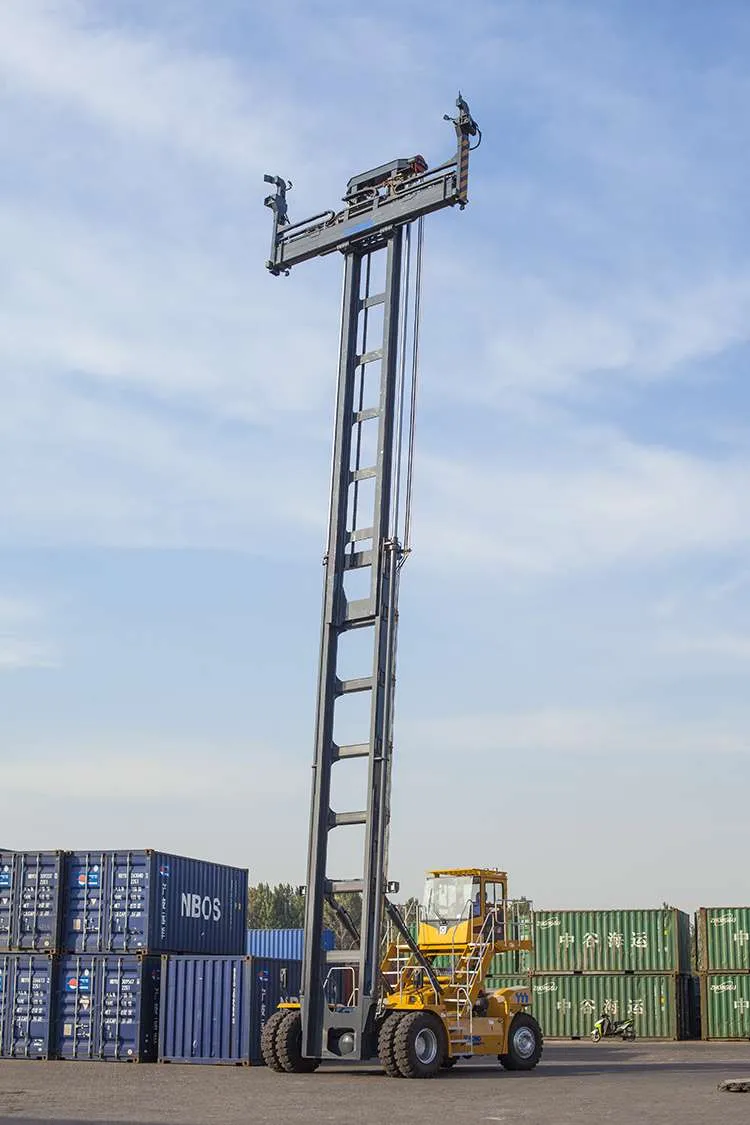

Container Forklift View 2
Container Forklift View 3

The K series empty container handler is a flagship product combining advanced design concepts, mature and reliable technologies, and top-level supporting systems. It features high lifting/lowering speeds, super stability, and high reliability.

🎮
1. Easy to Control
Reasonable layout of control elements, comfortable driver's cabin, wide field of vision, and smooth movements.
Control System
🛡️
2. Safe and Reliable
Equipped with an automatic fire extinguishing system and independent heat dissipation technology.
Safety Features
🧠
3. Intelligent and Efficient
Optimized layout with large fuel reserves for extended continuous operation times.

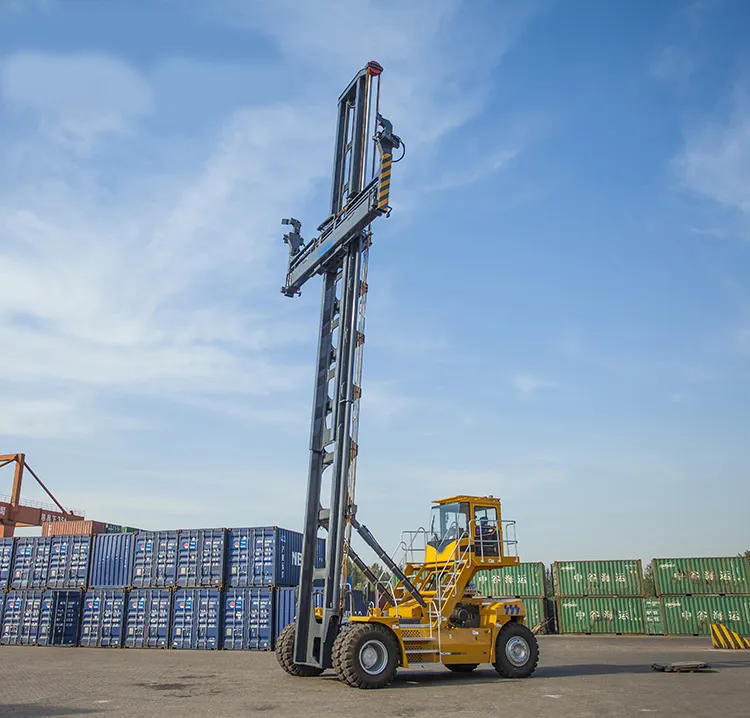

Efficiency
📊 Technical Parameters
Parameter Unit XCH907K XCH908K XCH1007K
Engine Model-VOLVO TAD851VEVOLVO TAD851VE-
Rated Power/SpeedkW/rpm185/2200185/2200-
Rated Loadt--10
Vehicle Weightt--45
Stacking Layers-6/7 Layers8 Layers7+1 Layers
Max Lifting Speed (Empty/Full)mm/s500/450500/450500/450
Max Driving Speed (Empty/Full)km/h24/2224/2224/22
Min Turning Radiusmm620062006200
📸 Detailed Gallery

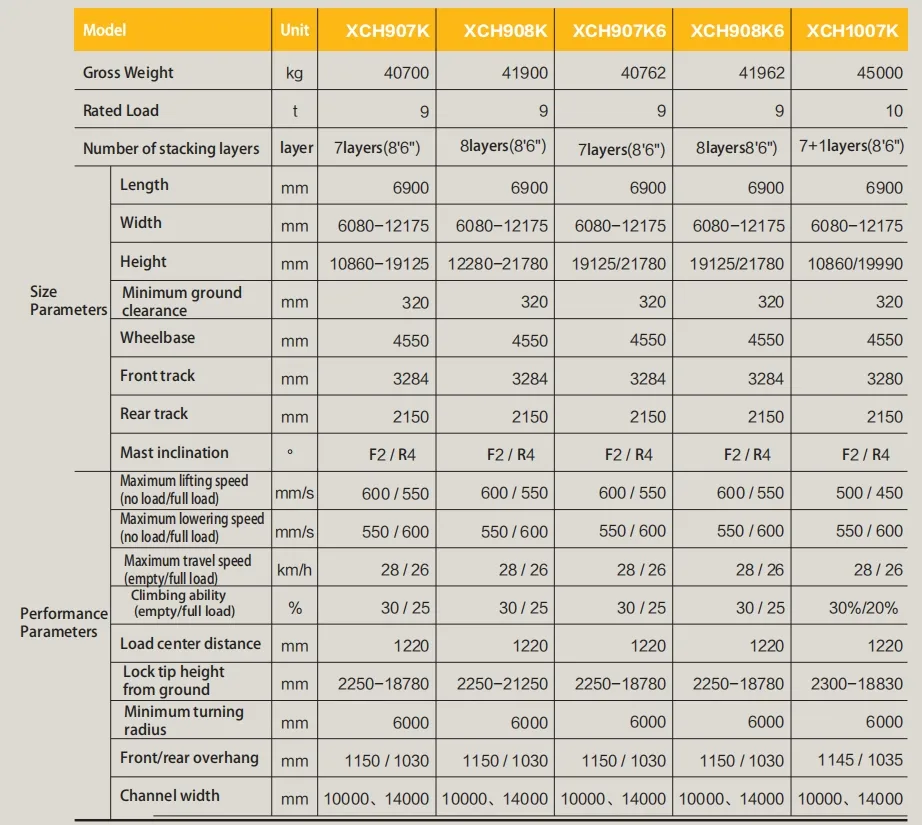

Detailed Image 1

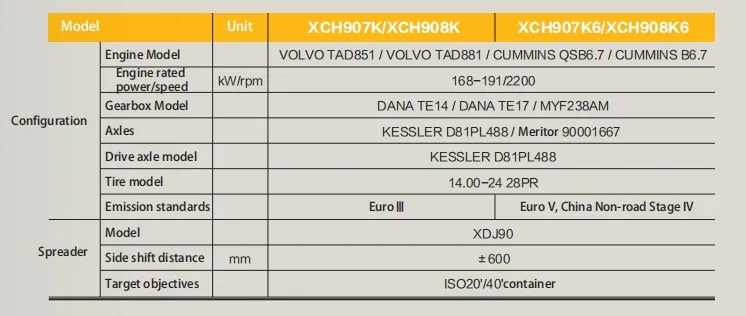

Detailed Image 2

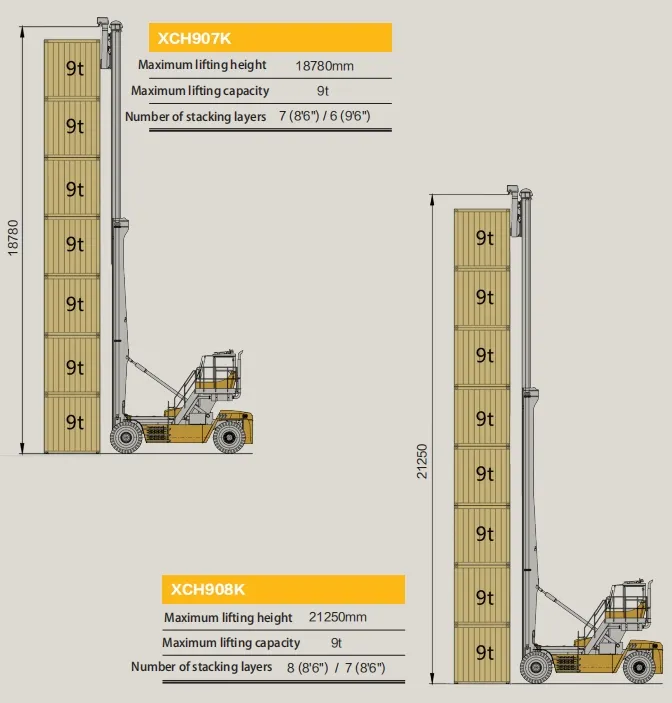

Detailed Image 3

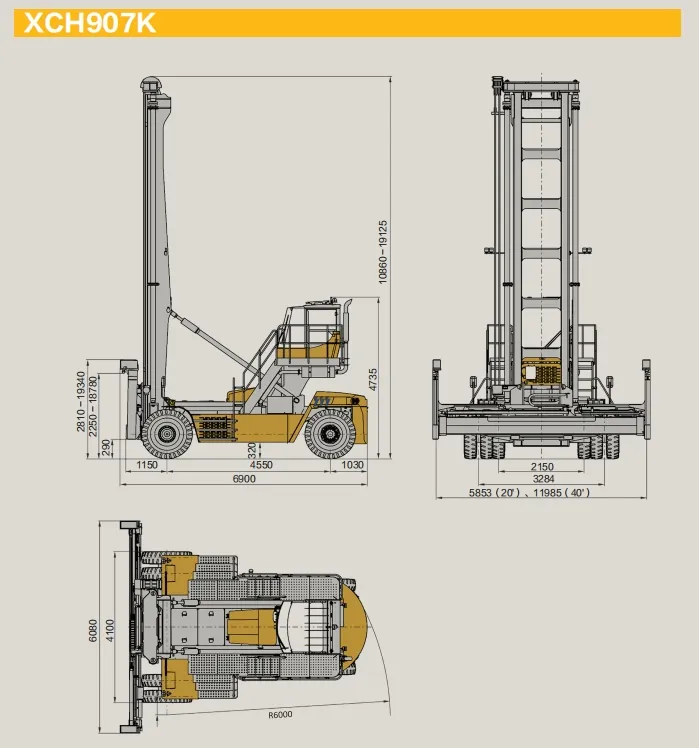

Detailed Image 4
Detailed Image 5
Detailed Image 6
⭐ Professional Advantages
Advantage 1
Advantage 2
Support 1
Support 2
❓ Frequently Asked Questions
Q1: What is the maximum load capacity of these container handlers?
The K series handlers are designed for load capacities ranging from 5 tons to 10 tons, specifically optimized for empty container logistics.
Q2: How many container layers can the XCH908K stack?
The XCH908K model is capable of stacking containers up to 8 layers high, maximizing storage efficiency in port yards.
Q3: Which engine and transmission systems are used?
These machines utilize high-end components including Volvo TAD851VE engines, Dana 13.7HR32334 gearboxes, and Kessler D81PL488 drive axles.
Q4: Are these forklifts compatible with standard ISO containers?
Yes, they are equipped with standard XDJ90 spreaders suitable for handling both ISO 20' and 40' containers.
Q5: What safety features are integrated into the machine?
The handlers include an automatic fire extinguishing system, independent heat dissipation technology, and an optimized cabin design for maximum visibility.
Q6: What are the optional configurations available?
Optional features include a tire pressure monitoring system, Bromma spreaders, and TE14 gearbox configurations for specific operational needs.
