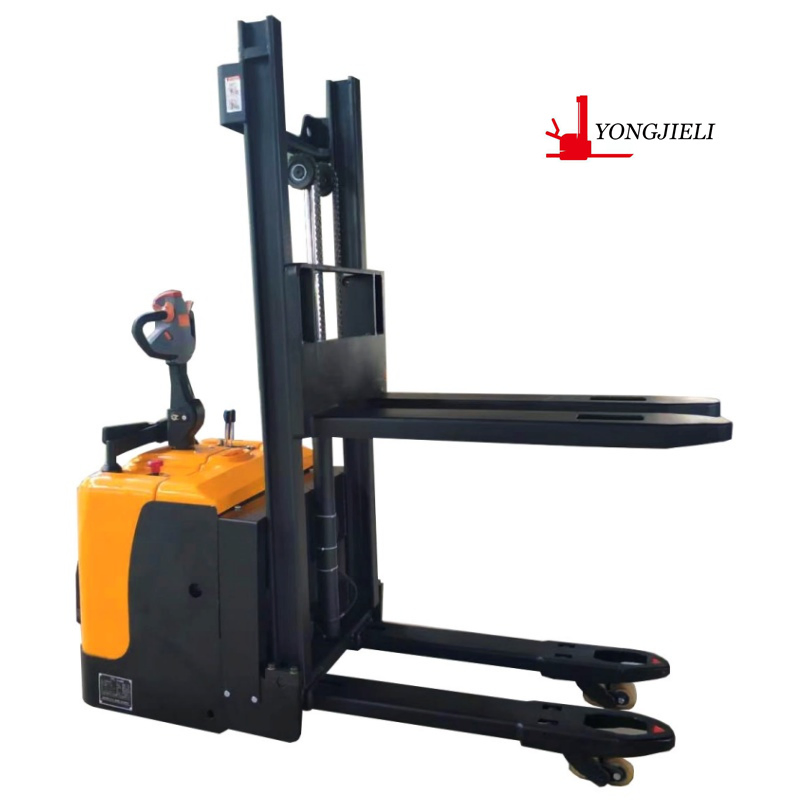

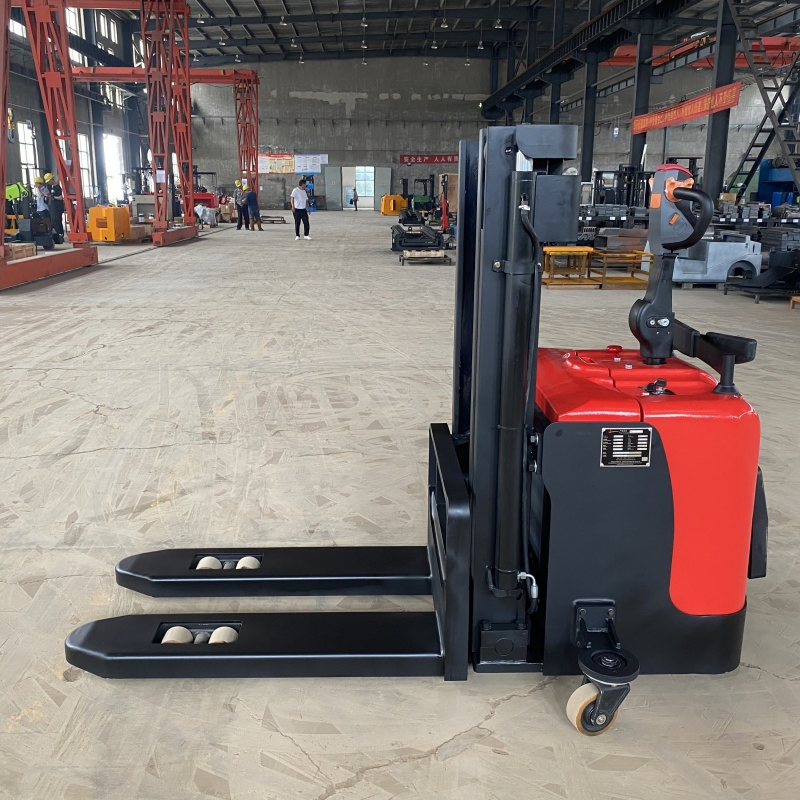

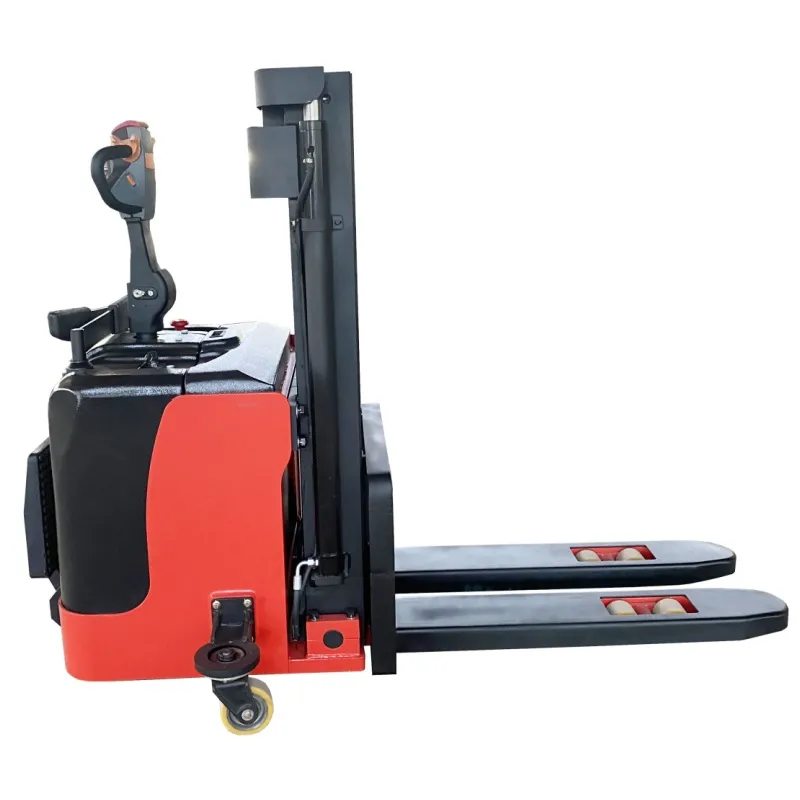

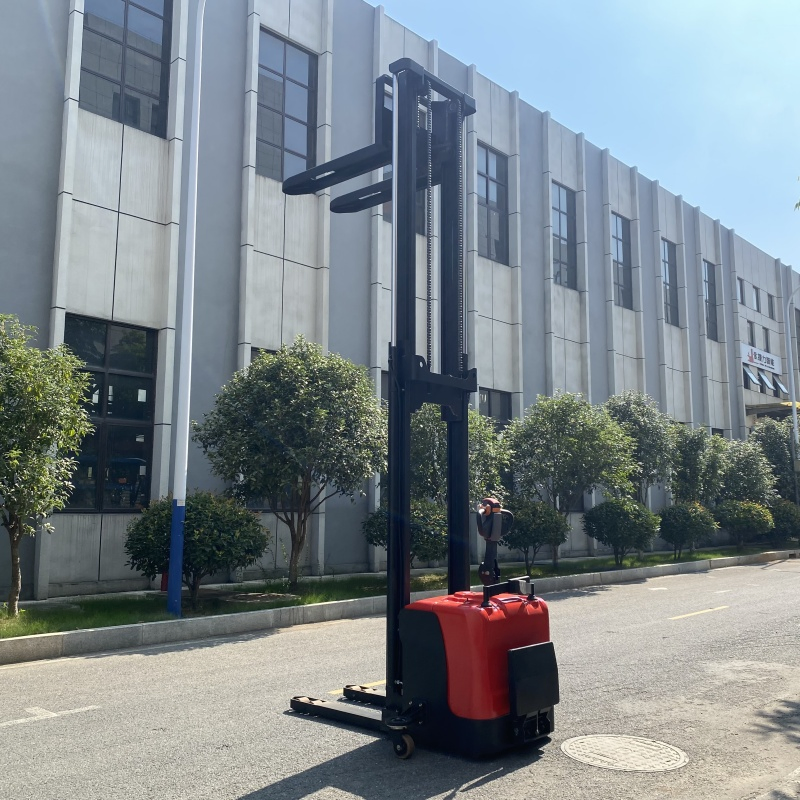

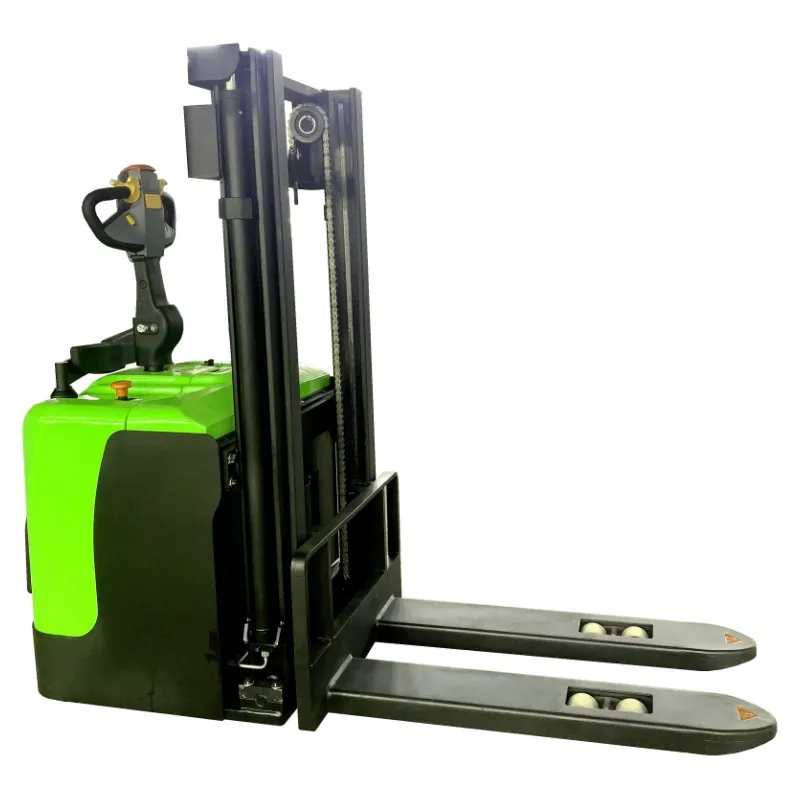

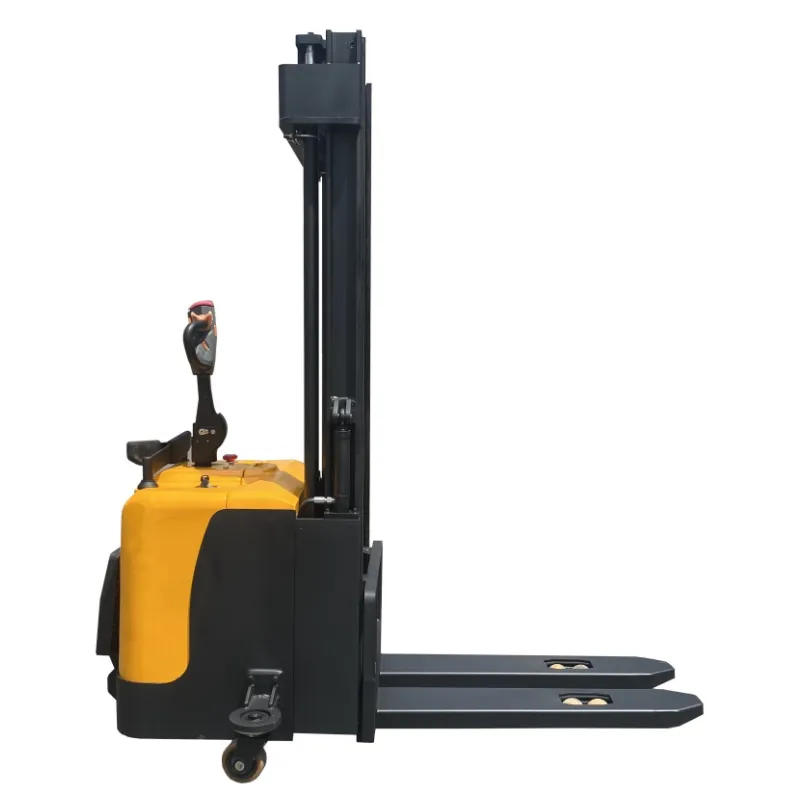

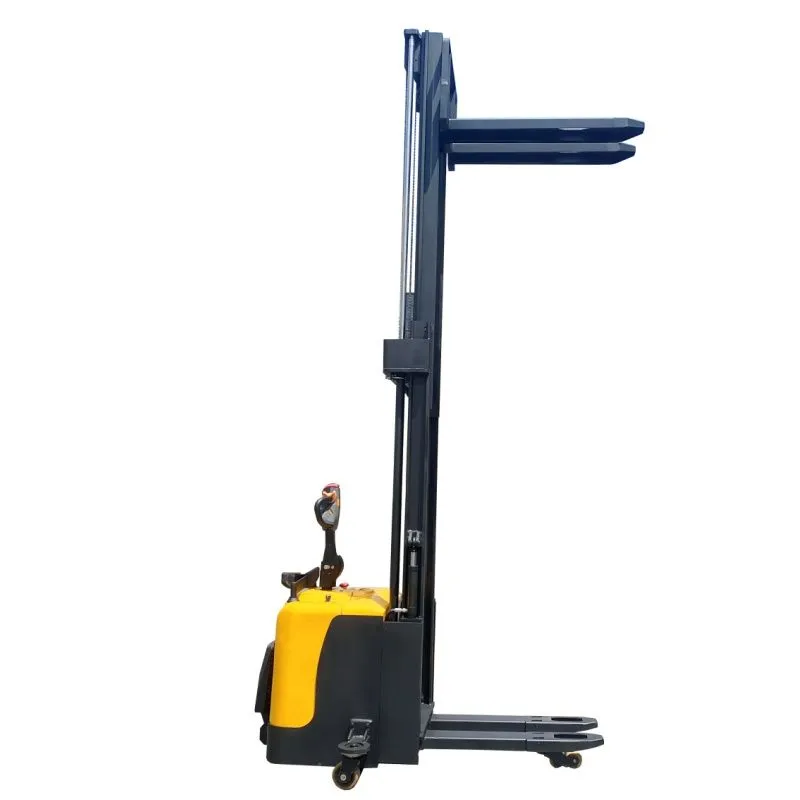

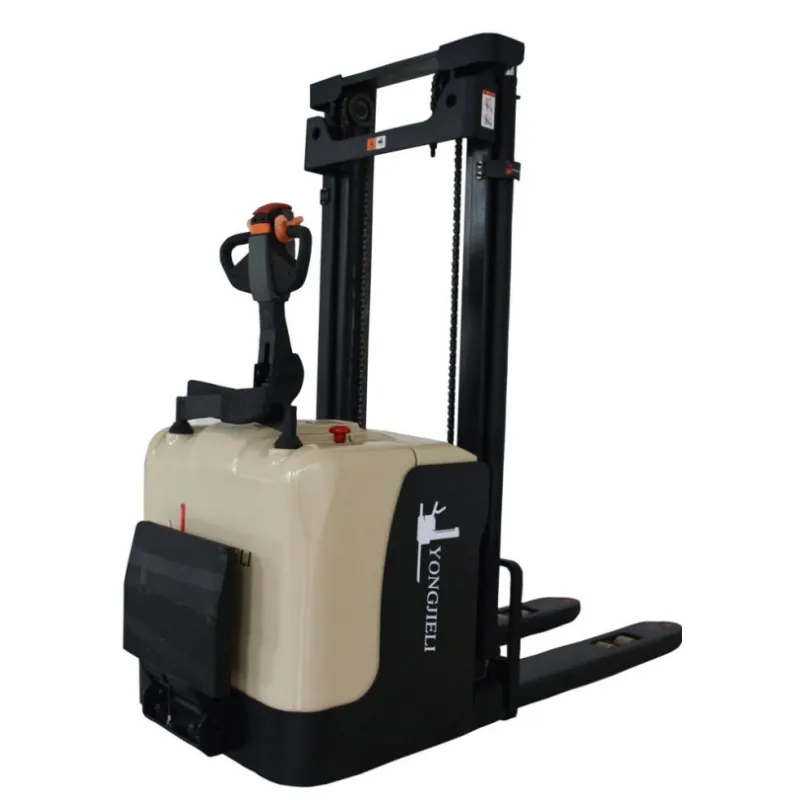

The electric stacker is a modern piece of equipment designed for warehouse and material handling, widely used in logistics, warehouses, factories, and supermarkets. It utilizes electric power and a hydraulic system to achieve stacking and transport operations. Compared to traditional manual stackers, it offers higher efficiency and operational convenience.
| Model | Unit | CDD20 | CDD25 |
|---|---|---|---|
| Drive mode | - | Electric | Electric |
| Driving style | - | Walking (pedal type) | Walking (pedal type) |
| Load rating (Q) | kg | 2000 | 2500 |
| Lifting height (h3) | mm | 4500 | 2500 |
| Load center distance (C) | mm | 600 | 600 |
| Vehicle weight | kg | 1200 | 1280 |
| Tire type | - | Polyurethane | Polyurethane |
| Drive Motor Power | kw | 1.6(AC) | 2.2(AC) |
| Battery voltage/capacity | V/Ah | 24/210 | 24/210 |

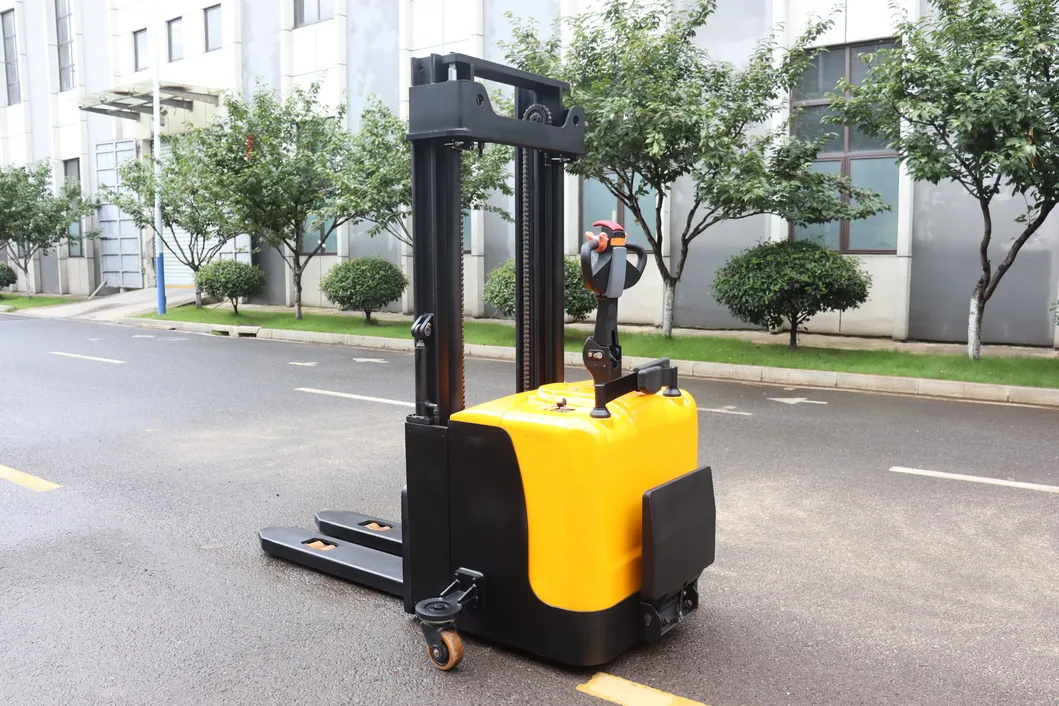

The electric stacker is driven by a powerful motor, providing robust power for long-duration and heavy-duty operations. Its high-performance battery ensures long-lasting operation and supports fast charging.

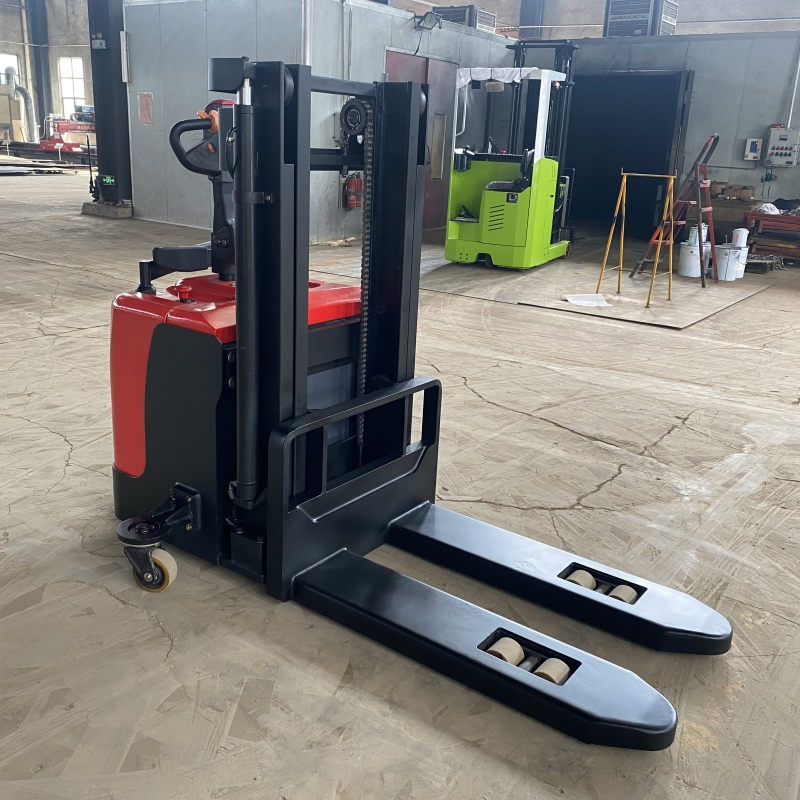

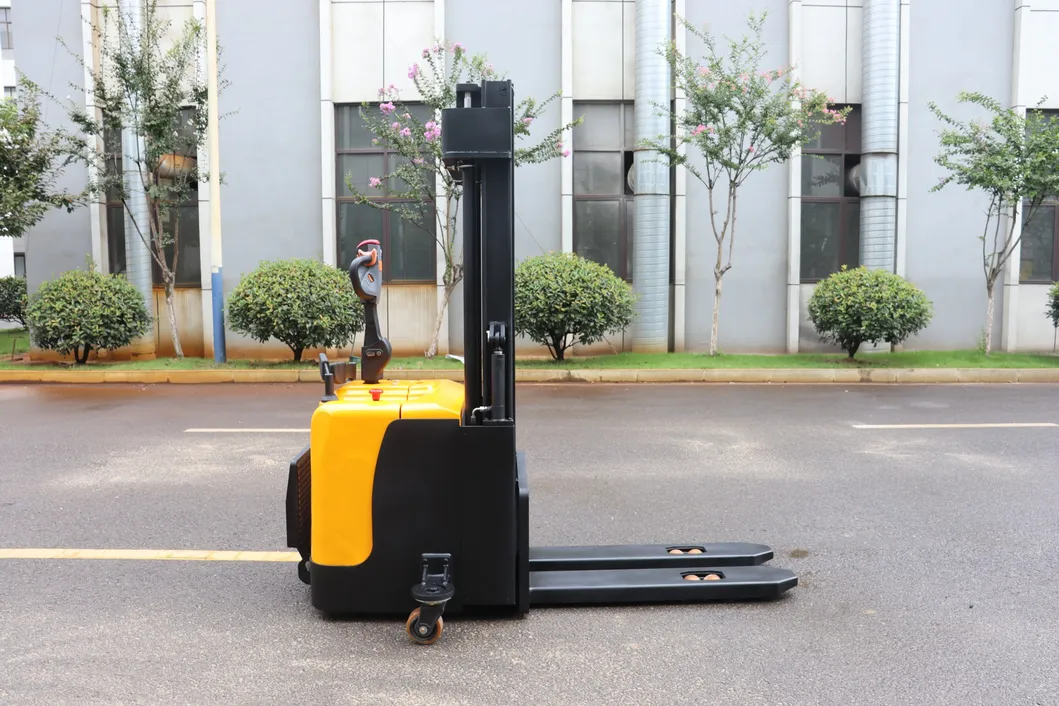

Equipped with an emergency brake button, overload protection system, and low-speed switch. The base features stabilizing support legs and premium polyurethane wheels to enhance stability.

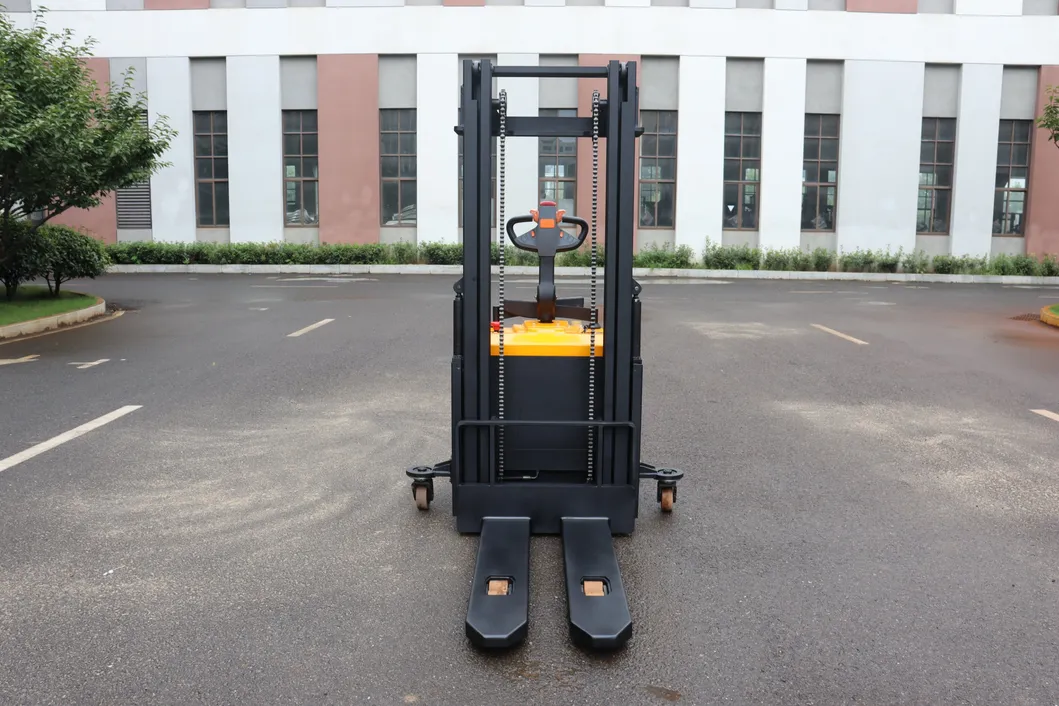

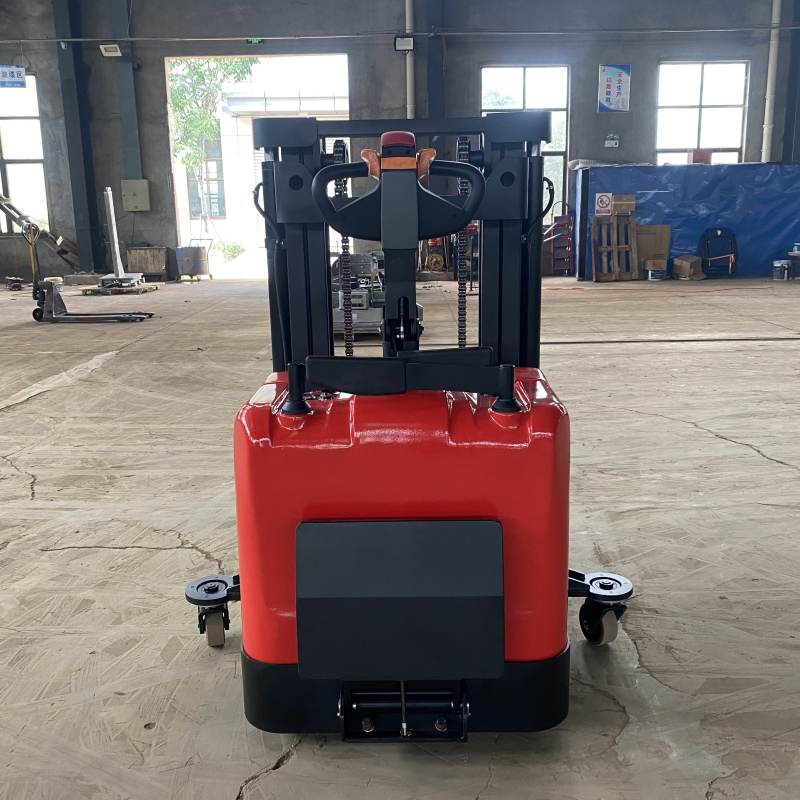

The ergonomic handle provides comfortable operation, reducing fatigue during extended use. Integrated buttons for driving, lifting, and horn functions simplify the operating process.
The product line encompasses nine major series with more than 100 varieties, including fully electric pallet stackers, trucks, reach trucks, tow tractors, order pickers, and narrow aisle forklifts. Solutions range from 500KG to 100,000KG.
Recognized as a High-Tech Enterprise, the equipment meets ISO and CE standards. Products are exported to more than 40 countries, including North America, South America, Europe, and Southeast Asia.
