Battery Electric Level Order Picker Forklift 1000 Kg Warehouse
Battery Electric Level Order Picker Forklift 1000 Kg Warehouse
Battery Electric Level Order Picker Forklift 1000 Kg Warehouse
Battery Electric Level Order Picker Forklift 1000 Kg Warehouse
Battery Electric Level Order Picker Forklift 1000 Kg Warehouse
1 / 5
Battery Electric Level Order Picker Forklift 1000 Kg Warehouse
Battery Electric Level Order Picker Forklift 1000 Kg Warehouse
Battery Electric Level Order Picker Forklift 1000 Kg Warehouse
Battery Electric Level Order Picker Forklift 1000 Kg Warehouse
Battery Electric Level Order Picker Forklift 1000 Kg Warehouse

Battery Electric Level Order Picker Forklift 1000 Kg Warehouse

Customization: Available
Warranty: 1 Year
Cab Location: Not Adjustable
Send Inquiry

Product Description

Basic Information
Model NO.
CDD10X
Type
Electric Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load center
500mm
Lift height
3000~5000mm
Condition
New
Lifting Height
3 M to 9.5 M Option
HS Code
84271090
Product Advantages
✓
Advanced electric steering technology (EPS) with automatic reset, height display, and automatic deceleration at high lifting levels.
✓
Finger tip control via joystick; stepless speed control for driving, lifting, and lowering.
✓
Buffer oil cylinder automatically decelerates when 500mm off the ground to prevent impact and noise.
✓
AC motor eliminates carbon brush replacement, providing excellent ramp performance and regenerative braking.
✓
Sideway battery design for convenient exchanging and maintenance.
✓
High-performance multi-function LED instrument showing battery, faults, temperature, and brake status.
Technical Specifications
Description Unit CDD10X-45S CDD15X-45S
Operation Mode-Picking TypePicking Type
Load CapacityQ(kg)10001500
Load CenterC(mm)500500
WheelbaseY(mm)14251845
Self-weight (With Battery)kg26003000
Wheel Type-PU Solid TirePU Solid Tire
Lifting Heighth3(mm)45004500
Vehicle Body Widthb1(mm)11301300
Min. Turning RadiusWa(mm)16572140
Driving Speed (Unladen/Laden)km/h5/35/3
Drive Motorkw2.56.5
Lift Motorkw36.3

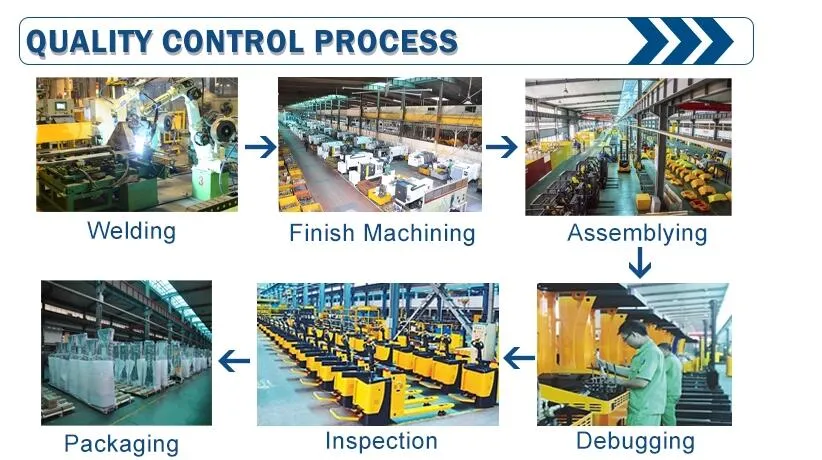

Electric Level Order Picker Forklift 1

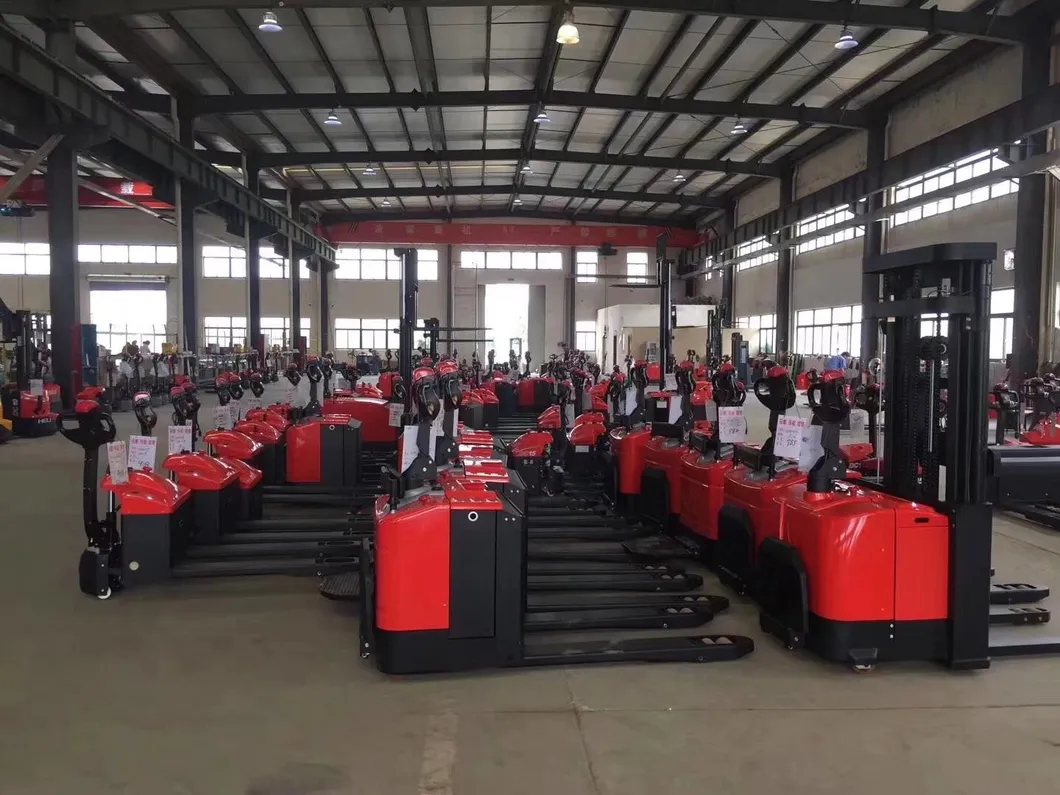

Electric Level Order Picker Forklift 2
Electric Level Order Picker Forklift 3
Frequently Asked Questions
How long is the warranty for the product?
We provide 24 months or 2500 hours for the whole machine from the on-board time.
What is the typical delivery time?
Usually, production time is 15-20 days after receiving the advanced payment. Stock items are available for immediate delivery.
How long is the continuous working time and charging time?
Continuous working time is around 4-6 hours depending on battery volume. A full charge takes approximately 5 hours using our intelligent charging system.
What is the expected lifespan of the battery?
Our batteries are built to DIN standards (German technology) and can operate for up to 6 years without issues.
Do you provide customized OEM or ODM products?
Yes, we can provide customized products per your request; both OEM and ODM options are acceptable for non-standard requirements.
Can we request a specific color for the products?
Yes, we offer various colors including orange, red, white, green, and blue. You simply need to provide the RAL code.
