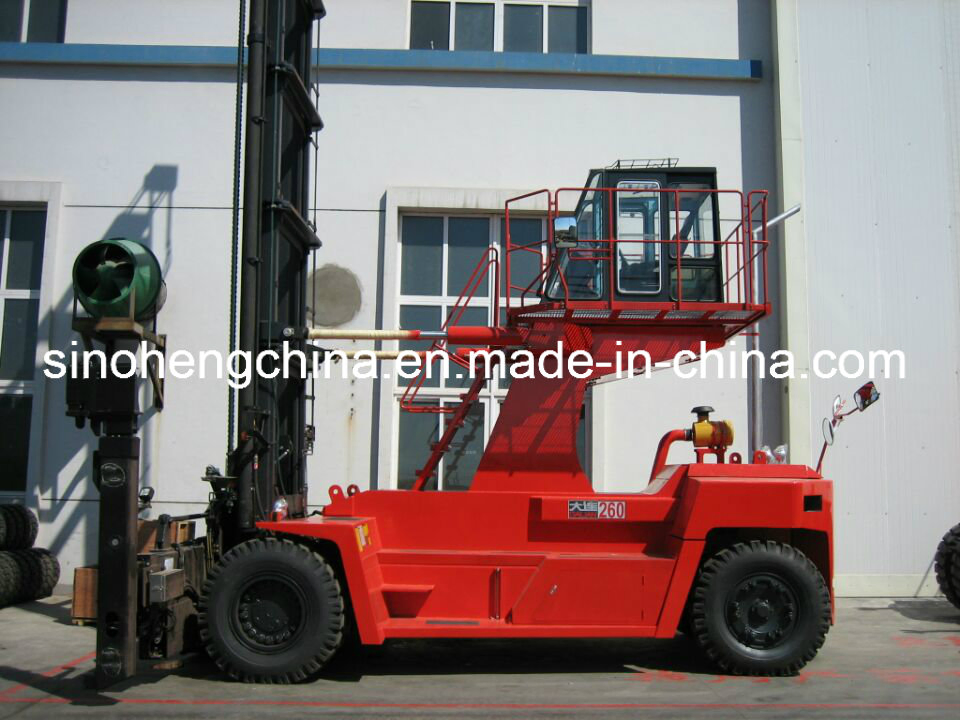

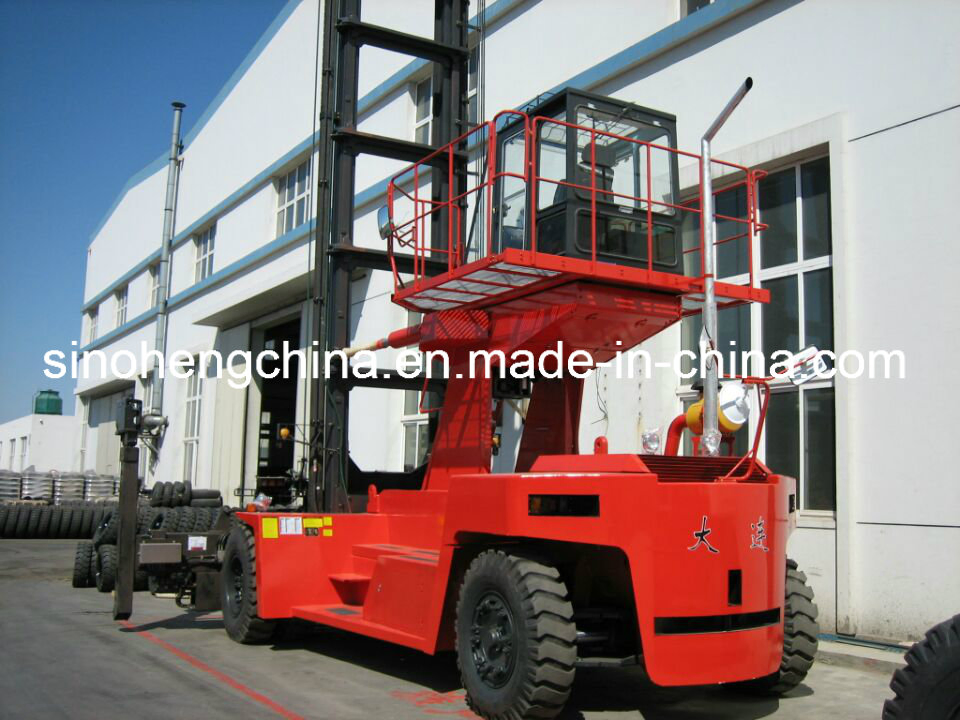

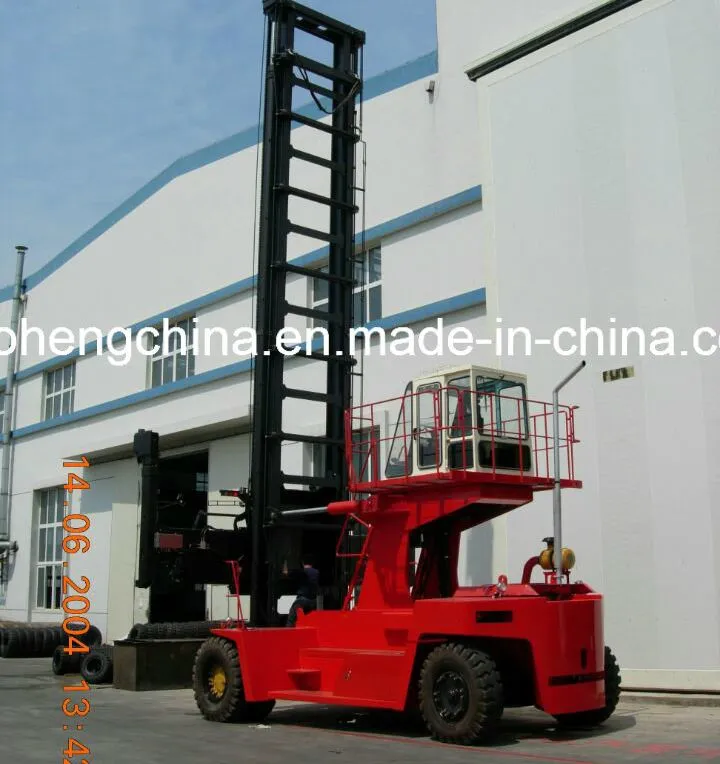

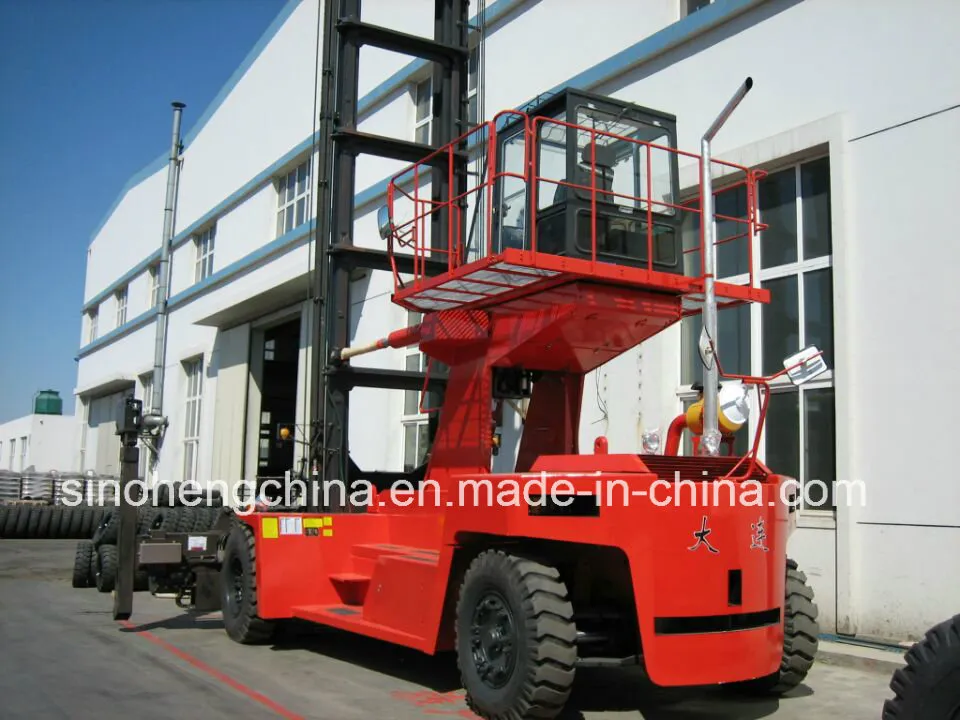

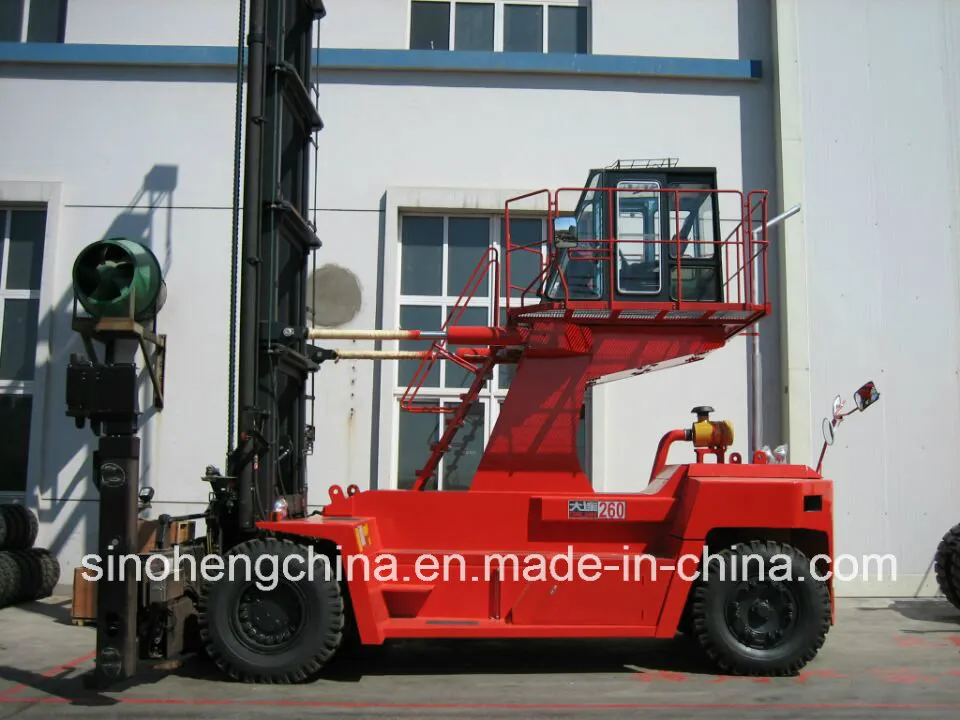

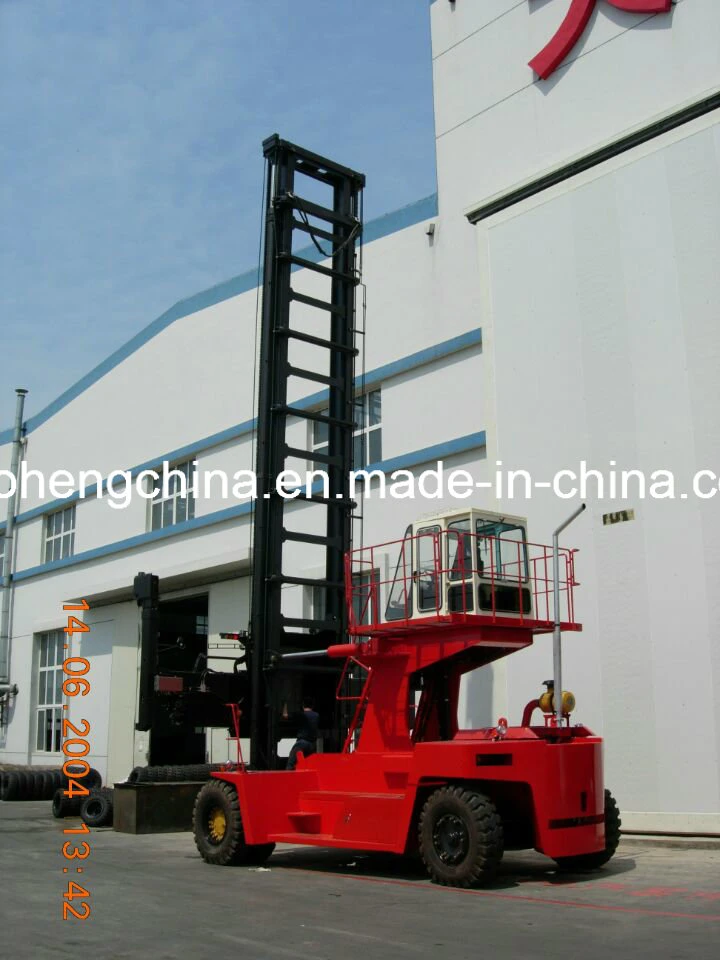

7 Ton Port Container Forklift Empty Container Handler 5 Layers FD180AK5
This professional-grade stacker machine is designed for piling containers at ports, commonly referred to as a container forklift truck, container handler, or container reach stacker. Built with exceptional quality and performance, this machine has been successfully exported to numerous countries worldwide.
Utilizing diesel fuel, the FD180AK5 offers outstanding working performance and high efficiency, earning excellent feedback from global customers. This empty container forklift can stack up to 5 layers, reaching a maximum height of 14.8m. It features an automatic transmission and hydraulic service brakes for superior handling.
| Model / Item | Unit | Data |
|---|---|---|
| Max. height for stacking | mm | 14800 |
| Max extending (overall height) | mm | 15870 |
| Mast retracted | mm | 9370 |
| Overall length (with spreader) | mm | 6488 |
| Overall width (without spreader) | mm | 3504 |
| Spreader width (retracted/extended) | mm | 6038/12165 |
| Wheel base | mm | 4200 |
| Min turning radius | mm | 6000 |
| Load capacity | kg | 7000 |
| Load center | mm | 1220 |
| Power type | - | Diesel-6cylinder water cool-direct injection |
| Lifting speed (with load/without load) | mm/s | 400/450 |
| Max driving speeds (with load/without load) | Km/h | 24/26 |
| Max gradeability | % | 17.5 |
| Total weight | kg | 30000 |
