Customization:	Available
After-sales Service:	1 Years
Warranty:	1 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

CTD20

Transmission

Automatic

Power Type

Diesel

Load Capacity

20ton

Emission Standard

Euro 3

Drive Wheel

4×2

Seats

≤5

Horsepower

150-250hp

Condition

New

Type

Diesel/Electric/LPG&Gas Tow Tractor

Color Options

White, Yellow, Red

Engine Brands

Isuzu, Yanmar, Nissan

Tires

Pneumatic/Solid

Core Features

📋

Practical work table effectively raises auxiliary work efficiency.

🛡️

Maintenance-free motor with moisture-proof and dustproof protection.

🕹️

Electron steering provides precise control and maneuvering.

🛑

Self-braking system ensures safer operations during high-load tasks.

🛋️

Ergonomic cabin design allows the driver to work relaxed and comfortably.

⚡

Seater electric tow options for convenience and smooth operation.

Technical Parameters

Category	Model		CTD15	CTD20	CTD25	CTD30	CTD35	CTD50	CTD60
Performance	Max. Drawbar Pull (KN)		15	20	25	30	35	50	60
	Max. Towed Weight (kg)		15000	20000	25000	30000	35000	50000	60000
	Max. Speed (Forward km/h)		22	25	25	25	27	26	26
Dimensions	Overall Length (mm)		3000	3015	3015	3015	3180	4160	4160
	Overall Width (mm)		1440	1440	1440	1440	1440	2000	2000
	Wheel Base (mm)		1600	1620	1620	1620	1605	2300	2300
	Min. Turning Radius (mm)		2980	3000	3000	3000	3000	4500	4500
Engine	Model		Mitsubishi S4S / China Engine				Mitsubishi S4S	Mitsubishi S4S-DT	YuChai/Cummins
Engine	Rated Output (KW/RPM)		47/2500	47/2500	47/2500	47/2500	47/2500	62/2500	118/2200

Product Showcase

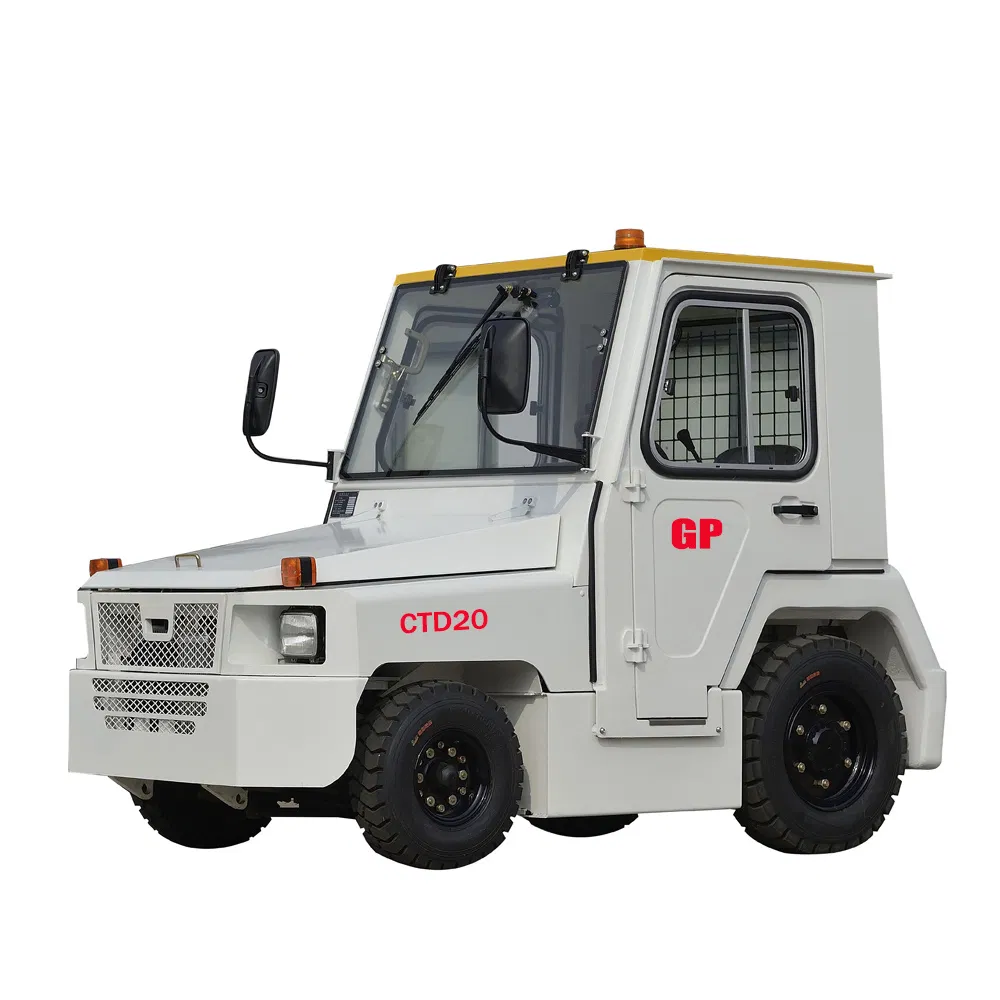

Tow Tractor Side View

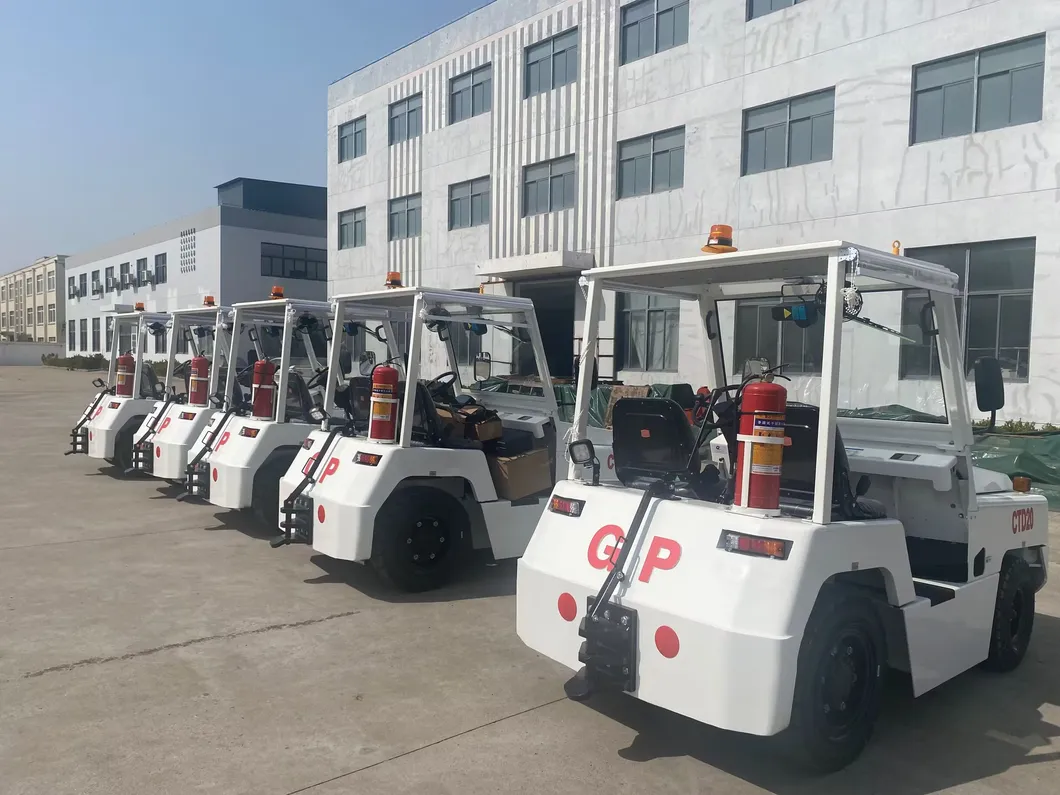

Tow Tractor Front View

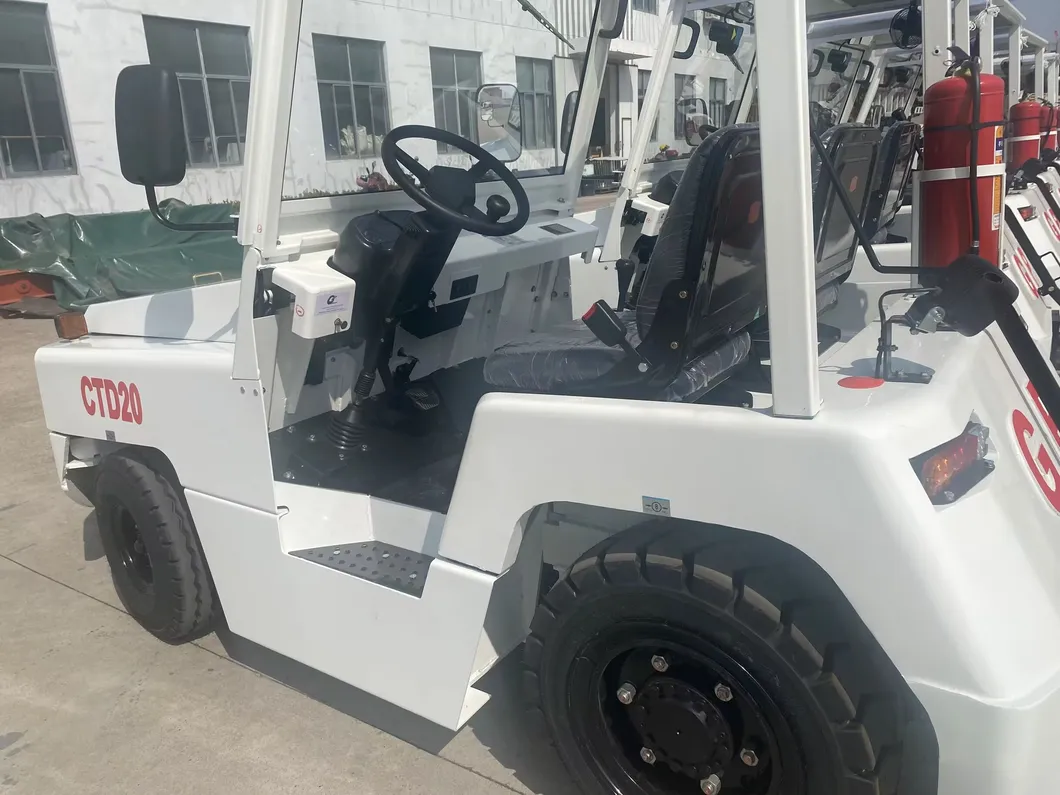

Tow Tractor Operations

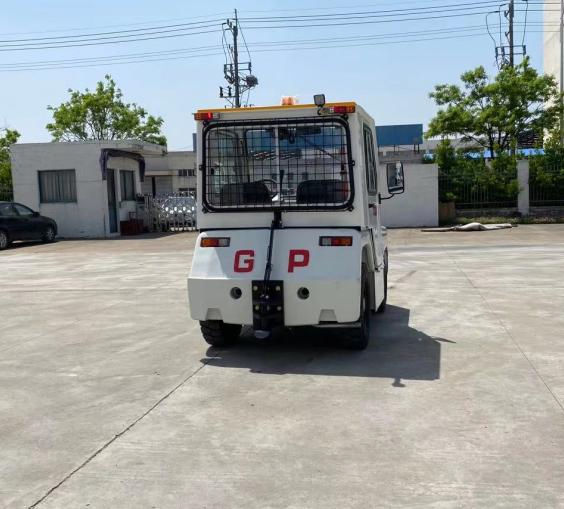

Tow Tractor Rear

Tow Tractor Close Up

Tow Tractor Detail

Technical Drawing 1

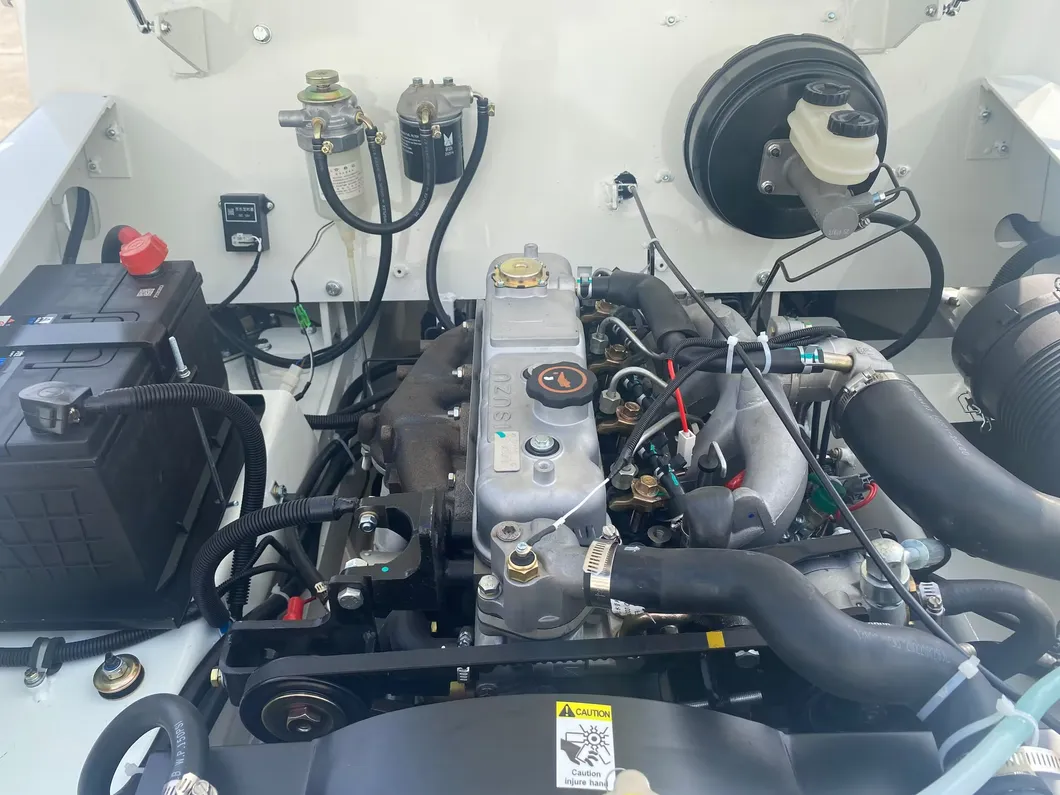

Engine View

Tire Detail

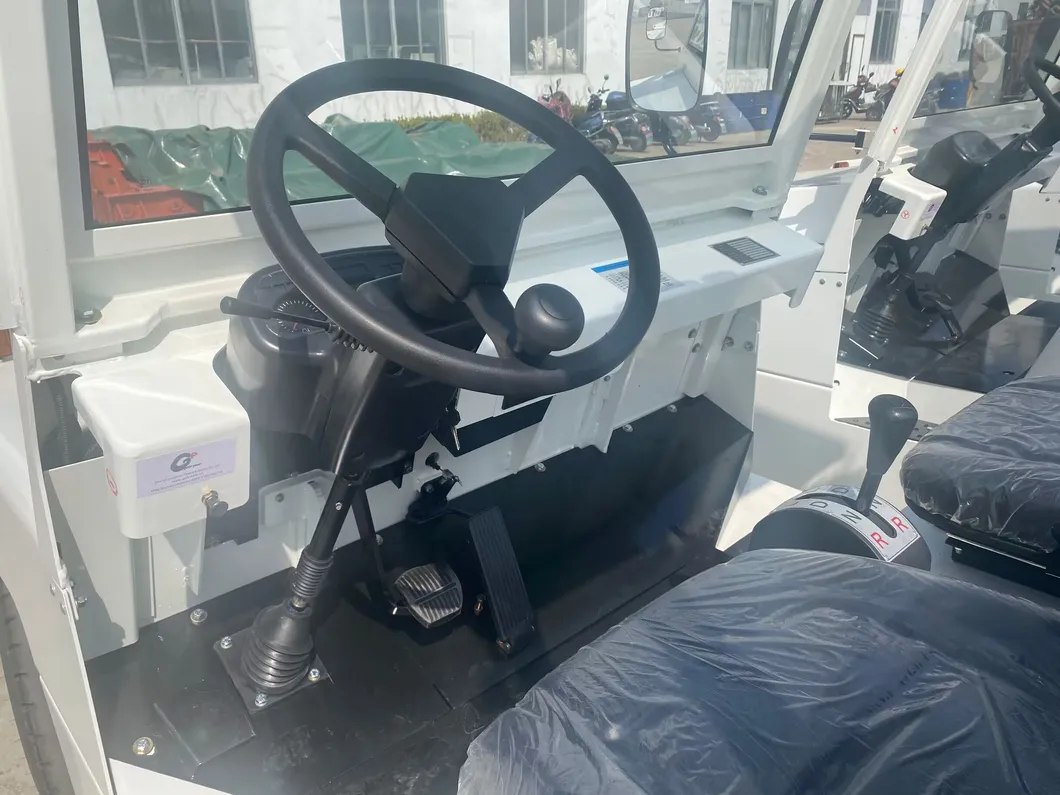

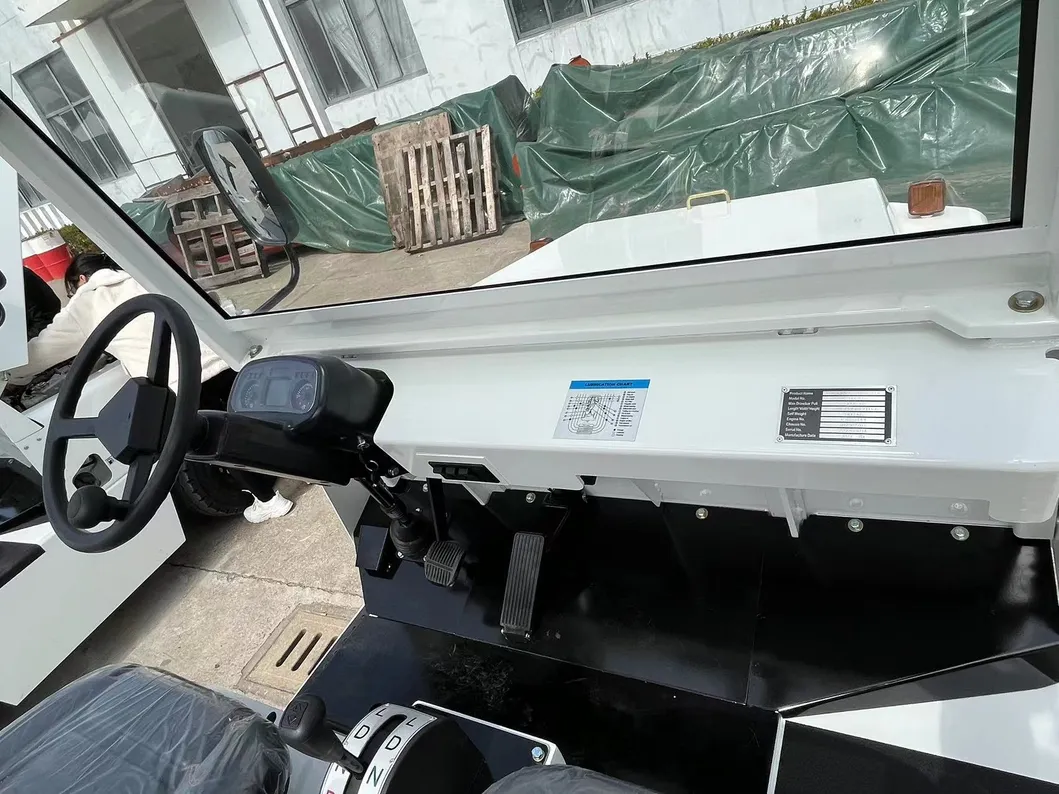

Cabin Layout

Technical Drawing 2

Transmission System

Frequently Asked Questions

What is the maximum towing capacity of the CTD series?

The CTD series offers a wide range of towing capacities, from 15 tons (CTD15) up to 60 tons (CTD60) to meet different industrial and airport requirements.

What power options are available for these tow tractors?

We provide versatile power configurations including Diesel, Electric, and LPG/Gas to suit various operational environments and emission standards.

What type of engine is used in the CTD20 model?

The standard model typically utilizes a high-performance MITSUBISHI S4S or equivalent Chinese engine, known for reliability and moisture-proof protection.

What is the standard lead time for an order?

The standard lead time is approximately 30 days for single units. For larger bulk orders, the lead time is negotiable.

Are the tires suitable for different terrains?

Yes, the tractors can be equipped with either pneumatic or solid tires, allowing for optimal performance on both smooth concrete and more rugged surfaces.

Does the tractor feature a specialized steering system?

Yes, it is equipped with integral power steering (electron steering) which provides the driver with precise control and reduced fatigue during operation.
