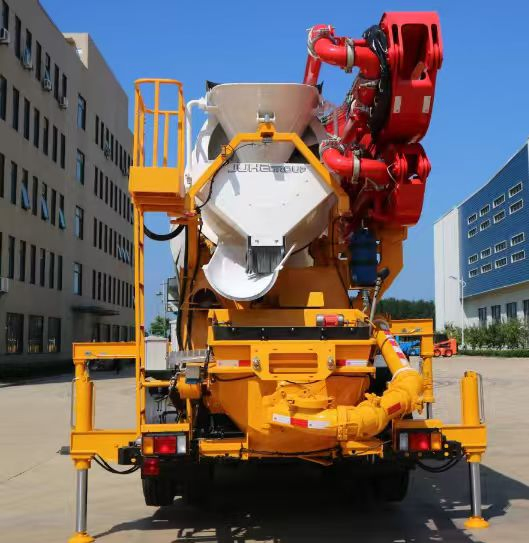

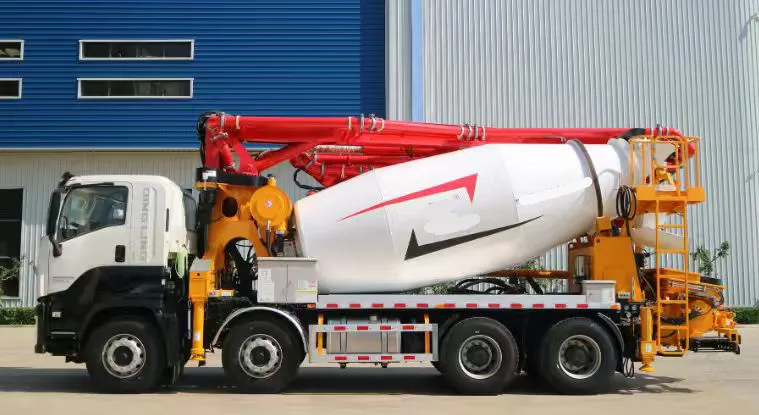

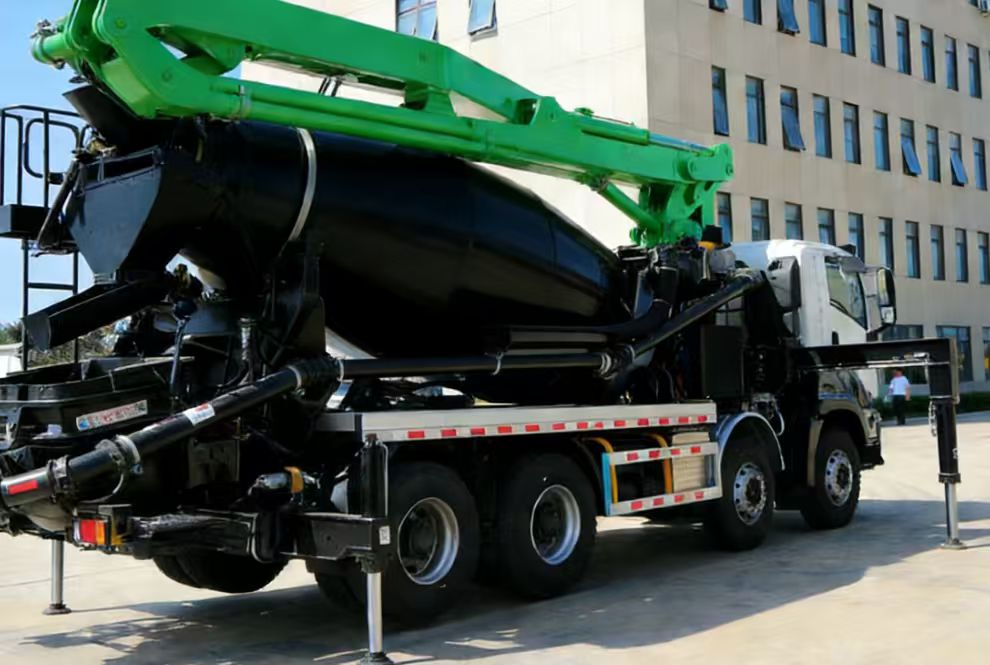

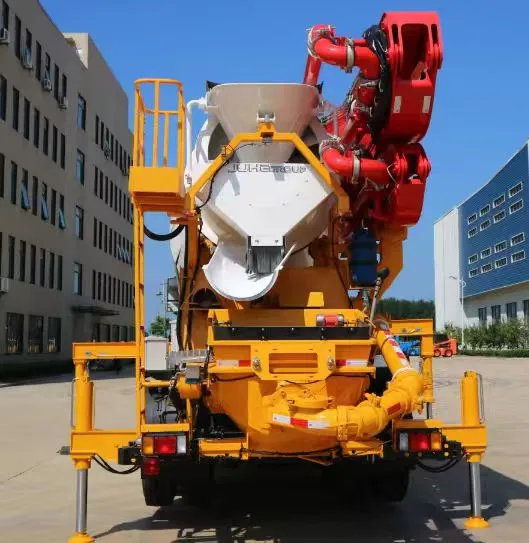

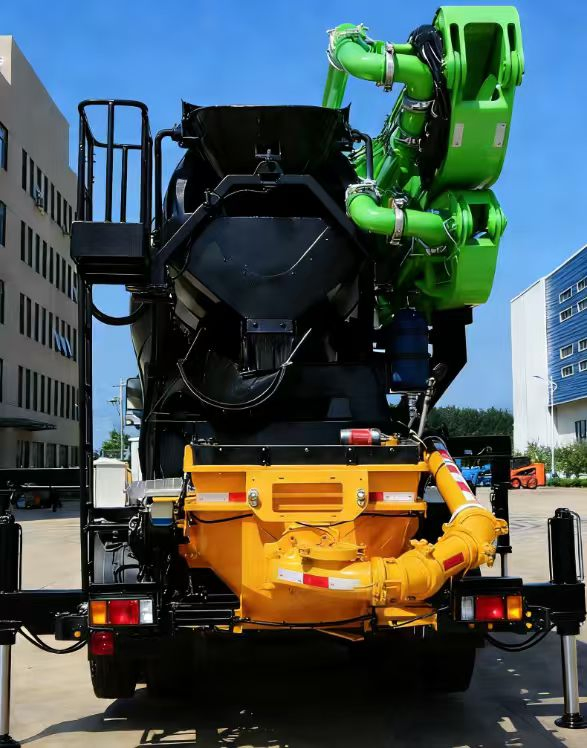

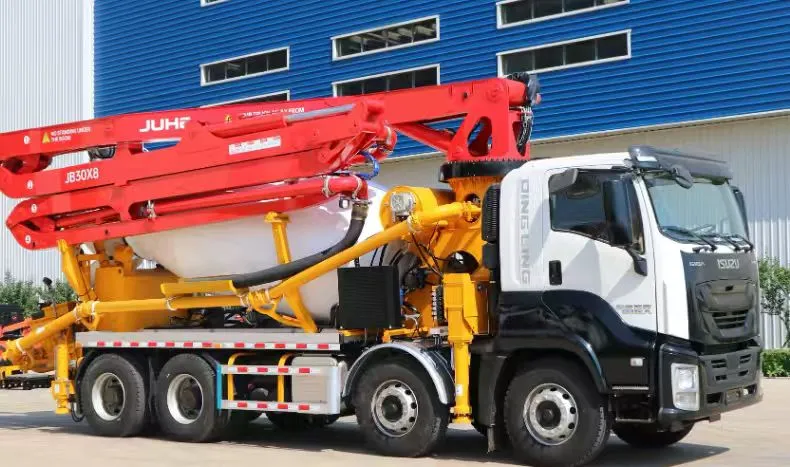

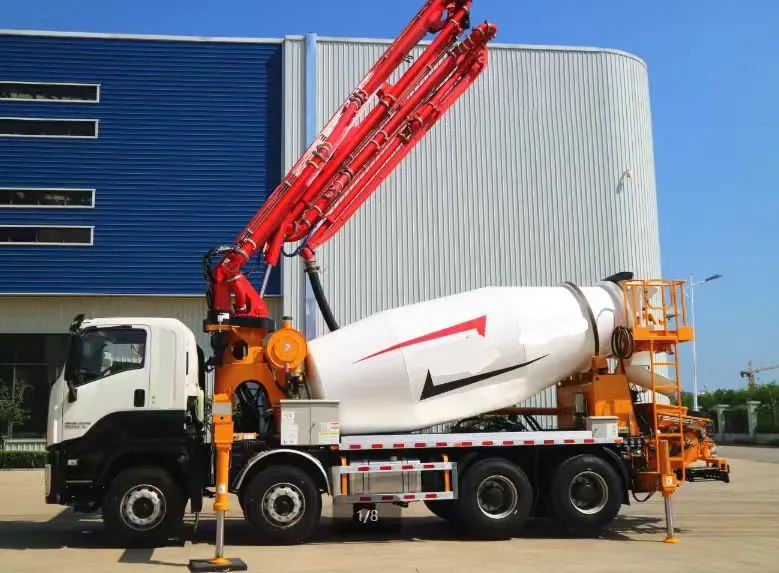

● Efficient Boom System: Equipped with a suspension rod featuring a fully Z-shaped opening system. This design makes the machine highly user-friendly without compromising convenience or increasing operational weight.
● Powerful Pumping: A pump cylinder with a 200 mm diameter achieves pumping pressures up to 75 bar, handling various concrete types at a flow rate of 60 cubic meters per hour. Features a Rexroth hydraulic pump driven by a switchable PTO transmission.

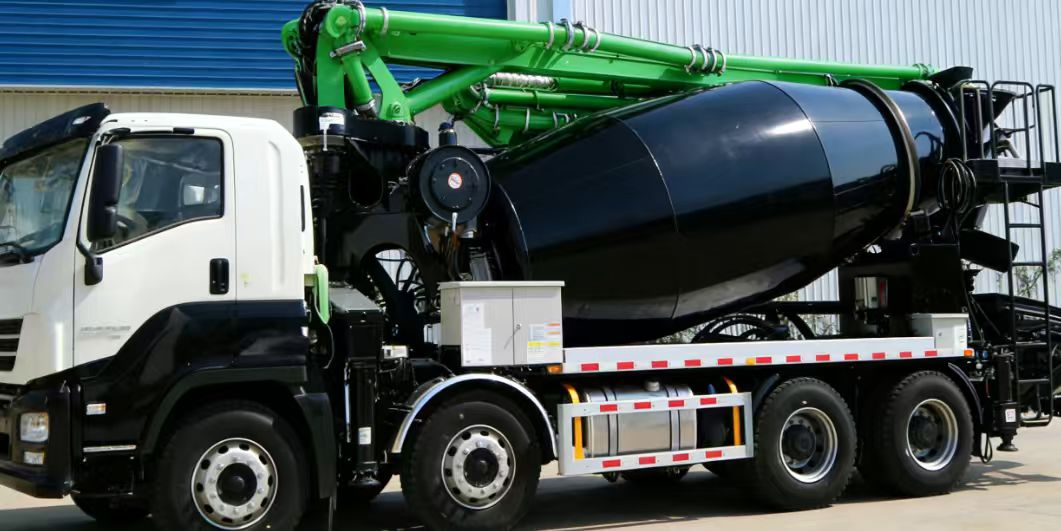

● Large Mixing Capacity: The mixing drum has a geometric volume of 8 cubic meters, powered by the engine PTO. It can be remotely operated automatically via the cab, control box, or pump device.
● Advanced Control: Boom movements are managed via wireless remote control, with all information centralized in a CAN controller that communicates directly with the truck to optimize performance.
| BOOM SYSTEM | |
|---|---|
| Max Vertical Height | 29.6 M |
| Horizontal Radius | 25.4 M |
| Depth of Distribution | 17.7 M |
| Opening Height | 6.7 M |
| Folding Type | M Type |
| Rotating Angle of Turret | 470° |
| PUMPING & MIXING SYSTEM | |
|---|---|
| Concrete Valve Form | S Valve |
| Max Outlet Pressure | 8 Mpa |
| Delivery Cylinder Stroke | 200/1000 mm |
| Hopper Capacity | 0.8 M³ |
| Mixing Drum Rated Capacity | 8.0 M³ |
| Drum Rotation Speed | 0-14 r/min |
| Water Tank Capacity | 500 L |
| DIMENSIONS & WEIGHT | |
|---|---|
| Total Length | 10450 MM |
| Total Width | 2500 MM |
| Total Height | 3980 MM |
| Total Weight | 25410 KG |
