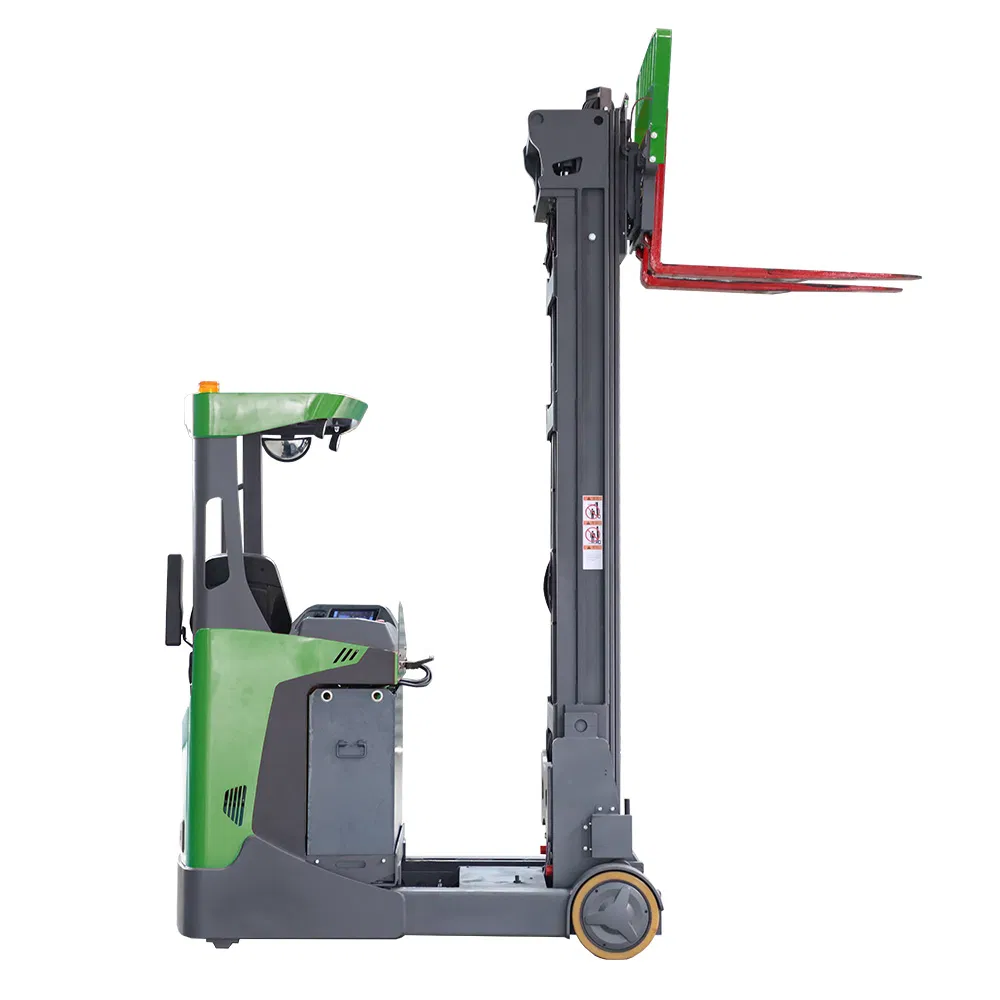

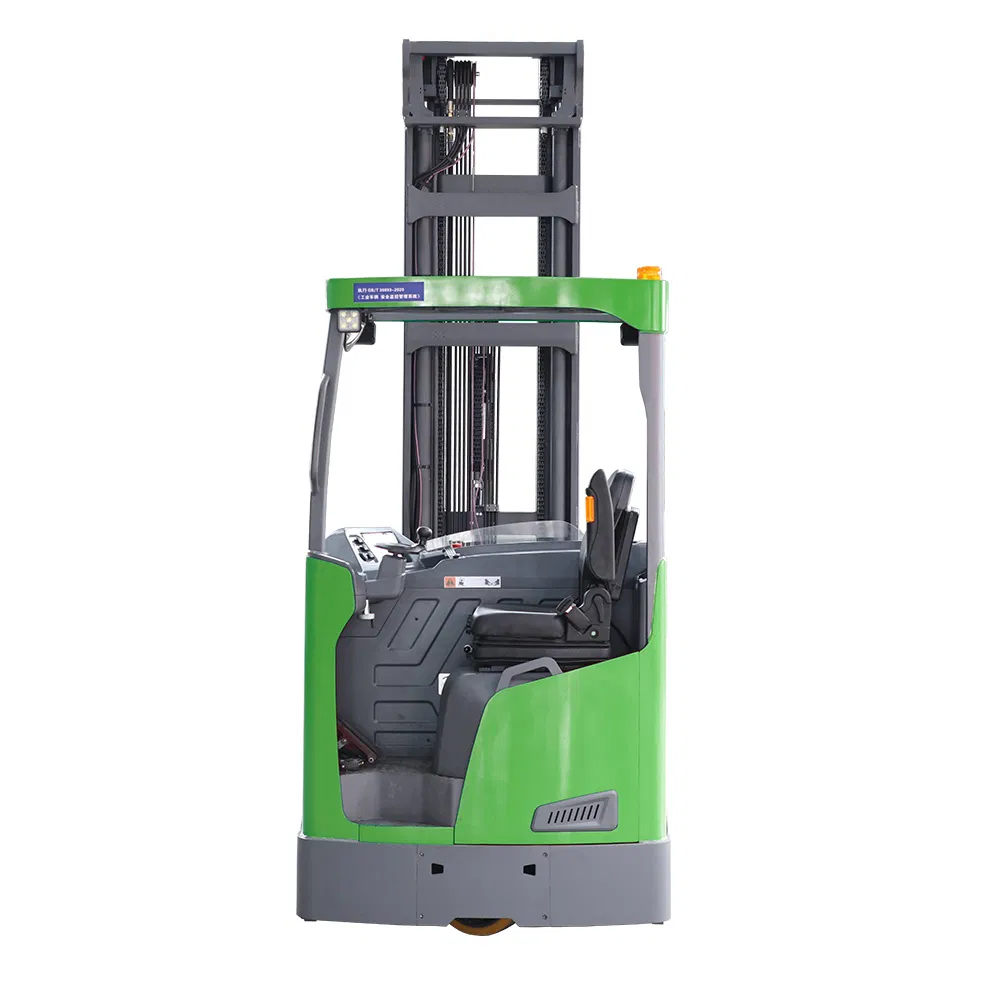

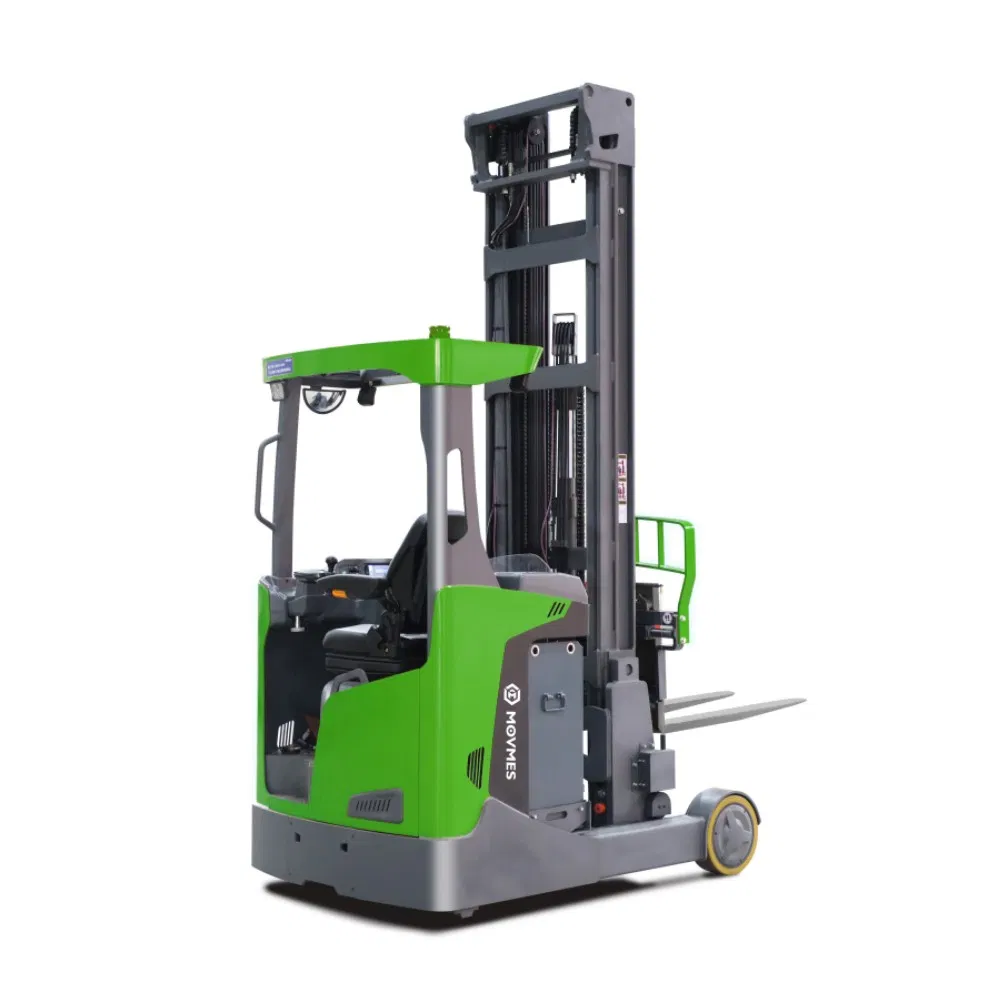

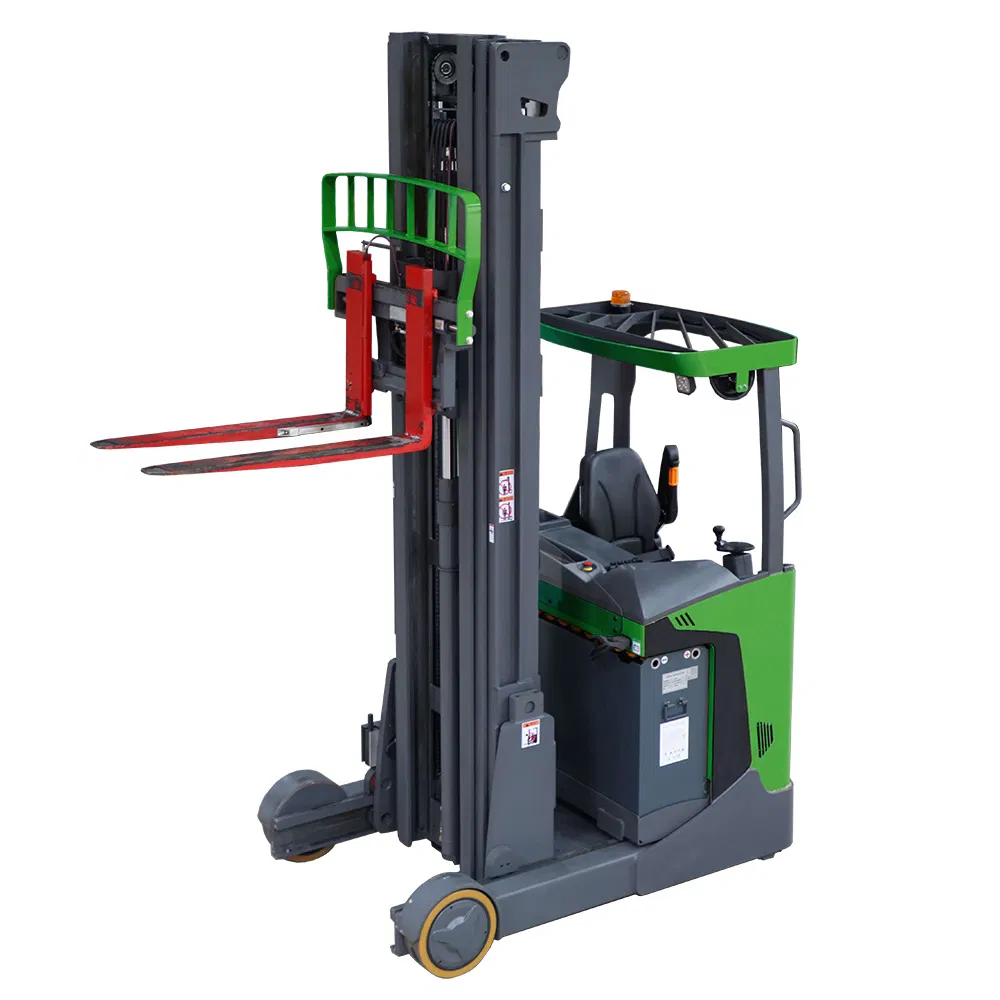

12m Electric Reach Truck 48V 2ton Forklift with Side Shifter Function Option Sit-Down Type Hydraulic Electric Reach Truck

1 / 5

12m Electric Reach Truck 48V 2ton Forklift with Side Shifter Function Option Sit-Down Type Hydraulic Electric Reach Truck

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

CQD20-D

Type

Stacker / Reach Truck

Power

AC Motor

Fuel

Electric

Load Capacity

1T - 5T (Rated 2000kg)

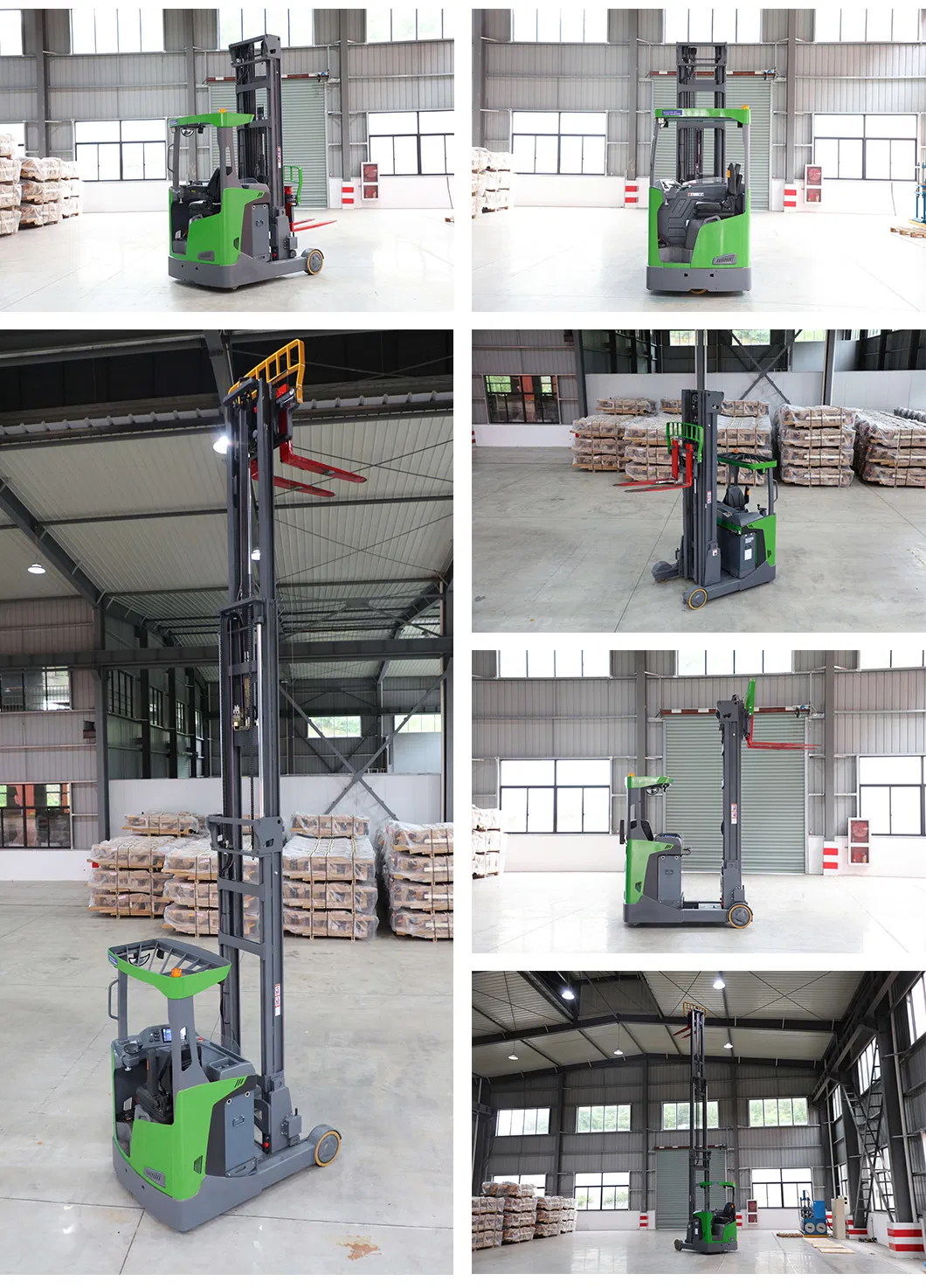

Lift Height

>5000mm (Up to 12.5m)

Wheel Material

PU (Polyurethane)

Battery Voltage

48V / 500 Ah

⚙️

Product Configuration

12m Electric Reach Truck 48V 2ton Forklift

High-performance sit-down hydraulic electric reach truck with side shifter function options, designed for narrow aisle warehouse operations.

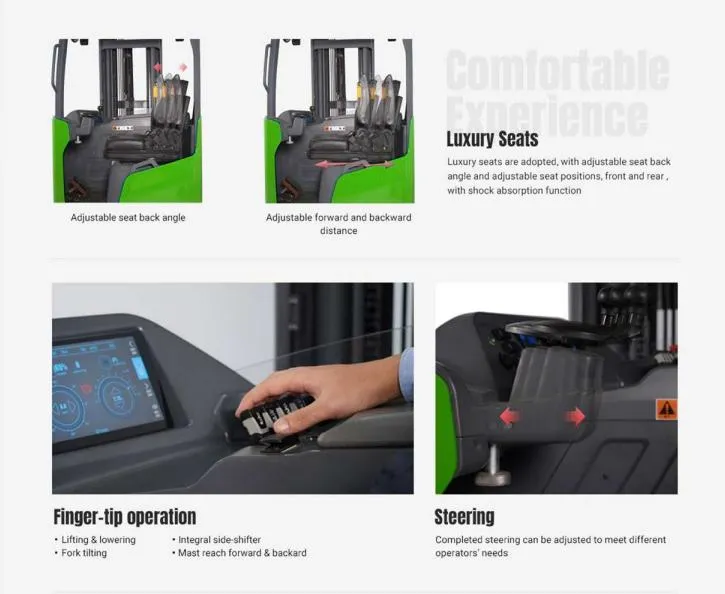

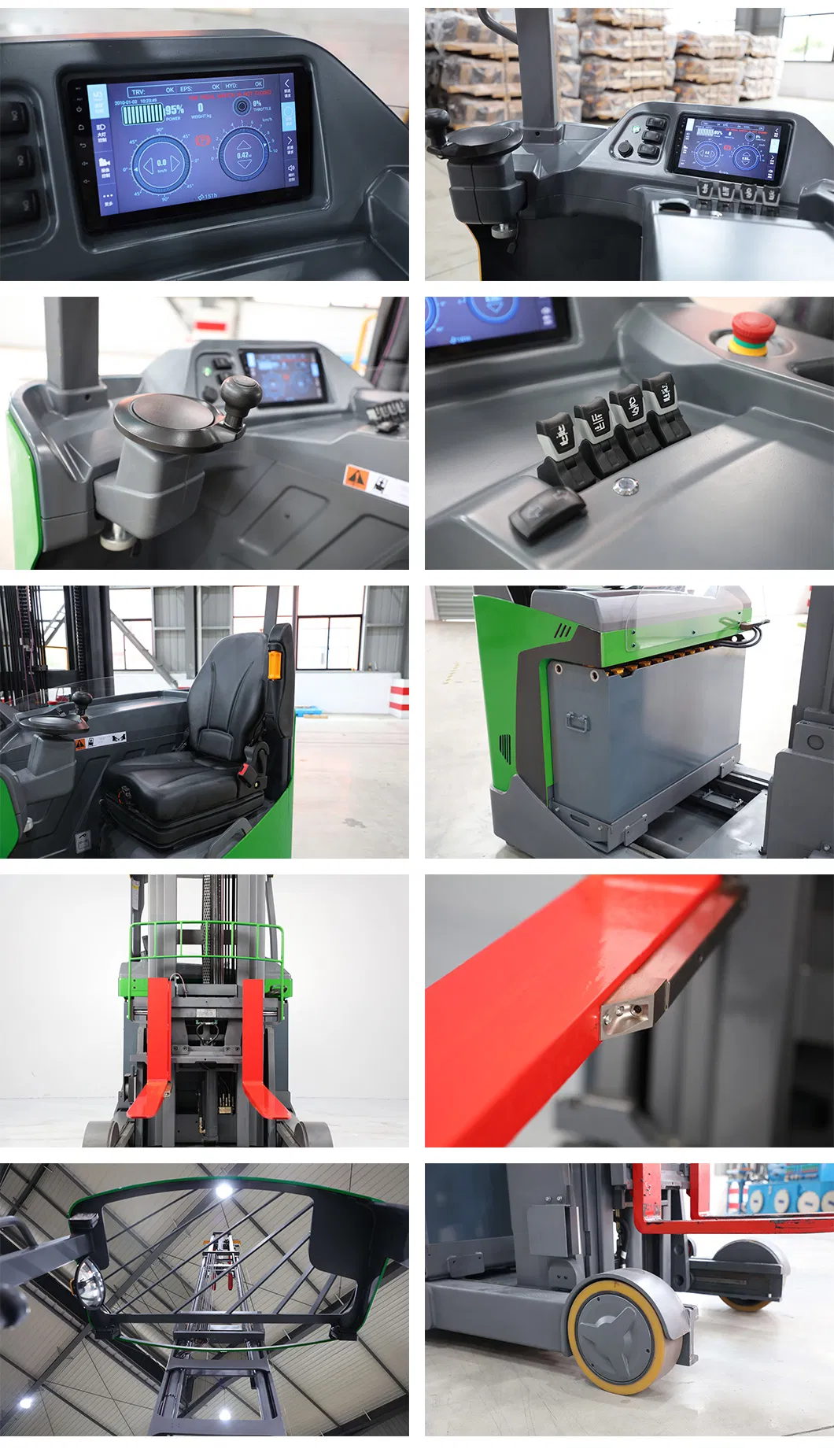

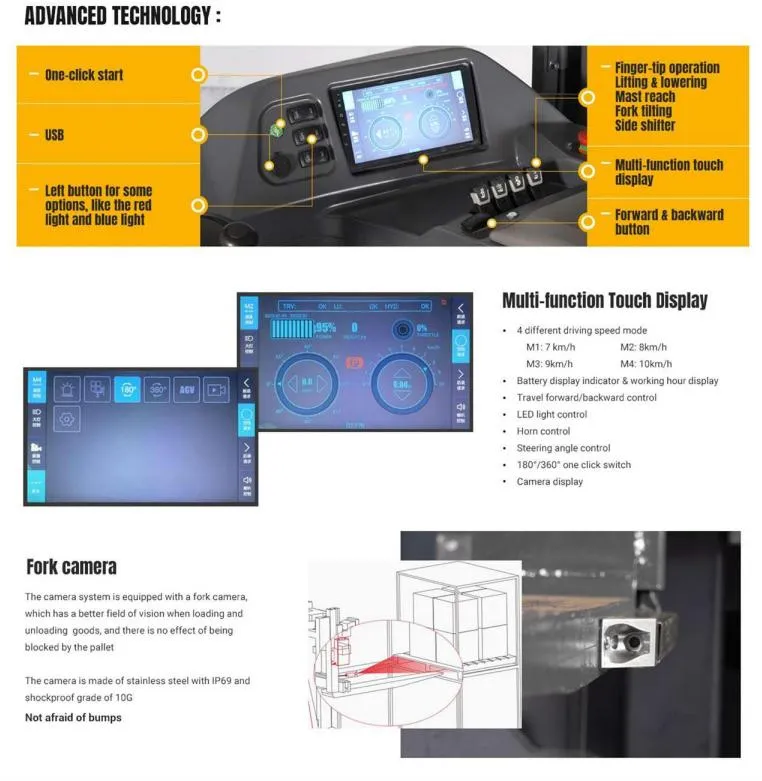

Finger-tip precision control
Multiple valve control system
48V Full AC power system
INMOTION Controller integration
Germany KORDEL Gear Box
Electric power steering (EPS)

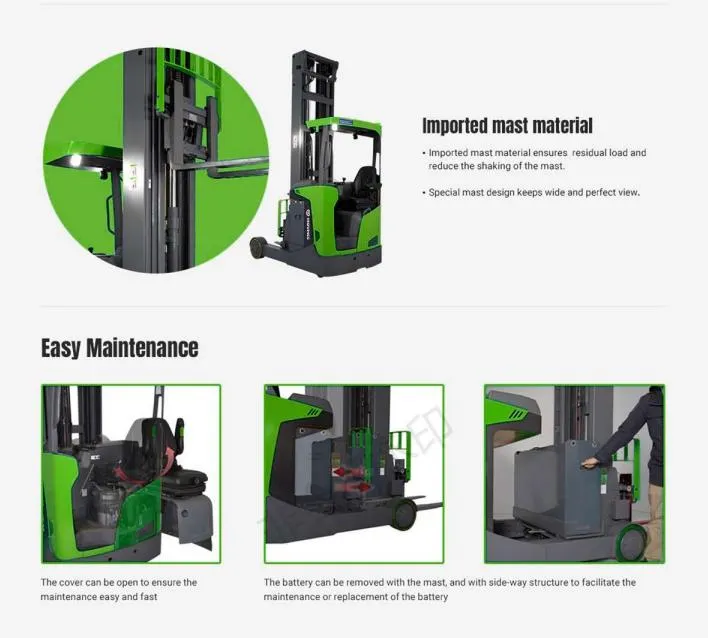

Imported mast steel material
Seat automatic power off safety

📊

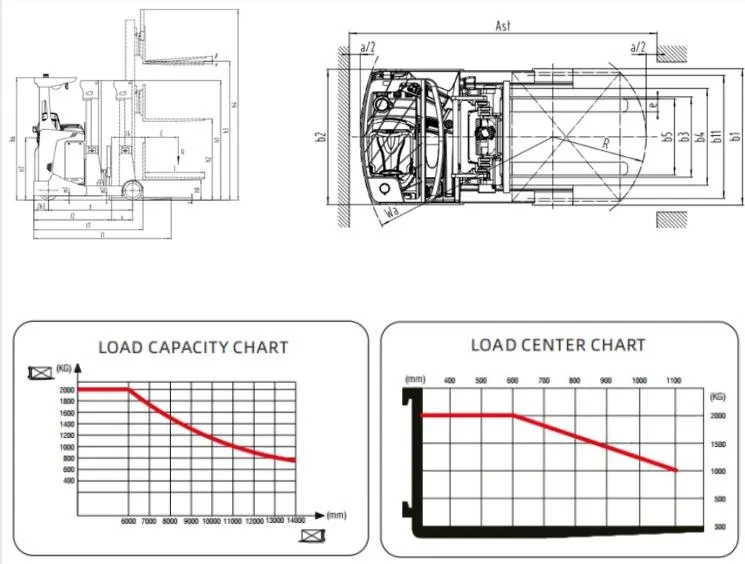

Technical Parameters

Description	Unit	CQD20-D (Standard)	CQD20-D (High Lift)
Rated capacity	kg	2000	2000
Load centre distance	mm	600	600
Wheelbase	mm	1510	1510
Service weight	kg	3605	4750
Tyre size, front	mm	Φ343×140	Φ343×140
Max. lift height (h3)	mm	3000-9500	10200-12500
Overall length	mm	2466	2466
Turning radius	mm	1783	1783
Travel speed (laden/unladen)	km/h	10.5/11	10.5/11
Lift speed (laden/unladen)	m/s	0.29/0.45	0.29/0.45

🏆

Quality Assurance & Certifications

CE Certified ISO9001:2008 ISO14001:2004 OHSAS18001:2007 TUV/GS Approved

With over 36 years of manufacturing experience, the facility spans 150,000m² and employs 1,200 staff, including 188 professional mechanical technicians and 77 senior engineers. Products are exported to 157 countries and regions worldwide.

🏭

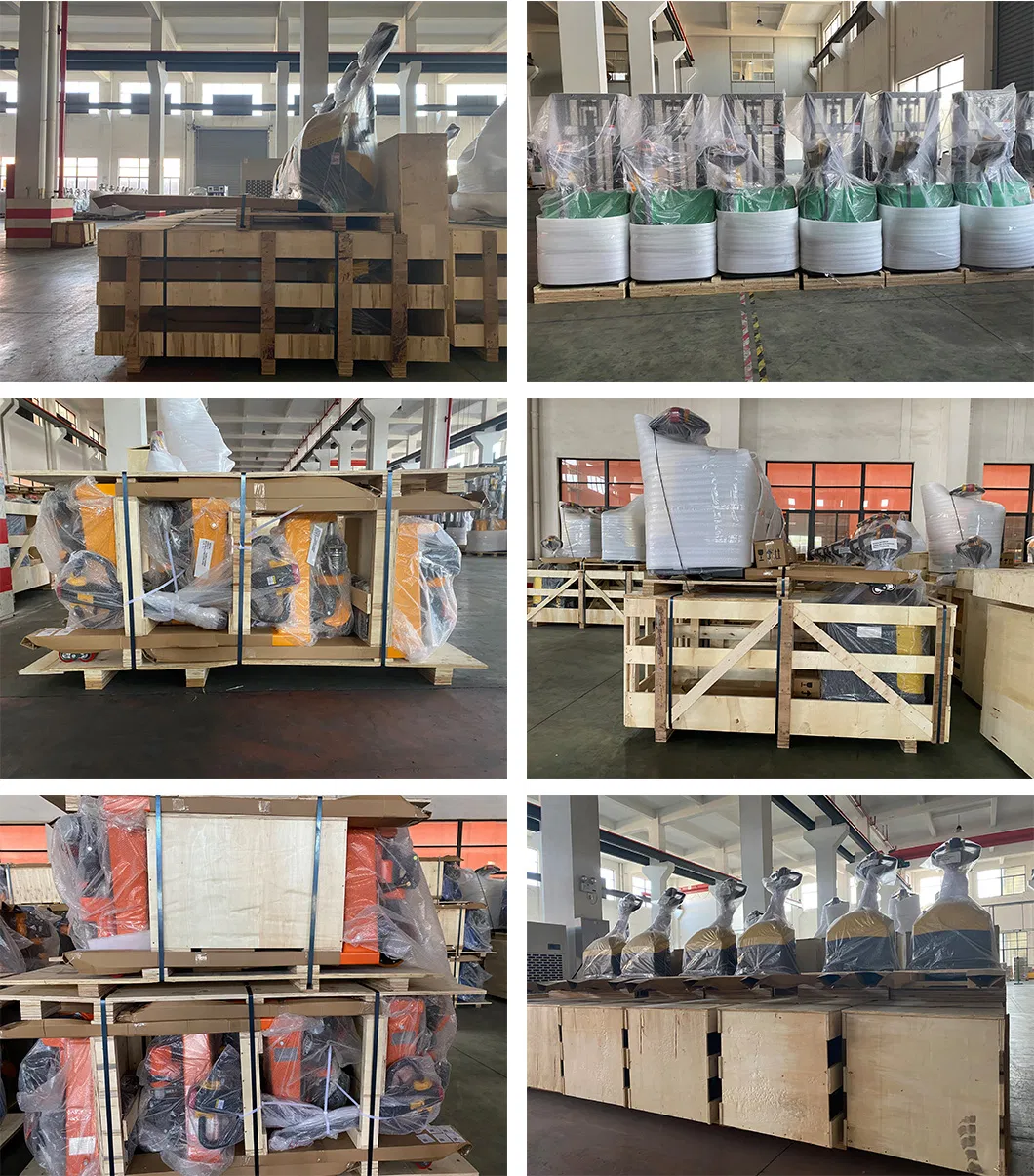

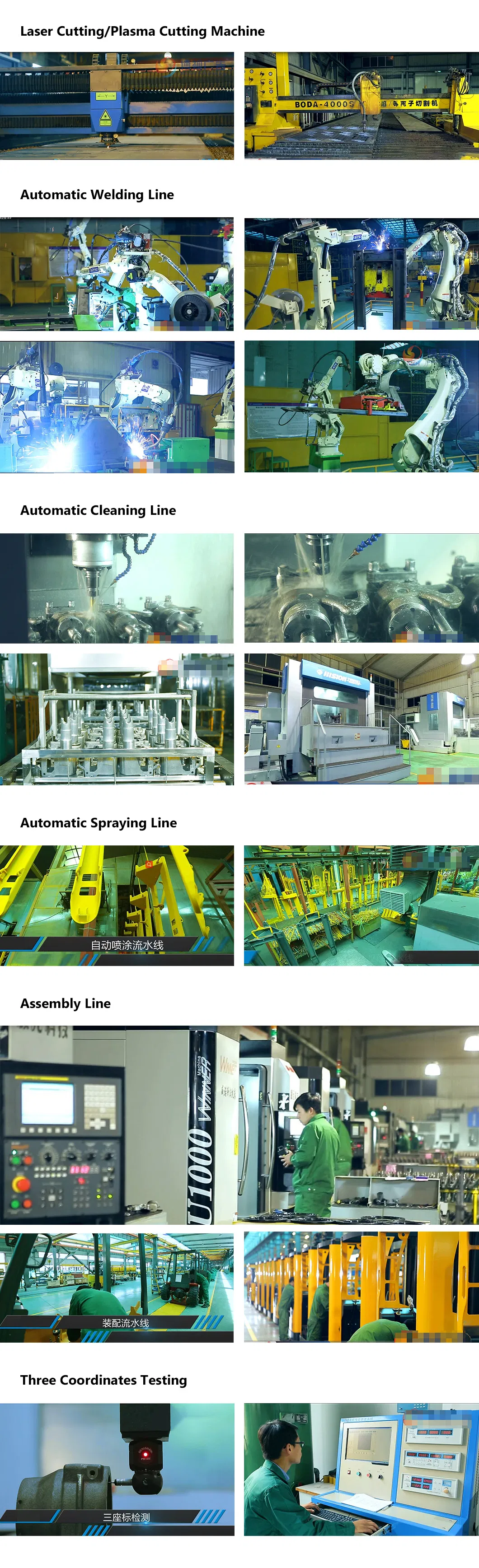

Factory Strength & Packing

❓

Frequently Asked Questions

How long is the continuous working time and charging duration?

The continuous working time is approximately 3-6 hours, depending on the battery volume and load conditions. A full charge typically requires 3 to 6 hours.

What are the charger specifications for the CQD20-D model?

The chargers are designed for 48V 500Ah Lead-acid or Lithium batteries. Power plugs can be customized to USA, UK, Australia, or European standards.

Are customized OEM or ODM services available?

Yes, with professional experience since 1985 in developing warehouse logistics equipment, OEM and ODM services are available for various global material handling brands.

What is the warranty period for this reach truck?

We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.

What is the maximum lifting height available?

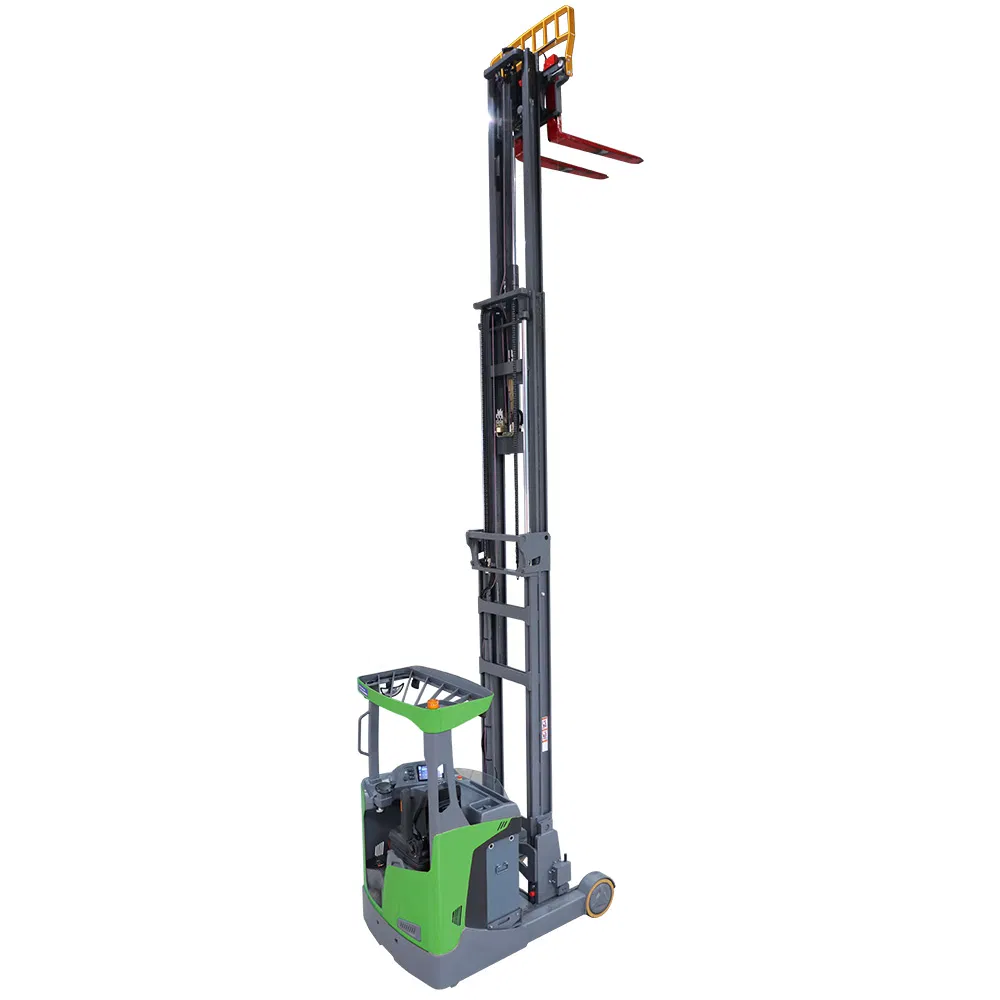

The CQD20-D series offers a wide range of mast options, with standard heights up to 9.5 meters and high-lift configurations reaching up to 12.5 meters.

What safety features are integrated into the sit-down reach truck?

The truck includes an Electric Power Steering (EPS) system, an automatic seat power-off function when the operator leaves, shock absorption, and LED warning lights for safe operation.
